FOSSiBOT F1200 Manual

Packing List

Product Introduction

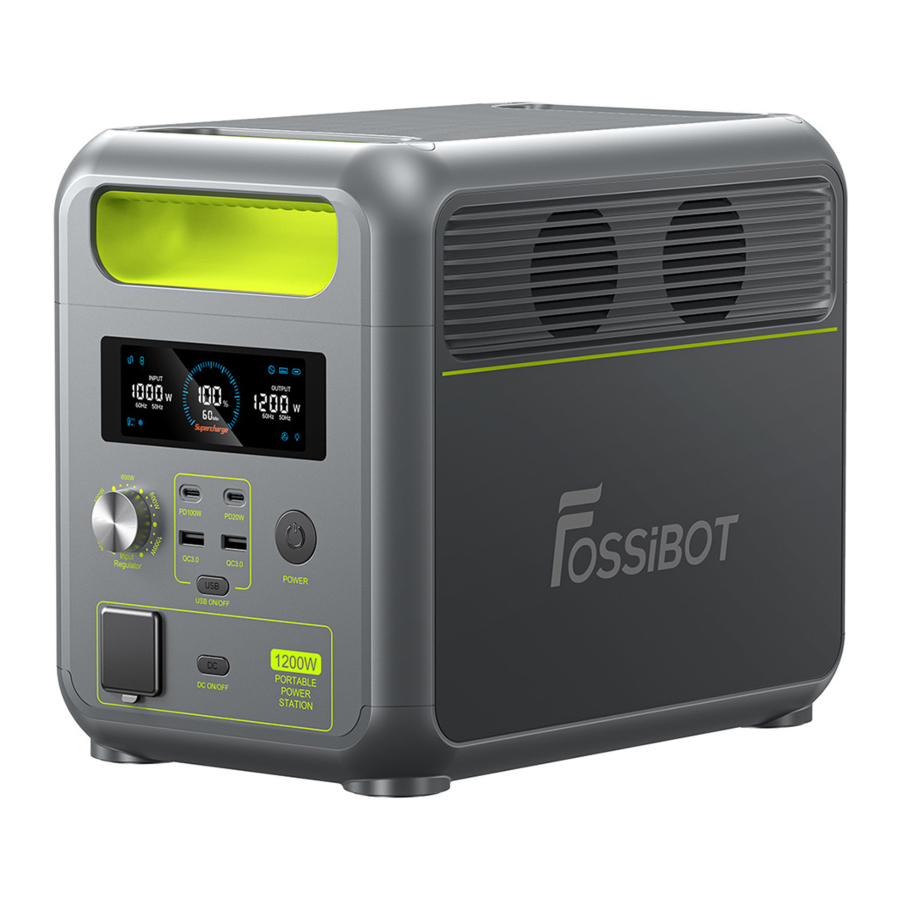

This product is a portable power device with a built-in battery pack with charge/discharge function. It includes both AC output interface and DC output interface such as USB output, cigarette lighter output, DC output, etc. It also has functions such as display, interface control, protection, and alarm. Moreover, this product can be charged by mains AC, solar panels and vehicle charging.
The following are the main features of this product:

• Equipped with LiFePO4 battery, the battery capacity is as high as 1024Wh, and the safety level is extremely high.
• 1200W pure sine wave AC output can meet almost all daily electronic equipment and small household appliances.
• Two-way fast charging technology is adopted to fully charge the product in about 1.2 hours.
• A great variety of output interfaces such as USB-A, Type-C PD3.0, cigarette lighter output, etc., meet many different application scenarios.
• In UPS mode, the switchover time is less than 10ms which is truly seamless switching.
• Multiple protection mechanisms such as battery, circuit, structure, etc., guarantee the product safety.

Button Function Introduction

1. Power ON/OFF Button
2. USB ON/OFF Button

3. DC ON/OFF Button
4. LCD Screen
5. Input Power Knob
6. Cooling Air Duct
7. AC Switch (manually switch to 50/60Hz)
8. Solar Input Port ( for solar panel)
9. AC Input
10. Overload Protection Button
11. LED Light Button (switch to different mode)

1. Power ON/OFF Button
   Instructions: Press and hold the power button for 3S to wake up the system, turn on the LCD display, and press and hold again for 3S to turn it off.
2. USB ON/OFF Button
   Instructions: Short press the USB button to turn on the USB output port, and short press again to turn it off.

3. DC ON/OFF Button
   Instructions: Short press the DC button to turn on the DC output port, and short press it again to turn it off.

4. LCD Screen
   Display the product's battery level and usage status tips.
5. Input Power Knob
   When the product is connected to the AC mains for charging, the power is adjusted according to the actual input voltage. The clockwise rotation increases the input power, and the counterclockwise rotation decreases the input power. It is worth noting that char ging this product at low power is beneficial for extending battery life.
6. Cooling Suction/Exhaust Port
   When the product reaches the temperature threshold set by the system, the cooling fan will automatically run, accompanied by a certain fan noise (fan noise below 60dB is normal). Do not block the cooling suction/exhaust port during use of this product, and do not place any object within the range of 30CM.
7. AC Switch (AC output port, the sum of electrical load power should be ≤1200W)
   Tap the AC button to enable the AC output function. Since there may be differences in the AC output frequency in different regions, if you need to switch the frequency, the operations are as follows: Press and hold the AC button for 3 seconds to enter the frequency switching mode, the 50Hz or 60Hz icon will flash on the display, short press the AC button again to select 50Hz or 60Hz; when the icon stops flashing and displays 50Hz or 60Hz, it indicates the switch is successful.
8. Solar Input Port
   This interface supports solar panel input or car charger input. For details, please refer to "Solar Panel Connection" of this manual and "Car Charging".
9. AC Input
   To charge the product by a household socket can achieve 1000W fast charging. It only takes about 1.2 hours to fully charge from 0 to 100%. When charging in this way, please pay attention to the following points:
   • Please directly plug in the wall socket to charge the product, do not use extensioncords or cable taps, otherwise there is a risk of damage to the extension cords and cable taps or even a fire.
   • If the extension socket is plugged in to charge this product, please do not connect other electrical appliances to this socket, otherwise the household meter may trip.
10. Overvload Protection Button
    When the power supply current is unstable due to lightning or other reasons, and there is a large current input at the AC Input, in order to protect the product, the overload protection function (safety circuit breaker) will activate and cut off the AC input port.
    Please follow the sequence below to restore the AC input function:
    1. Turn off the power button and unplug all ports.
    2. After confirming that there is no abnormality in each part, turn on the power button.
    3. Press the overload protection button, connect the AC Cable to restore the AC input.
11. Light Button
    Instructions: Short press the Light Button, the LED lights are all on; short press again, the LED light enters the SOS mode, short press in turn, enter the strobe mode, and finally the LED light turns off (LED in any mode, long press the light button for • 1 second, directly turn off the LED light).

Introduction of Display Interface

Screen Display Description
Power display: When the product is in the charging state, the battery progress bar rotates continuously in the form of a clockwise marquee, and the battery level percentage gradually increases; when the product battery level is 0, the battery level percentage icon flashes.
Input and output status: When the product is working, the total input power, total output power and the cursor corresponding to the working area will be displayed on the screen.
Alarm prompt: See the following troubleshooting sheet for details.

Troubleshooting Sheet

Phenomenon	Cause	Processing method
The above output icon flashes and beeps	The output exceeds the standard and it's short -circuited.	Remove the load, and then short press the switch in the area corresponding to the icon to remove the alarm.
The temperature warning icon flashes and beeps	The temperature of the productis too high or too low.	Take the product out of the charging state remove all loads, turn the power off, wait for the device to reach a suitable working temperature, then the alarm is removed.
The icon of connecting to the AC mains flashes and the product cannot be charged.	The charging cable is poorly connected.	Verify the connection status of the cable and the power supply.
	The overload protection function is enabled.	Turn off the power button and unplug all ports. After confirming that there is no abnormality in each part, turn on the power button. Press the overload protection button, connect the AC line to restore the AC input.

UPS mode

• UPS Feature
  This product has the function of backup uninterruptible power supply. The usage and operation precautions are as follows:
  As shown in Pic 1 below, when the product is connected between the wall socket and the electrical appliance, and the power supply and AC switch of the product are in the ON state, the product enters the UPS working mode. The AC mains in the socket supplies power to the electrical appliance through the bypass circuit, and also charges the product.
  • In UPS mode of the China, United Kingdom, Europe and South Korea, AC output of the maximum power below 1200W, AC output over 1200W," " AC output icon flashes indicating overload.

    As shown in Pic 2 below, when the AC mains at the socket end is disconnected, the bypass output inside the product stops working, the product switches to a bidirectional inverter circuit within 10ms, and the circuit outputs supply power to the electrical appliance to ensure that the electrical appliance is uninterrupted and works normally during the process.


Connection of Solar Panels

Under the condition of light, this product can be connected to the solar panel and getting charged. The charging power is determined according to the conditions of light and weather.
In this charging mode, we support solar panel input within 200W, and the input voltage cannot exceed 50V, otherwise the product abnormality caused by it will not be covered by the warranty.

• We recommend the following two charging schemes:
  Scheme one:
  Portable Power Station Charging Area

  Scheme Two:
  Portable Power Station Charging Area


Car/Vehicle Charging

When the car is in the process of starting, connect the car charging port on the car and the product through the car charging cable to charge the product. The connection method is shown in the picture below:
This product supports 12V/24V car charger charging, please pay attention to the following two points when using this method to charge:

• Please use it when the car started, otherwise the car battery may be exhausted.
• Vehicle charging power is usually in the range of 90W-120W, and the charging time is long.
  If fast charging is required, the AC mains charging is recommended.


Product Specifications

Battery Specifications

Precautions For Use

1. Please avoid long-term storage and use of this product in environ ments with high temperature and humidity or direct sunlight to avoid shortened battery life and other failures. The product should not be close to the fire source, otherwise it may cause a major fire or accident.
2. This product must not be disassembled or modified. Improper operation may cause product malfunction or even fire.
3. Be careful not to drop the product.
4. Please store or use this product out of the reach of children, otherwise the product may be dropped or collided and cause bodily injury to children.
5. Please use our original accessories, and we will not guarantee the defective products caused by the use of non-original accessories.
6. Please directly plug in the wall socket to charge the product, do not use extension cords or cable taps, otherwise there is a risk of damage to the extension cords and cable taps or even a fire; If the extension socket is plugged in to charge this product, please do not connect other electrical appliances to this socket, otherwise the household meter may trip.
7. When the product is not in use or idle, please turn it off and unplug the power cable. If it needs to be idle for a long time, please consume the product from a fully charged state to an uncharged state, then recharge it to about 50% of the battery level and store it. In order to prolong the life of the product, please take three months as a cycle, operate and keep it in this way.
8. If the product reaches scrap conditions, please discard or recycle the product in accordance with local laws.
