Hudora 72157, 72160, 72161, 72162 Manual

PART LIST

TECHNICAL SPECIFICATIONS

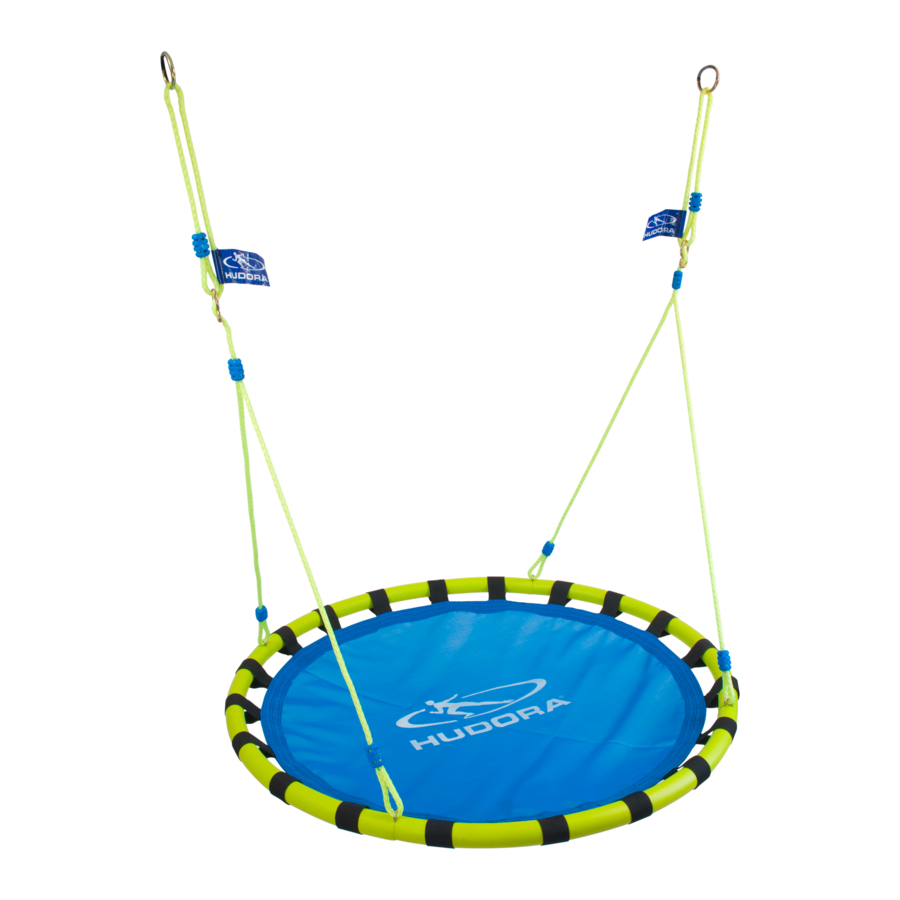

Item: Aluminium Nest Swing 120
Item No.: 72157, 72160, 72161, 72162
Maximum carrying capacity: 120 kg
Dimension: 120 cm Ø
Minimum age for use: 3 years
Purpose: Device powered by muscle power, for swinging in a sitting or lying position.
If you have assembly problems or would like further information on the product, we have all you need and more at http://www.hudora.de/.

CONTENTS

1 x Nest swing (cf. part list)
1 x These instructions
Other parts which may be included with the delivery in some circumstances are not required.

INSTRUCTIONS ON ASSEMBLY

Prior to installation, carefully select and check the location where you will install the swing. Please make sure that the swing carrier is adequately stable. Please also take into account that swinging produces centrifugal forces that can put a lot of strain on the swing carrier. Please consult an expert (statics expert, architect, carpenter) and ask how much load your swing carrier can tolerate. Remove the parts from the packaging and check that they are complete. Check that parts 2, 3, 4 and 7 are already assembled as in fig. A. Now spread the nest (5) on the ground. Insert part of the foam-covered tube frame (1) into each of the four side loops (fig. B), then insert the parts into one another. Ensure that one narrow and one wide tube end is put together in each case. Feed the screw hooks (2) from above into the tubular frame and tighten the nuts firmly (simplified illustration in fig. C). In order to provide for a firm and secure fit of the nut screw, please screw at least the entire height of the nut on the screw hooks (2). You can now hang the nest swing from a suitable swing frame using the retaining rings (3). Suspension connectors shall be of a design that will prevent unintentional disconnection.

HANGING DEVICE AND ADJUSTMENT

The hanging points must be at least as far apart as the swing seat + 100mm. The swing is packaged with two ropes and adjustment eyelets (4), so that the height of the swing can be variably aligned with any suitable hanging device. The swing rope (7) can be lengthened or shortened by pushing or pulling it through the adjustment loops (4). The hanging swing can now be individually adjusted. No one should sit on the swing while making the adjustments. When extending or reducing the length of the swing ropes please make sure that the ropes remain equally long at all times. If the lengths of the ropes differ, this will lead to circular pendulum movements of the swing. Make sure that swing is set up in such a way that the person using the swing cannot reach the ground with the tips of his or her toes. If in doubt, perform a few gentle test swings.

MAINTENANCE AND STORAGE

Use a dry or damp cloth only to clean the product; do not use special cleaning agents! Check the product for damage or traces of wear and tear before and after each use. Do not make any structural changes. For your own safety, please use original spare parts only. These can be sourced from HUDORA. If parts become damaged or if sharp edges or corners should develop, the product may not be used any more. If in any doubt, please contact our service team (http://www.hudora.de/service/). Store the product in a safe place where it is protected from the elements, cannot be damaged, and cannot injure anyone.
You should also replace all the plastic parts after a maximum of 5 years to prevent a possible failure of these parts.
Check the product for damage or traces of wear and tear before and after each use. We also recommend before each use:

• to check for the firm sitting of nuts and bolts, tighten if necessary
• to lubricate moving parts in order to minimize wear.
• to check all covers of screws and sharp edges and replace if necessary
• to replace defective parts according to the manufacturer's instructions
• to check swing seats, chains, ropes and other means of attachments for evidence of deterioration

SAFETY INSTRUCTION

•
  Only for domestic use.
•
  To be used under the direct supervision of an adult.
•
  Not suitable for children under 36 months. Danger of falling!
•
  Not suitable for children under 36 months due to long cords! Strangulation hazard.
•
  Suitable for outdoor and indoor use!
• The owners of the swing as well as the competent supervisory personnel are responsible for ensuring that all users follow the instructions in the operation manual.
• Do not make any technical modifications.
• Changes to the original product must only be carried out according to manufacturer specifications.
• No one is permitted to gain access to the swing area during use.
• Never stand or kneel on the swing.
• Always hold yourself firmly with both hands.
• No objects of any kind must be in the vicinity of the swing zone (trees, walls, fences, clotheslines).
• Make sure that you have a safety clearance of at least 2 m (front and back) beyond the maximum reach of the swing and make sure the ground is level and shock absorbing (e.g. grass) without any sharp edges or pointed objects, obstacles, inclines, levels, steps or hard surfaces (e.g. concrete) etc.
• Clearance to stationary components on the side, such as the swing scaffolding must be at least 40 cm.
• Swinging components, such as a neighboring swing must be placed at a distance of at least 60 cm.
• Maximum raised height must not exceed 2.5 meter as measured from the ground.
• In idle mode, the swing must be at least 40 cm and maximally 60 cm from the ground.
• You should never install a swing in such a way that the user could be blinded by sun rays.
• The self-locking effect of the self-locking nuts or else lacquer can subside after repeated loosening and tightening of the connection elements.
• When permanently irradiated with UV light, the material ages significantly faster, which can have hazardous safety consequences. To avoid premature aging and thereby extend the service life, you should always store the product in a dry and dark place when not in use. Do not permanently expose the product to wind, moisture, extreme temperatures or sunlight.

SERVICE

We make every effort to deliver faultless products. If faults do arise however, we put just as much effort into rectifying them. You can find numerous information on the product, replacement parts, solutions to problems and lost assembly manuals at http://www.hudora.de/service/.
