FTS14TG PUSHBUTTON GATEWAY AND PUSHBUTTON BUS COUPLER AND BUS SWITCH

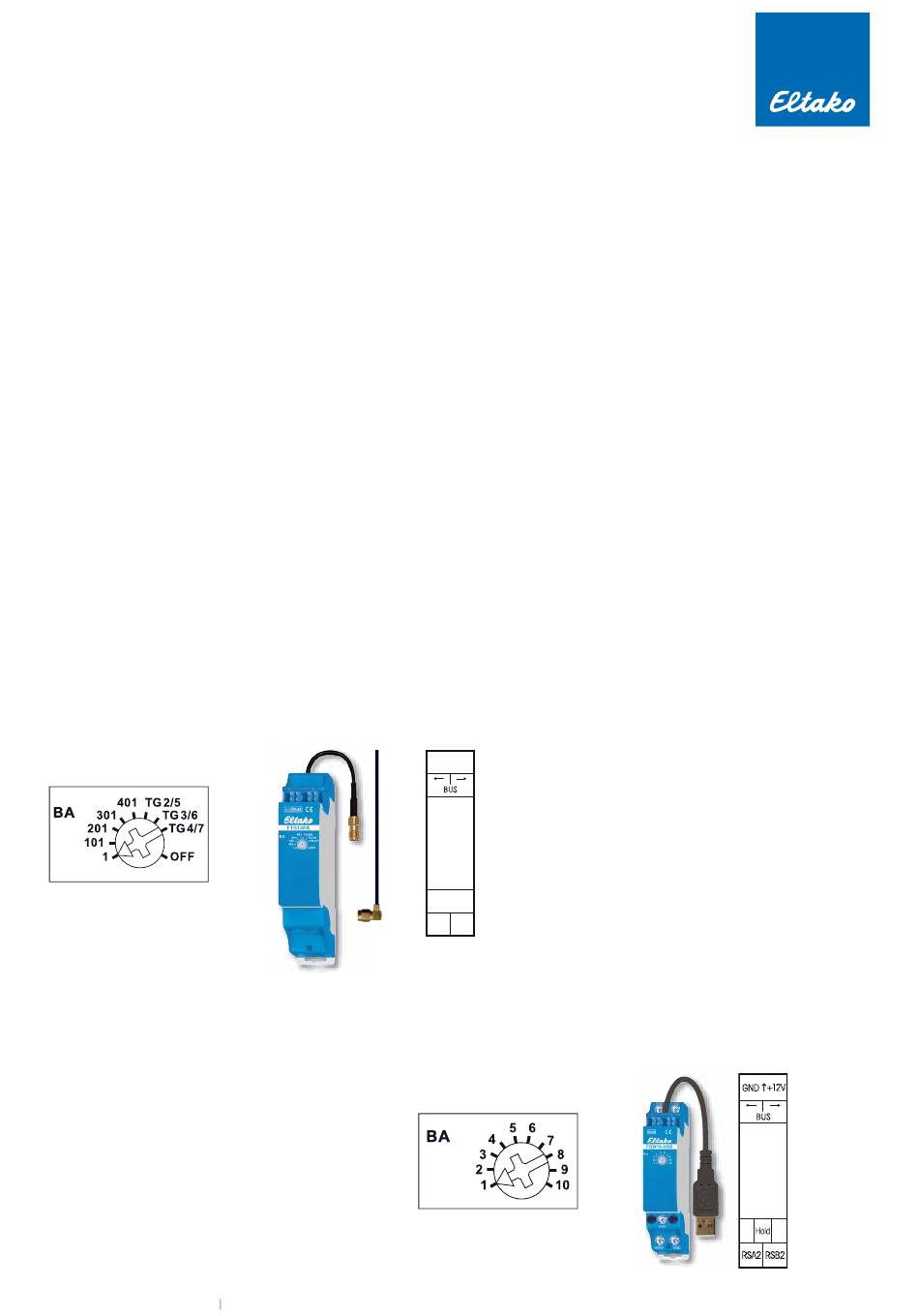

FTS14FA optional:
All sensor telegrams generated by the FTS14EM or FTS14TG can be sent directly to the radio system using an FTS14FA radio output
module. The device class set on the FTS14EM (button, window contact or motion detector) is adopted. This makes it possible, for
example, to control decentralised actuators whose button wire is connected to the distribution board on the FTS14EM. These tele-
grams can also paired with a controller (Minisafe2, wibutler).
The rotary switch determines which group it belongs to. This refers to the set ID ranges of the FTS14EM input modules or button gateway
FTS14TG. The content of the sensor telegram is copied and sent to the ELTAKO radio system with a new ID. A maximum of 8 FTS14FAs can be
connected to a bus. No further setting using the PCT14 software is necessary.
Alternatively, the FTD14 radio duplicator is also available. Here, individual IDs from different groups can be sent with just one device.
To do this, the sensor IDs must be entered in advance using the PCT14 software.
Rotary switch on FTS14FA at Position 1: Sends telegrams of all FTS14EMs set to 1.
Rotary switch on FTS14FA at Position 101: Sends telegrams of all FTS14EMs set to 101.
Rotary switch on FTS14FA at Position 201: Sends telegrams of all FTS14EMs set to 201.
Rotary switch on FTS14FA at Position 301: Sends telegrams of all FTS14EMs set to 301.
Rotary switch on FTS14FA at Position 401: Sends telegrams of all FTS14EMs set to 401.
Rotary switch on FTS14FA at Position TG2/5: Sends telegrams to all FTS14TGs which are at 2 or 5.
Rotary switch on FTS14FA at Position TG3/6: Sends telegrams to all FTS14TGs which are at 3 or 6.
Rotary switch on FTS14FA at Position TG4/7: Sends telegrams to all FTS14TGs which are at 4 or 7.
Rotary switch on FTS14FA at Position OFF: The FTS14FA is switched off.
The green LED under the rotary switch fl ashes briefl y when a wireless telegram is sent.
Incoming telegrams from an FAM14 device in the bus are not resent by the FTS14FA.
Operating mode rotary switch
Standard setting ex works.
FGW14-USB:
The gateway has multiple uses: to connect a Smart Home central control unit GFVS-SafeIV or a PC via a USB interfaces, to couple up
to three FEM devices, to connect to bus components of the older Series 12, or as bus connector for two Series 14 RS485 buses.
When an ID is transferred via the gateway, the green LED blinks briefl y. The maximum permitted cable length for USB is 4.5m.
Longer sections can only be operated reliably by using an active USB hub.
Overview of rotary switch functions:
Pos. 1: Bus12 -> Bus14 Operating mode rotary switch
Pos. 2: Bus12 -> Bus14 with ID fi lter
Pos. 3: Bus14 -> Bus12
Pos. 4: Bus14 an RSA2/RSB2 -> Bus14 with ID fi lter
Pos. 5: Bus14 <-> USB 9600 Baud
Pos. 6: Bus14 <-> USB 58K Baud
Pos. 7: CLR ID 9600 Baud
Pos. 8: LRN ID 9600 Baud Standard setting ex works.
Pos. 9: PCT14 communication
For a more detailed description see the operating instructions
