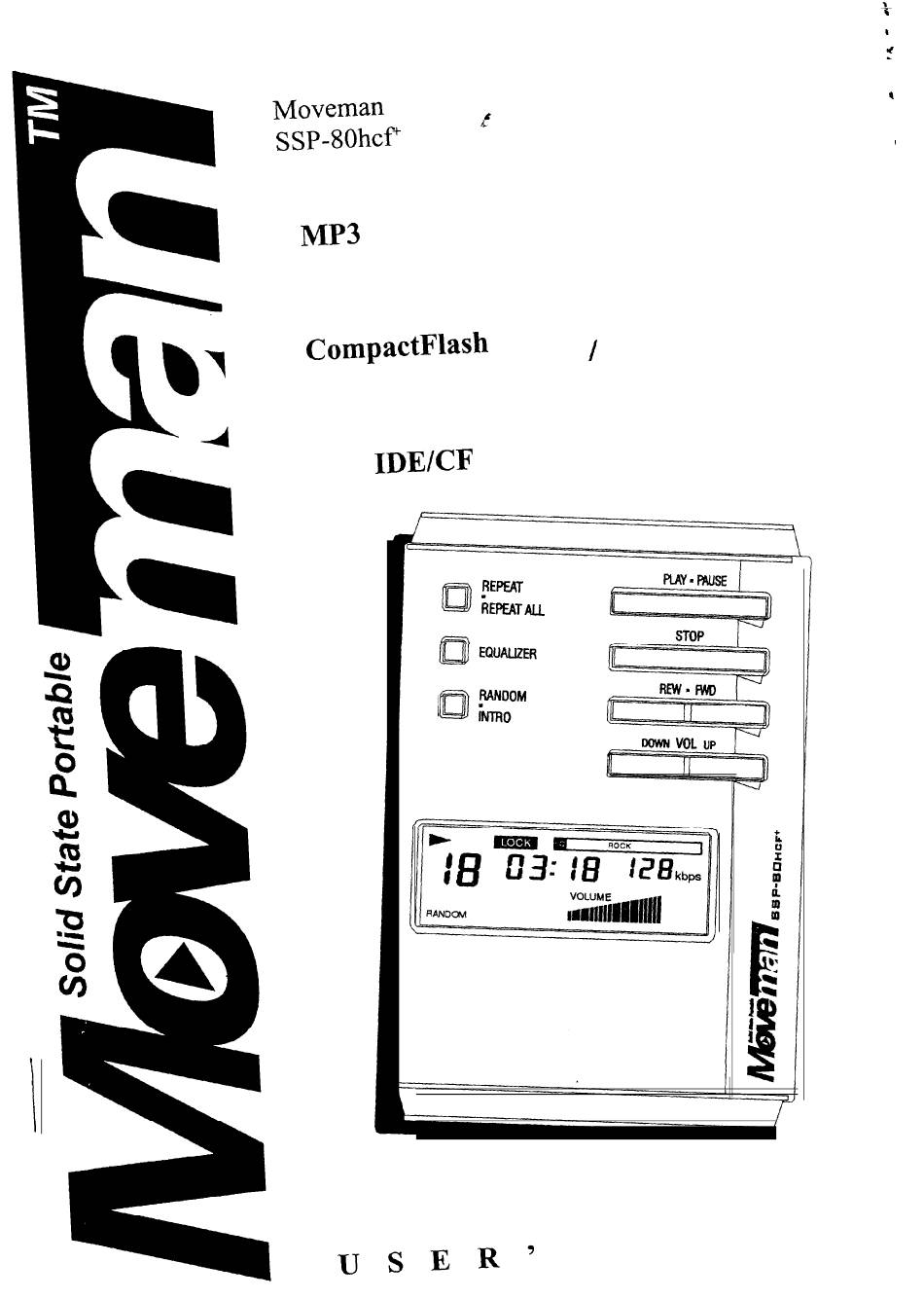

- Page 1 Portable Digital Audio Player (MP3) Extra Large LCD Display Memory Card Compatible Fast IDUCF Internal Drive (Optional) U I D E...
- Page 2 User’s Guide Thank you for buying Moveman Portable Digital Audio Player (MP3). Please read this manual carefully before operating your set. Retain it for future reference. Design and specifications are subject to continuous improvement without prior notice.
- Page 3 Contents Caution. What is MP3 Digital Audio? What is Moveman? Check package contents. System requirements. Installing batteries. Installing IDE/CF internal drive (Optional Accessory). Using CompactFlash memory cards with optional IDE/CF internal drive. Player controls. Using Moveman player. 11 - Troubleshooting.
-
Page 4: What Is Mp3 Digital Audio
The output is never distorted or interrupted even if? c enjoy C quality music With Moveman you everywhere and anytime! - Page 5 MP3 files are downloaded from the computer to CompactFlash (CF) memory cards. Moveman comes with a CompactFlash (CF) type II slot to accommodate the memory card. A wide range of CF memory cards with capacities currently up to 320 MB equivalent to 6 hours CD quality music are...
- Page 6 Check package contents Your Moveman package includes the items below. Please contact your dealer in the unlikely event something is missing. User’s Guide V ‘AAA” size batteries Optional: Quality Stereo Headphones Optional: Quality Stereo Earphones Optional: IDE/CF Internal Drive Optional: CompactFlash memory card Optional: CD with Encoding &...
-
Page 7: System Requirements
PC with Pentium CPU or higher OS Microsoft Windows 95/98 IDE/CF Internal Drive, USB CompactFlash External Drive, Parallel Port (PCMCIA) 6. Installing batteries consumption up to IO hours playback is possible. Install new batteries if operation buttons do not work. Caution: Device may be reset through electrostatic discharge! Electrostatic discharge may occur in dry environment. -
Page 8: Main Board
Please refer to your PC’s manual for specific information in regard to mainboard. Attention: If you are not sure ask a qualified person for assistance. Installation procedure: 1. Opening PC case Make sure computer is shut down and switched off Disconnect all power plugs Open the case of your PC 2. - Page 9 scenario Typical in a IDE connector 1 IDE connector 2 Master ~3 CD-ROM drive Set jumper on IDE/CF Internal Drive “slave” ~3 remove jumper Remark: Keep the jumper for future use. Connect IDE/CF Internal Drive to IDE connector 2 Make sure to know jumper settings (master / slave) of all IDE devices. Then determine appropriate setting for IDE/CF Internal Drive.
- Page 10 4. Install IDE/CF Internal Drive into PC 3.5” Fix adapter-into available drive bay Secure by screws (included) Connect adapter to available IDE connector by IDE flat cable Make sure red wire is connected to pin I located at the side of power jack Remark: Pin I is power supply to IDE/CF Internal Drive by power cable Connect internal...
- Page 11 CF memory card into slot marked ‘CF - I & II’ at front side of IDE/CF Insert Drive prior to switching on your PC. Internal Neveruseextensiveforcewhileipserting CF memory card. The CF memory card will still look out of the IDE/CF Internal Drive when fully inserted in order to pull it out.
- Page 12 Make sure that ‘MODE’ is set to ‘AUTO’ the corresponding location of the so by highlighting the corresponding ‘MODE’ box. Change the mode by using <PageUp> and/or <PageDown> keys. Press <ES0 to return to main menu. Highlight ‘SAVE & EXIT SETUP’ and press <Enter>. Answer ‘Y‘...
- Page 13 prior to usek New CF memory cards must be partitioned and formatted Partitioning CF memory card You can partition a CF memory card jusP-‘as any other hard disk drive. Important: You must create a Primary DOS Partition! To partition: Caution: All data on CF memory card may be lost after partitioning! Partitioning requires running a command prompt program called ‘fdisk’.
- Page 14 Once formatted you can transfer files from and to CF memory card, as you would do with any other hard disk or floppy disk. Important: placed into Files must be root directory of CF memory card! Open ‘Explorer’: Right click’Start’ button Highlight ‘Explore’...
-
Page 15: Player Controls
Repeat / Repeat All - Equalizer Mode - Random / Intro - LCD - Lock / Unlock - Eject (Memory Card) Power On / Off - Battery Case -... - Page 16 10. Using--Moveman p l a y e r Power O/V/OFF(Left side of player w/ power slide switch) 1. Sliding switch to ON position turns power on. 2. Sliding switch to OFF position turns power off. Attention: Turn power off when player is not used for playback. This helps usin the battery capacity more efficiently.
-
Page 17: Troubleshooting
3. Press button again to resume normal operation. 11. Troubleshooting In case your Moveman doesn’t work, check following prior to calling for service. nothing is displayed on LCD size 1.5 V Alkaline batteries are required. Check polarity (+, -) of batteries. -
Page 18: Specifications
(98 x 64 x 17.5) mm Size Weight 62 g 2 x ‘AAA’-size 1.5 V Alkaline battery Power Slot for CompactFlash (CF) type I & II memory Memory cards. Max. memory depends on CF memory card capacity (2 MB to 320 MB) 32 - 320 kbps, VBR Decoding Rates 20 Hz - 20 kHz...
