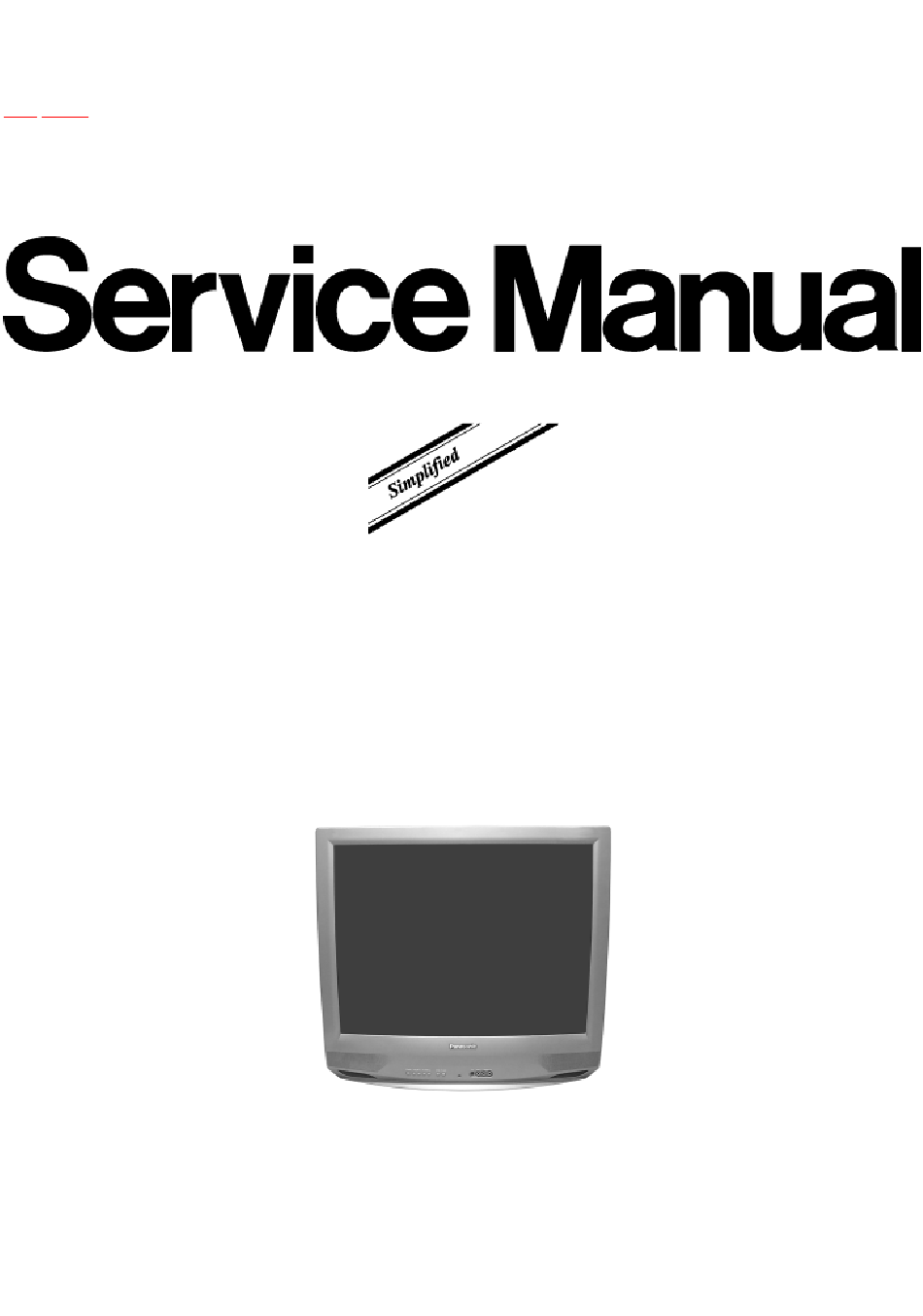

Service Manual
TOP NEXT
MTNC040628A1
B05
Color Television
CT-32G9J
●
CT-32G9UJ
CT-32G19J
CT-32G19UJ
GN3
This simplified service manual is issued to add listed models to the main service manual order No. MTNC030623C1(CT-25L8G)
and to the simplified service manual order No. MTNC030727A1(CT-32G8G). A complete parts list and schematics are included
in thissimplified service manual. Please file and use this simplified service manual together with the main service manual order
No. MTNC030623C1(CT-25L8G) and simplified service manual order No. MTNC030727A1(CT-32G8G).
Copyright 2004 Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a
violation of law.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-32G9J and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic CT-32G9J

Summary of Contents for Panasonic CT-32G9J

  • Page 1 Service Manual TOP NEXT MTNC040628A1 Color Television CT-32G9J ● CT-32G9UJ CT-32G19J CT-32G19UJ This simplified service manual is issued to add listed models to the main service manual order No. MTNC030623C1(CT-25L8G) and to the simplified service manual order No. MTNC030727A1(CT-32G8G). A complete parts list and schematics are included in thissimplified service manual.
  • Page 2 TOP NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0000000000.html (2 z 2) [2009-08-30 10:43:08]...

  • Page 3: Safety Precautions

    Do not use a line isolation transformer when testing. Leakage current cold check Unplug the A.C. cord and connect a jumper between the two plug prongs.Measure the resistance between the jumpered AC plug and expose metallic parts such as screwheads, antenna terminals, file:///C:/AA/NA/CT-32G9J/SIMP/s0100000000x.html (1 z 3) [2009-08-30 10:43:13]...
  • Page 4 1 second. Confirm that the current measurement is 0.5mA ~ 2.0mA. Repeat test with other metallic exposed parts. X ray radiation WARNING The potential source of x ray radiation in the TV set is in the high voltage section and the picture tube. file:///C:/AA/NA/CT-32G9J/SIMP/s0100000000x.html (2 z 3) [2009-08-30 10:43:13]...
  • Page 5 Horizontal oscillator disable circuit test This test must be performed as a final check before the receiver is returned to the customer. See horizontal oscillator disable circuit procedure check in this manual. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0100000000x.html (3 z 3) [2009-08-30 10:43:13]...

  • Page 6: Service Notes

    2. Without pulling up, carefully twist the component with tweezers to break the adhesive. 3. Do not reuse removed leadless or chip components since they are subject to stress fracture during removal. Chip component installation 1. Put a small amount of solder on the board soldering pads. file:///C:/AA/NA/CT-32G9J/SIMP/s0200000000x.html (1 z 4) [2009-08-30 10:43:17]...
  • Page 7 A small awl can be used instead of the iron wire. 3. Remove the solder from all the pads of the Flat IC by using a de solder braid file:///C:/AA/NA/CT-32G9J/SIMP/s0200000000x.html (2 z 4) [2009-08-30 10:43:17]...
  • Page 8 CAUTION The power supply circuit is above earth ground and the chassis cannot be polarized. Use an isolation transformer when servicing the receiver to avoid damage to the test equipment or to the chassis. file:///C:/AA/NA/CT-32G9J/SIMP/s0200000000x.html (3 z 4) [2009-08-30 10:43:17]...
  • Page 9 Connect the test equipment to the proper ground(hot) or (cold) when servicing, or incorrect voltages will be measured. 2.1 X-Ray Protection Circuit Check & Adjustments TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0200000000x.html (4 z 4) [2009-08-30 10:43:17]...

  • Page 10: X-Ray Protection Circuit Check& Adjustments

    2. Connect the receiver to an isolation transformer. 3. Connect the ammeter serial from the flyback anode lead to the picture tube anode socket. 4. Prepare short jumper and HHS jig. Procedure: 1. Connect the short jumper between TPD16 & TPD17. file:///C:/AA/NA/CT-32G9J/SIMP/s0201000000.html (1 z 2) [2009-08-30 10:43:19]...
  • Page 11 7. Set current within 50μA to 100μA by changing the picture and bright controls. 8. Slowly increase AC voltage at the input of the isolation transformer and confirm HHS voltage measure 34kV 9. Turn power off and remove jigs. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0201000000.html (2 z 2) [2009-08-30 10:43:19]...

  • Page 12: Eeprom Replacement

    7. Once that all 3 registers are set with the correct address value, perform all of the remaining adjustments and servicing. IMPORTANT: Correct ID switch configuration should be input when replacing EEPROM for each television model, otherwise if wrong values are configured, the television software will not function accordingly and file:///C:/AA/NA/CT-32G9J/SIMP/s0300000000x.html (1 z 2) [2009-08-30 10:43:22]...
  • Page 13 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0300000000x.html (2 z 2) [2009-08-30 10:43:22]...

  • Page 14: About Lead Free Solder (Pbf)

    Pb solder. If thisis not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. After applying PbF solder to double layered boards, please check the component side for ● excess solder which may flow onto the opposite side. file:///C:/AA/NA/CT-32G9J/SIMP/s0400000000x.html (1 z 2) [2009-08-30 10:43:25]...
  • Page 15 There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also beused. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0400000000x.html (2 z 2) [2009-08-30 10:43:25]...

  • Page 16: Receiver Feature Table

    770x535x694mm30.31x21.14x27.32in WEIGHT (Kg/Lbs) 49.5/109.12 VIDEO INPUT JACK 1Vp-p 75Ω, phono jack AUDIO INPUT JACK 500mV RMS 47kΩ HEADPHONE JACK Note: Specifications are subject to change without notice or obligation. Dimensions and weights are approximate. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0500000000x.html [2009-08-30 10:43:27]...

  • Page 17: Board Description Table

    BOARD PART NUMBER DESCRIPTION TNP2AH060KD MAIN BOARD TNP2AA167KA CRT BOARD NOTE When ordering a replacement board assembly, append an S to the board number EXAMPLE To order the A Board, for CT-32G9J the replacement board is TNP2AH060KD. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0600000000x.html [2009-08-30 10:43:30]...
  • Page 18 7 TV Location of controls TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0700000000x.html (1 z 2) [2009-08-30 10:43:32]...
  • Page 19 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0700000000x.html (2 z 2) [2009-08-30 10:43:32]...

  • Page 20: Location Of Controls (Remote)

    8 Location of controls (remote) TOP PREVIOUS NEXT 8.1 EUR7713010 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0800000000x.html [2009-08-30 10:43:37]...
  • Page 21 8.1 EUR7713010 TOP PREVIOUS NEXT Note: For additional information about this remote please refer to the owners manual section remote operation, listed on the parts list section. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0801000000.html [2009-08-30 10:43:41]...
  • Page 22 (near the wire opening) and carefully pull on the wire. To connect the focus wire, press on the tab to lock it then insertthe wire in the opening and press on it until it is fully inserted and locked in place. Focus cable release file:///C:/AA/NA/CT-32G9J/SIMP/s0900000000x.html (1 z 2) [2009-08-30 10:43:44]...
  • Page 23 Each speaker is secured to the cabinet with 4 screws. NOTE When reassembling speakers be sure to connect the speaker wires to the correct speaker lead (+) (-) 9.1 Disassembly for CRT replacement 9.2 Back Cover Removal TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0900000000x.html (2 z 2) [2009-08-30 10:43:44]...

  • Page 24: Disassembly For Crt Replacement

    CRT. To remove and remount the degaussing coil: Unhook the coil spring from the bottom corners of the CRT ears. Release the braid loop from the upper corners of the CRT ears. file:///C:/AA/NA/CT-32G9J/SIMP/s0901000000.html (1 z 2) [2009-08-30 10:43:53]...

  • Page 25: Important Notice

    8. Replace the components on CRT neck and reinstall into cabinet. Verify that all ground wires and circuit board plugs get connected. IMPORTANT NOTICE When ordering the CRT, please order CRT and CRT kit also. Please see parts list section for part numbers TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0901000000.html (2 z 2) [2009-08-30 10:43:53]...

  • Page 26: Back Cover Removal

    9.2 Back Cover Removal TOP PREVIOUS NEXT Back Cover TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s0902000000.html [2009-08-30 10:43:56]...

  • Page 27: Chassis Service Adjustment Procedures

    Connect the (-) lead of the voltmeter to the appropriate ground. Use IC801s heat sink when the HOT ground symbol is used. Otherwise, use COLD ground (Tuner shield, IC451s heat sink or FA2). Component and Voltage Test Points Note: file:///C:/AA/NA/CT-32G9J/SIMP/s1000000000x.html (1 z 2) [2009-08-30 10:43:58]...
  • Page 28 1. Select an active TV channel and confirm that horizontal is in sync. 2. Adjust BRIGHTNESS and CONTRAST using PICTURE icon menu so video just disappears. 3. Using a high voltage meter confirm that the high voltage is 29.25 ± 1.25kV. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1000000000x.html (2 z 2) [2009-08-30 10:43:58]...
  • Page 29 While the CHK is displayed on the left top corner of the CRT, pressing ACTION and VOL UP on the TV simultaneously will toggle between the modes. Red CHK for serviceand yellow CHK for aging. 7. Press POWER on the remote control to display the service adjustment modes menu, select file:///C:/AA/NA/CT-32G9J/SIMP/s1100000000x.html (1 z 3) [2009-08-30 10:44:01]...

  • Page 30: Important Note

    IMPORTANT NOTE Always check that the TV exits the service mode. To confirm colors When in service mode (red CHK is displayed) press RECALL on the remote control to enter the purity field check mode file:///C:/AA/NA/CT-32G9J/SIMP/s1100000000x.html (2 z 3) [2009-08-30 10:44:01]...
  • Page 31 (The volume right/left and channel up/down will adjust rapidly). Note: If service mode is accessed by this method be sure to reset the set after service is performed. 11.1 Service adjustment default values for items TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1100000000x.html (3 z 3) [2009-08-30 10:44:01]...
  • Page 32 TRAP TRAPEZOID PCCHG PINCUSHION HIGH PCCLG PINCUSHION LOW PCCHS PINCUSHION HIGH PCCLS PINCUSHION LOW TOPSL TOP CORNER PINCUSHION SLICE LEVEL BTMSL BOTTOM CORNER PINCUSHION SLICE LEVEL VEAMP VERTICAL SIZE VERTICAL LINEARITY VERTICAL SIZE CORRECTION file:///C:/AA/NA/CT-32G9J/SIMP/s1101000000.html (1 z 2) [2009-08-30 10:44:04]...
  • Page 33 The correspondent ID switch (ID1,ID2, ID3) data configuration should not be modified in any way. If EEPROM circuit needs to be replaced, these ID values should be configured according with this table. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1101000000.html (2 z 2) [2009-08-30 10:44:04]...

  • Page 34: Service Adjustments (Electronic Controls)

    12.5 Deflection adjustments 12.5.1 H-Center adjustment 12.5.2 Horizontal width adjustment (H-WID) 12.5.3 Vertical linearity(V-C), V-Size and V-Position adjustment 12.5.4 V-S Correction adjustment 12.5.5 PCC adjustment (PCC) 12.5.6 Corner PCC adjustment (TOPG, TOPSL, BTMG, BTMSL) TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1200000000x.html [2009-08-30 10:44:06]...
  • Page 35 3.6±0.1V between 7.5IRE and GND level at TP35. (See waveform detail). 2. In service mode, select DAC for contrast adjustment CONT, and adjust data to obtain 2.7±0.2V between 7.5IRE and 100IRE level at TP35. (See waveform detail) file:///C:/AA/NA/CT-32G9J/SIMP/s1201000000.html (1 z 2) [2009-08-30 10:44:09]...
  • Page 36 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1201000000.html (2 z 2) [2009-08-30 10:44:09]...
  • Page 37 3. In service mode adjust TINT register until the waveform measured is as the one shown. Tint level from A and B peaks must be almost in the same level (0.35 Vp). TP37 Waveform. file:///C:/AA/NA/CT-32G9J/SIMP/s1202000000.html (1 z 2) [2009-08-30 10:44:12]...
  • Page 38 4. Connect the oscilloscope to TP35 and GND. 5. Adjust COLOR register so that the amplitude is 0.9±0.05Vp-p. TP35 Waveform. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1202000000.html (2 z 2) [2009-08-30 10:44:12]...
  • Page 39 6. Confirm that saturation and picture are normal (normal image). 7. If image is not satisfactory, repeat adjustment until the image is normal and natural. NOTE The image can be compared against other set to see the image quality. file:///C:/AA/NA/CT-32G9J/SIMP/s1203000000.html (1 z 2) [2009-08-30 10:44:16]...
  • Page 40 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1203000000.html (2 z 2) [2009-08-30 10:44:16]...
  • Page 41 3. Turn the SCREEN control (part of FBT T551) fully counterclockwise. 4. Preset the following service DACs for best results: BRIGH______________________1 D0 CUT R______________________02 00 CUT G______________________02 00 CUT B______________________02 00 R DR_______________________07 FF B DR_______________________07 FF file:///C:/AA/NA/CT-32G9J/SIMP/s1204000000.html (1 z 2) [2009-08-30 10:44:19]...
  • Page 42 9. Adjust R DR and B DR so the white seems like white and black like black. 10. Apply a normal signal and confirm that the image is normal and a good gray scale 11. If correction is needed perform minor touch-up method. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1204000000.html (2 z 2) [2009-08-30 10:44:19]...

  • Page 43: Deflection Adjustments

    Use this feature when deflection adjustment gets off adjustment to the point that it cannot be adjusted back easily. 12.5.1 H-Center adjustment 12.5.2 Horizontal width adjustment (H-WID) 12.5.3 Vertical linearity(V-C), V-Size and V-Position adjustment 12.5.4 V-S Correction adjustment 12.5.5 PCC adjustment (PCC) 12.5.6 Corner PCC adjustment (TOPG, TOPSL, BTMG, BTMSL) TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205000000.html [2009-08-30 10:44:23]...

  • Page 44: H-Center Adjustment

    2. If the horizontal center is not aligned, in service mode adjust H POS DATA to adjust the horizontal center of the monoscope pattern to the CRT center. 3. Verify that horizontal width (A & B mark) is within 4.5 ± 0.7. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205010000.html [2009-08-30 10:44:27]...
  • Page 45 2. Apply a crosshatch pattern. 3. Adjust PCC data to make lines straight. 4. Adjust H-WID data to correct vertical size of the image. 5. Adjust VEAMP data to correct vertical size of the image. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205020000.html [2009-08-30 10:44:42]...

  • Page 46: Vertical Linearity(V-C), V-Size And V- Position Adjustment

    3. If the v-position is not at the CRT center, adjust V position V POS DATA again. 4. Apply a monoscope pattern. 5. Confirm that center horizontal line is in center mark on CRT. file:///C:/AA/NA/CT-32G9J/SIMP/s1205030000.html (1 z 2) [2009-08-30 10:44:46]...
  • Page 47 6. Adjust VEAMP register for correct vertical size by making monoscope round circle leaving 4 marks off the CRT edge. Vertical centering adjustment. TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205030000.html (2 z 2) [2009-08-30 10:44:46]...
  • Page 48 2. Check a and b sizes, If b-a < -1.5mm (in top & bottom extending case) Increase V-S DATA by one step NOTE Repeat a and b until b-a ± 1.5mm 3. Confirm to make outermost circle of monoscope pattern a correct circle V-Adjustment TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205040000.html [2009-08-30 10:44:50]...

  • Page 49: Pcc Adjustment (Pcc)

    PREPARATION 1. Apply a crosshatch pattern. 2. Normalize the picture icon video adjustments. Procedure: 1. Adjust PCC data so that the first and third line make a good balance (see figure below). PCC Adjustment TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205050000.html [2009-08-30 10:44:54]...

  • Page 50: Corner Pcc Adjustment (Topg, Topsl, Btmg, Btmsl)

    1. Adjust TOPG and TOPSL data to correct upper side of the image linearity. 2. Adjust BTMG and BTMSL data to correct lower side of the image (see figure below). Top and bottom adjustment TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1205060000.html [2009-08-30 10:45:00]...

  • Page 51: Identification Of Components

    13 Identification of Components TOP PREVIOUS NEXT 13.1 Chassis Components 13.1.1 C-Board Chassis 13.1.2 A-Board Chassis TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1300000000x.html [2009-08-30 10:45:11]...

  • Page 52: Chassis Components

    13.1 Chassis Components TOP PREVIOUS NEXT Inside Cabinet (Rear View) 13.1.1 C-Board Chassis 13.1.2 A-Board Chassis TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1301000000.html [2009-08-30 10:45:20]...
  • Page 53 13.1.1 C-Board Chassis TOP PREVIOUS NEXT C-Board component locations TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1301010000.html [2009-08-30 10:45:24]...
  • Page 54 13.1.2 A-Board Chassis TOP PREVIOUS NEXT A-Board Chassis (Top view) TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1301020000.html [2009-08-30 10:45:31]...
  • Page 55 14 Reference for PDF Colors TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1400000000x.html [2009-08-30 10:45:36]...

  • Page 56: Conductor Views

    15 Conductor Views TOP PREVIOUS NEXT 15.1 A-Board Printed Circuit (Left Side) 15.2 A-Board & C Board Printed Circuit (Right Side) TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1500000000x.html [2009-08-30 10:45:46]...
  • Page 57 15.1 A-Board Printed Circuit (Left Side) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1501000000.html [2009-08-30 10:45:49]...
  • Page 58 A-BOARD 1 of 2 TNP2AH060 CT-32G9J / CT-32G9UJ / CT-32G19J / CT-32G19UJ...
  • Page 59 15.2 A-Board& C Board Printed Circuit (Right Side) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1502000000.html [2009-08-30 10:46:03]...
  • Page 60 A-BOARD / C-BOARD 2 of 2 CT-32G9J / CT-32G9UJ / CT-32G19J / CT-32G19UJ TNP2AH060 / TNP2AA167...
  • Page 61 16.3 A-Board Schematic TNP2AH060KD (page 1 of 4) 16.4 A-Board Schematic TNP2AH060KD (page 2 of 4) 16.5 A-Board Schematic TNP2AH060KD (page 3 of 4) 16.6 A-Board Schematic TNP2AH060KD (page 4 of 4) 16.7 Voltages 16.8 Waveforms TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1600000000x.html [2009-08-30 10:46:17]...
  • Page 62 16.1 English Schematic Notes TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1601000000.html (1 z 2) [2009-08-30 10:46:22]...
  • Page 63 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1601000000.html (2 z 2) [2009-08-30 10:46:22]...
  • Page 64 16.2 Notas de Esquemáticos en Español TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1602000000.html (1 z 2) [2009-08-30 10:46:28]...
  • Page 65 TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1602000000.html (2 z 2) [2009-08-30 10:46:28]...
  • Page 66 16.3 A-Board Schematic TNP2AH060KD (page 1 of 4) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1603000000.html [2009-08-30 10:46:34]...
  • Page 67 A-BOARD 1 of 4 TNP2AH060KD CT-32G9J/UJ, CT-32G19J/UJ...
  • Page 68 16.4 A-Board Schematic TNP2AH060KD (page 2 of 4) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1604000000.html [2009-08-30 10:46:45]...
  • Page 69 A-BOARD 2 of 4 TNP2AH060KD CT-32G9J/UJ, CT-32G19J/UJ...
  • Page 70 16.5 A-Board Schematic TNP2AH060KD (page 3 of 4) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1605000000.html [2009-08-30 10:46:53]...
  • Page 71 A-BOARD 3 of 4 TNP2AH060KD CT-32G9J/UJ, CT-32G19J/UJ...
  • Page 72 16.6 A-Board Schematic TNP2AH060KD (page 4 of 4) TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1606000000.html [2009-08-30 10:47:02]...
  • Page 73 A-BOARD 4 of 4 TNP2AH060KD CT-32G9J/UJ, CT-32G19J/UJ...
  • Page 74 16.7 Voltages TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1607000000.html [2009-08-30 10:47:10]...
  • Page 75 ..5.20 ..1.70 ..3.30 ..0.40 ..0.00 ..0.40 ..3.30 CT-32G9J, CT-32G9UJ, CT-32G19J, CT-32G19UJ...
  • Page 76 0.00 Q801 Q802 Q820 Q830 Q831 0.00 0.70 130.40 129.80 0.60 12.52 0.00 0.00 130.40 0.20 0.00 0.00 130.80 130.50 0.00 C - BOARD Q351 Q352 Q353 4.20 3.90 4.00 162.00 171.00 166.50 3.80 3.60 3.70 CT-32G9J, CT-32G9UJ, CT-32G19J, CT-32G19UJ...
  • Page 77 16.8 Waveforms TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1608000000.html [2009-08-30 10:47:18]...
  • Page 78 IC451 PIN 5(V OUT) IC451 PIN 3 (PUMP UP) IC501 PIN 4 (H-DRIVE) A12 PIN 2 (HEATER) 1.38 kVp-p 398 Vp-p 2.92 Vp-p 121 Vp-p Q551 Collector (H OUT) IC801 PIN 1 IC801 PIN 7 Q501 Collector CT-32G9J, CT-32G9UJ, CT-32G19J, CT-32G19UJ...

  • Page 79: Parts Location

    17 Parts Location TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1700000000x.html [2009-08-30 10:47:26]...
  • Page 80 [2009-08-30 10:47:28]...

  • Page 81: Parts List

    18 Parts List TOP PREVIOUS NEXT 18.1 Parts List Notes 18.2 Parts List TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1800000000x.html [2009-08-30 10:47:33]...
  • Page 82 18.1 Parts List Notes TOP PREVIOUS NEXT TOP PREVIOUS NEXT file:///C:/AA/NA/CT-32G9J/SIMP/s1801000000.html [2009-08-30 10:47:39]...
  • Page 83 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C051 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C052 ECA1CM101B CAP E 100UF-16V C053 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C054 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C055 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C056 ECJ2VF1C105Z CAP C 1.0UF-Z-16V file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (1 z 15) [2009-08-30 10:47:46]...
  • Page 84 ECA1VHG471B CAP E 470UF-35V C460 ECQB1224KF3 CAP P .22UF-K-100V C461 ECQB1104JF3 CAP P .10UF-J-100V C462 TCJ2VF1H103Z CAP C .01UF-Z-50V C501 ECJ2VB1H221K CAP C 220PF-K-50V C505 ECQB1H104JF3 CAP P .10UF-J-50V C506 ECKR2H102KB5 CAP C 1000PF-K-500V file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (2 z 15) [2009-08-30 10:47:46]...
  • Page 85 ECQM2104KZW CAP P .1UF-K-200V C763 ECKR3A121KBP CAP C 120PF-K-1KV C800 ECKR3A221KBP CAP C 220PF-K-1KV C801 ECKWAE472ZED CAP C .0047UF-Z-250V C802 ECKWAE472ZED CAP C .0047UF-Z-250V C803 ECKWAE472ZED CAP C .0047UF-Z-250V C805 EC0S2DA471BB CAP E 470UF-200V file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (3 z 15) [2009-08-30 10:47:46]...
  • Page 86 ECA1AM101B CAP E 100UF-10V C2215 EEANA1E100B CAP E 10UF-25V C2216 TCJ2VC1H100D CAP C 10PF-J-50V C2217 TCJ2VB1H102K CAP C 1000PF-K-50V C2218 TCJ2VB1H102K CAP C 1000PF-K-50V C2219 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C2220 ECJ2VF1C105Z CAP C 1.0UF-Z-16V file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (4 z 15) [2009-08-30 10:47:46]...
  • Page 87 MA2C165001VT DIODE D551 B0HAMM000072 DIODE FAST RECOVERY D554 AU02V0 DIODE RECTIFIER D556 MA2C16700E DIODE D557 MAZ40270LF DIODE ZENER D558 B0HANV000008 DIODE FAST RECOVERY D559 EU2V1 DIODE D561 AU02V0 DIODE RECTIFIER D605 MAZ40470HF DIODE ZENER file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (5 z 15) [2009-08-30 10:47:46]...

  • Page 88: Integrated Circuits

    IC002 TVR2AJ165S EEPROM IC003 GP1UE282GK IR SENSOR IC004 PST9128NR RESET IC005 PQ3RD13 3.3V STBY REGULATOR IC451 AN15525A VERTICAL OUTPUT AMPLIFIER IC501 NC7SZU04M5X H-DRIVE INVERTER IC551 AN78M09LB 9V VOLTAGE REGULATOR IC552 AN78M05LB 5V VOLTAGE REGULATOR file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (6 z 15) [2009-08-30 10:47:46]...

  • Page 89: Audio Amplifier

    EXCELSA39V FERRITE BEAD L756 EXCELSA39V FERRITE BEAD L801 ELF21V020A COIL LINE FILTER L802 TALL08T470KA COIL L803 TALL08T680KA COIL L804 EXCELDR35V FERRITE BEAD L805 EXCELDR35V FERRITE BEAD L806 EXCELDR35V FERRITE BEAD L807 EXCELSA35T FERRITE BEAD file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (7 z 15) [2009-08-30 10:47:46]...
  • Page 90 TRANSISTOR Q605 2SA207700L TRANSISTOR Q606 2SC584500L TRANSISTOR Q751 B1DACM000001 TRANSISTOR Q757 2SC1685QRSTA TRANSISTOR Q801 2SC584500L TRANSISTOR Q802 2SC584500L TRANSISTOR Q820 2SA1767QTA TRANSISTOR Q830 2SB1011QRL TRANSISTOR Q831 2SC1473ATA TRANSISTOR Q2350 2SA207700L TRANSISTOR Q2351 2SC584500L TRANSISTOR file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (8 z 15) [2009-08-30 10:47:46]...
  • Page 91 ERJ6GEYJ222V RES M 2.2K-J-1/10W R043 ERJ6GEYJ153V RES M 15K-J-1/10W R044 ERJ6GEYJ101V RES M 100-J-1/10W R045 ERDS2TJ101T RES C 100-J-1/4W R046 ERJ6GEYJ102V RES M 1K-J-1/10W R047 ERJ6GEYJ472V RES M 4.7K-J-1/10W R048 ERJ6GEYJ101V RES M 100-J-1/10W file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (9 z 15) [2009-08-30 10:47:46]...
  • Page 92 ERC12GK272C RES C 2.7K-K-1/2W R356 ERC12GK272C RES C 2.7K-K-1/2W R357 ERJ6ENF2700V RES M 270-F-1/10W R358 ERJ6ENF2700V RES M 270-F-1/10W R359 ERJ6ENF2700V RES M 270-F-1/10W R360 ERJ6ENF6800V RES M 680-F-1/10W R361 ERJ6ENF6800V RES M 680-F-1/10W file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (10 z 15) [2009-08-30 10:47:46]...
  • Page 93 ERDS1FJ3R3P RES C 3.3-J-1/2W R458 ERJ6GEYJ123V RES M 12K-J-1/10W R459 ERJ6GEYJ152V RES M 1.5K-J-1/10W R461 ERJ6GEYJ331V RES M 330-J-1/10W R462 ERJ6GEYJ272V RES M 2.7K-J-1/10W R463 ERJ6GEYJ473V RES M 47K-J-1/10W R464 ERJ6GEYJ103V RES M 10K-J-1/10W file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (11 z 15) [2009-08-30 10:47:46]...
  • Page 94 ERDS2TJ683T RES C 68K-J-1/4W R592 ERJ6GEYJ472V RES M 4.7K-J-1/10W R605 ERDS2TJ103T RES C 10K-J-1/4W R607 ERJ6GEYJ102V RES M 1K-J-1/10W R608 ERJ6GEYJ104V RES M 100K-J-1/10W R713 ERDS2TJ123T RES C 12K-J-1/4W R716 ERDS2TJ101T RES C 100-J-1/4W file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (12 z 15) [2009-08-30 10:47:46]...
  • Page 95 ERDS2TJ101T RES C 100-J-1/4W R2206 ERDS2TJ273T RES C 27K-J-1/4W R2207 ERJ6GEYJ152V RES M 1.5K-J-1/10W R2208 ERJ6GEYJ152V RES M 1.5K-J-1/10W R2301 ERQ2CJP5R6S RES F 5.6-J-2W R2307 ERDS2TJ222T RES C 2.2K-J-1/4W R2351 ERJ6GEYJ102V RES M 1K-J-1/10W file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (13 z 15) [2009-08-30 10:47:46]...
  • Page 96 RES M 330K-J-1/10W R3104 ERJ6GEYJ334V RES M 330K-J-1/10W SWITCHES S001 EVQPC105K SWITCH S002 EVQPC105K SWITCH S003 EVQPC105K SWITCH S004 EVQPC105K SWITCH S005 EVQPC105K SWITCH S008 EVQPC105K SWITCH S009 EVQPC105K SWITCH TRANSFORMERS T501 ETH19Y211AZ TRANSFORMER file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (14 z 15) [2009-08-30 10:47:46]...
  • Page 97 TJB2A9064B TERMINAL A/V JACK JK3002 TJB2AA0046 TERMINAL FRONT A/V JACK JK3003 TJB2AA0421 TERMINAL S-VIDEO JACK OTHER ACCESSORIES M006 TQB2AA0513 OWNERS MANUAL M007 EUR7713010 REMOTE CONTROL TRANSMITTER M008 UR77EC1303A BATTERY COVER (REMOTE CONTROL) TOP PREVIOUS file:///C:/AA/NA/CT-32G9J/SIMP/s1802000000.html (15 z 15) [2009-08-30 10:47:47]...
  • Page 98 Order No. MTNC030727A1 Color Television CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT- 32L8G / CT-32L8UG NA10 This simplified service manual is issued to add listed models to the main service manual order No. MTNC030623C1(CT-25L8G). A complete parts list and schematics are included in this simplified service manual.

  • Page 99: Safety Precautions

    violation of law. 1. Safety precautions General guidelines An isolation transformer should always be used during the servicing of a receiver whose chassis is not isolated from AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injuryfrom electrical shocks. It will also protect the receiver from being damaged by accidental shorting that may occur during servicing.
  • Page 100 Leakage current cold check Unplug the A.C. cord and connect a jumper between the two plug prongs.Measure the resistance between the jumpered AC plug and expose metallic parts such as screwheads, antenna terminals, control shafts, etc. If the exposed metallic part has a returnpath to the chassis, the reading should be between 240k and 5.2M .

  • Page 101: Service Notes

    NOTE It is important to use an accurate, calibrated high voltage meter. Set the brightness, picture, sharpness and color controls to minimum. Measure the high voltage. The high voltage should be 29.25 ± 1.25kV. If the upper limit is out of tolerance, immediate service and correction is required to insure safe operation and to prevent the possibility of prematurecomponent failure.
  • Page 102 3. Do not reuse removed leadless or chip components since they are subject to stress fracture during removal. Chip component installation 1. Put a small amount of solder on the board soldering pads. 2. Hold the chip component against the soldering pads with tweezers or with a miniature alligator clip and apply heat to the pad area with a 30 watt iron until solder flows.
  • Page 103 3. Remove the solder from all the pads of the Flat IC by using a de solder braid 4. Position the new Flat IC in place (apply the pins of the Flat IC to the soldering pads where the pins need to be soldered). Properly determine the positions of the soldering pads and pins by correctly aligning the polarity symbol 5.
  • Page 104 IMPORTANT To protect against possible damage to the solid state devices due to arching or static discharge, make certain that all ground wires and CRT DAG wire are securely connected. CAUTION The power supply circuit is above earth ground and the chassis cannot be polarized.

  • Page 105: Eeprom Replacement

    4. Prepare short jumper and HHS jig. Procedure: 1. Connect the short jumper between TPD16 & TPD17. 2. Connect the jumper diode between TPD14 and TPD15 (anode connected to TPD15 and cathode to TPD14). 3. Apply 75VAC to AC input of isolation transformer. 4.

  • Page 106: About Lead Free Solder (Pbf)

    4. With “VOL” keys adjust the correct value according with the service adjustment table (see “Service Mode” section on page 15). 5. Change to the next ID switch register with “CH” keys and repeat the same procedure as step 4. 6.
  • Page 107 CAUTION - Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30 ~ 40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ±...

  • Page 108: Receiver Feature Table

    5. Receiver feature table FEATURE/MODEL CT-32C8G/UG CT-32L8G/UG CT-32G8G CHASSIS BP407 AP407 MICRO 128K MENU LANGUAGE ENG/SPAN/FR CLOSED CAPTION V-CHIP (USA/CANADA) CHANNEL COUNT REMOTE CONTROL EUR7613Z10 EUR7713010 CRT SUPPLIER MDDA CHASSIS NA10 COMB FILTER DIGITAL V/A NORM (X=BOTH) MTS/SAP/DBX BUILT-IN AUDIO POWER 1.5Wx2 (10%) No.
  • Page 109 BOARD PART NUMBER DESCRIPTION TNP2AH047KA MAIN BOARD TNP2AA122AA CRT BOARD CT-32L8G / CT-32L8UG / CT-32C8G / CT-32C8UG BOARD PART NUMBER DESCRIPTION TNP2AH047KB MAIN BOARD TNP2AA122AA CRT BOARD NOTE When ordering a replacement board assembly, append an “S” to the board number EXAMPLE To order the A Board, for CT-32G8G the replacement board is TNP2AH047KAS.
  • Page 110 8. Location of controls (remote)
  • Page 111 8.1. EUR7713010 Note: For additional information about this remote please refer to the owner’s manual section remote operation, listed on the parts list section. 8.2. EUR7613Z10...
  • Page 112 Note: For additional information about this remote please refer to the owner’s manual section remote operation, listed on the parts list section. 9. Dissasembly for service Back cover Remove all the screws marked with an arrow ( ) from the back of the receiver NOTE Screw configuration, type, and number of screws vary depending on the model of the receiver serviced and the application;...
  • Page 113 A-Board - Main chassis 1. Slide the chassis completely out of the guide rails. 2. Stand the receiver on its edge. The underside of the board is completely accessible for component replacement. Note: Some tie-wraps that secure the wire dressings may need to be unfastened for chassis removal. C-Board - CRT output The board plugs onto the socket on the CRT neck.
  • Page 114 3. Unplug the CRT 2nd anode button from the main board. 4. Remove the C-Board from the CRT base and unplug the black wires (CRT dag ground) C10 & C11. 5. Disconnect the speakers plug from the A-Board. 6. Lift the main chassis (A-Board) and all mounted boards completely out with the CRT board attached.

  • Page 115: Important Notice

    Verify that all ground wires and circuit board plugs get connected. IMPORTANT NOTICE When ordering the CRT, please order CRT and CRT kit also. Please see parts list section for part numbers 9.2. Back Cover Removal Back Cover (CT-32C8G/UG). Back Cover (CT-32L8G/UG, CT-32G8G/UG)

  • Page 116: Chassis Service Adjustment Procedures

    10. Chassis service adjustment procedures All service adjustments are factory preset and should not require adjustment unless controls and/or associated components are replaced. Note: Connect the (-) lead of the voltmeter to the appropriate ground. Use IC801’s heat sink when the HOT ground symbol is used. Otherwise, use COLD ground (Tuner shield, IC451’s heat sink or FA2).
  • Page 117 Note: Components and test points within doted areas are located on trace side. B+ voltage check 1. Set the BRIGHT and PICTURE to minimum by using the PICTURE menu. 2. Connect the DVM between C825 (+ side) or TPD14 and cold ground.
  • Page 118 A-BOARD TEST VOLTAGE POINT TPD14 131.0 ± 2.0V SOUND C823 (+) 18.1 ± 1.0V STB12V C827 (+) 12.8 ± 1.0 V 220V TPA14 217 ± 10 V VERTICAL TPD8 27.4 ± 1.5V IC551 pin 3 9.0 ± 0.5V IC552 pin 3 5.0 ±...

  • Page 119: Important Note

    5. Adjust VOLUME to minimum (0). 6. Press VOL (decrease) on receiver. Red “CHK” appears in upper corner. To toggle between aging and service modes: While the “CHK” is displayed on the left top corner of the CRT, pressing “ACTION” and “VOL” UP on the TV simultaneously will toggle between the modes.
  • Page 120 Entering service mode (open-back method) While the receiver is connected and operating in normal mode, momentarily short test point FA1 (TP1 pin 2) to cold ground (TP1 pin 3). The receiver enters the aging mode. Yellow letters “CHK” appear in the upper left corner of the screen. / (The volume right/left and channel up/down will adjust rapidly).

  • Page 121: Service Adjustments (Electronic Controls)

    NAME DESCRIPTION ADDRESS REGISTER VALUE CT-32C8G/UG CT-32G8G/UG CT-32L8G PCCHG PINCUSHION HIGH A4 34 PCCLG PINCUSHION LOW A4 33 PCCHS PINCUSHION HIGH A4 1A PCCLS PINCUSHION LOW A4 1B TOPSL TOP CORNER PINCUSHION SLICE LEVEL A4 30 BTMSL BOTTOM CORNER PINCUSHION SLICE A4 2F LEVEL VEAMP VERTICAL SIZE...
  • Page 122 3. Set COLOR control to minimum (no color on picture). 4. Set the BRIGHTNESS control to the center. 5. Set the SHARPNESS control to the center. 6. Connect the oscilloscope to TP35. Procedure 1. In the service mode, select DAC for brightness adjustment “BRIGH”, and adjust data to obtain 3.6±0.1V between 7.5IRE and GND level at TP35.
  • Page 123 4. Set the TINT control to the center. 5. Set the PICTURE control to the maximum. 6. Set the SHARPNESS control to the minimum. PROCEDURE 1. Apply a rainbow color bar pattern. 2. Connect the oscilloscope to TP37. 3. In service mode adjust “TINT” register until the waveform measured is as the one shown.
  • Page 124 Make sure that sub-contrast adjustment was finished prior to perform this adjustment PREPARATION Normalize the picture settings. PROCEDURE 1. Apply a color bar pattern. 2. In service mode adjust “R DR” and “B DR” data to “80”. 3. In service mode adjust “TINT” data so that the color does not become greenish or redish.
  • Page 125 Complete adjustment PREPARATION 1. Turn the receiver “ON” and allow 30 minutes warm up at WHITE PATTERN. 2. Apply a color bar pattern (with no color). 3. Turn the SCREEN control (part of FBT T551) fully counterclockwise. 4. Preset the following service DACs for best results: - BRIGH______________________1 D0 - CUT R______________________02 00 - CUT G______________________02 00...
  • Page 126 11. If correction is needed perform minor touch-up method. 12.5. Deflection adjustments To reset deflection adjustments To reset deflection adjustments to factory adjusted default, enter to service mode (with red CHK displayed), press POWER button on remote to display the service menu, then press and hold RECALL button for at least three seconds, a reset messagewill appear in the image.
  • Page 127 2. If the horizontal center is not aligned, in service mode adjust “H POS” DATA to adjust the horizontal center of the monoscope pattern to the CRT center. 3. Verify that horizontal width (A & B mark) is within 4.5 ± 0.7. 12.5.2.
  • Page 128 3. If the v-position is not at the CRT center, adjust / V position “V POS” DATA again. 4. Apply a monoscope pattern. 5. Confirm that center horizontal line is in center mark on CRT. 6. Adjust “VEAMP” register for correct vertical size by making monoscope round circle leaving 4 marks off the CRT edge.
  • Page 129 Repeat “a” and “b” until b-a ± 1.5mm 3. Confirm to make outermost circle of monoscope pattern a correct circle V-Adjustment 12.5.5. PCC adjustment (PCC) This adjustment helps to correct left and right curved sides of picture. PREPARATION 1. Apply a crosshatch pattern. 2.

  • Page 130: Identification Of Components

    Procedure: 1. Adjust “TOPG” and “TOPSL” data to correct upper side of the image linearity. 2. Adjust “BTMG” and “BTMSL” data to correct lower side of the image (see figure below). Top and bottom adjustment 13. Identification of Components 13.1. Chassis Components Inside Cabinet (Rear View) 13.1.1.
  • Page 131 C-Board component locations 13.1.2. A-Board Chassis A-Board Chassis (Top view) 13.1.3. A-Board Surface-mounted components A-Board (bottom view)
  • Page 132 14. Reference for PDF Colors...

  • Page 133: Conductor Views

    15. Conductor Views 15.1. A-Board Printed Circuit (Left Side) 15.2. A-Board& C Board Printed Circuit (Right Side) 16. Block Diagrams 16.1. Video Signal Block Diagram 16.2. Audio Signal Block Diagram 17. Schematics 17.1. English Schematic Notes...
  • Page 135 17.2. Notas de Esquemáticos en Español...

  • Page 137: Parts Location

    17.3. A-Board Schematic TNP2AH047KA/KB (page 1 of 4) 17.4. A-Board Schematic TNP2AH047KA/KB (page 2 of 4) 17.5. A-Board Schematic TNP2AH047KA/KB (page 3 of 4) 17.6. A-Board Schematic TNP2AH047KA/KB (page 4 of 4) 17.7. Voltages 17.8. Waveforms 18. Parts Location 19. Parts List 19.1.
  • Page 138 19.2. Parts List Ref. No. Part No. Part Name & Description Remarks CAPRISTORS CRA801 TP00842-51 TAPING GAP TERMINAL CAPACITORS C003 ECA1HM4R7B CAP E 4.7UF-50V C004 TCJ2VC1H150J CAP C 15PF-J-50V C005 TCJ2VC1H150J CAP C 15PF-J-50V C008 TCJ2VF1H103Z CAP C .01UF-Z-50V C009 ECJ2VF1H104Z CAP C .1UF-Z-50V C010...
  • Page 139 Ref. No. Part No. Part Name & Description Remarks C043 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C044 ECA0JM102B CAP E 1000UF-6.3V C046 TCJ2VF1H103Z CAP C .01UF-Z-50V C048 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C051 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C052 ECA1CM101B CAP E 100UF/16V C053 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C054...
  • Page 140 Ref. No. Part No. Part Name & Description Remarks C512 ECA2CM100B CAP E 10UF-160V C531 ECA1HM4R7B CAP E 4.7UF-50V C540 TCJ2VF1H103Z CAP C .01UF-Z-50V C551 ECA1VHG471B CAP E 470UF-35V C554 ECKR2H561KB5 CAP C 560PF-K-500V C555 ECA2EM220E CAP E 22UF-250V C556 ECA1CM471B CAP E 470UF-16V C557...
  • Page 141 Ref. No. Part No. Part Name & Description Remarks C830 ECA1CM471B CAP E 470UF-16V C2201 ECA1HM4R7B CAP E 4.7UF-50V C2202 ECA1HM2R2B CAP E 2.2UF-50V C2203 ECA1HM4R7B CAP E 4.7UF-50V C2204 AP106K016CAE CAP T 10UF/16V C2205 ECA1HMR33B CAP E .33UF-50V C2206 ECQB1H223JF3 CAP P .022UF-J-50V C2207...
  • Page 142 Ref. No. Part No. Part Name & Description Remarks D452 MA2C165001VT DIODE D505 D1NL40V70 DIODE D531 MA2C165001VT DIODE D551 B0HAMM000072 DIODE FAST RECOVERY D554 AU02V0 DIODE D556 MA2C165001VT DIODE D557 MAZ40270LF DIODE ZENER D558 B0HANV000008 DIODE D559 DIODE D561 AU02V0 DIODE D606 MA2C165001VT...
  • Page 143 IC004 PST9128NR RESET Ref. No. Part No. Part Name & Description Remarks IC005 PQ3RD13 3.3V STBY REGULATOR IC451 AN5522 VERTICAL OUTPUT AMPLIFIER IC501 NC7SZU04M5X H-DRIVE INVERTER IC551 AN78M09LB 9V VOLTAGE REGULATOR IC552 AN78M05LB 5V VOLTAGE REGULATOR IC801 STRW5634 MAIN POWER SUPPLY IC802 0N3171RLF OPTO-COUPLER...
  • Page 144 Ref. No. Part No. Part Name & Description Remarks Q353 2SC3063RL TRANSISTOR Q354 2SD601ARTX TRANSISTOR Q355 2SD601ARTX TRANSISTOR Q356 2SD601ARTX TRANSISTOR Q357 2SD601ARTX TRANSISTOR Q358 2SD601ARTX TRANSISTOR Q359 2SD601ARTX TRANSISTOR Q360 2SB709ARTX TRANSISTOR Q361 2SB709ARTX TRANSISTOR Q362 2SB709ARTX TRANSISTOR Q411 2SB0710AQL TRANSISTOR Q412...
  • Page 145 R035 ERJ6GEYJ332V RES M 3.3K-J-1/10W...
  • Page 146 Ref. No. Part No. Part Name & Description Remarks R036 ERJ6GEYJ512V RES M 5.1K-J-1/10W R037 ERJ6GEYJ912V RES M 9.1K-J-1/10W R038 ERJ6GEYJ223V RES M 22K-J-1/10W R039 ERDS2TJ102T RES C 1K-J-1/4W R040 ERJ6GEYJ680V RES M 68-J-1/10W R041 ERJ6GEYJ222V RES M 2.2K-J-1/10W R042 ERJ6GEYJ222V RES M 2.2K-J-1/10W R043...
  • Page 147 Ref. No. Part No. Part Name & Description Remarks R362 ERJ6ENF6800V RES M 680-F-1/10W R363 ERJ6GEYJ101V RES M 100-J-1/10W R364 ERJ6GEYJ101V RES M 100-J-1/10W R365 ERJ6GEYJ101V RES M 100-J-1/10W R371 ERJ6GEYJ101V RES M 100-J-1/10W R372 ERJ6GEYJ101V RES M 100-J-1/10W R373 ERJ6GEYJ101V RES M 100-J-1/10W R374...
  • Page 148 Ref. No. Part No. Part Name & Description Remarks R541 ERDS2TJ274T RES C 27K-J-1/4W R542 ERJ6GEYJ124V RES M 120K-J-1/10W R551 ERX12SJR47P RES M .47-J-1/2W R552 ERDS1FJ1R0T RES C 1.0-J-1/2W R557 ERJ6GEYJ103V RES M 10K-J-1/10W R558 ERQ2CJPR56S RES F .56-J-2W R559 ERG2FJ683H RES M 12K-J-2W R561...
  • Page 149 Ref. No. Part No. Part Name & Description Remarks R2207 ERJ6GEYJ152V RES M 1.5K-J-1/10W R2208 ERJ6GEYJ152V RES M 1.5K-J-1/10W R2301 ERQ2CJP5R6S RES F 5.6-J-2W R2307 ERDS2TJ222T RES C 2.2K-J-1/4W R2351 ERJ6GEYJ102V RES M 1K-J-1/10W R2352 ERJ6GEYJ152V RES M 1.5K-J-1/10W R2356 ERJ6GEYJ101V RES M 100-J-1/10W R2357...
  • Page 150 Ref. No. Part No. Part Name & Description Remarks TRANSFORMERS T501 ETH19Y211AZ TRANSFORMER / CT-32G8G CT-32G8UG T501 ETH19Y22AY HORIZONTAL DRIVE TRANSFORMER / CT-32L8G CT-32L8UG CT- 32C8G CT-32C8UG T551 KFT5AA370F3 FLYBACK TRANSFORMER T801 ETS35AA6B5NC TRANSFORMER T3001 TF0402B04P03 TRANSFORMER T3002 TF0402B04P03 TRANSFORMER CRYSTALS/FILTERS X001 A1100005BD...
  • Page 151 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 3 of 4 TNP2AH047KA/KB...
  • Page 152 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 4 of 4 TNP2AH047KA/KB...

  • Page 153: Audio Signal Path Block Diagram

    Audio signal path block diagram A-BOARD JK3001 REAR L&R Mixed AUDIO *(1) MPX IN IC2201 R-OUT L-OUT JK3001 REAR AUDIO *(2) R-IN L-IN IC2301 JK3002 AUDIO AMP FRONT AUDIO R-OUT L-OUT MUTE ON/OFF IC001 CT-32G8G / CT-32G8UG *(1) CT-32C8G / CT-32C8UG / CT-32L8G / CT-32L8UG *(2)
  • Page 154 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 1 of 2 TNP2AH047...
  • Page 155 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 2 of 2 TNP2AH047 C-BOARD TNP2AA122...
  • Page 156 Video signal path block diagram IC3001 VIDEO SWITCH V2/Y2 TV IN V1/Y1 V/Y OUT JK3001 REAR VIDEO *(2) Y/V1 MCOMP IN MV IN MU IN JK3001 IC001 REAR VIDEO *(1) R OUT G OUT B OUT MSCIN JK3002 FRONT VIDEO Q360 Q361 Q362...
  • Page 157 A - BOARD IC001 IC501 IC002 IC2201 ..0.00 ..2.50 ..0.00 ..0.00 ..1.60 ..2.80 .
  • Page 158 A - BOARD Q001 Q057 Q058 Q070 Q092 Q2350 Q3001 Q3002 Q354 0.00 1.50 1.50 4.12 8.90 5.35 1.30 1.30 4.50 13.00 0.00 0.00 8.90 1.40 0.00 3.30 3.30 8.50 0.00 0.07 0.07 3.50 3.30 3.14 0.70 0.70 3.80 Q355 Q356 Q357 Q358...
  • Page 159 A-Board 4 Vp-p 4 Vp-p 4.32 V-p 1.3 Vp-p TPA5 (VIDEO) A11 PIN 3 (BLUE OUT) A11 PIN 1 (RED OUT) A11 PIN 2 (GREEN OUT) 10MHz X’tal 600mv Vp-p 3.28 Vp-p 3.88 Vp-p IC451 PIN 1 (VERT IN) IC001 PIN 36 (FBP IN) IC001 PIN 50 (OSC) Q4111 B (V DRIVE) 28 Vp-p...
  • Page 160 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 1 of 4 TNP2AH047KA/KB...
  • Page 161 CT-32C8G / CT-32C8UG / CT-32G8G / CT-32G8UG / CT-32L8G / CT-32L8UG A-BOARD 2 of 4 TNP2AH047KA/KB...
  • Page 162 MTNC030623C1 B01/B05 Color Television CT-25L8G / CT-25L8UG / CT-20L8G / CT-20G8G / CT-20G8SG NA10 Copyright 2003 Matsushita Electric Corporation of America. All rights reserved. Unauthorized copying and distribution is a violation of law. 1. Safety precautions General guidelines...
  • Page 163 An isolation transformer should always be used during the servicing of a receiver whose chassis is not isolated from AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injuryfrom electrical shocks. It will also protect the receiver from being damaged by accidental shorting that may occur during servicing.
  • Page 164 Verify that any potential does not exceed 0.75 volt RMS. A leakage current tester (such a Simpson model 229, Sencore model PR57 or equivalent) may be used in the above procedure, in which case any current measure must not exceed 0.5 milliamp. Ifany measurement is out of the specified limits, there is a possibility of a shock hazard and the receiver must be repaired and rechecked before it is returned to the customer.
  • Page 165 component or at the pins of the ICs when removing. Usually applying heat to the component for a short time while twisting with tweezers will break the component loose. Leadless chip component (surface mount) Chip components must be replaced with identical chips due to critical foil track spacing. There are no holes in the board to mount standard transistors or diodes.
  • Page 166 How to replace flat ic (required tools) 1. Remove the solder from all of the pins of a Flat IC by using a desolder braid 2. Put the iron wire under the pins of the Flat IC and pull it in the direction indicated while heating the pins using a soldering iron.
  • Page 167 the soldering pads where the pins need to be soldered). Properly determine the positions of the soldering pads and pins by correctly aligning the polarity symbol 5. Solder all pins to the soldering pads using a fine tipped soldering iron 6.
  • Page 168 Equipment: 1. Isolation transformer. 2. High voltage meter. 3. D.C. Ammeter 4. Short jumper. 5. HHS jig (See figure below). Diode Connection Jumper. Preparation: 1. Make sure the receiver is turned off. 2. Connect the receiver to an isolation transformer. 3.
  • Page 169 8. Slowly increase AC voltage at the input of the isolation transformer and confirm HHS voltage measure 31kV for 20” models and 33kV for 25” models. 9. Turn power off and remove jigs. 3. EEPROM replacement If a new EEPROM integrated circuit is replaced for servicing, follow the next procedure once that the memory is properly assembled: 1.
  • Page 170 7. Once that all 3 registers are set with the correct address value, perform all of the remaining adjustments and servicing. IMPORTANT: Correct ID switch configuration should be input when replacing EEPROM for each television model, otherwise if wrong values are configured, the television software will not function accordingly and properly.
  • Page 171 Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also beused. 5. Receiver feature table...
  • Page 172 FEATURE/MODEL CT-25L8G/UG CT-20L8G CT-20G8G/SG CHASSIS AP403 BP398 AP398 MICRO 128K MENU LANGUAGE ENG/SPAN/FR CLOSED CAPTION V-CHIP (USA/CANADA) CHANNEL COUNT REMOTE CONTROL EUR7713010 CRT SUPPLIER PANABLACK, SAMSUNG CHASSIS NA10 COMB FILTER DIGITAL V/A NORM (X=BOTH) MTS/SAP/DBX BUILT-IN AUDIO POWER 1.5Wx2 (10%) No.
  • Page 173 BOARD PART NUMBER DESCRIPTION TNP2AH047FA MAIN BOARD TNP2AA122FA CRT BOARD NOTE When ordering a replacement board assembly, append an “S” to the board number EXAMPLE To order the A Board, the replacement board is TNP2AH047AAS. 7. TV Location of controls...
  • Page 174 8. Location of controls (EUR7713010 remote) Note: For additional information about this remote please refer to the owner’s manual section remote operation, listed on the parts list section.
  • Page 175 9. Dissasembly for service Back cover Remove all the screws marked with an arrow ( ) from the back of the receiver NOTE Screw configuration, type, and number of screws vary depending on the model of the receiver serviced and the application; variou’s models are covered in this manual. Use same hardware when reassembling the receiver.
  • Page 176 Speakers Each speaker is secured to the cabinet with 4 screws. NOTE When reassembling speakers be sure to connect the speaker wires to the correct speaker lead (+) (-) 9.1. Disassembly for CRT replacement 1. Discharge the CRT as instructed in the “safety precautions”. 2.

  • Page 177: Important Notice

    remove from the CRT mounting brackets at each corner of the CRT. 5. Remove the CRT with the degaussing coil and the dag ground braid attached. 6. Note the original locations and mounting of the degaussing coil and the dag ground assembly to insure proper reinstallation on the replacement CRT.
  • Page 178 Note: Components and test points within doted areas are located on trace side. B+ voltage check 1. Set the BRIGHT and PICTURE to minimum by using the PICTURE menu. 2. Connect the DVM between C825 (+ side) or TPD14 and cold ground.

  • Page 179: Purity And Convergence Procedure

    A-BOARD TEST VOLTAGE VOLTAGE 25 POINT 20” “ TPD14 131.0 ± 2.0V 131.0 ± 2.0V SOUND C823 (+) 18.4 ± 1.0V 18.4 ± 1.0V STB12V C827 (+) 12.7 ± 1.0 V 12.7 ± 1.0 V 220V TPA14 217 ± 10 V 221 ±...

  • Page 180: Vertical Raster Shift Adjustment

    For models using 4 pairs of rings, place the yoke on the CRT neck (do not tighten the clamp). Place the vertical raster shift tabs at 3 o’clock (90° from the purity and convergence tabs. Description of rings Initial position of rings Turn the receiver ON.

  • Page 181: Initial Center Static Convergence

    INITIAL CENTER STATIC CONVERGENCE Connect a dot/cross hatch generator to the receiver and tune in a signal. Observe misconvergence at center of the screen only. Adjust the R&B pole magnets; by separating tabs and rotating to converge blue with red. Adjust the R&B and R&B&G pole magnets: by separating tabs and rotating to converge blue and red (magenta) with green.

  • Page 182: Final Convergence Procedure

    procedure. FINAL CONVERGENCE PROCEDURE NOTE Vertical size and focus adjustments must be completed prior to performing the convergence adjustment. Connect a dot pattern generator to the receiver. The brightness level should not be higher than necessary to obtain a clear pattern. Converge the red and the blue dots at the center of the screen by rotating the R&B pole static convergence magnets.
  • Page 183 Convergence Magnets and Wedges Location 12. Service mode (electronic adjustments) This receiver has electronic technology using the IC bus concept. It performs as a control function and it replaces many mechanical controls. Instead of adjusting mechanical controls individually, many of the control functions are now performedby using “on screen display menu”.
  • Page 184 7. Press POWER on the remote control to display the service adjustment modes menu, select adjustment by pressing the volume right/left buttons and channel up/down buttons on the remote and ACTION to enter the adjustment. Exiting the service mode: This TV goes out from service mode when it is unplugged or turned OFF. To exit the service mode, turn the TV OFF from or unplug the TV from A.C.
  • Page 185 Entering service mode (open-back method) While the receiver is connected and operating in normal mode, momentarily short test point FA1 (TP1 pin 2) to cold ground (TP1 pin 3). The receiver enters the aging mode. Yellow letters “CHK” appear in the upper left corner of the screen. / (The volume right/left and channel up/down will adjust rapidly).
  • Page 186 These table values are approximated and could change due to variation of electrical characteristics in each set, except for the ID switch values. *Note: The correspondent ID switch (ID1,ID2, ID3) data configuration should not be modified in any way. If EEPROM circuit needs to be replaced, these ID values should be configured according with this table.
  • Page 187 12.3. Instructional flow chart for service mode (continued).
  • Page 188 13. Service adjustments (electronic controls) NOTE Please correlate with available pattern on all adjustments 13.1. Sub-Brightness and Contrast / Service DAC adjustment (BRIGH, CONT) Adjustment of this control is important for setting proper operation of customer brightness and picture controls. Do not adjust the SCREEN VR after the sub-brightness is set. This adjustment is factory set.
  • Page 189 “BRIGH”, and adjust data to obtain 3.8±0.1V (for 20” CRT) or 3.4± 0.1V (for 25” CRT) between 7.5IRE and GND level at TP35. (See waveformdetail). 2. In service mode, select DAC for contrast adjustment “CONT”, and adjust data to obtain 2.2±0.1V (for 20” CRT) or 2.7±0.1V (for 25” CRT) between 7.5IRE and 100IRE level at TP35.
  • Page 190 1. Apply a rainbow color bar pattern. 2. Connect the oscilloscope to TP37. 3. In service mode adjust “TINT” register until the waveform measured is as the one shown. Tint level from A and B peaks must be almost in the same level (0.3 Vp for 20” models and 0.35 Vp for 25”...
  • Page 191 PROCEDURE 1. Apply a color bar pattern. 2. In service mode adjust “R DR” and “B DR” data to “80”. 3. In service mode adjust “TINT” data so that the color does not become greenish or redish. 4. In service mode adjust “COLOR” data so that the color level is not too high (saturated) or too low (tending to black and white).
  • Page 192 PATTERN. 2. Apply a color bar pattern (with no color). 3. Turn the SCREEN control (part of FBT T551) fully counterclockwise. 4. Preset the following service DACs for best results: - BRIGH______________________1 D0 - CUT R______________________02 00 - CUT G______________________02 00 - CUT B______________________02 00 - R DR_______________________07 FF - B DR_______________________07 FF...
  • Page 193 13.5. Deflection adjustments To reset deflection adjustments To reset deflection adjustments to factory adjusted default, enter to service mode (with red CHK displayed), press POWER button on remote to display the service menu, then press and hold RECALL button for at least three seconds, a reset messagewill appear in the image. Use this feature when deflection adjustment gets off adjustment to the point that it cannot be adjusted back easily.
  • Page 194 3. Verify that horizontal width (A & B mark) is within 4.5 ± 0.7 for 20” models and 5.0 ± 0.7 for 25” models. 13.5.2. Vertical linearity(V-C), V-Size and V-Position adjustment PREPARATION 1. Apply a crosshatch pattern 2. Normalize the picture settings. PROCEDURE 1.
  • Page 195 13.5.3. V-S Correction adjustment PREPARATION 1. Apply a crosshatch pattern 2. Normalize the picture settings. PROCEDURE 1. Enter to service mode 2. Check a and b sizes, If b-a < -1.5mm (in top & bottom extending case) - Increase “V-S” DATA by one step NOTE Repeat “a”...
  • Page 196 Input level adjustment / Service DAC adjustment (MTSIN) PREPARATION 1. Connect an RMS meter with filter jig as shown in figure to TPE11. Filter Jig 2. Connect an RF signal generator to the RF antenna input. PROCEDURE 1. Apply the following signal from the RF signal generator: - Video: 100 IRE flat field, 30% modulation.
  • Page 197 - Audio: 300Hz, 30% modulation, stereo (left only) (70±5dB, 75 OPEN, P/S 10dB). NOTE After setting 30% modulation with P.L. SW and N.R. SW OFF, turn P.L. SW and N.R. SW 3. In service mode, adjust the MTS Low-Level separation adjustment “SEPAL”...

  • Page 198: Width Correction Adjustment

    3. TP017 (IC001 pin 79) measurement must have at least four digits of resolution following the decimal point. Example: 000.0000 4. Place the receiver into service mode for making electronic adjustment, select the clock adjustment DAC “CLOCK”. 5. Calculate and set “CLOCK” based on the following formula: NOTE TP017 (IC001 pin 79) measurement will not change regardless of the value stored in CLOCK.
  • Page 199 Back Cover Removal (CT-20G8G/CT-20G8SG/CT-20L8G). Back Cover Removal (CT-25L8G/CT-25L8UG).
  • Page 200 14.2. Chassis Components Rear view (inside cabinet).
  • Page 201 14.2.1. C-Board Chassis C-Board component locations 14.2.2. CT-20G8G/CT-20G8SG A-Board Chassis A-Board Top view (CT-20G8G/CT-20G8SG).
  • Page 202 14.2.3. CT-20L8 A-Board Chassis A-Board Top view (CT-20L8G)
  • Page 203 14.2.4. CT-25L8/CT-25L8U A-Board Chassis A-Board Top view (CT-25L8G/CT-25L8UG).
  • Page 204 14.2.5. A-Board Surface-mounted components A-Board (bottom view)
  • Page 205 15. Reference for PDF Colors...
  • Page 206 16. Conductor Views 16.1. A-Board Printed Circuit (Left Side) 16.2. A-Board& C Board Printed Circuit (Right Side) 17. Block Diagrams 17.1. Video Signal Block Diagram 17.2. Audio Signal Block Diagram 18. Schematics 18.1. English Schematic Notes...
  • Page 208 18.2. Notas de Esquemáticos en Español...

  • Page 210: Parts List

    18.3. A-Board Schematic TNP2AH047AA/AB (page 1 of 4) 18.4. A-Board Schematic TNP2AH047AA/AB (page 2 of 4) 18.5. A-Board Schematic TNP2AH047AA/AB (page 3 of 4) 18.6. A-Board Schematic TNP2AH047AA/AB (page 4 of 4) 18.7. A-Board Schematic TNP2AH047FA (page 1 of 4) 18.8.
  • Page 211 20.2. Parts List Ref. No. Part No. Part Name & Description Remarks CAPRISTORS CRA801 TP00842-51 TAPING GAP TERMINAL CAPACITORS C003 ECA1HM4R7B CAP E 4.7UF-50V C004 TCJ2VC1H150J CAP C 15PF-J-50V C005 TCJ2VC1H150J CAP C 15PF-J-50V C008 TCJ2VF1H103Z CAP C .01UF-Z-50V C009 ECJ2VF1H104Z CAP C .1UF-Z-50V C010...
  • Page 212 Ref. No. Part No. Part Name & Description Remarks C039 TCJ2VB1H221K CAP C 220PF-K-50V C041 ECA1HM2R2B CAP E 2.2UF-50V C043 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C044 ECA0JM102B CAP E 1000UF-6.3V C046 TCJ2VF1H103Z CAP C .01UF-Z-50V C048 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C051 ECJ2VF1C105Z CAP C 1.0UF-Z-16V C052...
  • Page 213 Ref. No. Part No. Part Name & Description Remarks C501 ECCR1H221JC5 CAP C 220PF-J-50V C505 ECQB1H104JF3 CAP P .10UF-J-50V C506 ECKR2H102KB5 CAP C 1000PF-K-500V C510 ECCR2H100D5 CAP C 10PF-D-500V C512 ECA2CM100B CAP E 10UF-160V C531 ECA1HM4R7B CAP E 4.7UF-50V C540 TCJ2VF1H103Z CAP C .01UF-Z-50V C551...
  • Page 214 Ref. No. Part No. Part Name & Description Remarks C820 ECA1CM101B CAP E 100UF/16V C821 TCJ2VF1H103Z CAP C .01UF-Z-50V C822 ECKR3A221KBP CAP C 220PF-K-1KV C823 ECA1VM471B CAP E 470UF-35V C824 ECKR3A102KBP CAP C 1000PF-K-1KV C825 EEUMG2C221S CAP E 220UF-160V C826 ECKR3A471KBP CAP C 470PF-K-1KV C827...
  • Page 215 Ref. No. Part No. Part Name & Description Remarks D003 MAZ30510HL DIODE D006 MAZ33000HL DIODE D007 MAZ30510HL DIODE D010 MAZ40510MF DIODE ZENER D055 MAZ40330MF DIODE ZENER D360 MA2C165001VT DIODE D380 MA2C029WBF DIODE D451 B0EAKL000008 DIODE RECTIFIER D452 MA2C165001VT DIODE D505 D1NL40V70 DIODE D531...
  • Page 217 Ref. No. Part No. Part Name & Description Remarks INTEGRATED CIRCUITS IC001 MN101E03GTB3 IC002 TVR2AJ165S EEPROM / CT-20G8G CT-20G8SG IC002 TVR2AJ166S EEPROM / CT-20L8G CT-25L8G CT-25L8UG IC003 GP1UE282GK IR SENSOR IC004 PST9128NR RESET IC005 PQ3RD13 3.3V STBY REGULATOR IC451 AN5522 VERTICAL OUT AMP IC501 NC7SZU04M5X...
  • Page 218 Ref. No. Part No. Part Name & Description Remarks L2303 EXCELSA39T FERRITE BEAD / CT-25L8G CT-25L8UG L2305 EXCELSA35V FERRITE BEAD TRANSISTORS Q001 2SD601ARTX TRANSISTOR Q057 2SB709ARTX TRANSISTOR Q058 2SB709ARTX TRANSISTOR Q070 2SD601ARTX TRANSISTOR Q092 2SB709ARTX TRANSISTOR Q351 2SC3063RL TRANSISTOR Q352 2SC3063RL TRANSISTOR Q353...
  • Page 219 Ref. No. Part No. Part Name & Description Remarks R019 ERJ6GEYJ472V RES M 4.7K-J-1/10W R020 ERJ6GEYJ221V RES M 220-J-1/10W R021 ERJ6GEYJ101V RES M 100-J-1/10W R022 ERJ6GEYJ101V RES M 100-J-1/10W R023 ERJ6GEYJ102V RES M 1K-J-1/10W R024 ERJ6GEYJ101V RES M 100-J-1/10W R025 ERJ6GEYJ101V RES M 100-J-1/10W R026...
  • Page 220 Ref. No. Part No. Part Name & Description Remarks R084 ERDS2TJ182T RES C 1.8K-J-1/4W R087 ERDS2TJ221T RES C 220-J-1/4W R088 ERJ6GEYJ223V RES M 22K-J-1/10W R092 ERJ6GEYJ473V RES M 47K-J-1/10W R093 ERJ6GEYJ331V RES M 330-J-1/10W R351 ERG2FJ123H RES M 12K-J-2W R352 ERG2FJ123H RES M 12K-J-2W R353...
  • Page 221 Ref. No. Part No. Part Name & Description Remarks R457 ERDS1FJ1R0P RES C 1.0-J-1/2W R458 ERJ6GEYJ123V RES M 12K-J-1/10W R459 ERJ6GEYJ122V RES M 1.2K-J-1/10W / CT-20G8G CT-20G8SG CT-20L8G R459 ERJ6GEYJ152V RES M 1.5K-J-1/10W / CT-25L8G CT-25L8UG R462 ERJ6GEYJ472V RES M 4.7K-J-1/10W R463 ERJ6GEYJ473V RES M 47K-J-1/10W...
  • Page 222 Ref. No. Part No. Part Name & Description Remarks R810 ERDS2TJ221T RES C 220-J-1/4W R815 ERC12ZGK825D RES C 8.2MEG-K-1/2W R817 ERX3FJ6R8 RES M 6.8-J-3W / CT-20G8G CT-20G8SG CT-20L8G R821 ERDS1FJ1R0T RES C 1.0-J-1/2W / CT-25L8G CT-25L8UG R821 ERDS1FJ1R5T RES C 1.5-J-1/2W / CT-20G8G CT-20G8SG CT-20L8G R822 ERDS1FJ1R0T RES C 1.0-J-1/2W / CT-25L8G CT-25L8UG...
  • Page 223 Ref. No. Part No. Part Name & Description Remarks R3019 ERJ6GEYJ682V RES M 6.8K-J-1/10W R3020 ERJ6GEYJ682V RES M 6.8K-J-1/10W R3021 ERDS2TJ101T RES C 100-J-1/4W R3022 ERDS2TJ101T RES C 100-J-1/4W R3023 ERDS2TJ101T RES C 100-J-1/4W R3024 ERDS2TJ101T RES C 100-J-1/4W R3026 ERDS2TJ101T RES C 100-J-1/4W R3027...
  • Page 224 TKX2AA00403 IR GUIDE / CT-25L8G CT-25L8UG TAS2AA0012 SPEAKER 16-OHM 1.5W TBM2A10141 BADGE PANASONIC / CT-20G8G TBM2A10143 BADGE PANASONIC / CT-20G8SG CT-20L8G CT-25L8G CT-25L8UG TBX2AA1303G BUTTON 7-KEY / CT-25L8G CT-25L8UG TBX2AA1701GS BUTTON 7-KEY / CT-20G8G TBX2AA1702G BUTTON 7-KEY / CT-20L8G TBX2AA1702GS...
  • Page 225 CT-25L8G / CT-25L8UG A-BOARD 3 of 4 TNP2AH047FA...
  • Page 226 CT-25L8G / CT-25L8UG A-BOARD 4 of 4 TNP2AH047FA...

  • Page 227: Audio Amp

    Audio signal path block diagram A-BOARD L&R Mixed MPX IN IC2201 R-OUT L-OUT JK3001 REAR AUDIO R-IN L-IN IC2301 JK3002 AUDIO AMP FRONT AUDIO R-OUT L-OUT MUTE ON/OFF IC001 CT-20L8G / CT-20G8G / CT-20G8SG / CT-25L8G / CT-25L8UG...
  • Page 228 C-BOARD TNP2AA122FA/AA CT-20L8G / CT-20G8G / CT-20G8SG / CT-25L8G / CT-25L8UG...
  • Page 229 A-BOARD 1 of 2 TNP2AH047 CT-20L8G / CT-20G8G / CT-20G8SG / CT-25L8G / CT-25L8UG...
  • Page 230 A-BOARD 2 of 2 TNP2AH047 C-BOARD TNP2AA122 CT-20L8G / CT-20G8G / CT-20G8SG / CT-25L8G / CT-25L8UG...
  • Page 231 Video signal path block diagram IC3001 VIDEO SWITCH V2/Y2 TV IN V1/Y1 V/Y OUT JK3001 REAR VIDEO Y/V1 MCOMP IN MV IN MU IN IC001 JK3002 FRONT VIDEO R OUT G OUT B OUT MSCIN *JK3003 S-Video Q360 Q361 Q362 Q357 Q358 Q359...
  • Page 232 A - BOARD IC001 IC002 IC501 IC2201 ..0.00 ..2.50 ..0.00 ..0.00 ..1.60 ..2.80 .
  • Page 233 A - BOARD Q001 Q057 Q058 Q070 Q092 Q2350 Q3001 Q3002 Q354 0.00 1.50 1.50 4.12 8.90 5.35 1.30 1.30 4.50 13.00 0.00 0.00 8.90 1.40 0.00 3.30 3.30 8.50 0.00 0.07 0.07 3.50 3.30 3.14 0.70 0.70 3.80 Q355 Q356 Q357 Q358...
  • Page 234 A-Board 4 Vp-p 4 Vp-p 4.32 V-p 1.3 Vp-p TPA5 (VIDEO) A11 PIN 3 (BLUE OUT) A11 PIN 1 (RED OUT) A11 PIN 2 (GREEN OUT) 10MHz X’tal 600mv Vp-p 3.28 Vp-p 3.88 Vp-p IC451 PIN 1 (VERT IN) IC001 PIN 36 (FBP IN) IC001 PIN 50 (OSC) Q4111 B (V DRIVE) 28 Vp-p...
  • Page 235 A-BOARD 1 of 4 TNP2AH047AA/AB CT-20L8G / CT-20G8G / CT-20G8SG...
  • Page 236 A-BOARD 2 of 4 TNP2AH047AA/AB CT-20L8 / CT-20G8 / CT-20G8S...
  • Page 237 CT-20L8G / CT-20G8G / CT-20G8SG A-BOARD 3 of 4 TNP2AH047AA/AB...
  • Page 238 CT-20L8G / CT-20G8G / CT-20G8SG A-BOARD 4 of 4 TNP2AH047AA/AB...
  • Page 239 A-BOARD 1 of 4 TNP2AH047FA CT-25L8G / CT-25L8UG...
  • Page 240 CT-25L8G / CT-25L8UG A-BOARD 2 of 4 TNP2AH047FA...

This manual is also suitable for:

Ct-32g9ujCt-32g19jCt-32g19uj

Table of Contents
