Armorgard Forma-Shelta FR200-S User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

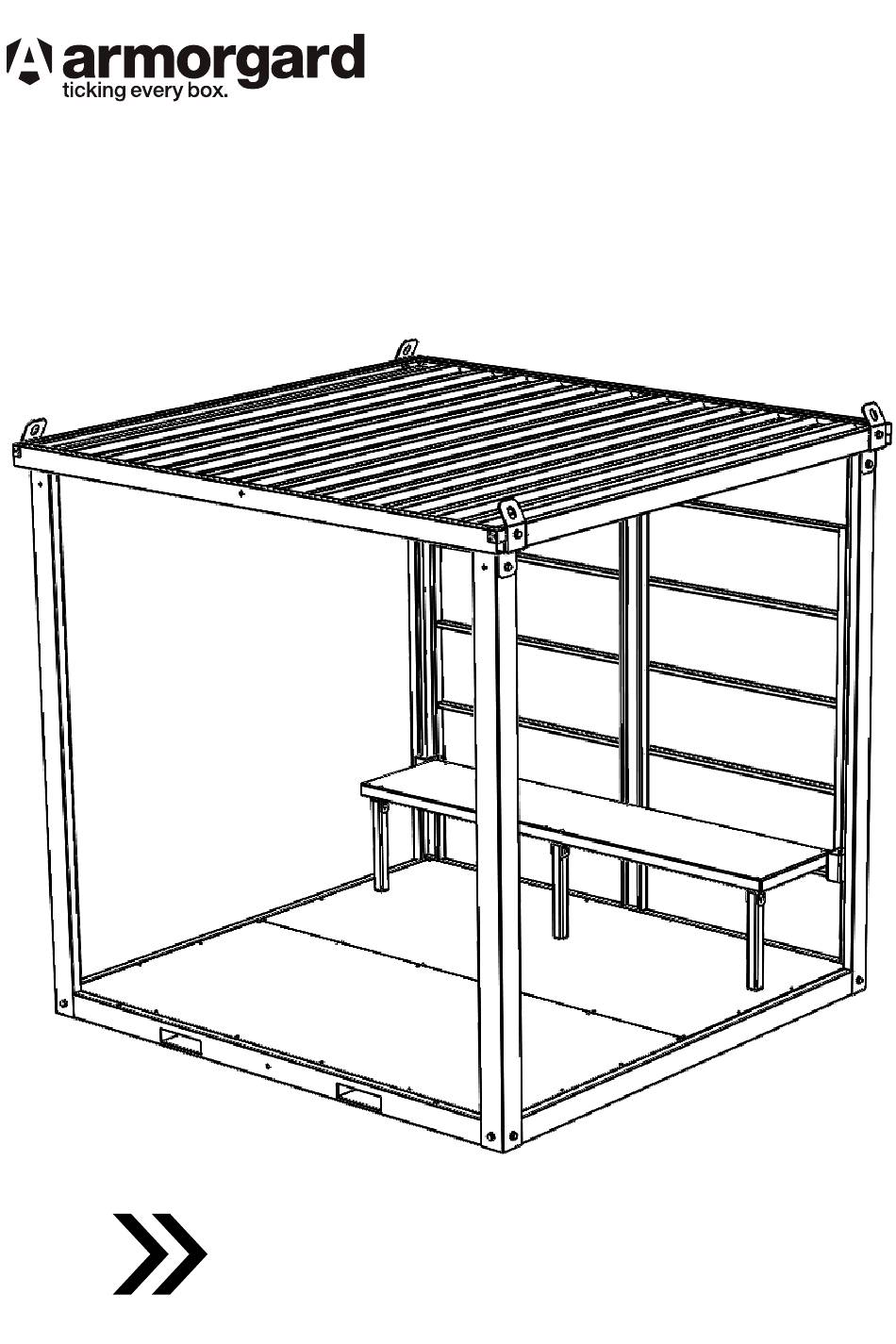

forma-shelta
Model Number FR200-S
User manual for your
Armorgard Forma-Shelta

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forma-Shelta FR200-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Armorgard Forma-Shelta FR200-S

  • Page 1 Model Number FR200-S User manual for your Armorgard Forma-Shelta...

  • Page 2: Welcome

    Please read this user manual carefully prior to assembling the Forma-Shelta. Contents Welcome....................2 Safety Information .................3 Getting to know your Forma-Shelta FR200-S ........4 Assembling the Forma-Shelta ...............5 If you have any questions on setting up your Forma-Shelta, please call 023 9238 0280...

  • Page 3: Safety Information

    Safety Information • At least 2 people are required to safely erect or dismantle the Forma-Shelta and all relevant PPE must be worn while doing so. • The Forma-Shelta must be positioned on a flat, solid surface, and should be level and stable before being used. •...

  • Page 4: Getting To Know Your Forma-Shelta Fr200-S

    Getting to know your Forma-Shelta FR200-S Powder coated corrugated roof provides excellent weatherproofing 4-point crane lifting eyes Folding bench Forklift pockets for Powder coated panels Durable, non-slip transportation to help prevent rust and aluminium treadplate corrosion floor...

  • Page 5: Assembling The Forma-Shelta

    Assembling the Forma-Shelta To begin assembling the Attach the corner posts to each Forma-Shelta, place the base on corner using 2x M12x25mm bolts a level, stable surface. Note that and washers per corner, and 1x the side with the bolt hole midway bolt for the middle post.
  • Page 6 Lift the roof onto the posts, and Attach the crane lifting eye bracket ensure each post slots into the to each of the posts, and to the groove in the roof. roof using 2x M12x25mm bolts and washers per bracket. These brackets also fix the roof to the corners.
  • Page 7 View our full range of products online at www.armorgard.co.uk...
  • Page 8 Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire PO16 8XB t: 023 9238 0280 e: sales@armorgard.co.uk w: www.armorgard.co.uk...
