Summary of Contents for CNC4PC C96HSB2

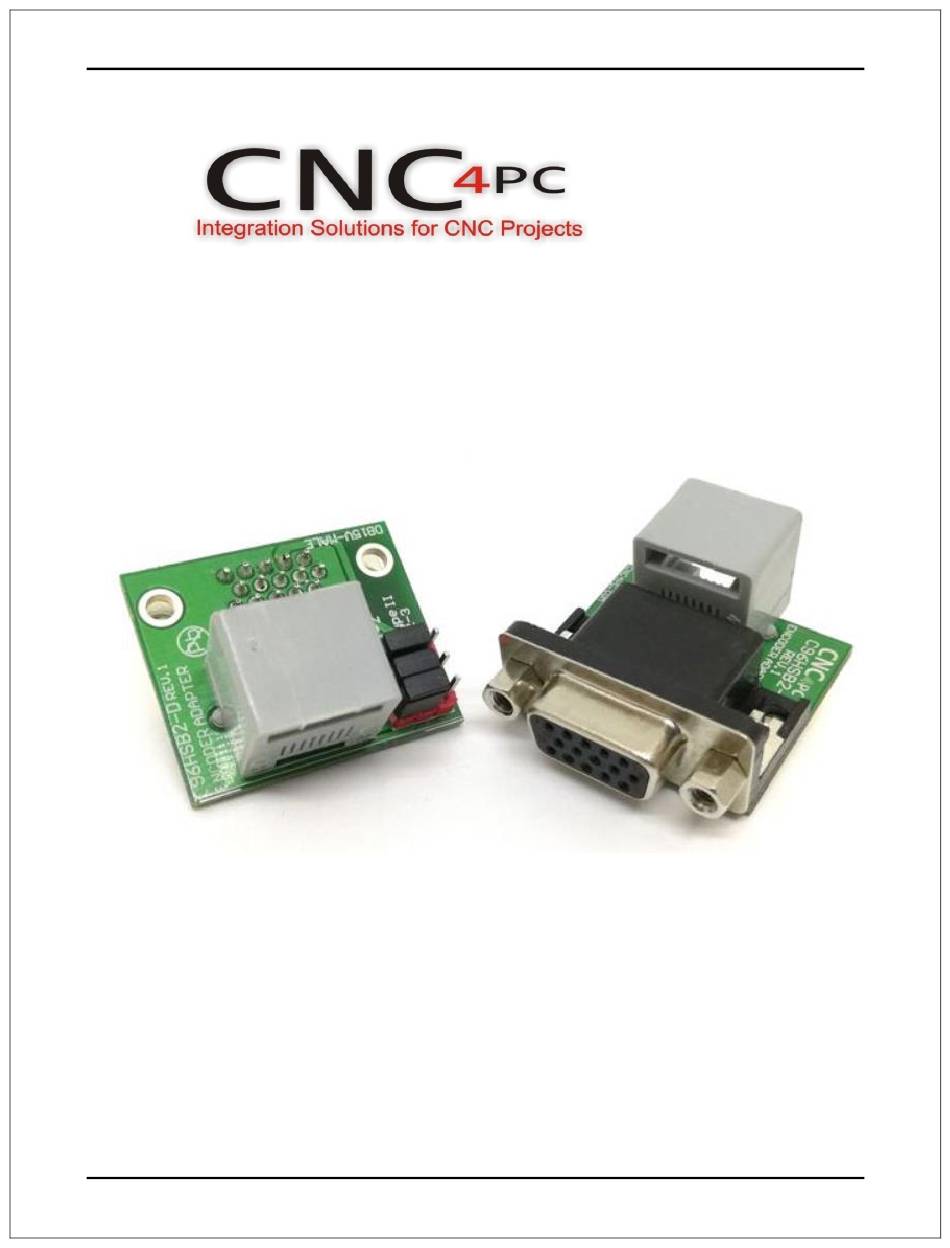

- Page 1 USER’S MANUAL VER.1 C96HSB2 - Rev.1 JANUARY 2023 User’s Manual Page 1...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Contents OVERVIEW ........................3 FEATURES ........................3 DESCRIPTION ........................ 4 JUMPER TO SELECT COMPATIBILITY WITH DRIVER ..........4 PINOUT ........................... 5 WIRING SAMPLE ......................6 User’s Manual Page 2... -
Page 3: Overview
Allows plugging one board to the driver, and the other to the cable coming out of the motor, then using an Ethernet Cable to extend the cable as long as needed. • Can be used with the pass-through RJ45 connectors on the CNC4PC Panels. • Works with CAT5/6 cables. -
Page 4: Description
3.0 DESCRIPTION 4.0 JUMPER TO SELECT COMPATIBILITY WITH DRIVER 1-2 TYPE I Compatibles Drivers: - ES-DH2306 KL-110-80H User’s Manual Page 4... -
Page 5: Pinout
Not setting the jumper correctly can cause damage to drivers. If you have doubts on the driver you are using, open a support ticket and provide information on the driver you are planning on using: https://www.cnc4pc.com/contact 5.0 PINOUT C96HSB2-M DB15-FEMALE RJ45 TYPE I (1-2) TYPE II (2-3) -
Page 6: Wiring Sample
6.0 WIRING SAMPLE Disclaimer: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan is liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause.
