Manaras Opera INTERFACE003 Installation Instructions

TO REDUCE THE RISK OF SEVERE INJURY OR
1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2. Always shut OFF the main power before performing any electrical intervention.
3. Photoelectric cells must be installed facing each other across the door's path within 6"
(15 cm) of the plane of the door and the beam no more than 5-3/4" (14,6 cm) above
the floor.
Components and Specifications
INTERFACE003 is a Y-Connect signal merging unit which allows for the connection of any two (2) Independent
External Entrapment Protection Devices onto the MONITORED inputs of the operator's Electronic Control Board
BOARD070M. With INTERFACE003 properly installed, the operator receives an obstruction signal when either or
both of the devices sense an obstruction. When no obstruction is present, INTERFACE003 passes the standard
dynamic signal to the operator. Refer to the Connections section on p.2 for further instructions.
Technical Specifications
Protection Class
Housing Material
Housing Dimensions
Operation Temperature
Supply Voltage
Power Consumption
Response Time
For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
1-800-361-2260
www.manaras.com
INTERFACE003 - Y-Connect Module
INTERFACE003 - Y-Connect Module
Specifications and Installation Instructions
Specifications and Installation Instructions
DEATH TO PERSONS:
Nema 4
ABS/PA6 GF30; TPE
3" L x 1-9/16" W x 1/2" H
-13 °F to 167 °F (-25 °C to 75°C)
24 V
AC/DC
< 15 mA
33 ms obstruction time with
secondary device
Figure 2 - Dimensions
WARNING
PAGE 1 OF 2
1

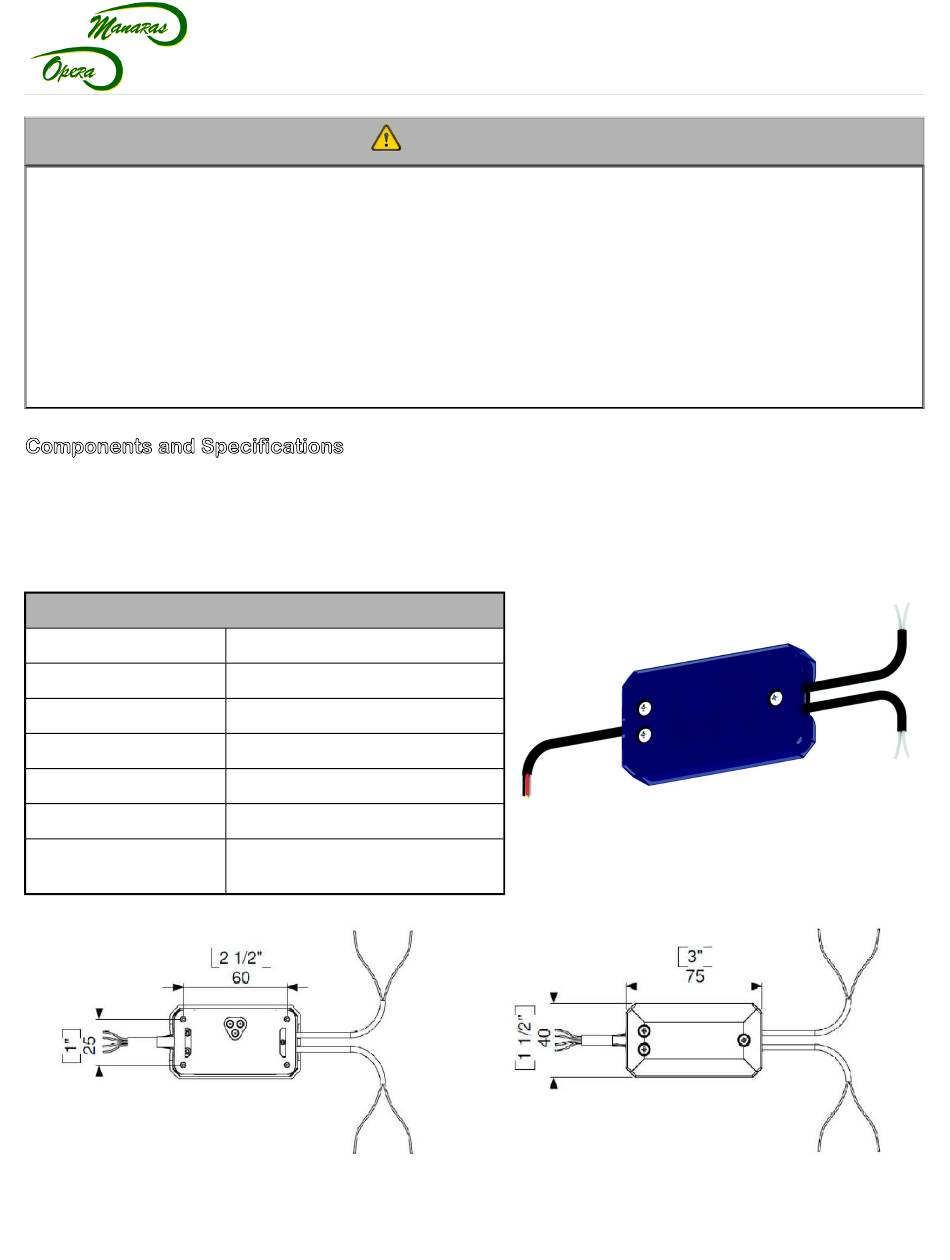

Figure 1: INTERFACE003
TN1023 REV 2 - 2019/05/31
