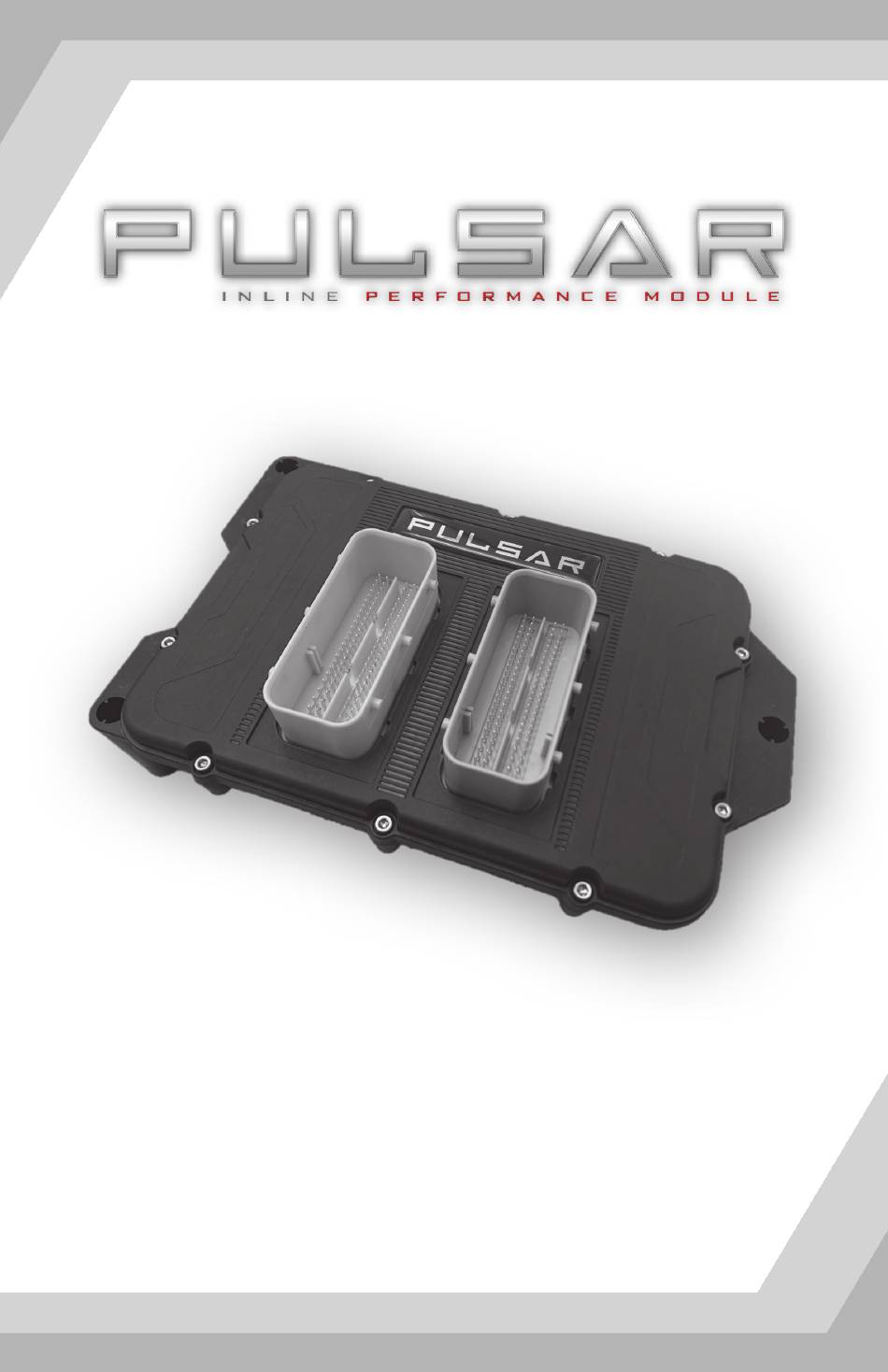

Page 1 Ram Hemi...
Page 2: Table Of Contents
Installation 5.7L Hemi Update Software Materials Downloading Update Agent Required Tools Product Updates ECM Removal Frequently Asked Questions Pulsar Installation 5.7L Controls Steering Wheels Controls Accelerator Pedal Controls 5.7L Power Levels Levels Explained In-Dash Level Indicators Changing Power Levels (2015-2018) Changing Power Levels (2019-2023) 5.7L Tire Size...
Page 3: Read Me
Read Me Safety Warning & Caution Throughout this User Manual you will see important messages regarding your safety or the protection of your vehicle. These messages are designated by the words WARNING, CAUTION, or NOTICE. WARNING A WARNING indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Page 4: Safety Guidelines
Safety Guidelines WARNING Before using device, read and understand the user manual, including these additional safety instructions. Failure to do so could result in DEATH or SERIOUS INJURY. • Do not exceed legal speed limits on public roadways. Violating traffic laws is dangerous and could result in injury or vehicle damage or both.
Page 5: Installation 5.7L Hemi
Installation 5.7L Hemi Materials Pulsar Module Allen Wrench 3x - Washer 3x - Bolt Required Tools Flat Head Screw Driver 1/4 Drive Ratchet 10mm Socket 8mm Socket Allen Wrench (provided) Note: It may be easier to use a 4mm Allen...
Page 6: Ecm Removal
ECM Removal STEP 1 - Disconnect and remove the negative battery terminal. STEP 2 - Locate the vehicle’s ECM. 2015-2018 2019-2023 Passenger Side Firewall Driver Side Battery TIP: Remove the air filter housing for easier access. Cut the (2) zip ties that fasten each connector harness to the metal bracket.
Page 7: Pulsar Installation
TIP: Place the stock screws into a zip lock bag and store it in the glove box. STEP 6 - Orient Pulsar and the ECM as shown. The three holes (A,B, & C) will be used to fasten the assembly to the bracket.
Page 8 Pulsar Installation Cont’d STEP 9 - Align the Pulsar assembly holes with the threaded holes on the vehicle mounting bracket. Insert the provided bolts (w/ washers) and fasten the assembly to the bracket using the provided Allen Wrench. Tighten until snug.
Page 9: 5.7L Controls
5.7L Controls Steering Wheel Controls Pulsar power levels and Option menus are navigated using the right-side steering wheel buttons. Refer to the information below to better understand how these buttons are utilized. Power Levels 15-18 Function 19-23 2015-2018 2019-2023 RES+...
Page 10: Levels Explained
NOTE: When using MDS-OFF options, the dash display will show as if using manual gear shifting. This is to allow the Pulsar to control MDS, and does not actually put the vehicle into Manual Gear Shifting. On 2022+ vehicles, you will get a message stating the ERS (Electronic Range Select) is Active.
Page 11: Changing Power Levels
Changing Power Levels (2015-2018) Dash Option A This dash display requires that menu settings be modified before Pulsar power levels can be 105.9 KNRS adjusted and viewed. Speedometer Vehicle Info Fuel Economy 8878.5mi STEP 1 - Place the ignition into the RUN Position.
Page 12 Changing Power Levels (2019-2023) For 2019-23 vehicles, the dash display settings will need to be modified prior to adjusting and viewing Pulsar power levels. STEP 1 - Place the ignition into the RUN position. STEP 2 - Using the left side steering wheel controls, enter the Screen Setup menu.
Page 13: 13 5.7L Tire Size
5.7L Tire Size Tire Size Explained The Pulsar allows you to adjust the vehicle’s tire size settings. This feature corrects the speedometer based on tire size inputs. 2015-2018 Tire Size Dash Option A Dash Option B Tire Size? Y Tire Size? Y...
Page 14 2015-2018 Tire Size Cont’d STEP 4 - Next, use the accelerator pedal to change the measure of units between English and Metric. Dash Option B Dash Option A Units: English Units: English Speedometer Vehicle Info Fuel Economy 8878.5mi STEP 5 - With the desired units displayed, press the RES+ button to select the Unit.
Page 15: 2019-2023 Tire Size
2019-2023 Tire Size STEP 1 - With the ignition in the RUN position (DO NOT start), press and hold the CANC (Cancel) button for approximately 5 seconds. The option to modify the Tire Size is displayed on the center gauge. (NOTE: The SET- button allows you to return to the previous option.) STEP 2 - Press down on the...
Page 16: 16 5.7L Axle Ratio
5.7L Axle Ratio Axle Ratio Explained In addition to Tire Size, Pulsar also allows you to correct the speedometer by adjusting the axle ratio settings. To make these adjustments, refer to the following set of instructions based on your vehicle year:...
Page 17 2015-2018 Axle Ratio Cont’d Once the desired Tire Size and/or Axle Ratio has been entered, you will be prompted to Program (Save the new settings). To save the settings, follow these instructions. STEP 5 - Press down on the accelerator pedal to change the N (No) to Y (Yes), then press the RES+ button to select the option.
Page 18: 2019-2023 Axle Ratio
2019-2023 Axle Ratio STEP 1 - With the ignition in the RUN position (Do Not Start), press and hold the CANC (Cancel) button for approximately 5 seconds. The option to modify the Tire Size is displayed. If modifying Tire Size, refer to the previous section. If not, select N (No) to skip to Axle Ratio.
Page 19: Clear Dtc's
Read DTC’s STEP 1 - With the ignition in the RUN position (Do Not Start), press and hold the CANC (Cancel) button for approximately 5 seconds. The option to modify the Tire Size is displayed. If modifying Tire Size, refer to the previous section. If not, select N (No) to skip to Axle Ratio.
Page 20: Installation 2015-2018 6.4L Hemi
2015-18 Installation 6.4L Hemi Materials Pulsar Module Allen Wrench 4x - Washer 3x - Bolt 1x - Nut Required Tools Flat Head Screw Driver 1/2 Drive Ratchet 10mm Socket 10mm Wrench Allen Wrench (provided) Note: It may be easier to use a 4mm Allen Socket instead of provided tool.
Page 21: Ecm Removal
ECM Removal STEP 1 - Disconnect and remove the negative battery terminal. STEP 2 - Locate the vehicle’s ECM. (1) 2015-2018 Cut the zip ties that fasten each connector harness to the metal bracket. STEP 3 - Use a flat head screw driver to press the lever lock towards the ECM.
Page 22: Pulsar Installation
TIP: Place the stock screws into a zip lock bag and store it in the glove box. STEP 6 - Orient Pulsar and the ECM as shown. The three holes (A,B, & C) will be used to fasten the assembly to the bracket.
Page 23 Pulsar Installation Cont’d STEP 9 - Rotate Pulsar and PCM assembly, clockwise, over stock PCM mounting bracket (towards firewall) until assembly hole (c) lines up with upper stock bracket hole. Step 10 - Insert supplied bolts w/ washers into holes (a) and (c),...
Page 24: Materials
2019-24 Installation 6.4L Hemi Materials Pulsar Module 3x - Washer 3x - Shoulder Bolt Required Tools Flat Head Screw Driver 1/2 Drive Ratchet 10mm Socket 10mm Wrench...
Page 25: Ecm Removal
ECM Removal STEP 1 - Disconnect and remove the negative battery terminal. STEP 2 - Locate the vehicle’s ECM. (1) 2019-2024 Cut the zip ties that fasten each connector harness to the metal bracket. STEP 3 - Use a flat head screw driver to press the lever lock towards the ECM.
Page 26: Pulsar Installation
STEP 7 - Align and insert the Pulsar’s bottom side connectors with the ECM connectors. STEP 8 - While on a flat surface, apply enough pressure to fully seat the connectors. The top of the ECM connectors should sit flush with the Pulsar enclosure.
Page 27 Pulsar Installation Cont’d STEP 9 - Gently insert the truck harness connectors into the Pulsar connectors. Push the lever down until it locks into place. STEP 10 - Insert the supplied shoulder bolts w/ washers into holes and tighten with a 10mm hand wrench until snug.
Page 28: Steering Wheels Controls
6.4L Controls Steering Wheel Controls Pulsar power levels and Option menus are navigated using the right-side steering wheel buttons. Refer to the information below to better understand how these buttons are utilized. Power Levels 15-24 Function 2015-2024 RES+ Level Up...
Page 29: Levels Explained
NOTE: When using MDS-OFF options, the dash display will show as if using manual gear shifting. This is to allow the Pulsar to control MDS, and does not actually put the vehicle into Manual Gear Shifting. When using an 8 speed transmission, it will automatically switch to gear 8. And when using a 6 speed transmission, it will automatically switch to gear 6.
Page 30: Changing Power Levels
Changing Power Levels Dash Option A This dash display requires that menu settings be modified before Pulsar power levels can be 105.9 KNRS adjusted and viewed. Speedometer Vehicle Info Fuel Economy 8878.5mi STEP 1 - Place the ignition into the RUN Position.
Page 31: 31 6.4L Tire Size
6.4L Tire Size Tire Size Explained The Pulsar allows you to adjust the vehicle’s tire size settings. This feature corrects the speedometer based on tire size inputs. Adjusting Tire Size Dash Option A Dash Option B Tire Size? Y Tire Size? Y...
Page 32 Adjusting Tire Size Cont’d STEP 4 - Next, use the accelerator pedal to change the measure of units between English and Metric. Dash Option B Dash Option A Units: English Units: English Speedometer Vehicle Info Fuel Economy 8878.5mi STEP 5 - With the desired units displayed, press the RES+ button to select the Unit.
Page 33: 6.4L Axle Ratio
6.4L Axle Ratio Axle Ratio Explained In addition to Tire Size, Pulsar also allows you to correct the speedometer by adjusting the axle ratio settings. To make these adjustments, refer to the following set of instructions based on your vehicle year:...
Page 34 Adjusting Axle Ratio Cont’d Once the desired Tire Size and/or Axle Ratio has been entered, you will be prompted to Program (Save the new settings). To save the settings, follow these instructions. STEP 5 - Press down on the accelerator pedal to change the N (No) to Y (Yes), then press the RES+ button to select the option.
Page 35 Read DTC’s STEP 1 - With the ignition in the RUN position (Do Not Start), press and hold the CANC (Cancel) button for approximately 5 seconds. The option to modify the Tire Size is displayed. If modifying Tire Size, refer to the previous section. If not, select N (No) to skip to Axle Ratio.
Page 36: Update Software
Update Software Downloading Update Agent 1.0 (Optional) The Update Agent may be used to update the device via the USB connection. The software can be downloaded through the internet. This process currently can only be done on a Windows computer, Mac devices are not supported. NOTE: It is recommended to install Update Agent 1.0 on a laptop computer for best accessibility (you will need to connect the computer to the vehicle’s OBDII port to perform updates).
Page 37: Product Updates
It is recommended that a battery charger is attached and turned on during the update process. NOTE: The Pulsar must be installed into a vehicle before updating.When updating, you CANNOT use your vehicle’s Wi-Fi. It will be disabled during the update process. Use an external source such as your home Wi-Fi.
Page 38: Frequently Asked Questions
Frequently Asked Questions Question: Why does the power level flicker? Is this normal? Answer: Yes. This is due to the way Pulsar has to “piggy back” onto the existing communication lines. Question: Can I adjust power levels when cruise control is on? Answer: No, only when cruise control is off.
Page 39 PAGE INTENTIONALLY LEFT BLANK...
Page 40 For additional questions not found in the user guide, call: Holley Technical Support: (888)-360-3343 Mon - Fri 8:00 am - 5:00 pm MST To expedite your support call, please have your Vehicle Information, Part Number, and Serial Number ready prior to calling Technical Support. ©...
