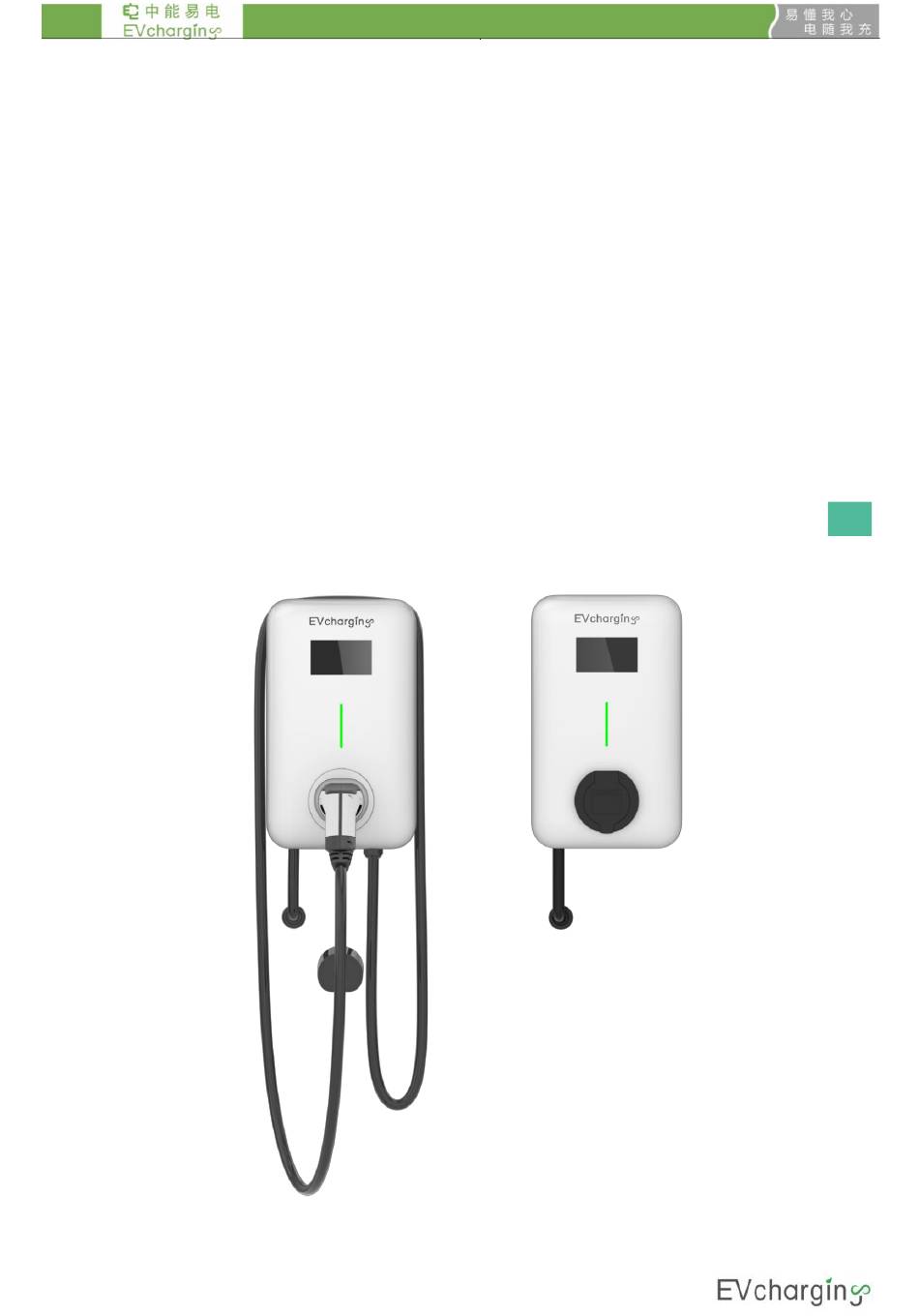

- Page 1 Atlas AC Commercial Charger User maintenance Manual © Copyright @EV Charging Clean Energy Technology Co.,Ltd. All rights reserved.
- Page 2 All rights to copyrights, registered trademarks, and trademarks reside with their respective owners. Copyright @EV Charging Clean Energy Technology Co.,Ltd. All rights reserved.
- Page 3 Important Safety Instructions Please read all instructions carefully before using this product. This document describes the precautions to be paid attention to during the installation, operation, and maintenance of the product. Strictly follow the instructions in this document before installing and using the product. Warning: Do not install or use wall-mounted Warning: Before the equipment is powered on, make connectors near flammable, explosive or combustible...
-
Page 4: Safety Features
Safety features Residual current detection (RCD) Atlas AC commercial Charger has integrated typeA 30mA + 6mA DC leakage protection residual current device (RCD) conforming to IEC standards, so there is no need to install RCD B type leakage protection circuit breaker outside unless the local grid require to. -
Page 5: Product Specification
Product specification Model A7-OP Cable/Socket A11-OP Cable/Socket A22-OP Cable/Socket Voltage Range AC 183-276 Vac L-N AC 320-480 Vac L-L AC 320-480 Vac L-L Rated Current Frequency 50/60Hz 50/60Hz 50/60Hz Rated Power 11kw 22kW Wire Single phase（1P+N+PE） Triphasic (3P+N+PE) Triphasic (3P+N+PE) Network Type TT, TN, IT TT, TN, IT... -
Page 6: Components And Features
Components & Features Product Enclosure Sweep card area: The integrated RFID reader allow charging cards scanned. Atlas will read the information on your card to determine whether it is allowed to start or stop charging. Screen: Display charging status and charging data. -
Page 7: Device Maintenance
Device Maintenance Maintenance of the charger must be performed only by qualified personnel per the applicable local regulations. Unauthorized installation and modifications make the manufacturer warranty void 1 General maintenance If the product is installed in public spaces and is accessible to everyone, suggest follow the procedures below. 1. -
Page 8: Fault Description
Fault Description Fault (Fault code) Cause Analysis Processing Method AC input overvoltage Local power grid voltage does not Ensure that the input voltage is within the (0x020b0000) meet the input voltage range of specified range; the product; Measure the input voltage and confirm The local voltage power grid that the voltage is within the specified voltage is unstable, and the... - Page 9 Check the connection of the ev charging between the charging pile and cable to ensure a good connection; the electric vehicles;...
- Page 10 malfunction of interrupted by interference after 5 minutes to check whether the fault WIFI-bluetooth communication; is restored; module The WIFI Bluetooth module is Power failure cannot be restored, contact (0x031C0000) damaged; the local dealer; Please feel free to contact us if you have any problem with the charging station . You can also get the detailed product manual through our official website.
