Summary of Contents for RHINOMOTIVE R3140

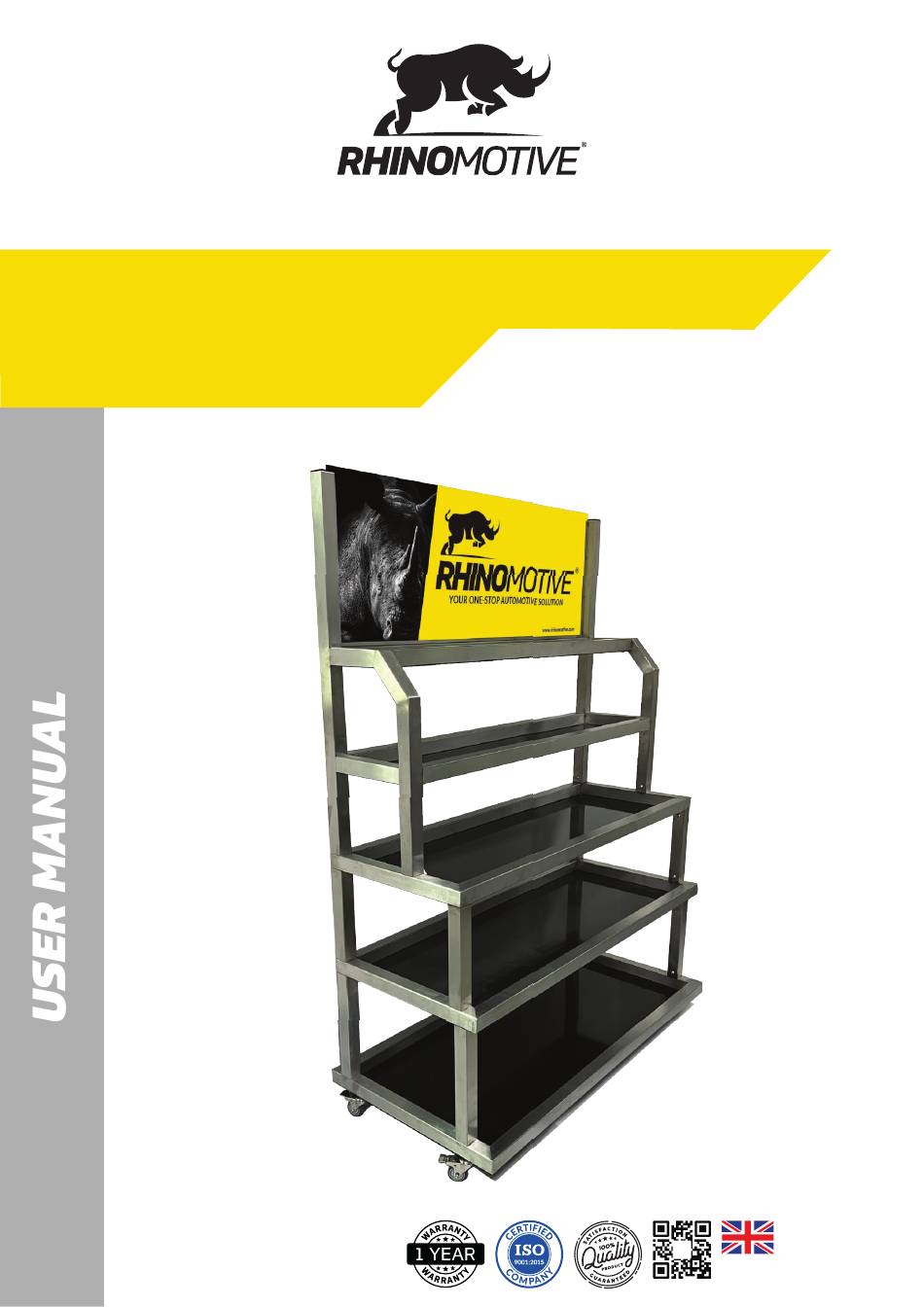

- Page 1 MID FLOOR DISPLAY 5 SHELVES PN: R3140 RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com...
-
Page 2: Parts List
1. PARTS LIST ACRYLIC SIGNBOARD: 1 PC CASTORS WITH BRAKES: 4 PCS www.rhinomotive.com... - Page 3 2. INSTALLATION MANUAL STEP 1: 1.1 Install left side frame and fourth layer shelf together with fifth layer shelf and right side frame using stainless steel screw & “L” shape wrench A www.rhinomotive.com...
- Page 4 2.1. INSTALLATION MANUAL STEP 2 2.1 Install second & third layer shelves using stainless steel screws & “L” shape wrench A connecting pipe B www.rhinomotive.com...
- Page 5 2.2. INSTALLATION MANUAL STEP 3 3.1 Install stainless steel castors with brakes at the bottom of the first layer shelf using “Y” shape wrench A www.rhinomotive.com...
- Page 6 2.3. INSTALLATION MANUAL STEP 4 4.1 Complete steps 2 and 3 by connecting Pipe (A) using stainless steel screws and “L” wrench A www.rhinomotive.com...
- Page 7 2.4. INSTALLATION MANUAL STEP 5 5.1 To connect upper and lower structure together installed in steps 1 and 4, use stainless steel screws and “L” wrench A www.rhinomotive.com...
- Page 8 2.5. INSTALLATION MANUAL STEP 6 6.1 To complete the installation, install top acrylic signboard and make sure all screws/bolts are tightened RHINOMOTIVE LTD - UK 71-75 Shelton Street, London, United Kingdom Scan QR Code www.rhinomotive.com www.rhinomotive.com...
