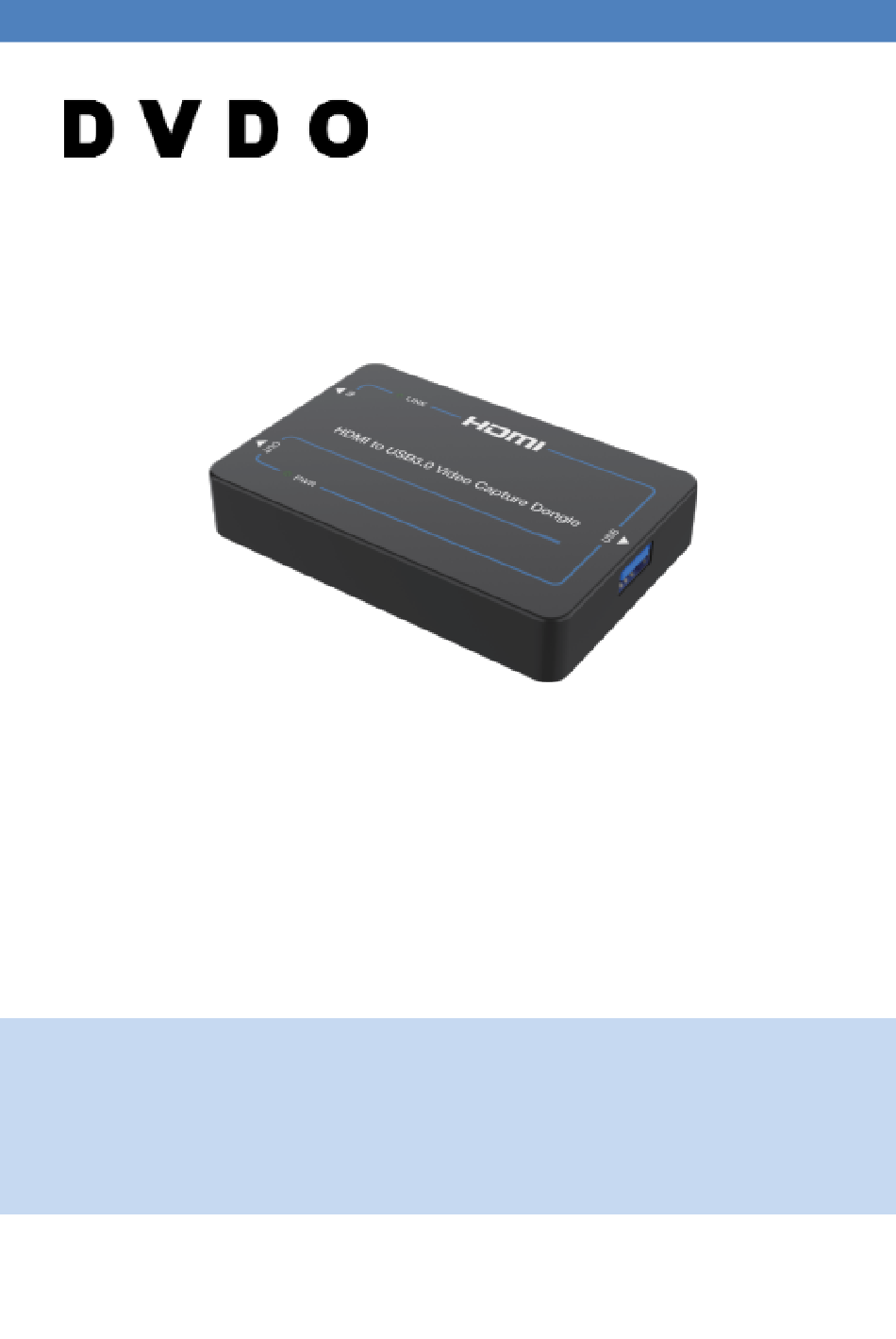

- Page 1 DVDO-USB3.0-Capture HDMI to USB 3.0 Capture Dongle with HDMI Loop Out User Manual Version v1.0 DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com...
-
Page 2: Table Of Contents
Thank you for purchasing DVDO-USB3.0-Capture For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
Introduction DVDO-USB3.0-Capture is an HDMI to USB video capture dongle with 1 HDMI i n p u t , 1 HDMI loop out and 1 USB output. The HDMI input supports incoming videos with resolution up to 4K60. The USB output can be used to power the device and capture videos with resolution up to 1080p60. -
Page 4: Package Contents
Package Contents ① 1× HDMI to USB Video Capture Dongle ② 1× USB 3.0 Type-A Cable (0.5m, Blue) ③ 1× User Manual Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth HDMI: 18 Gbps; USB: 5Gbps Up to 4K2K@60Hz 4:4:4 Video Resolution Video will be in YUV2 with no compression if outputting via a... - Page 5 USB Audio PCM 2.0 Format USB Version USB 3.1 GEN 1 Human body model — ±8kV (air-gap discharge) & ESD Protection ±4kV (contact discharge) Connection × Input HDMI Type A [19-pin female] × HDMI Type A [19-pin female] Outputs × USB Type A [female] Mechanical Housing...
-
Page 6: Operation Controls And Functions
Operation Controls and Functions Name Function Description HDMI input port, connect to a HDMI IN source device via the HDMI cable. HDMI loop out port, connect to a display device such as TV via the HDMI OUT HDMI cable. PWR LED The power LED lights in green (Green) when the device is powered on. -
Page 7: Obs Operation Instructions
OBS Operation Instructions The OBS (Open Broadcaster Software) Studio software needs to be installed in your PC at first before video capture. After device connection, you can follow steps as below to process the OBS settings. Step 1: Download the “OBS” application to your computer at first. - Page 8 Step 4: Select “FHD Video-USB3.0” from the Device drop-down menu at the beginning of the pop-up Properties page, then check “Use custom audio device” and choose “FHD Audio” at the bottom of the page. After that, click “OK” to save the properties settings.
- Page 9 Step 5: On entering the setting page, click the “Audio” tab, then choose “48Khz” as the Sample Rate and “USB3.0 Capture Digital Audio” for “Mic/Auxiliary Audio Device”. After that, click “Apply” and “OK” in turn to save the audio settings. 7/12...
- Page 10 Step 6: Click the setting icon on the Audio Mixer window, and select “Advanced Audio Properties”. When a box pops out, you can choose “Monitor and Output” and click “Close” to exit out of the advanced audio properties settings. 8/12...
- Page 11 Step 7: On entering the setting page, click the “Video” tab, then you can set “Base Resolution” and “OUTPUT Resolution”. After that, click “Apply” and “OK” in turn to save the Video settings. 9/12...
- Page 12 Step 8: On entering the setting page, click the “OUTPUT” tab, then select a “Recording Path”, set “Recording Quality”, “Recording Format” etc. After that, click “Apply” and “OK” in turn to save the Output settings. 10/12...
- Page 13 Step 9: When all settings have been completed, click “Start Recording” to start video capture. Clicking it again, the video capture will be stopped. Step 10: When the video is captured, click “Exit” and the software will be closed. 11/12...
-
Page 14: Application Example
Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. 12/12... - Page 15 Follow us DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com 13/12...
