Summary of Contents for fidek FSP-12EX MKII

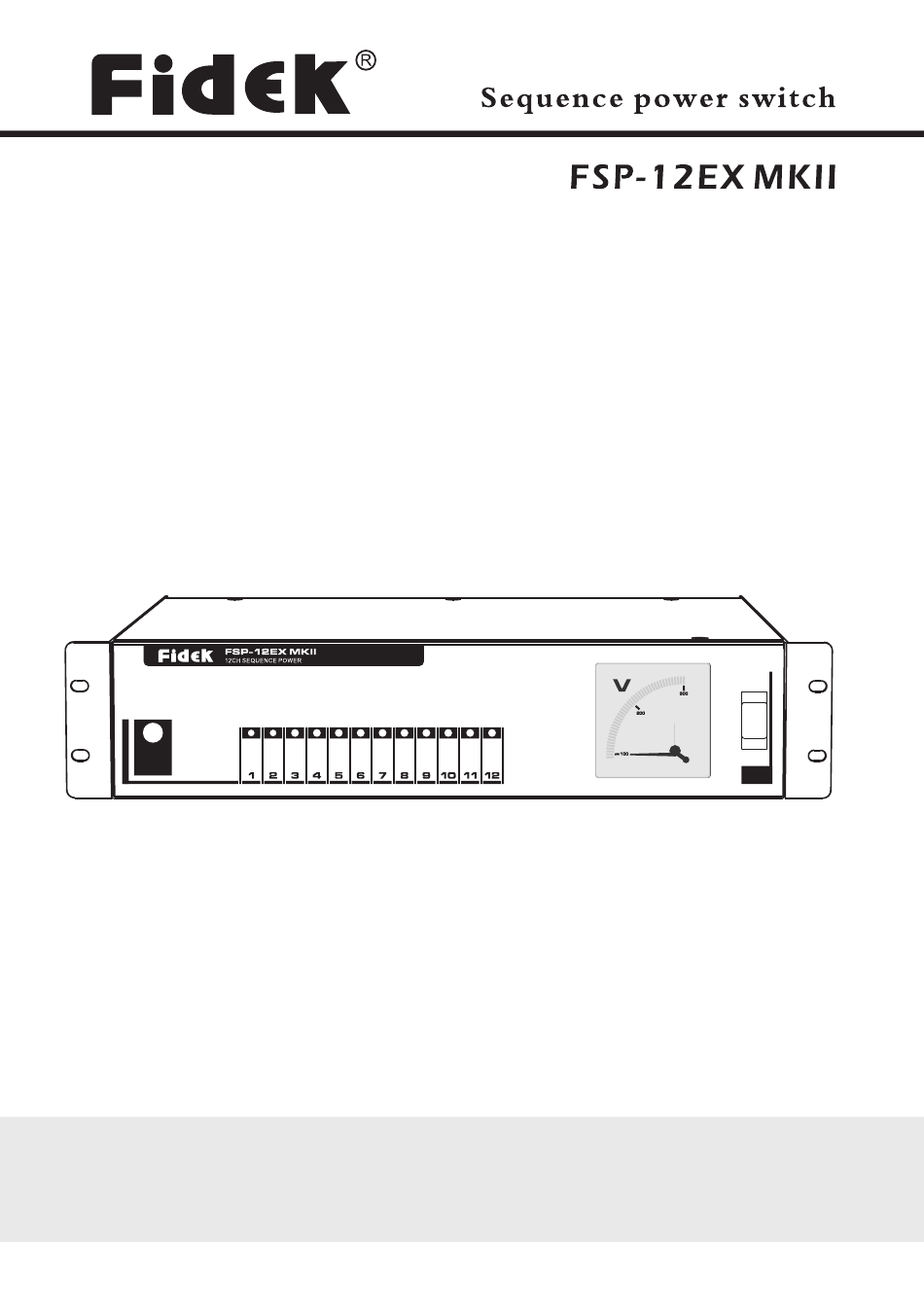

- Page 1 CHANNEL SWITCH POWER USER'S MANUAL...
-
Page 2: Table Of Contents
CONTENTS FEATURES......................1 SAFETY INSTRUCTIONS................2-3 FUNCTION DESCRIPTION ................4 FRONT PANEL..................4 REAR PANEL...................4 CONNECTION....................5 OPERATION....................6 SPECIFICATIONS ........................6 FEATURES Turn on or off the power of 12 channel step by step in sequence. Use FCQA-760/8631/7831/9631 to control. The capacity of socket is 220VAC,45A,9900W. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS... - Page 4 SAFETY INSTRUCTIONS...
-
Page 5: Function Description
FUNCTION DESCRIPTION 1. FRONT PANEL CHANNEL SWITCH POWER 1. Channel switch 3. Voltmeter 2. Indicator LED 4. Power switch 2. REAR PANEL CHANNEL SWITCH CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN POWER INPUT 1. Channel output socket 3. Control port of FCQA-760/8631/9631/7831 2. -
Page 6: Connection
CONNECTION First direction for use: Turn on or off the audio system step by step. FCQA-8631 Peripheral devices Multi amplifier Multi Front Second direction for use: Turn on multi amplifiers in different time to avoide the power grid impact. FCQA-8631 Amplifier 1 Amplifier 2 Amplifier n... -
Page 7: Operation
2. CH1 channel not be controlled by the channel switch,it use for the power of FCQA-760/8631/9631/7831. 3. The channel switch of FSP-12EX MKII should contact to the power port of FCQA-760/8631/9631/7831 4. Before FCQA-760/8631/9631/7831 contacting with FSP-12EX MKII, the power switch of FCQA-760/8631/9631/7831 should be“ON”.
