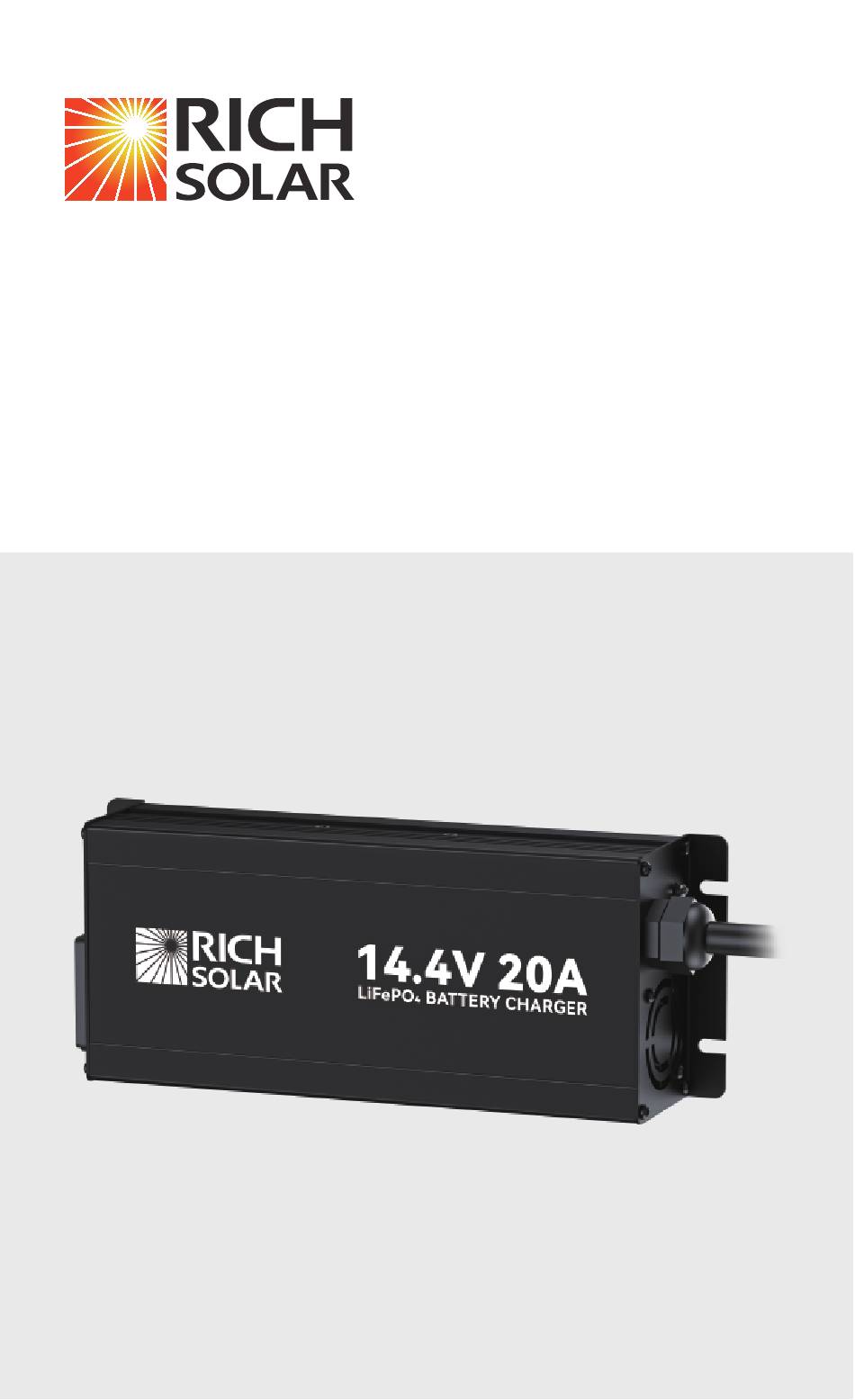

- Page 1 User Manual LiFePO4 Battery Charger MODEL: RS-BC12V20 THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR LiFePO4 BATTERY CHARGER. PLEASE READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
-
Page 2: Table Of Contents
PRODUCT OVERVIEW HOW TO CONNECT LED INDICATOR SPECIFICATIONS CHARGING MODES MAINTENANCE & USE PRECAUTIONS TROUBLESHOOTING -01-... -
Page 3: Product Overview
PRODUCT OVERVIEW 14.4V 20A LiFePO4 Battery Charger 2.07" [52.5mm] 3.58" [91mm] 9.06" [230mm] 50A Anderson M10 Battery Connector Terminal -02-... - Page 4 AC SIDE 100-240V AC Input Mounting Holes DC SIDE 14.4V DC Output LED Indicator -03-...
-
Page 5: How To Connect
HOW TO CONNECT Step Step AC Input Anderson Connector Charger Connect the DC output cable to the battery, Step , then connect the Anderson connector. Connect the AC input cable to the AC port and then to the Step grid power. Disconnect the Anderson connector or the grid power Step after charging is complete. -
Page 6: Led Indicator
LED INDICATOR LED Status Charger Status Battery is charging LED Always on Red Battery is fully charged LED Always on Green Charger fault or under protection (overtemperature protection, output short-circuit protection, reverse polarity LED Flashes Red connection protection, output over-voltage protection). Battery is on standby LED Flashes Green SPECIFICATIONS... -
Page 7: Charging Modes
CHARGING MODES Pre-Charge stage (T1) When the battery voltage is lower than its normal standard and cannot withstand high-current charging,the charger will charge it at a limited current. This charging mode will be able to activate and repair the battery and extend the battery's lifetime. -
Page 8: Maintenance & Use Precautions
5. Do not use other input cables or extend the output connection cable personally, or please contact RICH SOLAR at support@richso- to get some advice if you need it. -
Page 9: Troubleshooting
TROUBLESHOOTING If the charger does not work properly, the following methods can help you solve the general problem quickly. If you still cannot rule out the possibility of failure, please contact RICH SOLAR at sup- port@richsolar.com Problem Possible Cause Solution... - Page 10 1-800-831-9889 support@richsolar.com www.richsolar.com 5550 Jurupa St, Ontario, CA 91761...
