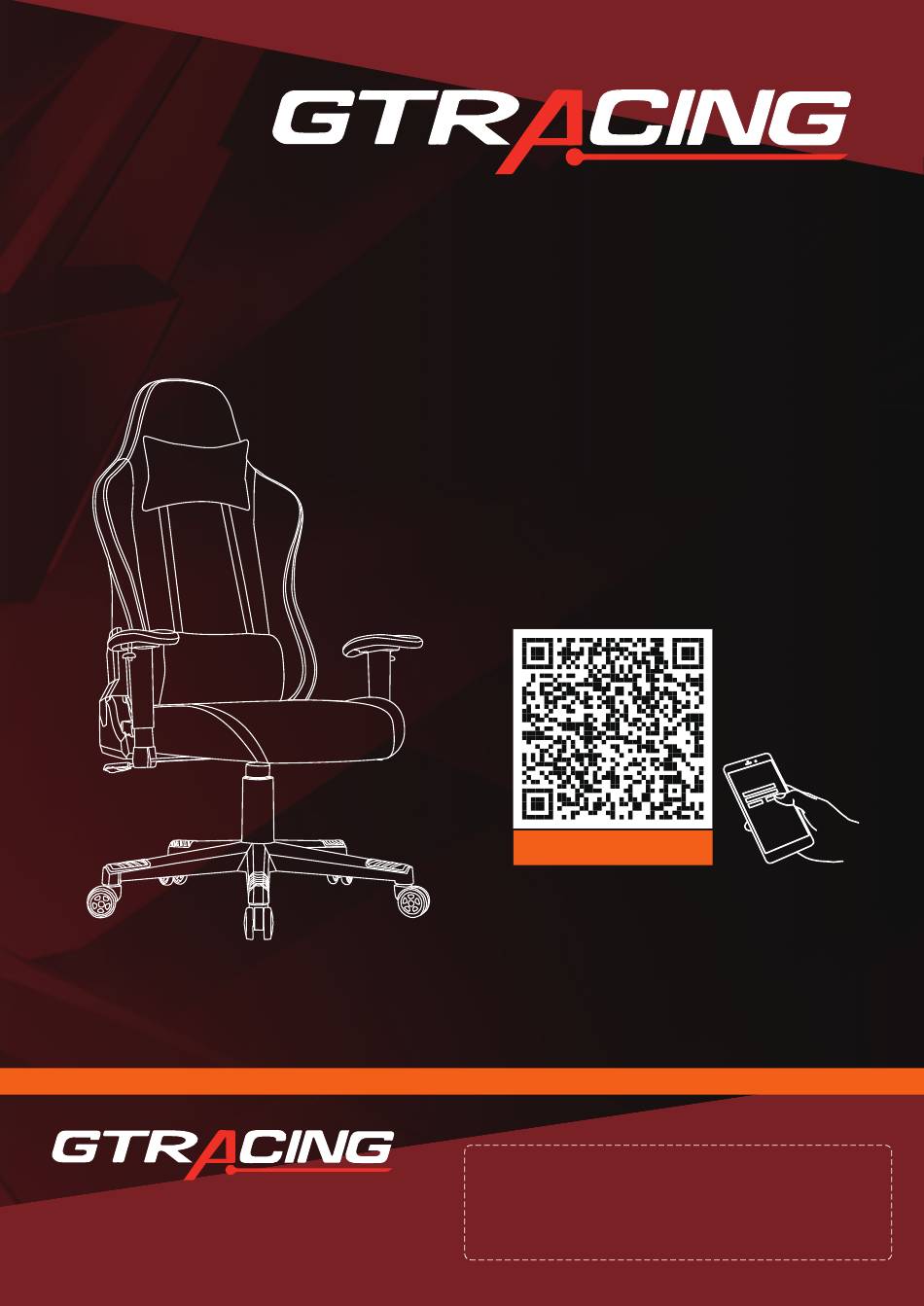

ASSEMBLY INSTRUCTIONS
READ THIS MANUAL
Do not use this product until you read and understand
the instructions in this manual.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
This manual is intended for installation and use.The
pattern should be subject to the product you receive.
Installation QR
If you have any questions about the product,
please contact us through the contact information
on the left. We will try our best to solve your
problem within 24H(except weekends and holidays).
Version 24.10.09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GT Racing GT890M
Summary of Contents for GT Racing GT890M
- Page 1 ASSEMBLY INSTRUCTIONS READ THIS MANUAL Do not use this product until you read and understand the instructions in this manual. KEEP THIS MANUAL FOR FUTURE REFERENCE. Installation QR This manual is intended for installation and use.The pattern should be subject to the product you receive. Version 24.10.09 If you have any questions about the product, please contact us through the contact information...
- Page 2 BACK SEAT MECHANISM GAS LIFT COVER HEADREST ANGLE ADJUSTOR CASTER WRENCH BASE LUMBAR PILLOW ARMREST i3 is pre-installed on top of E-mail: info@gtracingchair.com Web: www.gtracing.com...
-
Page 3: Dust Cover
GAS LIFT CONNECTOR DUST COVER *Note: Accessories are in the back pocket. W1 W2 W3 BLUETOOTH RECEIVER SPEAKER EXTENSION CHARGING CABLE CABLE ※Attention: W1+W2+W3 are in the back pocket. Please ensure that all accessories are complete before use. Read this user manual and charge the battery before use. Please use it correctly. - Page 4 Install the base. � M6x20 Snap on the ground to align the screw holes. Insert the casters. Install the gas lift and gas lift cover. � � � � � E-mail: info@gtracingchair.com Web: www.gtracing.com...
- Page 5 Point 1: Points to note The direction of the Point 1: notch as shown in the diagram. Buttons facing outward Point 2: as shown in the image. Point 2： Install into with screws . M8x25 � M8x25 The labeled surface should face outward. Please install as shown inthe diagram and note the...
-
Page 6: Packaging Box
Install the mechanism and armrests. M8x20 M8x25 M8x20 M8x25 PACKAGING BOX Attention DO NOT tighten all the screws completely until they are fixed in the correct position. E-mail: info@gtracingchair.com Web: www.gtracing.com... - Page 7 Place seat on the gas lift. Install on the seat and back. & M8x25 DO NOT tighten all the screws completely until they are fixed in the correct position. E-mail: info@gtracingchair.com Web: www.gtracing.com...
- Page 8 First install � & � on the seat. Then install � & � on the back. Put M5*8 screws through the holes of & and tighten them, and then put the caps on. � M5x8 E-mail: info@gtracingchair.com Web: www.gtracing.com...
- Page 9 Install & with M5*8 screws, and then put the caps on. � M5x8 Attach the headrest. * Length-adjustable belt Method 1 Back Front Method 2 Front Back Down The belt can be adjusted up or down as needed. E-mail: info@gtracingchair.com Web: www.gtracing.com...
- Page 10 Attach the lumbar pillow. Install the armrest. � M6x20 Install in the direction shown by the arrow on � TI P S � Lift the armrest and seat to M6x20 the highest for installation as needed. E-mail: info@gtracingchair.com Web: www.gtracing.com...
- Page 11 Complete. What to do if the chair squeaks: Please check the areas and connections where the abnormal sound is coming from. ・Detach the parts connected to the gas lift and seat, then tighten the screws. ・Tighten the screws of the tilt adjuster and connecting parts (a total of 8 screws).
- Page 12 Adjustable armrests: Press and hold the button while pulling upward to adjust the height. Infinite tilt adjustment function: By leaning your back against the backrest and pulling up the adjustment lever on the right side of the seat, you can adjust the angle infinitely. After adjusting the angle according to your preference, release the control lever to lock and secure the backrest.
- Page 13 Seat height adjustment: The control lever on the side of the seat can be used to adjust the seat height. Pulling up the lever while seated will lower the seat height. Pulling the lever up while not seated will raise the chair height. Bluetooth Function User Manual This device can play audio through Bluetooth function.
-
Page 14: Charging Cable
When hearing a click, the cables are properly connected in place. Attention Inability to produce sound from both sides of the speakers: Try inserting the plug of the Bluetooth receiver into the socket multiple times. Ensure that A1 and A2 are inserted until they make a clicking sound. are placed in the back pocket. ... - Page 15 Bluetooth Speaker Receiver User Manual ⑴. APP Control The Bluetooth receiver can be controlled through APP.If you are interested, scan the APP QR code to get the APP. APP QR CODE ⑵. Charging Charge the Bluetooth receiver with Type-C charging cable or battery charger (Not included) for about 90 min, and it will be fully charged.
- Page 16 ⑶.Pair and Connect Connecting to smartphones and other devices: 1. Long press the multi-function button ① for 2s to turn on the Bluetooth receiver . The LED indicator light flashes red and blue ● ● , and the voice will prompt “POWER ON". 2.
- Page 17 ⑷. Instructions of Multi-function Button 1). Power On — Long press the multi-function button ① for 2s to turn on the Bluetooth receiver and the voice will prompt “POWER ON". 2). Power Off — Long press the multi-function button ① again for 5s to turn off the Bluetooth receiver and the voice will prompt “POWER OFF".
- Page 18 ⑹. Technique Specification Power Input USB 5V Output Voltage 3.8V Battery Capacity 1000mAh Charging Time 90 min Working Frequency 2.402 ~ 2.483ghz Working Time 10-12H Wireless Streaming Range Distance 10~15m（No occlusion） Support Mobile System Android / iOS GAIN A COMPLETE INTERCONNECTED EXPERIENCE No Bluetooth transmission function in your device？We recommend 「USB Bluetooth Transmitter “GT...
-
Page 19: Maintenance
M A I N TENA N CE Thank you for choosing us. GTRACING is dedicated to providing high-quality and safe products for comfort. GTRACING guarantees each of its new products to be free from defects in materials and/or defects caused by workmanship. This does not apply to normal wear and tear or to damage caused by neglect, lack of maintenance, abnormal operation or unreasonable use, damage caused by the use of accessories or parts not manufactured by GTRACING or components altered... - Page 20 Dear Customer, Thank you for choosing us. GTRACING has been implementing its brand and design concept “BE COOL BE FREE", and we are dedicated to enriching gaming and shopping experience for customers. For safe use, please read this manual before installation, and keep it for after use. Please feel free to email us if you have any concerns about our products. We‛ll reply within 24 hours. The following are the things you need to pay attention to so that we can provide you with services when you encounter problems during the installation and use of the product: • When the product is damaged due to courier problems, please contact our customer service in time for verifcation. • We will rectify the issue as soon as possible; • We give a 1-year quality assurance. We offer product explanations, installation instructions, product maintenance and mainte- nance methods.
