Q-SYS QIO Series Hardware User Manual

Audio/control i/o expanders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

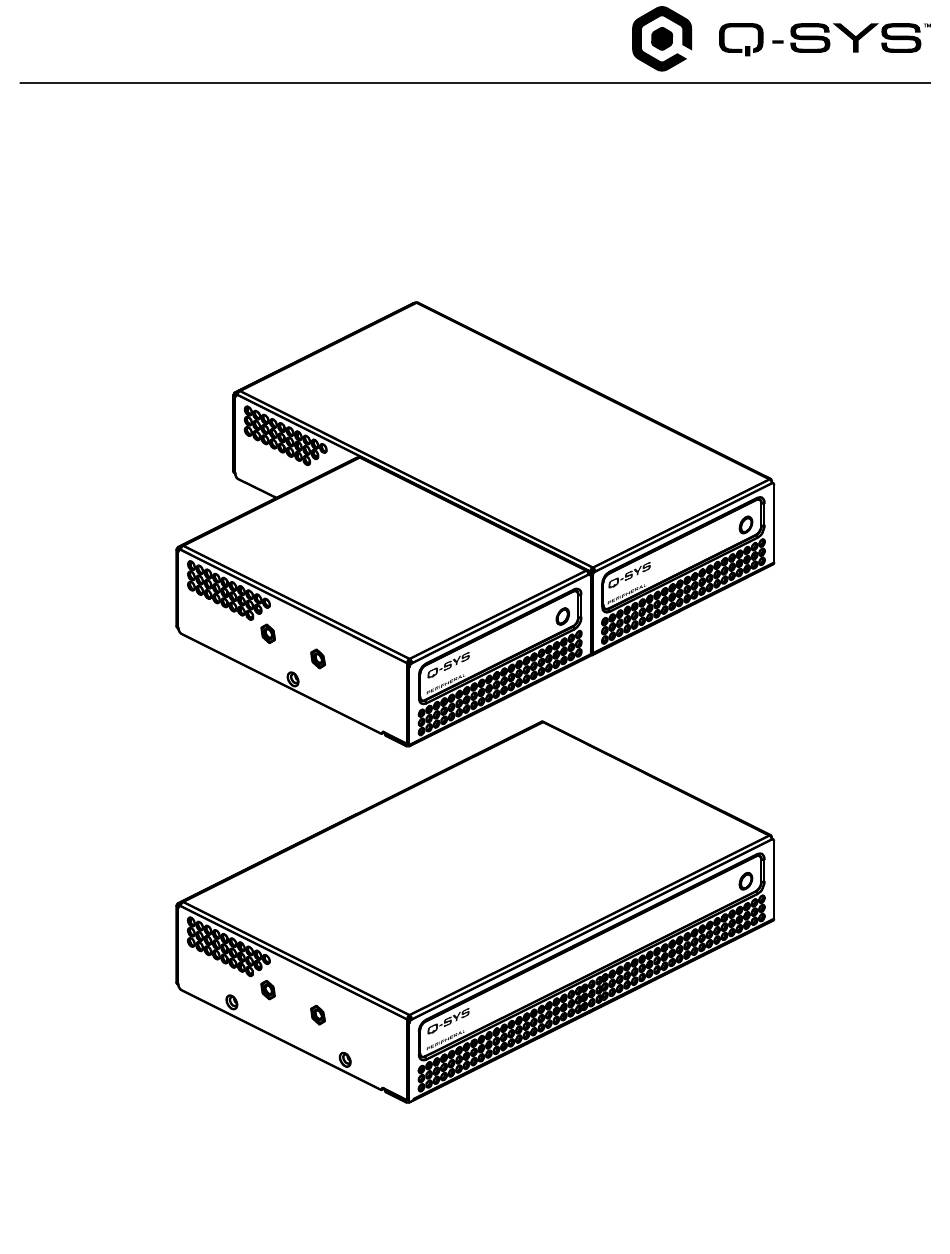

Hardware User Manual
QIO Series Audio I/O Expanders for Q-SYS:
QIO-ML4i, QIO-L4o, QIO-ML2x2, QIO-AES8x8, QIO-TEL2, QIO-FLEX4A
QIO Series Control I/O Expanders for Q-SYS:
QIO-GP8x8, QIO-S4, QIO-IR1x4, QIO-LVR4
TD-001667-01-F
*TD-001667-01*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QIO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Q-SYS QIO Series

  • Page 1 Hardware User Manual QIO Series Audio I/O Expanders for Q-SYS: QIO-ML4i, QIO-L4o, QIO-ML2x2, QIO-AES8x8, QIO-TEL2, QIO-FLEX4A QIO Series Control I/O Expanders for Q-SYS: QIO-GP8x8, QIO-S4, QIO-IR1x4, QIO-LVR4 TD-001667-01-F *TD-001667-01*...
  • Page 2 EXPLANATION OF TERMS AND SYMBOLS The term “WARNING” indicates instructions regarding personal safety. Failure to follow them may result in bodily injury or death. The term “CAUTION” indicates instructions regarding possible damage to physical equipment. Failure to follow them may result in equipment damage to equipment that may not be covered under the warranty.

  • Page 3: Maintenance And Repair

    Type 2 (PoE+) PSE or 802.3af Type 1 Class 3 PoE PSE if the device amplifier is not used. All other QIO models require an 802.3af Type 1 PoE PSE. See “QIO Series Control I/O Expanders - Cont’d” on page 1 1.
  • Page 4 The QSC Q-SYS QIO Series Audio I/O Expanders and Control I/O Expanders are in compliance with European RoHS Directive. The QSC Q-SYS QIO Series Audio I/O Expanders and Control I/O Expanders are in compliance with “China RoHS” directives. The following table is provided for product use in China and its territories: QSC Q-SYS QIO Series Audio I/O Expanders and Control I/O Expanders 部件名称...

  • Page 5: What's In The Box

    What’s in the Box QIO-ML4i (1x) (4x) (2x) QIO-ML4i Mic/Line In connector Power connector (orange) (black) (2x) (4x) (4x) Surface mounting Foam spacer M4 x 6 mm pan head bracket screws (1x) (1x) Warranty Safety and statement regulatory statements QIO-L4o (1x) (4x) (2x)
  • Page 6 QIO-ML2x2 (1x) (2x) (2x) QIO-ML2x2 Mic/Line In connector Line Out connector (orange) (green) (2x) (2x) (4x) Power connector Surface mounting Foam spacer (black) bracket (4x) (1x) (1x) M4 x 6 mm pan head Warranty Safety and screws statement regulatory statements QIO-AES8x8 (1x) (4x)
  • Page 7 QIO-TEL2 (1x) (2x) (2x) QIO-TEL2 Power connector Surface mounting (black) bracket (4x) (4x) (1x) Foam spacer M4 x 6 mm pan head Warranty screws statement (1x) Safety and regulatory statements QIO-FLEX4A (1x) (4x) (1x) QIO-FLEX4A FLEX connector (blue) RS232 connector (black) (2x) (1x)
  • Page 8 QIO-GP8x8 (1x) (2x) (2x) QIO-GP8x8 GPIO connector Power connector (black) (black) (2x) (4x) (4x) Surface mounting Foam spacer M4 x 6 mm pan head bracket screws (1x) (1x) Warranty Safety and statement regulatory statements QIO-S4 (1x) (4x) (2x) QIO-S4 Serial connector Power connector (black) (black)
  • Page 9 QIO-IR1x4 (1x) (1x) (1x) QIO-IR1x4 IR Output connector IR Input connector (black) (black) (2x) (2x) (4x) Power connector Surface mounting Foam spacer (black) bracket (4x) (1x) (1x) M4 x 6 mm pan head Warranty Safety and screws statement regulatory statements QIO-LVR4 (1x) (4x)
  • Page 10 24V DC power is available. Alternatively, each may be individually powered over Ethernet. The Q-SYS QIO-ML2x2 is a network audio endpoint native to the Q-SYS Ecosystem, serving as a mic/line input, line output device, that enables network-based audio distribution. The compact form factor includes surface mounting hardware permitting discreet and strategic mounting while an optional rack kit fits one to four devices into a standard 1U nineteen-inch format.

  • Page 11: Power Requirements

    Power Requirements The Q-SYS QIO Series offers a flexible power solution that allows the integrator to choose to use either a 24V DC power supply or Power over Ethernet (PoE). With either power solution, you must follow the safety instructions for the specific power supply or injector chosen. For details on the 24V DC or PoE power supply requirements, refer to the product specifications.
  • Page 12 1. Power LED – Illuminates blue when the Q-SYS QIO-ML4i is powered on. 2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator. 3. ID Button – Locates the QIO-ML4i in Q-SYS Designer Software and Q-SYS Configurator.
  • Page 13 1. Power LED – Illuminates blue when the Q-SYS QIO-L4o is powered on. 2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator. 3. ID Button – Locates the QIO-L4o in Q-SYS Designer Software and Q-SYS Configurator.
  • Page 14 1. Power LED – Illuminates blue when the Q-SYS QIO-ML2x2 is powered on. 2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator. 3. ID Button – Locates the QIO-ML2x2 in Q-SYS Designer Software and Q-SYS Configurator.
  • Page 15 1. Power LED – Illuminates blue when the Q-SYS QIO-AES8x8 is powered on. 2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator. 3. ID Button – Locates the QIO-AES8x8 in Q-SYS Designer Software and Q-SYS Configurator.
  • Page 16 Q-SYS Help for details. 6. POTS Lines – Two FXO interfaces. Note: Each Q-SYS phone line is meant to be connected to a single PTSN line (FXO). It does not control a multi-line PBX or interface with an FXS.
  • Page 17 9. GPIO Outputs – 8 outputs, open collector (24V, 0.2A sink maximum) with pull up to +3.3V (pins labeled 1–8 equal pins 1–8 in the Q-SYS Designer GPIO Output component). 10. GPIO Inputs – 4 inputs, 0-24V analog input, digital input, or contact closure (pins labeled 1–4 equal pins 1–4 in the Q-SYS Designer GPIO Input component). Configurable pull-up to +12V.
  • Page 18 6. 12V DC .1A Out – For use with General Purpose Inputs and Outputs (GPIO). Uses black connector pins 1 and 1 1 (not numbered). 7. GPIO Inputs – 8 inputs, 0-24V analog input, digital input, or contact closure (Pins labeled 1–8 equal pins 1–8 in the Q-SYS Designer Software GPIO Input component).
  • Page 19 Q-SYS Help for details. 6. COM 1 Serial Port – Configurable in Q-SYS Designer Software for RS232, RS485 Half-Duplex TX, RS485 Half-Duplex RX, or RS485/422 Full Duplex. See “QIO-S4 Serial Port Pinouts” on page 20.
  • Page 20 QIO-S4 Serial Port Pinouts The QIO-S4 features four serial ports: • COM 1 is configurable in Q-SYS Designer Software for RS232, RS485 Half Duplex TX, RS485 Half Duplex RX, or RS485/422 Full Duplex. • COM 2-4 ports are dedicated to RS232 communication.
  • Page 21 6. IR SIG LEDS – Indicate transmit activity for CH/IR Output 1-4. 7. IR Outputs – Configurable in Q-SYS Designer Software as IR or Serial RS232. See “QIO-IR1x4 IR Port Pinouts” on page 22. 8. IR Input – Provides 3.3V DC and receives IR data. See “QIO-IR1x4 IR Port Pinouts” on page 22.
  • Page 22 QIO-IR1x4 IR Port Pinouts The QIO-IR1x4 features four IR outputs and one IR input: • Outputs 1-4 are configurable in Q-SYS Designer Software for IR or Serial RS232 mode. • Input provides 3.3V DC and receives IR data. IR Output 1-4: IR Mode Pinout...
  • Page 23 1. Power LED – Illuminates blue when the Q-SYS QIO-LVR4 is powered on. 2. ID LED – LED blinks green when placed into ID Mode via ID Button or Q-SYS Configurator. 3. ID Button – Locates the QIO-LVR4 in Q-SYS Designer Software and Q-SYS Configurator.

  • Page 24: Rack Mount Installation

    Rack Mount Installation Q-SYS QIO Endpoints are designed to be mounted in a standard rack-mount unit using the Q-SYS 1RU rack tray (FG-901528-00, QIO- RMK). The rack tray accommodates up to four quarter-rack width QIO devices or two half-rack width (QIO-FLEX4A) devices. A QIO- FLEX4A unit can occupy the left, right, or center of the tray.

  • Page 25: Surface Mount Installation

    Surface Mount Installation The QIO Endpoints can also be mounted under a table, on top of a table, or on a wall. For any of these mounting applications, use the surface mounting bracket and pan head screws included with the QIO Endpoint ship kit. The brackets are symmetrical to accommodate mounting right-side up to a ground-facing surface.

  • Page 26: Warranty

    © 2024 QSC, LLC. All rights reserved. QSC and the QSC logo, Q-SYS, and the Q-SYS logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark Office and other countries. Patents may apply or be pending. All other trademarks are the property of their respective owners.
