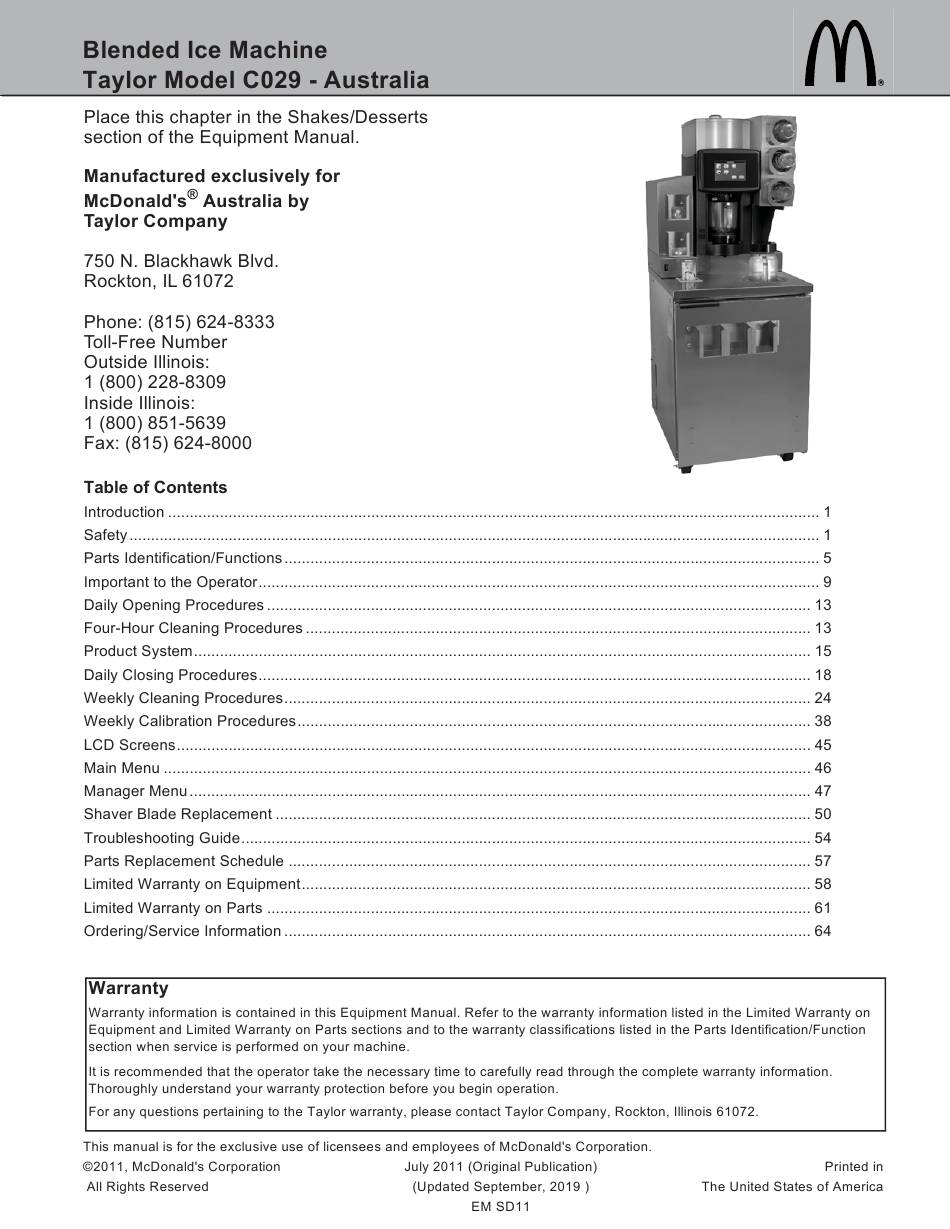

McDonald's Taylor C029 Instruction Manual

Blended ice machine
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Taylor C029 and is the answer not in the manual?

Questions and answers

Summary of Contents for McDonald's Taylor C029

  • Page 3 IMPORTANT! This machine is to be used only by trained personnel. It is not intended for use by children or people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Where limited machine operation is allowed for public use, such as a self-serve application, supervision or instruction concerning the use of the machine by a person responsible for their safety is required.
  • Page 4 IMPORTANT! An equipotential grounding lug is provided with this machine. Some countries require the grounding lug to be properly attached to the rear of the frame by the authorized installer. The installation location is marked by the equipotential bonding symbol (5021 of IEC 60417-1) on both the removable panel and the machine's frame.
  • Page 5 IMPORTANT! If the crossed-out wheeled bin symbol is affixed to this machine, it signifies that this machine is compliant with the EU directives as well as other similar end-of-life legislation in effect after August 13, 2005. Therefore, it must be collected separately after its use is completed and cannot be disposed as unsorted municipal waste.
  • Page 6 Notes:...
  • Page 11 101041...
  • Page 12 Note: The water shuts off immediately if the pitcher is removed before the 7 seconds elapse. Note: Blender pitchers must be washed, rinsed, 13828 and sanitized every 4 hours to prevent a buildup of film on the pitchers. 101042 101042 Important! The ice hopper cover must be in place for the machine to blend.
  • Page 13 101495 101044 13826 101045 Note: The product keys have color-coded borders to indicate the product condition. Note: The machine will not function without the hopper cover in place.
  • Page 14 13718 13718 13719 Note: To dispense multiples of the same drink, proceed to step 6. Note: To remove a drink size from the options list, press the corresponding size key repeatedly until that size is removed from the options list. Note: To remove the multiple drinks option from the options list, verify that no size selections are listed in the options list.
  • Page 15 Important! Make sure your hands are clean and sanitized before performing these next steps. 101496 101507 101081 Note: The bottom product bins and shelves must be removed to install the mix cabinet drip pan.
  • Page 16 10688 101497 101082 101495...
  • Page 17 101125 101056 101059 18120 Note: See the quick guide label inside the bin for product bag installation procedures. 101092...
  • Page 18 Important! Position the rear groove of the product 101155 bag spout into the slot of the product bin. Lock the spout into position by pushing down on the product bin slide until it snaps in place. (See Figure-28.) 18119 101190 Important! Make sure the product bag is not pinched in the bin slot.
  • Page 19 13833 18116 Note: There are eight product locations labeled in 13651 the refrigerated cabinet. Make sure to place the product bin with the new product bag into the appropriate location in the cabinet. 101495 13826...
  • Page 20 13828 101496 Note: Do not discard product into the rinse station. 13633 Note: This procedure must be done at the close of business. 13826 Note: A HOME key has been added to the cleaning screens to allow the user to easily exit the cleaning screens and return to the Beverage Select screen.
  • Page 21 101062 101495 101496 101061 101193...
  • Page 22 Note: If there is film buildup on the inside of the ® blender pitchers, place 1/2 scoop of Kay Destainer (HCS) into a pitcher and fill the pitcher with warm water. Note: The bottom product bins and shelves must be removed in order to remove the mix cabinet drip pan.
  • Page 23 101179 101500 101178 101210...
  • Page 24 101176 101211 101177 10688 10689...
  • Page 25 101212 101156 Important! Do not use a screwdriver or other sharp tool to clean the gasket grooves. This will damage the gaskets. 101127 101121 Note: For machines equipped with a square whipped cream holder opening: Dry the whipped cream holder with a single-use sanitized towel.
  • Page 26 Note: A HOME key has been added to the cleaning screens to allow the user to easily exit the cleaning screens and return to the Beverage Selection screen. 13826 101214 13828 101495 13633...
  • Page 27 101496 101061 101064 101062...
  • Page 28 18120 101501 101143 101123 Note: Do not place the parts in the power soaker sink or dishwasher. (See Figure-76.) 101502 Note: To remove the product bag from the bin, move the product bin slide to the open position by (1) pulling the slide slightly away from the bin and (2) up until it stops.
  • Page 29 101127 Note: If there is film buildup on the inside of the ® blender pitchers, place 1/2 scoop of Kay Destainer (HCS) into a pitcher and fill it with warm water. Note: For machines equipped with a square whipped cream holder opening: Dry the whipped cream holder with a single-use 101499 sanitized towel.
  • Page 30 101065 101179 101072 101178 101144...
  • Page 31 Note: If the drain is not draining fast enough or if the operator needs to leave the machine for a while, the pause key can be used to stop and restart the process. If the pause key is pressed, a bar graph 101159 screen will show the drain-pause progress for each product line.
  • Page 32 13652 13653 Note: The pause key can be used to stop and restart the process. Note: The pause key can be used to stop and restart the process. 13648 101074 101075...
  • Page 33 13653 10735 Note: The pause key can be used to stop and restart the process. 101066 101067 101190...
  • Page 34 101130 10688 101101 101062 101092...
  • Page 35 101158 Important! Position the rear groove of the product bag spout into the slot of the product bin. Lock the spout into position by pushing down on the product bin slide until it snaps in place. (See Figure-105.) 18119 101063 Important! Make sure the product bag is not pinched in the bin slot.
  • Page 36 101211 13651 10689 101496 Important! Do not calibrate for at least 2 hours after 101212 performing the weekly cleaning. Product must be 34°F to 39°F (1°C to 4°C) to calibrate.
  • Page 37 101504 101121 101505 10690 Important! Do not use a screwdriver or other sharp tool to clean the gasket grooves. This will damage the gaskets.
  • Page 38 101131 101077 101071 101132 101506...
  • Page 39 101131 101078 101071 101116 101080 13638...
  • Page 40 13633 13826 Important! Do not use the drain for at least 4 hours after performing the weekly cleaning. 101495 Important! Do not calibrate for at least 2 hours after performing the weekly cleaning. 101213 101081...
  • Page 41 101133 13828 101134 13844 101135...
  • Page 42 Note: About 6 oz. of ice should shave in 3 seconds. 101137 (See Figure-140.) 101136 Note: If the machine is still unable to shave 6 oz. of ice within 3 seconds, evaluate the ice quality. If the problem persists, call a service technician to evaluate the blade.
  • Page 43 13844 101081 13826 101138 13828 101139...
  • Page 44 101140 101082 101141 101117 101142 101495...
  • Page 45 101123 10734 101100 101119 101188 13826...
  • Page 46 13828 13651 101120 Note: If sanitizing solution doesn't enter the blender pitcher after several attempts, turn off the CO valve and contact your Taylor distributor. 101189 13832...
  • Page 47 13826 13651 13828 13826 13832 Note: The product keys have color-coded borders to indicate the product condition.
  • Page 48 13651 13826 101495...
  • Page 49 13845 13831 13721...
  • Page 50 13846 13880 Note: Pressing the back key instead of the OK key returns to the MAIN MENU without saving any changes. Note: To return to the Manager Menu without making a beverage change, press the back key. 13881 Note: To return to the Manager Menu without making an option change, press the back key.
  • Page 51 13870 Note: Pressing the back key instead of the ok key returns to the Manager Menu without starting a manual defrost cycle. 13878 13871 Note: Pressing the back key will return to the Defrost Menu without making any selection.
  • Page 52 101061...
  • Page 53 101193 101062 101194 101496 101195...
  • Page 54 101196 101199 Important! The blade guard must be removed before re-installing the ice shaver assembly cover. 101197 101200 101198...
  • Page 55 101203...
  • Page 56 Note: Ice must be removed every night during Closing Procedures. Important! To prevent injury, do not use your fingers to clear the restriction.
  • Page 57 Note: If 6 oz. of ice doesn't shave within 3 seconds, evaluate ice quality/call service technician to evaluate blade. Note: Ice must be removed every night during Closing Procedures. Important! To prevent injury, do not use your fingers to clear the restriction.
  • Page 66 Note: Constant research results in steady improvements; therefore, information in this manual is subject to change without notice. Note: Continuing research results in steady improvements; therefore, information in this Operator’s Manual is subject to change without notice.
  • Page 67 Notes:...
