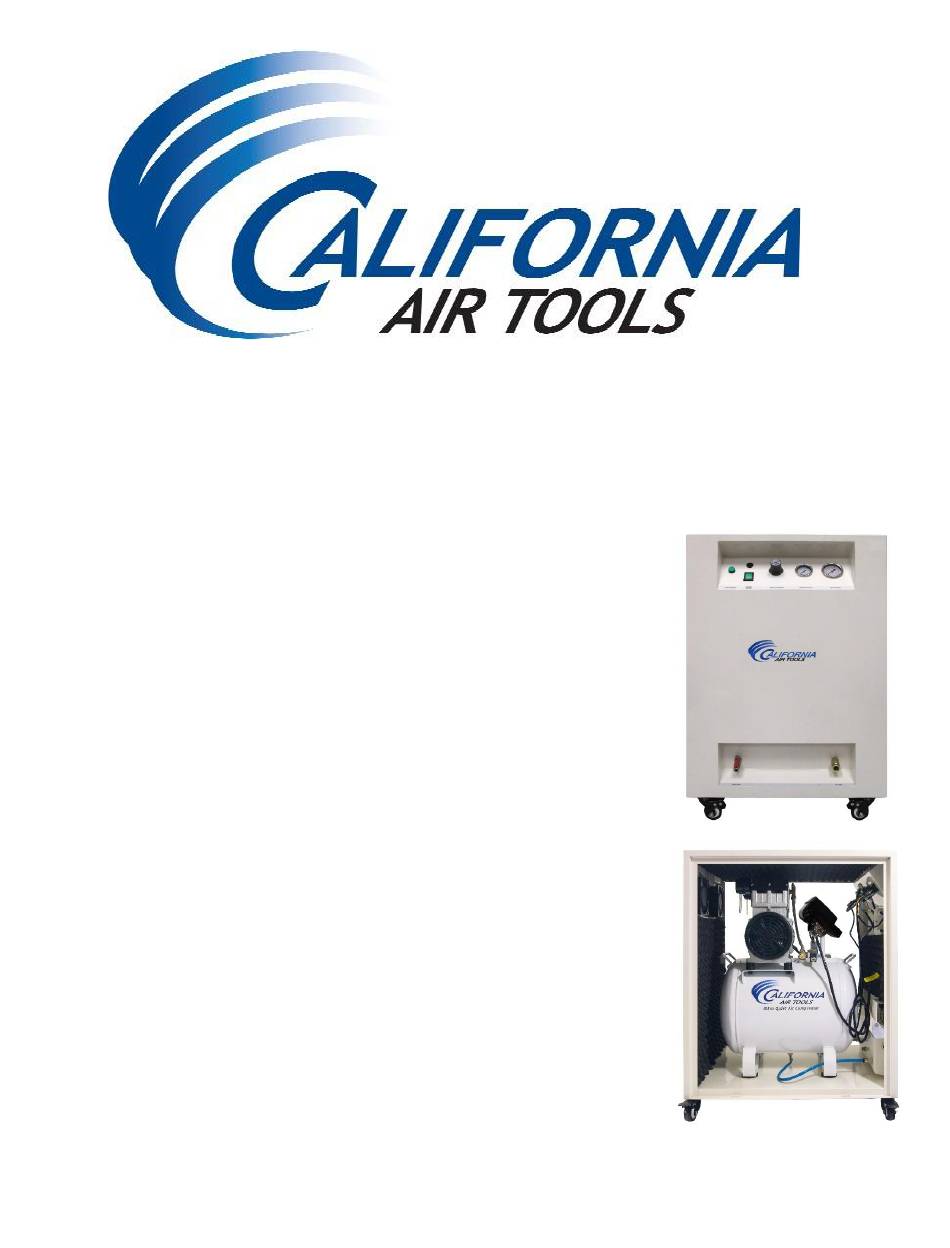

- Page 1 ULTRA QUIET & OIL FREE SMART AIR COMPRESSOR OWNER'S MANUAL CALIFORNIA AIR TOOLS 10020SMSPC 2.0 HP 6.40 CFM @ 40 PSI 5.30 CFM @ 90 PSI 10.0 GALLON STEEL TANK SMART CONTROLLER / SOUND PROOF CABINET WWW.CALIFORNIAAIRTOOLS.COM Customer Support 1-866-409-4581...
-
Page 2: Table Of Contents
PRE-OPERATION CHECKLIST ______________________ 8 Package Contents & Assembly ___________________ 8 Inspect for Damage _____________________________ 9 Save Packaging ________________________________ 9 Thank you for purchasing a California Air Tools, Inc. Compressor Location ___________________________ 9 Air Compressor. Electrical Power _______________________________ 10 OPERATING THE AIR COMPRESSOR ______________ 10 Please contact us if you have any questions. -
Page 3: Important Safety Instructions
AIR COMPRESSOR How to find a local service center: Even quality built equipment might need service or repair parts. Contact the California Air Tools Customer Service Department: Phone: 1-866-409-4581 Online: WWW.CALIFORNIAAIRTOOLS.COM Please provide the information below: Model number and Serial number and specifications shown on the Model number/Serial number plate. - Page 4 AIR COMPRESSOR NOTE: The compressor is designed for intermediate usage and should not be allowed to run continuously (i.e. where motor/pump continuously runs) for more than 60 minutes at a time. Intermediate ON/OFF usage during a standard workday is acceptable with an average 70/30 operating duty cycle.
- Page 5 AIR COMPRESSOR GROUNDED OUTLET GROUNDING Customer Support: 1-866-409-4581...
-
Page 6: Locations Of Important Labels
AIR COMPRESSOR LOCATIONS OF PRODUCT LABEL IMPORTANT LABELS Read these important labels before operating. These labels provide important safety and maintenance information. These labels should be considered as permanent parts of the air compressor. Should any of these labels become illegible, damaged or removed, please contact California Air Tools Customer Service department at 1-866-409-4581 for replacements. - Page 7 AIR COMPRESSOR Customer Support: 1-866-409-4581...
-
Page 8: Air Compressor Components
AIR COMPRESSOR PRE-OPERATION CHECKLIST Package Contents & Assembly Model: 10020SMSPC Package contents: Air Compressor 10020SMSPC Owner’s Manual Smart Controller Owner’s Manual Air Filters (2) Air Filter Intake Tubes (2) Assembly: Install the Air Filters and Air Intake Tubes 1. Attach the air filters to the top rear left and right side of motor head’s threaded ports (Note: Items may already be installed). -
Page 9: Inspect For Damage
AIR COMPRESSOR Maintain a Clear Area Inspect for Damage It is very important that the air compressor is positioned so Before using the air compressor, make sure the air tank is not that there is adequate airflow around the machine. There damaged, inspect all parts for damage, and check that all must be at least 2 feet of obstacle-free space surrounding pipes are firmly connected. -
Page 10: Electrical Power
AIR COMPRESSOR Electrical Extension Cords Electrical Power Electrical Power Requirements Inspect all electrical extension cords to ensure that they are free of damage. When using an extension cord, use a heavy- duty cord that is no more than 25 feet long and at least 14 gauge. -
Page 11: Test Run
AIR COMPRESSOR Test Run Before using the air compressor for the first time, complete a test run as follows: 1. Plug the power supply cord into a 110 volt 60hz power supply socket. 2. Turn ON Green Power Switch on front of compressor 3. -
Page 12: Daily Operation
AIR COMPRESSOR DAILY OPERATION Starting the compressor: 1. Ensure Manual Ball Drain Valve is closed 2. Turn ON Green Power Switch on front of compressor. 3. Press on Side Door latches to release door. Set to one side. 4. PRESS & HOLD the SMART switch OK button for 4 seconds to turn OFF air compressor. -
Page 13: Maintenance
• Total Active (Motor-Pump) Running Hours *IMPORTANT – It is suggested to place WiFi node/router within line-of-site of the 10020SMSPC compressor for optimum network connectivity and received WiFi 2.4 GHz signal strength (i.e. in the same room). Cleaning or Changing the Air Filter... -
Page 14: Troubleshooting
AIR COMPRESSOR TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONS Let the compressor build pressure in the tank, to the maximum pressure if possible. Brush soapy water on air connections and look carefully for air Pressure drop in the tank. Air leaks at connections. bubbles. -
Page 15: Specifications
AIR COMPRESSOR SPECIFICATIONS Electrical Circuit Air Passage Drawing Customer Support: 1-866-409-4581... -
Page 16: Limited Warranty Periods
This warranty does not transfer to subsequent owners. California Air Tools Inc. will repair or replace, at its option, any parts of the portable air compressor that are proven by an authorized service center to be defective in material or workmanship under normal use during the applicable warranty time period as stated below. - Page 17 3. Accident, damage, abuse or misuse. 4. Abnormal operating conditions or applications. 5. Repair or modification by customer or any third party without written consent of California Air Tools Inc. 6. Use under operating conditions or in applications not recommended by California Air Tools Inc.
