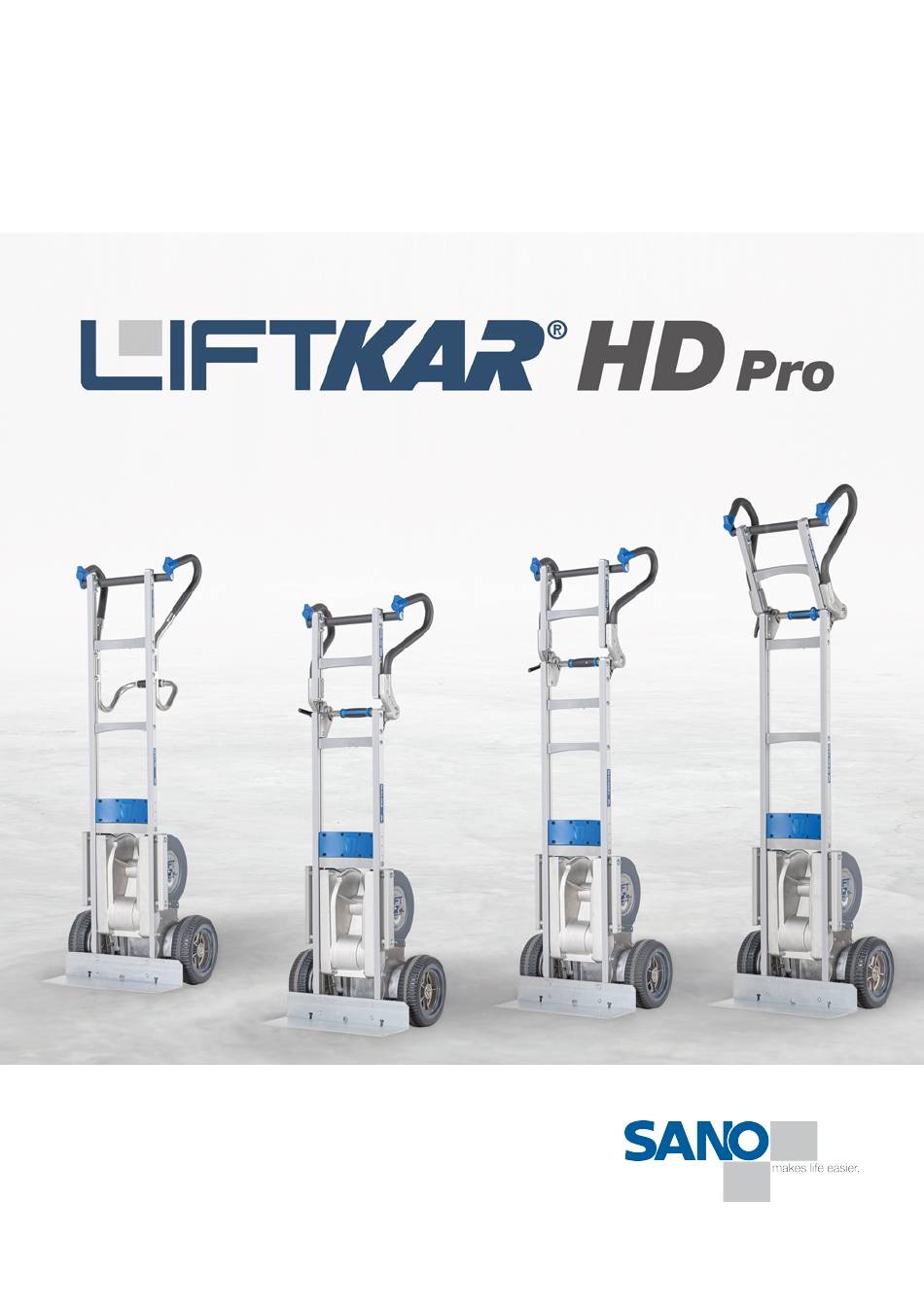

- Page 1 LIFTKAR HD PRO HD UNI / HD FOLD / HD DOLLY / HD FOLD DOLLY INSTRUCTION MANUAL English...
-
Page 2: Table Of Contents
INTRODUCTION ..................................1 SAFETY GUIDELINES / TECHNICAL DATA ........................1.1 General safety guidelines ............................1.2 Built-in safety features (depending on model) ......................1.3 Technical data LIFTKAR HD models ..........................1.4 Technical data of quick-change battery unit ....................... 2 CONTROL FEATURES ................................. -
Page 3: Introduction
2 climbing speeds and two operating modes (single-step mode and continuous mode) to perfectly match your operating style. Excellent performance on spiral staircases. In order to update you about product news as well as technical changes (e.g. options, accessories) we ask you to register your product online. https://www.sano-stairclimbers.com/product-registration Liftkar HD Pro I 3... -
Page 4: Safety Guidelines / Technical Data
1 SAFETY GUIDELINES / TECHNICAL DATA 1.1 GENERAL SAFETY GUIDELINES Make sure nobody is located underneath the load. Always secure the load with the safety belt included. Always wear non-slip shoes. Some steps may be very smooth. Always wear shoes with steel toecaps. The Liftkar may only be operated by trained personnel. - Page 5 A: Sliding Arm - B: Dolly-System A: Sliding Arm - B: Dolly-System Each time before starting up the stairclimber, make sure that the protection system is properly folded away (retracted, figure Folding away Support system retracted IMPORTANT Do not use the protection system in the extended position while operating the stairclimber on stairs.
-
Page 6: Technical Data Liftkar Hd Models
1.3 TECHNICAL DATA LIFTKAR HD MODELS MODEL UNIVERSAL DOLLY FOLD FOLD DOLLY Weight with batterie 37,1 kg 43,6 kg 37,8 kg 44,9 kg Weight without batterie 35,5 kg 42 kg 36,2 kg 43,3 kg Range in steps UP and DOWN 220 kg: approx. -
Page 7: Control Features
2 CONTROL FEATURES 2.1 UNI MODEL 1: Up and down button - 2: Upper handle - 3: Lower handle - 4: Quick-change battery - 5: Frame - 6: Lifting unit - 7: Main wheels - 8: Bucket - 9: Control unit - 10: Charge level indicator - 11: Brake wheels - 12: Lifting wheels Liftkar HD Pro I 7... -
Page 8: Fold Model
2.2 FOLD MODEL 1: Up and down button - 2: Upper handle - 3: Lower handle - 4: Quick-change battery - 5: Frame - 6: Lifting unit - 7: Main wheels - 8: Bucket - 9: Locking lever - 10: Control unit -11: Brake wheels - 12: Lifting unit Liftkar HD Pro I 8... -
Page 9: Dolly Model
2.3 DOLLY MODEL 1: Up and down button - 2: Upper handle - 3: Lower handle - 4: Quick-change battery - 5: Frame - 6: Lifting unit - 7: Bucket - 8: Main wheels - 9: Locking lever -10: Lower handle - 11: Control unit -12: Charging indicator - 13: Brake wheels - 14: Lifting unit Liftkar HD Pro I 9... -
Page 10: Fold Dolly Model
2.4 FOLD DOLLY MODEL 1: Up and down button - 2: Upper handle - 3: Lower handle - 4: Up button 5: Quick-change battery - 6: Lifting unit - 7: Frame - 8: Main wheels - 9: Bucket - 10: Locking lever - 11: Control unit -12: Charging indicator - 13: Brake wheels - 14: Lifting unit Liftkar HD Pro I 10... -
Page 11: Control Unit
2.5 CONTROL UNIT 1: Multi-step mode - 2: Single-step mode - 3: Single/Multi-step button - 4: ON/OFF button / status display - 5: Speed button / Stair light - 6: Speed fast display - 7: Speed slow display 2.5.1 SINGLE/MULTI-STEP MODE Select the mode required by pressing the Single/Multi-step button. -
Page 12: Up/Down Switch On Handlebar
2.6 UP/DOWN SWITCH ON HANDLEBAR With an UP/DOWN switch located both on the left and right of the handlebar (figure 6), this unit is ideal for both left- and right-handed operators. A: UP/DOWN switch B: DOWN - C: UP 2.7 CHARGING STATUS INDICATOR 1: Activation button charging status display - 2: LED display - 3: Visualisation Pressing the activation button switches on the LED charging status indicator;... -
Page 13: Switching Off
0 ~ 10 % BLINKING 10 ~ 23 % LIGHT BLINKING 23 ~ 35 % LIGHT LIGHT 35 ~ 48 % LIGHT LIGHT BLINKING 48 ~ 60 % LIGHT LIGHT LIGHT 60 ~ 70 % LIGHT LIGHT LIGHT BLINKING 70 ~ 80 % LIGHT LIGHT LIGHT... -
Page 14: Fitting And Removing Quick-Change Battery Pack
3 FITTING AND REMOVING QUICK-CHANGE BATTERY PACK SCHNELLWECHSELAKKU - LITHIUM AKKU CHARGE BATTERY BEFORE USAGE 3.1 FITTING THE BATTERY PACK Align the battery pack between the guides on the frame. Gently press the battery pack downwards. The battery pack clicks into place. -
Page 15: Climbing Up Stairs
4.1 CLIMBING UP STAIRS Insert the battery and press the ON/OFF button until the status display is constantly green. The LIFTKAR is now ready for operation. Pressing one of the UP/DOWN buttons (Figure 6, left and right of handlebar, arrow upwards points towards operator) starts moving the lift arm with the support wheels and lifts the LIFTKAR onto the next step. -
Page 16: How The Liftkar Edge Braking System Works
4.2.3 DO NOT RIDE OVER KERBS AT AN ANGLE Always ride over kerbs or similar edges with both wheels contacting the edge at the same time. This will prevent damage to the drive unit. 4.2.4 OPERATION ON SPIRAL STAIRCASES Please observe the following points when operating the stairclimber on spiral staircases: The LIFTKAR HD moves inwards when climbing up, so: For climbing UP start on the outside of the staircase. -
Page 17: Automatic Switch-Off After Extended Period Of No Operation
NOTE It is a good idea to deactivate the brake system on uneven ground because bumps or dips in the ground would otherwise cause the main wheels to be stopped if one of both of the edge brakes were activated. IMPORTANT Make sure that the system is switched on again before starting each movement downwards to the next step. -
Page 18: Battery Pack
If the brakes do not engage uniformly (uneven braking on left and right wheel), do not use the LIFTKAR for climbing stairs until it has been checked by an authorised Sano technician. 6 BATTERY PACK The charger automatically switches to trickle charging so overcharging is not possible. -
Page 19: Charger Unit
6.1 CHARGER UNIT The battery charger supplied is extremely powerful. An LED display gives a clear indication of charging status. The charge indicator gives you an idea whether the battery pack is fully charged or not. It is worth checking that the battery pack is fully charged before using the Liftkar. - Page 20 6.1.2 SAFETY GUIDELINES Please note the following: Protect against moisture. Do not pull the plug out of the socket by its cord. Never use the charger unit if it has a damaged cable or plug, replace it immediately. The device should be connected directly to a power supply, never use an extension cord. The device is intended for indoor use only, it should never be exposed to rain.
-
Page 21: Accessories And Options
Do not simply dispose of the battery pack in a household dustbin, however. If there are any further questions, please ask your specialist dealer. Sano can organise professional disposal of the whole stairclimber unit, against payment, if required. Liftkar HD Pro I 21... -
Page 22: Warranty And Product Liability
Any subsequent modifications to the unit are not permitted and automatically make the warranty void. 9.2 LIABILITY SANO Transportgeraete GmbH is not responsible for the safety of the LIFTKAR HD if: the LIFTKAR HD is used for a purpose for which it is not intended. - Page 23 Jochum Bierma (Ing.), Managing Director 10.2 PATENT REGISTERED The modular design of the base frame is legally protected by a patent. NOTES Liftkar HD Pro I 23...
-
Page 24: Contact
Germany Tel. +49 8033 / 308 96 0 Fax +49 8033 / 308 96 17 info@sano-treppensteiger.de www.sano-treppensteiger.de SANO UK Powered Stairclimbers Ltd. Bristol Court, Betts Avenue Martlesham Heath Ipswich, Suffolk / IP5 3RY, England Tel. +44 1473 / 333 889 Fax +44 1473 / 333 742 info@sano-uk.com...
