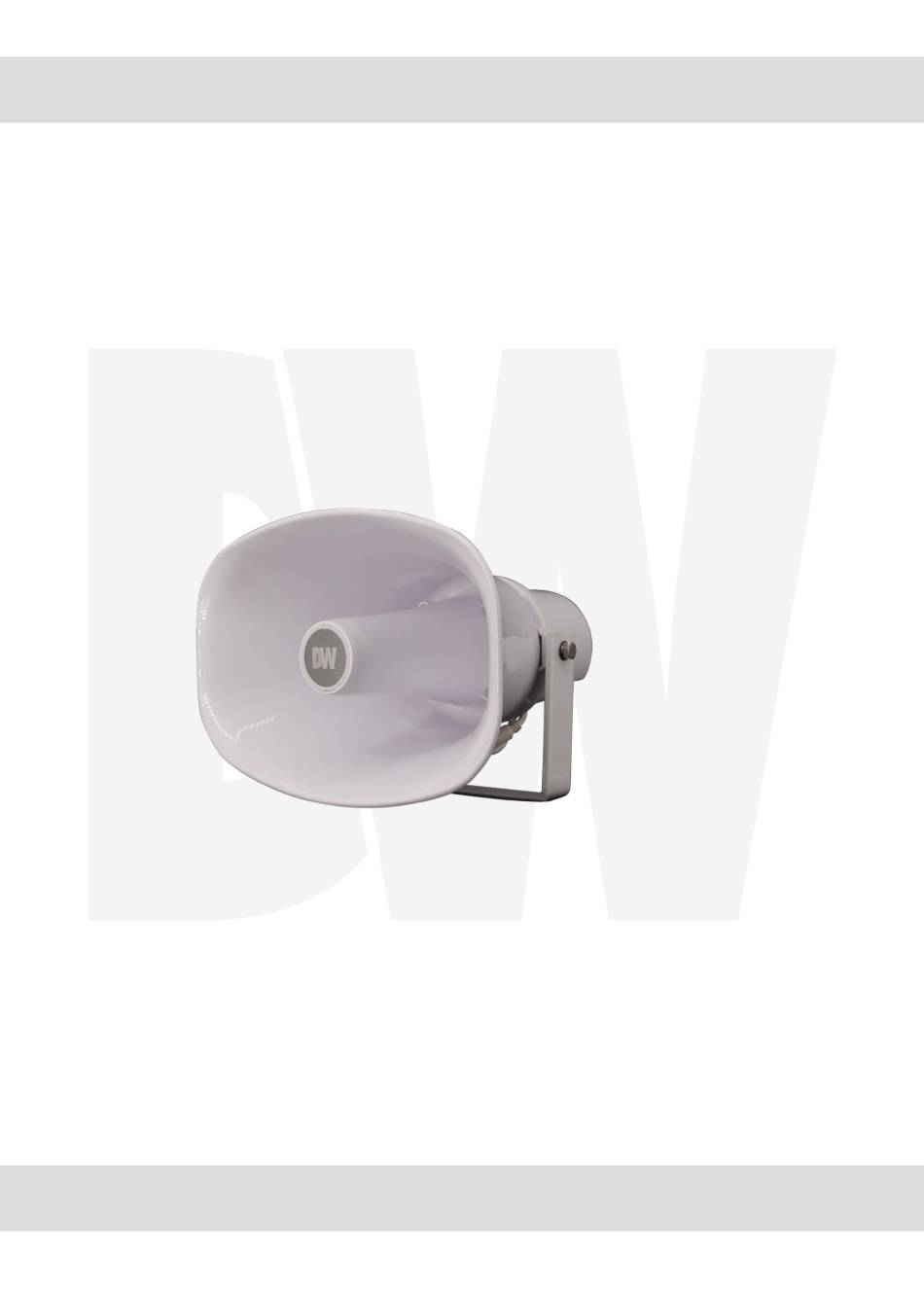

- Page 1 SiteWatch Horn IP Speaker DW-SWSP30AM User’s Manual Ver. 04/25 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Table Of Contents
User Manual Table of Content Overview ................. 3 What's in the box ............3 Hardware Installation ..........4 Adding the Speaker to DW Spectrum ....5 Web Configuration ............5 Status ..............................6 Basic ..............................7 5.2.1 Network .............................. 7 5.2.2 Date/Time ............................ -
Page 3: Overview
DW-SWSPW30iAM IP Speaker Overview This standalone, 30-Watt, IP-enabled smart audio IP horn speaker helps to proactively deter crime by responding to real-time events with automated and manual voice alerts. The IP66-rated housing has a built-in microphone for two-way communication, alarm input and is ideal for challenging outdoor environmental conditions with high ambient noise. -
Page 4: Hardware Installation
User Manual Hardware Installation Mark and drill the holes in the mounting surface using the speaker's mounting bracket. 2. Pass wires through and make all the necessary connections. Connect to the camera's network. Use the waterproof cap for an added layer of protection from moisture. -
Page 5: Adding The Speaker To Dw Spectrum
DW-SWSPW30iAM IP Speaker Adding the Speaker to DW Spectrum Open the DW Spectrum client. 2. DW-SWSP30AM should be listed under the resource tree if auto-discovery is enabled and the DW Spectrum media server and the speaker are on the same network. -
Page 6: Status
User Manual 5.1 Status Status In the menu, the firmware version, free space, and status for the two SIP Network accounts will be displayed. In the menu, users can find the MAC address and IP address current configuration. -
Page 7: Basic
DW-SWSPW30iAM IP Speaker 5.2 Basic 5.2.1 Network Network In the menu, select the preferred network configuration settings for the IP speaker. Whenever the IP address is updated, users must enter the new IP address when accessing through a browser. • DHCP: When selected, the server automatically updates the speaker's IP address as assigned by the connected DHCP network device (router, smart switch, etc.). -
Page 8: Date/Time
User Manual • HTTPS Port: Select the communication port value for the Hypertext Transfer Protocol Secure communication (default: 443). * The self-signed certificate is embedded in the unit and cannot be updated. Press the 'Save' button to save all changes. 5.2.2 Date/Time There are two Update Mode options for Date/Time settings: •... -
Page 9: Sip Account
DW-SWSPW30iAM IP Speaker 5.3 SIP Account The speaker has two SIP (Session Initiation Protocol) accounts that can be set up separately for initiating, maintaining and terminating communication sessions. To configure, select the SIP 'Account' from the drop-down at the top of the Account menu and configure the settings below. - Page 10 User Manual • Auth ID – Enter the authentication ID to register. • Password – Enter the password associated with the SIP username entered above. • Display Name – Enter the display name of the SIP account. • Server Host – Enter the SIP server's IP address. •...
-
Page 11: Audio
DW-SWSPW30iAM IP Speaker 5.4 Audio Users can adjust the speaker audio volume and preferred audio settings as needed. Codec In the menu, users can enable the preferred audio codecs that can be used with the speaker by checking the appropriate boxes. Speaker menu has various settings. -
Page 12: Media File
User Manual 5.5 Media File There are five (5) default system audio files. These files cannot be altered. Users can upload up to ten (10) custom media files (MP3 or WAV). Not to exceed the available storage, such as music, announcements, bells, etc., for additional audio-out options. -
Page 13: Alarm
DW-SWSPW30iAM IP Speaker 5.6 Alarm The Alarm In function provides a means to integrate external systems with the speaker for enhanced security and alert functionality. Users can select which sound to play in the "Play File" drop-down menu. Users can also choose to cycle the sound with the following modes: Once only, multiple times, or for a duration. -
Page 14: Http Commands
User Manual 5.7 HTTP Commands Users can control the sound using an HTTP command from a web browser, VMS, cameras or network device to send commands to the speaker. To use an HTTP command: Open a browser or VMS on your computer. 2. -
Page 15: Schedule
DW-SWSPW30iAM IP Speaker 5.8 Schedule Users can schedule regular bell rings, announcements, and alarms in public areas such as schools, factories, and office spaces. To add a schedule: Click on the Edit icon to edit or add a new audio schedule. 2. -
Page 16: Rtp Multicast
User Manual 5.9 RTP Multicast Each device can receive up to ten (10) RTP IP addresses. Do not use continuous port numbers, which can cause issues and conflicts. For example: 239.255.1.2:8000，239.255.0.1:8001，239.255.0.1:8002（Don’t Use） 239.255.0.1:8000，239.255.0.1:8002，239.255.0.1:8004 (OK) • Multicast address range: 224.0.0.0-239.255.255. • Ports range: 1024-65536... -
Page 17: Firewall
DW-SWSPW30iAM IP Speaker 5.10 Firewall Firewall Users can enable settings in the menu to adjust the speaker's security settings. Create a Firewall Rule to permit or deny access to devices as needed. -
Page 18: System
User Manual 5.11 System 5.11.1 Upgrade System In the Upgrade selection of the Menu • Reboot: Click to power cycle the speaker device. Users must log back into the system once the reboot has been completed. • Reset: Click to complete a system default and return the speaker to factory settings. -
Page 19: Administrator Password Reset
DW-SWSPW30iAM IP Speaker 5.12 Administrator Password Reset The administrator password can be reset using the device's MAC address or serial number. To reset the password, access the following URL using the speaker's IP address http://{Speaker's IP Address}/pwreset.html Ex: http://192.168.1.50/pwreset.html... -
Page 20: Ip Finder
If users have difficulty accessing the speaker's web interface, users can use DW's IP finder. DW IP Finder is a software tool developed by Digital Watchdog that helps users locate and manage Digital Watchdog IP devices on a network. It can automatically scan the network for DW Sitewatch IP speakers. -
Page 21: Product Specifications
DW-SWSPW30iAM IP Speaker Product Specifications Audio Codec OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz Built-in microphone Speaker Max SPL 120dB Frequency response 350Hz ~ 8KHz Frequency range 500-2KHZ +-10dB 400-12KHZ +-20dB Harmonic distortion 0.1@1kHz... -
Page 22: Product Dimensions
User Manual Product Dimensions... -
Page 23: Warranty Information
Warranty Information https:/ /digital-watchdog.com/page/rma-landing-page/ Go to to learn more about Digital Watchdog's warranty and RMA. To obtain warranty or out-of-warranty service, please contact a technical support representative at 1+ (866) 446-3595, Monday through Friday from 9:00 AM to 8:00 PM EST. -
Page 24: Limits And Exclusions
This warranty gives you specific legal rights; you may also have other rights that vary from state to state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 16220 Bloomfield Ave... - Page 25 DW® East Coast office and warehouse: 5436 W Crenshaw St, Tampa, FL USA 33634 DW® West Coast office and warehouse: 16220 Bloomfield Ave, Cerritos, CA USA 90703 PH: 866-446-3595 | FAX: 813-888-9262 www.Digital-Watchdog.com technicalsupport@digital-watchdog.com Technical Support PH: USA & Canada 1+ 866-446-3595 International 1+ 813-888-9555 French Canadian: + 1-904-999-1309 Technical Support Hours: Monday-Friday 9 a.m.
