TABLE OF CONTENT ..IMPORTANT SAFETY INSTRUCTIONS 1. OVERVIEW ..1.1 PRODUCT INFORMATION 1.2 DIMENSIONS ..2. INSTALLATION ..3. STARTING THE PUMP AND FILTER SYSTEM 3.1 BEFORE STARTING THE PUMP 3.2 STARTING PUMP 3.3 OPERATION 4. MAINTAINING YOUR FILTER ..
IMPORTANT SAFETY INSTRUCTIONS THESE OPERATING INSTRUCTIONS CONTAIN IMPORTANT INFORMATION ON THE SAFE, PROPER, AND ECONOMICAL OPERATION OF THIS SWIMMING POOL APPLIANCE. STRICT OBSERVATION OF THE OPERATING INSTRUCTIONS WILL HELP TO AVOID DANGERS, REDUCE REPAIR COSTS, AND SHUTDOWN TIMES AND INCREASE THE RELIABILITY AND WORKING LIFE OF THE PRODUCT. Failure to follow the instructions in this manual may result in serious adverse health effects or even serious or fatal injury.
READ UNDERSTAND AND FOLLOW ALL SAFETY AND OPERATION: Do not operate the filter until you have read and understand clearly all the operating instructions and warning messages for all equipment that is a part of the pool circulating system. The following instructions are intended as a guide for initially operating the filter in a general pool installation.
EFFECTIVE FITRATION DESIGN FLOW RATE CODE Model AREA Residential Commercial FT² M² 9140401 MCF100 9.29 9140402 MCF150 13.94 9140403 MCF200 18.58 ≤ ≤ [ Filter rate for residential use based on 1GPM/ft². Recommend Flow Rate for 2” piping is 90 x 150 GPM ] 1.2 DIMENSIONS...
3. STARTING THE PUMP AND FILTER SYSTEM 3.1 BEFORE STARTING THE PUMP 1. Use ONLY MCF system components: Lock Ring unit doing assembly, metal-reinforced seal. Non-tighten lock ring component may fail in use and cause explosive component separation. Verify that upper and lower filter bodies are properly secured with the filter body locking ring unit.
3.3 OPERATION Filtration starts as soon as the flow is steady through the filter. As the filter removes dirt from the pool water, the accumulated dirt causes a resistance to flow. As a result, the pressure will rise and the flow will decrease. 1.
3. Carefully replace the cartridge over the hubs on the bottom manifold. 4. Place the upper body securely on top of the cartridge. 4.4.2 CLEAN SEAL RING AND SEAL SURFACE 1. Remove filter tank sealing O-ring. 2. With a clean cloth, wipe the lower filter body seal surface and clean seal of all dirt and debris. Do not use any solvent.
4.5 REMOVING THE AIR RELIEF VALVE The filter comes with a preinstalled manual air relief valve. Ser vicing the Air Relief Valve should be carried out by pool professionals only, follow instructions carefully: 1. Turn off all system circulation pumps and all-electric power on the equipment pad. 2.
Nut D31X20 14G 914100004 MCF100 Element 914100005 MCF150 Element 914100006 MCF200 Element 107048520 PVC Pipe 2.5inch for MCF100, 387 mm 107048520 PVC Pipe 2.5inch for MCF150, 440mm 107048520 PVC Pipe 2.5inch for MCF200, 517mm 550128166 MCF100-200 Center Drain connection SPARE PART LIST...
Page 11

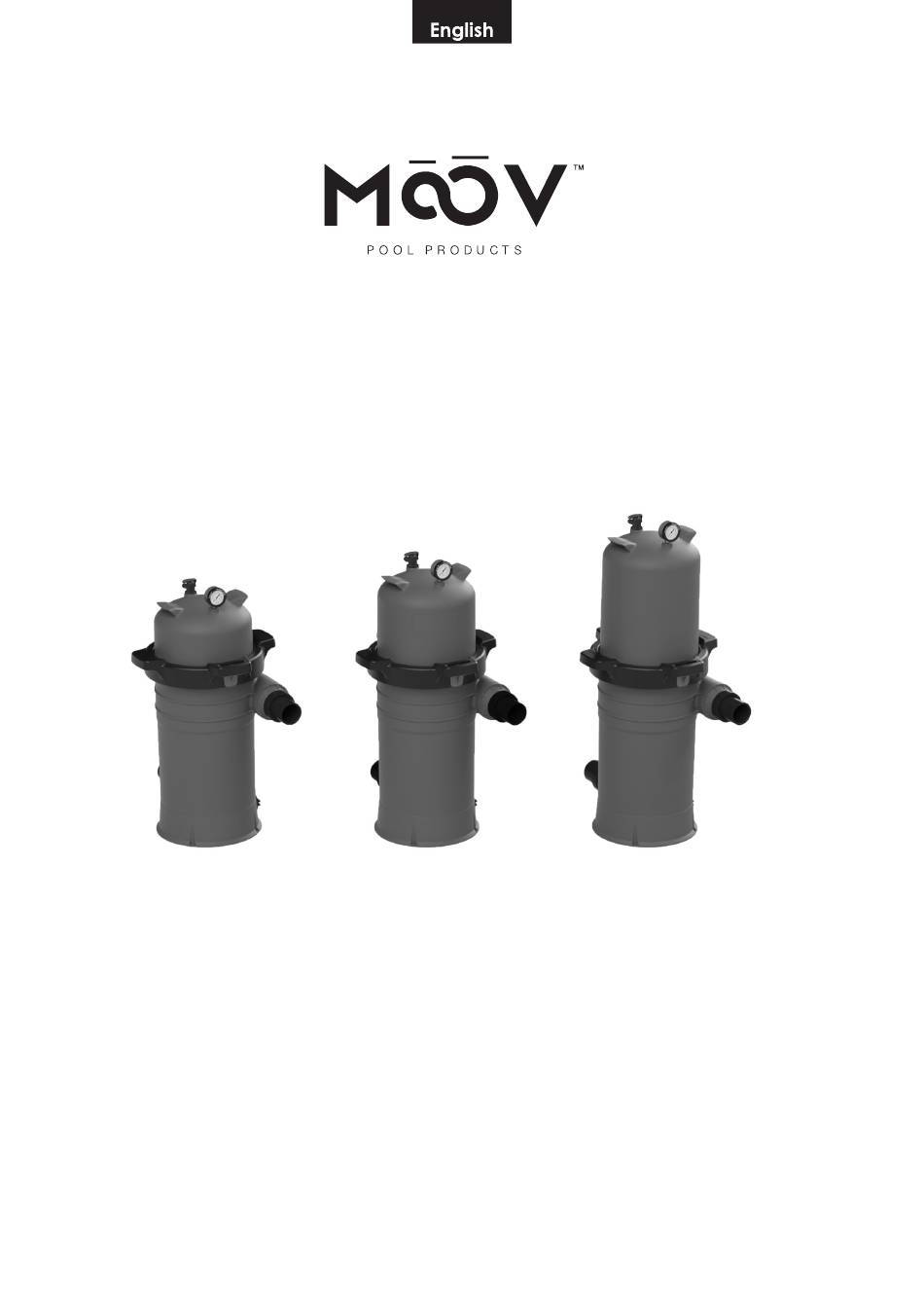

FILTRE À CARTOUCHE À ÉLÉMENT UNIQUE Manuel d'installation et d'utilisation Modèles: MCF100 / MCF150 MCF200...
