INSTALLATION GUIDE

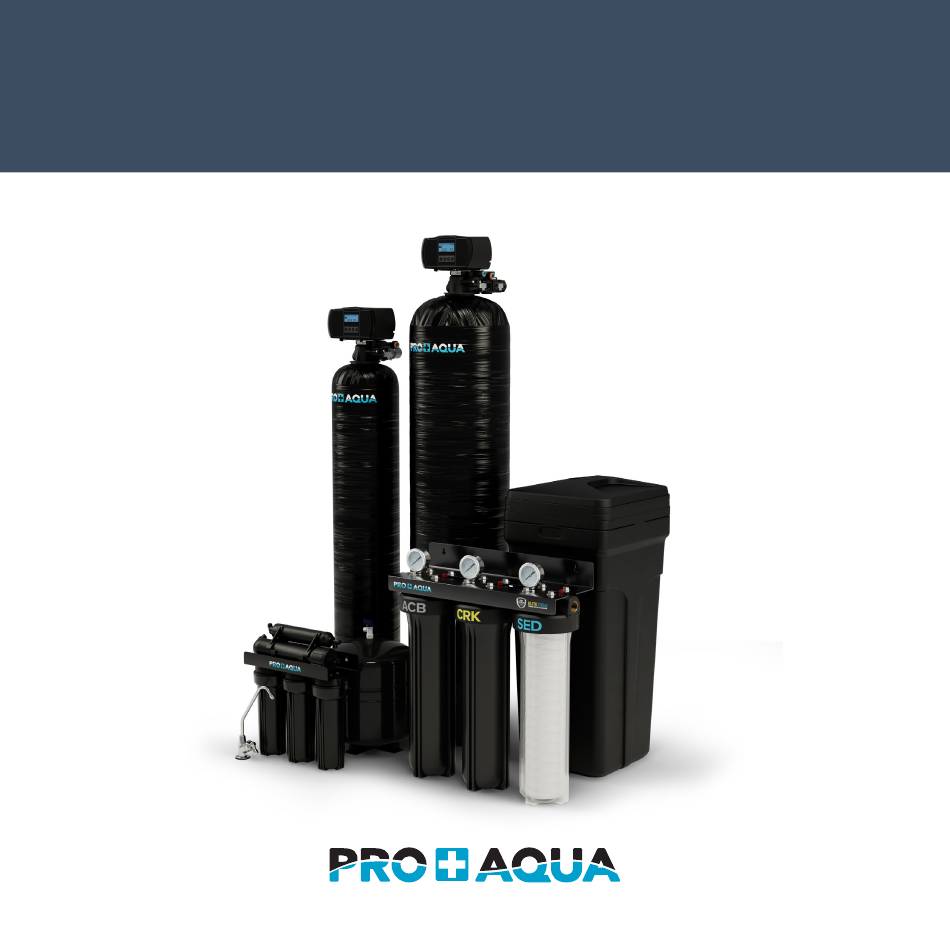

ELITE WHOLE HOUSE BUNDLE + RO SYSTEM | BNDL-WEL-RO
PURE WATER. NOTHING ELSE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BNDL-WEL-RO and is the answer not in the manual?

Questions and answers

Summary of Contents for PRO+AQUA BNDL-WEL-RO

  • Page 1 INSTALLATION GUIDE ELITE WHOLE HOUSE BUNDLE + RO SYSTEM | BNDL-WEL-RO PURE WATER. NOTHING ELSE.
  • Page 2 Installation Diagram GROUND JUMPER WIRE OPTIONAL WATER BYPASS TO HOME 1) PRO-100-E SYSYTEM BALL VALVES GALVANIZED / BRASS PIPE FROM CITY/WELL STAGE 3 STAGE 1 HOUSING HOUSING 4) PRO-UC-ROSTD-T6 SYSTEM 3) PRO-S-80E SYSTEM 2) PRO-WELL-1E SYSTEM INSTALLATION INSTRUCTIONS PAGE 1) PRO-100-E ������������������������������������������������������������������������ 3 2) PRO-WELL-1E ����������������������������������������������������������������...
  • Page 3 INSTALLATION GUIDE WHOLE-HOUSE WATER FILTRATION | PRO-10O-E PURE WATER. NOTHING ELSE.
  • Page 4 Remove the system and all components out of the box, and take note of all parts. Inspect the system housings, fittings, and connections carefully, ensuring nothing was damaged during transit. If any part is cracked or damaged, please do not proceed with the installation and contact PRO+AQUA for an exchange or diagnosis. Components List:...
  • Page 5 3. Enter your purchase and serial number information. No time to go online? Let our PRO+AQUA Certified Tech Team do the work for you. Simply follow the steps below and in 2-3 working days we’ll send you confirmation of your product being registered.
  • Page 6 System Installation INCLUDED SS BOLTS PORT PORT Overview: PR BUTTON Depending on the location of your feed water and the entry location of the pipe to your FILTER home, you may need to flip the CARTRIDGE direction flow of your system. This will reverse the flow of your system to be Left to Right.
  • Page 7 System Installation Attach your incoming supply line to the “IN” port Drop cartridges into the respective housings, on the system, and attach the outgoing water line centering on the stand pipe at the bottom of the for your home to the “OUT” port. Plastic fittings housing.
  • Page 8 Flow Reversal GAUGES CAP MODULE Carefully remove the Pressure Gauges from Remove the 12 bolts and washers to separate the system. the Cap Module from the Bracket. PORT PORT PORT PORT FLIP PORT PORT A: Reinstall the 12 bolts and washer to attach the Cap Module.
  • Page 9 Replacing Your Filters Replacement Filter Set: FC-PK19-100E To ensure your system keeps performing at its best, only use original OEM Certified filters. Untested filters will reduce performance and void its warranty. Before starting: Turn incoming water off then press and hold the PR button to relieve the pressure in the system.
  • Page 10 Installation Diagram GROUND JUMPER WIRE OPTIONAL WATER BYPASS BALL VALVE TO HOME More info GALVANIZED / BRASS PIPE More info OPTIONAL UV FILTER OPTIONAL WATER SOFTENER OPTIONAL WELL WATER FILTER PRO-S-80E PRO-WELL-1E Have questions? Call 1-800-980-3335...
  • Page 11 Installation Diagram PRO-100-E BALL VALVES GALVANIZED / BRASS PIPE WELL WATER PRESSURE TANK STAGE 3 STAGE 1 More info HOUSING HOUSING FROM WELL WATER SOURCE FROM CITY WATER SOURCE www.proaquawater.com...

  • Page 12: Additional Info

    Additional Info Optional Add Ons: Ball Valves, Bypass, Ground Jumper Wire, Well Water System, Water Softener, and UV Filter are not included. Warning: The plastic components of the system will interrupt the continuity of the grounded (conductive) plumbing system. A grounded “jumper wire” bridging the equipment to the plumbing system must be installed prior to systems use.
  • Page 13 INSTALLATION GUIDE WHOLE-HOUSE WELL WATER FILTRATION | PRO-WELL-1E PURE WATER. NOTHING ELSE.
  • Page 14 3. Enter your purchase and serial number information. No time to go online? Let our PRO+AQUA Certified Tech Team do the work for you. Simply follow the steps below and in 2-3 working days we’ll send you confirmation of your product being registered.

  • Page 15: Table Of Contents

    PURE WATER. NOTHING ELSE. CONTENTS SECTION PAGE INSPECTION & PREPARATION ............4 PRODUCT DIMENSIONS ..............7 PRE INSTALLATION ................8 BYPASS SETUP ..................9 VALVE INSTALLATION ................10 SYSTEM INSTALLATION ..............12 VALVE PROGRAMING ................14 ADVANCED SETTINGS ............... 18 FEATURES & DISPLAY ..............22 INSTALLATION DIAGRAM ..............

  • Page 16: Inspection & Preparation

    Inspection & Preparation PRO+AQUA filtration systems are designed in California, USA and are made from high quality, commercial grade filters and components. IMPORTANT! Before installing - Please read the entire manual and become familiar with instructions and parts needed before proceeding with the installation.
  • Page 17 Inspection & Preparation Required Tool List for System Installation IMPORTANT! • Channel locks • Teflon tape Additional tools may be required if modification to home plumbing is required. • Adjustable wrenches • Razor knife • Screwdriver IMPORTANT! The following condition for feed water supply must be met or warranty will be void and manufacturer assumes no responsibility for damage to system or property.
  • Page 18 Inspection & Preparation Installation Safety Guide • Handle with care when moving the water filtration system. Do not turn upside down, drop, drag, or set on areas with sharp protrusions. • The system works on standard 120v power plug only. Do not use any other transformer except the one that is included with the system.

  • Page 19: Product Dimensions

    Product Dimensions PRO-WELL-1E A. Total height: 55” B. Tank width: 9” C. Tank height: 48” D. Tank base: 9.5” www.proaquawater.com...

  • Page 20: Pre Installation

    Pre Installation IMPORTANT! Locate and test the main water supply valve to the home before installing the system. If the main water supply valve fails to shut off the water completely during the test, we recommend contacting a licensed plumber to fix the valve before starting the installation. WARNING! If the system is installed on a metal (conductive) plumbing system, i.e..

  • Page 21: Bypass Setup

    Bypass Setup Bypass Assembly & Installation Depending on your installation, we have provided various connection options in 1” and 3/4”. Installation using 1” NPT fittings Installation using 1” or 3/4” quick connect adapters Apply teflon to the fittings (included) and install to Apply teflon to the quick connect fittings (included) and the bypass valve using an adjustable wrench.

  • Page 22: Valve Installation

    Valve Installation Lubricate both O-rings on Install the upper basket the bottom of the control on the bottom of the SMALL valve (inner and outer). valve by lining up the O-RING tabs, pressing in, then TABS LARGE turning the basket O-RING counterclockwise to lock it in place.
  • Page 23 Valve Installation Hand-tighten the valve then snug it further by lightly tapping it with the palm of your hand. DO NOT over-tighten or use tools to tighten the valve or damage could occur. www.proaquawater.com...

  • Page 24: System Installation

    System Installation IMPORTANT! DO NOT SOLDER WHILE SYSTEM IS CONNECTED. Any solder joints being soldered near the valve must be done before connecting any piping to the valve. Failure to do this could cause unrepairable damage to the valve. Connecting the System This system includes both 1”...
  • Page 25 System Installation A: Place the unit in the bypass position. B: Slowly turn on the main water supply to the system. C: Locate and the nearest faucet to the system and remove the faucet screen or any fittings on the faucet spout. D: Turn on the cold water for 10 minutes to flush air, loose media, and foreign material resulting from the plumbing work.

  • Page 26: Valve Programing

    Valve Programing Overview: Display Overview A. Time of day B. Status C. Time remaining D. Backwash mode timer The back light on the screen will go off automatically after one minute if no buttons are pressed. To light it up again press any button on the touch pad.
  • Page 27 Valve Programing System Startup A: Plug the power transformer into an approved power source. Connect the power cord to the valve. When power is supplied to the control, the screen will display the time of day, time remaining and the mode. B: Press and hold the CYCLE button for 5-6 seconds.

  • Page 28: Setting Time Of Day

    Valve Programing Setting Time of Day Default setting 12:00 (24 hours) A: Press SETTINGS button and UP button simultaneously to enter into programing mode. Press the SETTINGS button to accept and continue. FLASHING FLASHING B: Press UP or DOWN buttons to change hours.
  • Page 29 Valve Programing Congratulations! Your system is ready for use. Please document the system installation date and maintain the system at its recommended interval. In the following pages, you will find the Advanced Settings section. Continue to this section only if you require a special application or customization.

  • Page 30: Advanced Settings

    Advanced Settings NOTE: The following settings have been pre-set from the factory and are only meant for special application that requires customized settings. Continue only if you require customization of the following settings. Setting the Valve Mode Default setting is “Timer”. Press the SETTINGS button to enter sub menu.
  • Page 31 Advanced Settings Backwash Time and Hours Override (Change only if needed.) FLASHING Timer Mode (DEFAULT) Default: 2:00 AM every 072 hours. Hours Override range: 3, 4, 6, 8, 12 hours, then every 24 hours (24, 48, 76,…) See below to adjust. FLASHING Press SETTINGS button to enter sub menu.
  • Page 32 Advanced Settings Setting the Backwash Time FLASHING Press SETTINGS button to enter sub menu. Default setting is 015. See below to adjust. FLASHING Set the Time A: Press UP or DOWN buttons to change backwash time (Minutes). Range: 0 - 999 FLASHING B: Press the SETTINGS button to accept and continue to next digit.
  • Page 33 Advanced Settings Setting the Brine Time (SKIP – this setting is not used) FLASHING A: To skip, press the UP button to change to SET-7. B: Press the SETTINGS button to accept and continue. FLASHING Setting the Rapid Rinse Time Default setting is 010 Minutes.

  • Page 34: Features & Display

    Features & Display Memory During Power Failure All program settings are stored in permanent memory. Current valve position, cycle step elapsed, and time of day are stored during the power failure. Resetting the current time is necessary when powering up. If the valve stopped at a backwash stage during power failure, the valve will return to the prior position when it powers up.

  • Page 35: Restore Factory Settings

    Features & Display Restore Factory Settings A: Unplug the power. B: Press and hold the CYCLE button while plugging in the power. C: Release the CYCLE button. The system is now restored. Manual Queued Backwash A: When the valve is in service position press the CYCLE button to activate the queued backwash.
  • Page 36 Features & Display Manual Immediate Backwash Immediate Backwash When the valve is in service position, press and hold the CYCLE button for 5-6 seconds. An immediate backwash will be initiated. Examples: “BW” flashing (ready to backwash). The piston is moving to position. The piston is in “BW”...
  • Page 37 Features & Display Examples (continued): The piston is in “RR” position and the timer starts to count down. Press the CYCLE button to force- skip to next cycle. The “BF” cycle will skip back to “SR” (service) position. Stop Backwash When backwashing, press the UP and DOWN buttons simultaneously to stop.

  • Page 38: Installation Diagram

    Installation Diagram GROUND JUMPER WIRE OPTIONAL WATER BYPASS BALL VALVE TO HOME More info GALVANIZED / BRASS PIPE More info OPTIONAL UV FILTER OPTIONAL WATER SOFTENER WELL WATER FILTER PRO-S-80E PRO-WELL-1E Have questions? Call 1-800-980-3335...
  • Page 39 Installation Diagram More info BALL VALVES GALVANIZED / BRASS PIPE WELL WATER PRESSURE TANK STAGE 3 STAGE 2 STAGE 1 HOUSING HOUSING HOUSING OPTIONAL 3-STAGE WELL WATER FILTER PRO-100-E FROM WELL WATER SOURCE FROM CITY WATER SOURCE www.proaquawater.com...

  • Page 40: Additional Info

    Additional Info Optional Add Ons: Ball Valves, Bypass, Ground Jumper Wire, Well Water System, 3-Stage Filter System, Water Softener, and UV Filter are not included. Warning: The plastic components of the system will interrupt the continuity of the grounded (conductive) plumbing system.

  • Page 41: System Troubleshooting

    System Troubleshooting Problem Cause Correction 1) The control A) Transformer damaged A) Replace the transformer fails to Backwash B) Electronic controller or sensor B) Replace or repair automatically damaged 2) Backwash at A) Timer improperly set, due to A) Reset timer wrong time power failure 3) loss of capacity...

  • Page 42: Limited Product Warranty

    PRO+AQUA will replace any part on the valve or electronics which fails or the media within (2) two years (4 years with extended warranty) from date of manufacture, as indicated by the serial number, provided the failure is due to a defect in material or workmanship.
  • Page 43 INSTALLATION GUIDE WHOLE HOUSE WATER SOFTENER | PRO-S-80E PURE WATER. NOTHING ELSE.
  • Page 44 3. Enter your purchase and serial number information. No time to go online? Let our PRO+AQUA Certified Tech Team do the work for you. Simply follow the steps below and in 2-3 working days we’ll send you confirmation of your product being registered.
  • Page 45 PURE WATER. NOTHING ELSE. CONTENTS SECTION PAGE INSPECTION & PREPARATION ..............4 TECHNICAL SPECIFICATIONS ..............7 INSTALLATION DIAGRAM ................8 VALVE INSTALLATION ..................10 SYSTEM INSTALLATION ................12 VALVE PROGRAMING ..................16 GALLONS CALCULATION ................22 ADVANCED SETTINGS .................. 24 FEATURES & DISPLAY ..................30 SYSTEM CARE ....................32 SYSTEM TROUBLESHOOTING ..............33 WARRANTY ......................34...

  • Page 46: Inspection & Preparation

    Inspection & Preparation PRO+AQUA filtration systems are designed in California, USA and are made from high quality, commercial grade filters and components. IMPORTANT! Before installing - Please read the entire manual and become familiar with instructions and parts needed before proceeding with the installation.
  • Page 47 Inspection & Preparation Required Tool List for System Installation • Channel Locks • Plastic inlet and outlet fittings are included IMPORTANT! with the softener. To maintain full valve flow, Additional tools may be required • Screwdriver 1” pipe to and from the softener fittings are if modification to home plumbing •...
  • Page 48 Inspection & Preparation IMPORTANT! Before installing the system, check and test the main water supply valve. If it doesn’t shut off the water fully, we recommend contacting a licensed plumber to fix it first. WARNING! If your system is on metal plumbing (like copper or galvanized metal), its plastic parts will disrupt the system’s electrical continuity.

  • Page 49: Technical Specifications

    Technical Specifications PRO-S-80E Flow Rate @ 50 psi (3.5 bar) Valve Alone: Continuous 15 psi (1 bar) drop: 20 gpm (76 lpm) A. Total height: 61” D. Brine tank width: 15” Peak 25 psi (1.7 bar) drop: 26 gpm (98 lpm) B.

  • Page 50: Installation Diagram

    Installation Diagram GROUND JUMPER WIRE OPTIONAL WATER BYPASS BALL VALVE TO HOME More info GALVANIZED / COPPER PIPE More info OPTIONAL UV FILTER OPTIONAL ADD ONS: Ball Valves, Bypass, Ground Jumper Wire, Well Water System, 3-Stage Filter System, and UV Filter are not included.
  • Page 51 Installation Diagram More info BALL VALVES GALVANIZED / COPPER PIPE WELL WATER PRESSURE TANK STAGE 3 STAGE 2 STAGE 1 HOUSING HOUSING HOUSING OPTIONAL 3-STAGE WELL WATER FILTER PRO-100-E MAIN SHUT OFF VALVE FROM WELL WATER SOURCE FROM CITY WATER SOURCE www.proaquawater.com...

  • Page 52: Valve Installation

    Valve Installation A: Lubricate the O-rings on the adapter couplings to avoid any leaks. B: Attach the bypass valve onto the control head by pressing it onto the adapter couplings. C: Secure the bypass to the valve using the screws and metal clips.
  • Page 53 Valve Installation Lubricate the rim of the riser tube Place the upper basket on the located on the opening of the tank. riser tube and push the valve down to the tank and thread the valve on the tank by LUBRICATION turning it clockwise.

  • Page 54: System Installation

    System Installation IMPORTANT! DO NOT SOLDER WHILE SYSTEM IS CONNECTED. Any solder joints being soldered near the valve must be done before connecting any piping to the valve. Failure to do this could cause unrepairable damage to the valve. Shut Off Main Water Supply MAIN WATER LINE Locate the main water supply valve for the house and turn it off.

  • Page 55: Connecting The Drain Hose

    System Installation Connecting the Drain Hose A: Remove the orange locking clip on the drain line elbow. Locate the included 1/2” drain hose. Use a sharpie to mark 1/2” from one end of the hose and push that end into the quick connect drain port on the valve until it reaches or passes the 1/2”...
  • Page 56 System Installation Connecting the Brine Tank A: The brine tank system is 90% pre-assembled. To finish the setup, begin by removing the black lid of the tank and the white lid on the brine well. Push the brine line through the top hole on the side of the brine tank, and also through the opening in the brine well.

  • Page 57: Finishing The Installation

    System Installation Finishing the Installation A: Place the Unit in the bypass position. B: Locate the nearest faucet and remove the faucet screen (aerator) if there is any. C: Turn on the cold water at the faucet. D: Slowly turn on the main water supply to the system. E: Let the water run for 5 minutes or until the system is free of any air or foreign materials.

  • Page 58: Valve Programing

    Valve Programing Overview: Display Overview A. Flow Meter Indicator B. Time of day 11:30 C. Status D. Volume remaining 1000 E. Regeneration Mode Timer Meter Immediate Meter Delay Setting Button Up / Down Buttons Cycle Button WARNING! DO NOT UNPLUG THE UNIT’S POWER SUPPLY DURING REGENERATION! The display will show as: Cancel Regeneration:...

  • Page 59: Programming The System

    Valve Programing System Startup A: When power is supplied to the control, the screen will display the time of day, gallons remaining and the regeneration mode. Press and hold the CYCLE button for 5 seconds until you see the words “goto bW” and then release the CYCLE button.
  • Page 60 Valve Programing Setting Time Of Day IMPORTANT! The system will default to regenerate at 2 am in the morning based on the time entered in the setting. Setting the correct time of the day will ensure that the system regenerates at the corresponding regeneration time.
  • Page 61 Valve Programing Setting The Regeneration Type IMPORTANT! The system offers three mode types depending on your needs. It is recommend to set the system at (tM) Time Meter mode which allows the system to regenerate at 2 am in the morning once the gallons reaches zero.
  • Page 62 Valve Programing Unit Capacity (Not Shown If Timer Mode Was Selected In 2nd Step) IMPORTANT! This setting will only appear if the either (M) Meter or (tM) Time Meter mode from the previous setting was selected. User will not see this setting if (t) Timer mode was selected. The system default is 1000 gallons with the option to change the unit measurement and the capacity of the water treated before the system goes through a regeneration.
  • Page 63 Valve Programing Set Unit Measurement - Gallons, Liters Or Cubic Meters (Continued) C: Press UP or DOWN buttons to set 11:30 the calculated water capacity. (Worksheet on page 19.) 01000 Press the SETTINGS button to accept, and the number to the left flashes. FLASHING Congratulations! Your system is ready for use.

  • Page 64: Gallons Calculation

    Gallons Calculation Tool The control valve head uses a meter to count the gallons of water being treated through the system. Once the gallons programmed in the unit have been exhausted, the system will regenerate. The total gallons of treatable water the system can produce is based on the system size, family size, and the hardness level of the feed water.
  • Page 65 Gallons Calculation Tool Notes In the following pages, you will find the Advanced Settings section. Continue to this section only if you require a special application or customization. www.proaquawater.com...

  • Page 66: Advanced Settings

    Advanced Settings Regeneration Time And Hours Override IMPORTANT! Depending on the mode selected, the default setting may be set to regenerate at every 72 hours. Even if (M) Meter or (tM) Time Meter mode is selected, the regeneration override will still allow the system to regenerate even if the gallons didn’t count down to zero.
  • Page 67 You may hit the CYCLE button to exit to the main menu after setting up the gallons needed for regeneration. Settings 5 - 8 have been preset from the factory and are only meant for special applications that require customized settings. Consult your PRO+AQUA Support Team for further guidance if needed. 800-980-3335. (M) Meter or (tM) Time Meter Mode Default: 2:00 a.m.
  • Page 68 Advanced Settings Setting the Back Wash Time (Recommend keeping at factory default setting) (bW) Backwashing time allows the system to flush out any debris or particles that may enter the resin tank. It also helps create space in between the resins to allow more contact surface for the next stage of regeneration.
  • Page 69 Advanced Settings Setting the Brine Time (Recommend keeping at factory default setting) (bd) Brine Draw pulls the brine water from the brine tank and allows the resin to mix with the brine water, regenerating the system. The more contact time the system is set the more time it allows the resin to bond with the brine water.
  • Page 70 Advanced Settings Setting The Rapid Rinse Time (Recommend Keeping At Factory Default Setting) (rr) Rapid Rinse time allows the system to flush the hardness and residual debris that may be left inside the system out to the drain. The default setting is 10 minutes. 11:30 A: Press SETTINGS button to adjust the rapid rinse time setting.
  • Page 71 Advanced Settings Setting The Water Filling Time (Recommend Keeping At Factory Default Setting) (bF) Brine Fill time allows the system to fill the brine tank back up with the water for the next regeneration. Depending on the water pressure of the source water and the time set for brine fill, the amount of water inside the brine tank may vary.

  • Page 72: Features & Display

    Features & Display Display In Service 11:30 11:30 02:18 REG. REMAINING TIME Time Meter Regeneration Mode The display will show the current time and the remaining treated water alternatively. When the remaining treated water counts down to zero the display changes to the countdown of time till regeneration starts. 11:30 11:30 02:18 01-d...

  • Page 73: Manual Regeneration

    Features & Display Manual Regeneration Queued Regeneration When the valve is in service position press the CYCLE button to activate the queued regeneration. Queued regeneration means the system will initiate a regeneration at the time set. If missed, it will initiate on the next day. 11:30 11:30 FLASHING...

  • Page 74: System Care

    System Care NOTE: If you have not read and truly understood this manual, DO NOT operate this equipment. If the equipment fails or experiences other exceptional circumstances, the bypass valve can always be closed, allowing tap water into the home without interrupting general water usage. (Refer to page 15.) IMPORTANT! The condition of the water softener must be checked regularly.

  • Page 75: System Troubleshooting

    System Troubleshooting Problem Cause Correction 1) The control fails to A) Disconnected meter cable A) Reconnect the meter cable. Regenerate automatically B) Transformer damaged B) Replace the transformer. C) Electronic controller or sensor damaged C) Replace or repair. 2) Regeneration at wrong A) Timer improperly set due to power failure A) Reset timer.

  • Page 76: Warranty

    PRO+AQUA will provide a replacement resin tank or brine tank to any original equipment purchaser in possession of the PRO+AQUA water softener that fails within (10) ten years after the date of purchase, provided that it is at all times operated in accordance with specifications and not subject to freezing, sunlight, or outside elements.
  • Page 77 INSTALLATION GUIDE REVERSE OSMOSIS DRINKING WATER SYSTEM | PRO-UC-ROSTD PURE WATER. NOTHING ELSE.
  • Page 78 3. Enter your purchase and serial number information. No time to go online? Let our PRO+AQUA Certified Tech Team do the work for you. Simply follow the steps below and in 2-3 working days we’ll send you confirmation of your product being registered.
  • Page 79 PURE WATER. NOTHING ELSE. CONTENTS SECTION PAGE INSPECTION & PREPARATION ..............4 PRE-INSTALLATION .................... 5 SYSTEM FLOWCHART ..................7 FAUCET INSTALLATION ..................8 FEED WATER ADAPTER INSTALLATION ..........11 FITTINGS INSTALLATION ................12 DRAIN SADDLE VALVE INSTALLATION ..........14 HOSE INSTALLATION ..................16 ICE MAKER HOOKUP..................

  • Page 80: Inspection & Preparation

    System Inspection Before Starting: Please take the system and all the components out of the box. Inspect the system and all the connection fittings carefully, making sure nothing was damaged during shipping. If any part is cracked or broken, please do not proceed with the installation and contact PRO+AQUA or your distributor for support. Components List:...

  • Page 81: Pre-Installation

    Failure to follow these installation instructions could cause system failure or property damage and will void the product warranty. Check with your state and/or local public works department for plumbing codes. Consulting a licensed plumber specializing in filtration systems is strongly recommended. Pro+Aqua assumes no responsibility on system inspection or installation failures.

  • Page 82: Recommended Tools

    Pre-Installation Recommended Tools The following tools may be necessary, depending on your installation: • Variable speed electric drill • Drill bits 1/4”, 7/16”, & 7/8” • Phillips head and flat head screwdrivers • Adjustable wrench • Crescent wrench • Teflon tape •...

  • Page 83: System Flowchart

    5 Stage Reverse Osmosis System Flowchart STAGE 5 Carbon Post-Filter R/O Faucet Orange 3/8” Hose FLOW To Storage Tank Tank Shut-Off Valve Clips White 3/8” Hose To Dedicated Faucet STAGE 4 R/O Membrane Tank Automatic Shut-Off Valve Flow Restrictor Clips Saddle Valve For Drain Bracket...

  • Page 84: Faucet Installation

    Faucet Installation If the sink counter top has a sprayer, soap dispenser, or previous filtered water faucet hole it may be disconnected for faucet installation. The faucet should be positioned so it empties into the sink and the spout swivels freely for convenience. If the sink has a hole that can accommodate the RO faucet, no drilling is required and you may proceed with “Mounting the Faucet”...

  • Page 85: Stainless Steel Sink

    Faucet Installation Stainless Steel Sink Porcelain/ Enamel/ Ceramic Sink Mark the center for the 7/16” hole. Center punch a small indent for the hole. Form a shallow putty around the hole area and fill it with enough water to lubricate the carbide drill bit.

  • Page 86: Mounting The Faucet

    Faucet Installation Mounting the Faucet Disassemble hardware from the faucet shank, except for faucet base plate and large rubber washer. (Rubber washer may be replaced with beads of plumber’s putty for neater appearance.) FAUCET FAUCET LARGE RUBBER BASE WASHER Feed the threaded faucet shank through the sink or counter mounting hole and orient the faucet.

  • Page 87: Feed Water Adapter Installation

    Feed Water Adapter Installation IMPORTANT! The water supply to your system MUST be from the COLD WATER LINE! FAUCET SUPPLY LINE Hot water will severely damage your reverse osmosis system! Turn off the cold water supply to the sink using the supply valve located under the sink and disconnect faucet supply line.

  • Page 88: Fittings Installation

    Fittings Installation Overview: This RO system utilizes Quick Connect fittings. These user-friendly fittings provide superior performance and are provided with this system. TUBING O-RING TUBE STOP COLLET FITTING BODY Quick Connect Fittings Installation Cut the tube cleanly and squarely. Ensure that the Insert the tubing through the collet and O-rings until tube has a smooth outside diameter without any it bottoms out against the tube stop.
  • Page 89 Fittings Installation Quick Connect Fittings Installation (continued) Push and pull the tubing toward and away from the fitting to ensure it has been installed properly. FITTING BODY Quick Connect Fittings - Tube removal Push the collet flange against the fitting body COLLET COLLET while pulling the tubing away from the fitting...

  • Page 90: Drain Saddle Valve Installation

    Drain Saddle Valve Installation Overview: 1 Sink Install 2 Sink Install 1 Sink Install 2 Sink Install Before proceeding, it is advisable to inspect the drain pipe conditions to ensure they are not thin and frail. Drain saddle valves are designed to be installed on a standard 1-1/2”...
  • Page 91 Drain Saddle Valve Installation Remove inner circle and adhesive Insert black drain line through quick strip from the provided spacer connect, ensuring the line also passes and press onto the inside of through the 1/4” hole you created in the drain saddle, aligning the pipe.

  • Page 92: Hose Installation

    Hose Installation Instructions Connect Tubings to RO System With all components in place, complete the final tubing connections using these guidelines: • Tubing should follow the contour of the cabinets • Cut the tubing to the desired length using square cuts and proper cutting devices •...
  • Page 93 Hose Installation Instructions Connect orange 3/8” tubing to the RO unit Stage 5 A: Connect Shut-off Valve to the top of the Storage Tank. T-connection. B: Connect orange 3/8” tubing from the Stage 5 filter to the storage tank shut-off valve. STAGE 5 SHUT-OFF T-CONNECTION...

  • Page 94: Ice Maker Hookup

    Ice Maker Hookup Ice Maker Hookup (optional) The RO drinking water device can be connected to any standard refrigerator ice maker or ice maker/ water dispenser. (Do not connect to a commercial-type bar ice maker.) To complete this operation, see instructions below. NOTE: The PSI post-RO will be roughly 2/3 of the incoming PSI.

  • Page 95: System Start-Up

    System Start-Up Pre-flush Storage Tank Pre-flushing the storage tank is always recommended so there is sufficient pressure to check for leaks and sufficient water to flush the carbon post filter. NOTE: Tanks are pre-pressurized at 5-7 psi. Before installation, check, add, or release as required. Fill the tank Empty the tank After all hose connections have been made, open the...

  • Page 96: Maintenance

    Maintenance Keep your system operating correctly. The following periodic maintenance is recommended so your system will provide years of trouble-free service. To order your replacement filters, scan the QR code below or visit: www.proaquawater.com/pro-uc-rostd Replacement Part Frequency Stage Filter Type Part Number Frequency Stage 1...

  • Page 97: Warnings

    60 PSI. Failure to follow the above instructions may result in cracking of the filter housing, water leakage, and damage. Pro+Aqua assumes no responsibility for any damage caused by installation, inspection, or maintenance failures.

  • Page 98: Filter Replacement Instructions

    New O-rings are slips down over the bottom provided with the replacement sets standpipe. from Pro+Aqua Stages 1-3. Lubricate each O-ring with a coating of clean silicone grease and put back in place by pressing the O-ring into the groove.
  • Page 99 Filter Replacement Instructions Stage 4 removal Once each new filter is Remove quick connect hose from the cap, and then untwist the cap. Remove RO membrane from Stage 4, inserted, screw each discarding the used filter. Insert new RO membrane housing onto its cap and reconnect hose.

  • Page 100: Notes

    Notes Have questions? Call 1-800-980-3335...
  • Page 101 www.proaquawater.com...

  • Page 102: Warranty

    Limited Product Warranty PRO+AQUA warrants to the original retail purchaser that your new Drinking Water RO System is built of quality materials and workmanship. When properly installed and maintained, it will give years of trouble-free service. This warranty extends to the original retail purchaser only and commences on the date of the original retail purchase of the drinking water RO system.
  • Page 103 More than filtration – it’s peace of mind. PRO+AQUA: Redefining Water Filtration. Unmatched Performance. Uncompromising Quality. Explore more at www.proaquawater.com!
  • Page 104 PURE WATER. NOTHING ELSE. For assistance, please feel free to reach out to us Mon - Fri 9am - 5pm PT (800) 980-3335 or via email at hi@proaquawater�com www.proaquawater.com 060524 © PRO+AQUA� All rights reserved�...
