Summary of Contents for Bandit 320

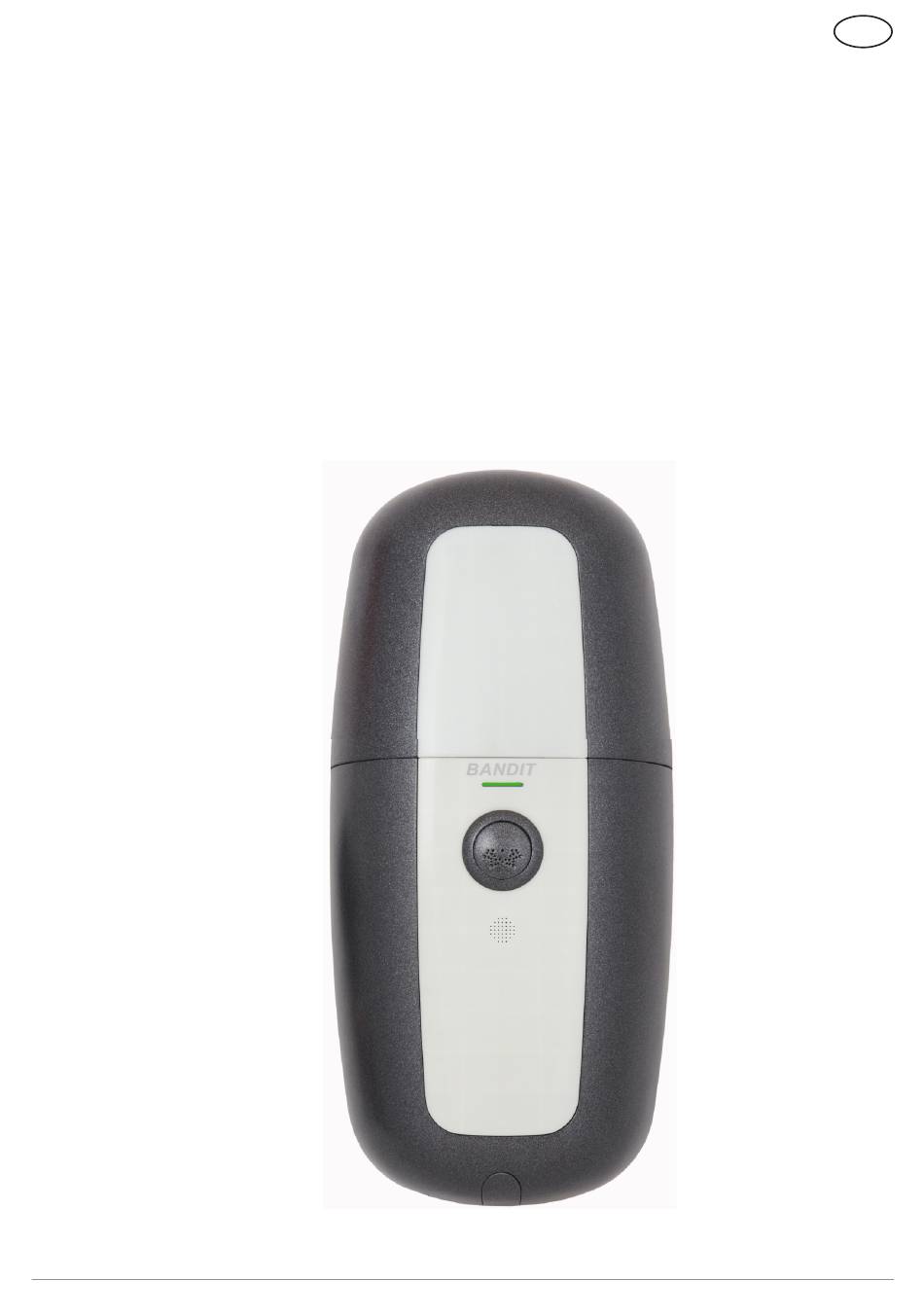

- Page 1 BANDIT World leader in active security INSTALLATION MANUAL BANDIT 320 BANDIT Fog generator 320 / / Installation manual v.103...
-
Page 2: Table Of Contents
Introduction Pag. 01 Safety precautions Specifications Installation Electrical connection Security protection Communication status Classification Fog cartridge Replacing Fog Cartridge First Aid and maintenance BANDIT Fog generator 320 / / Installation manual v.103 Content... -
Page 3: Introduction Pag
A thin three-wire communications cable is the only necessary electrical connection between the controller and the fog generator. For information about available controllers, see: www.bandit.be BANDIT Fog generator 320 / / Installation manual v.103 Introduction - p. 1... - Page 4 Options: For more information on available models and option choices, see the brochure: BANDIT 320 - finishes and optional extras. This brochure provides the available colours for the casing and front pad, fog ejection patterns and the option menus. Standards: - Certified to highest class T5 with the European standard for security fog generators: EN-50131-8.
-
Page 5: Safety Precautions
- During a fog ejection test it is essential that any bystanders within a 2 metre distance of the Bandit unit do NOT look in the direction of the ejection nozzle and avoid exposing bare skin to the ejected fog within a 40cm range of the ejection nozzle. -
Page 6: Specifications
→ Products → Cartridges. They are also available from your local Bandit distributor, which can offer a faster, local delivery at favourable purchase prices. More info: see page 13 p. 4 - Specifications BANDIT Fog generator 320 / / Installation manual v.103... -
Page 7: Installation
(approx. 9 kg), will cause the plasterboard to break after a while and the device will fall to the ground. BANDIT Fog generator 320 / / Installation manual v.103 Installation - p. 5... - Page 8 While mounting, keep in mind to provide an unhindered passage for the fog stream. After a while, the store keeper has forgotten about the units and stacks boxes and displays right in front of the fog ejector of the devices. p. 6 - Installation BANDIT Fog generator 320 / / Installation manual v.103...
- Page 9 Keep in mind that this cable is the "lifeline" between the controller and its connected fog generator. Install this cable in such a way that the risk of sabotage (cutting) or accident breakage or damage is minimised as much as possible. BANDIT Fog generator 320 / / Installation manual v.103 Installation - p. 7...
- Page 10 The 30° wall bracket can be used for horizontal, vertical and ceiling mounting. See brochure: 320 - finishes and optional extras - BANDIT p. 8 - Installation BANDIT Fog generator 320 / / Installation manual v.103...
-
Page 11: Electrical Connection
- The quality of communication between the device and its controller is continuously monitored. The mutually encrypted messages are monitored by both the unit and its controller. BANDIT Fog generator 320 / / Installation manual v.103 Electrical connection - p. 9... -
Page 12: Security Protection
- 50% of the cases include internal pre-manipulations (inside job). To protect against twisting and reorientation this model 320 incorporates a special integrated tamper feature. -
Page 13: Communication Status
The intention is that in darkness the exact location of the device will not be revealed to "the outside world" by its glowing front LED. BANDIT Fog generator 320 / / Installation manual v.103 Status communication FrontLED - p. 11... -
Page 14: Classification
The fog generator models 320 / V (vertical mounting) and 320 / H (horizontal BANDIT assembly and 320 / C (ceiling mount) are certified to the standard for SFVP: SFVP SFVP Grade 3 <280 m³ / Grade 4 <200 m³... -
Page 15: Fog Cartridge
In the event of this occurring, washing with lukewarm water is the perfect solution (fog liquid is 100% water soluble). BANDIT Fog generator 320 / / Installation manual v.103 Fog cartridge - p. 13... -
Page 16: Replacing Fog Cartridge
(m³) cartridge. The empty steel cartridge can be recycled as: Non-hazardous metal waste Set screw and Set screw and (Dir. 2008-98-EC). Cartridge A Cartridge B p. 14 - Replacing Fog Cartridge BANDIT Fog generator 320 / / Installation manual v.103... - Page 17 4 Reset the tamper alarm indication via the controller. 4 Turn off the controller function: Fog isolation 4 Manufacturer's Warranty: Mfd. (Date of manufacture, mm/yyyy) + 3 years. BANDIT Fog generator 320 / / Installation manual v.103 Replacing Fog Cartridge - p. 15...
-
Page 18: Maintenance
EU guidance values for acute and accidental exposure (AEGLs) and the Annotated OSHA PELS. If you or the user wishes, you can always request a copy of the SDS from your BANDIT distributor. p. 16 - Maintenance & First Aid BANDIT Fog generator 320 / / Installation manual v.103... - Page 19 BANDIT Fog generator 320 / / Installation manual v.103 p. 17...
- Page 20 Model: 320 / - Serial number: If you need to call your dealer for information, service or in case of any technical problem, always provide them with the model and serial number shown here. BANDIT Fog generator 320 / / Installation manual v.103...
