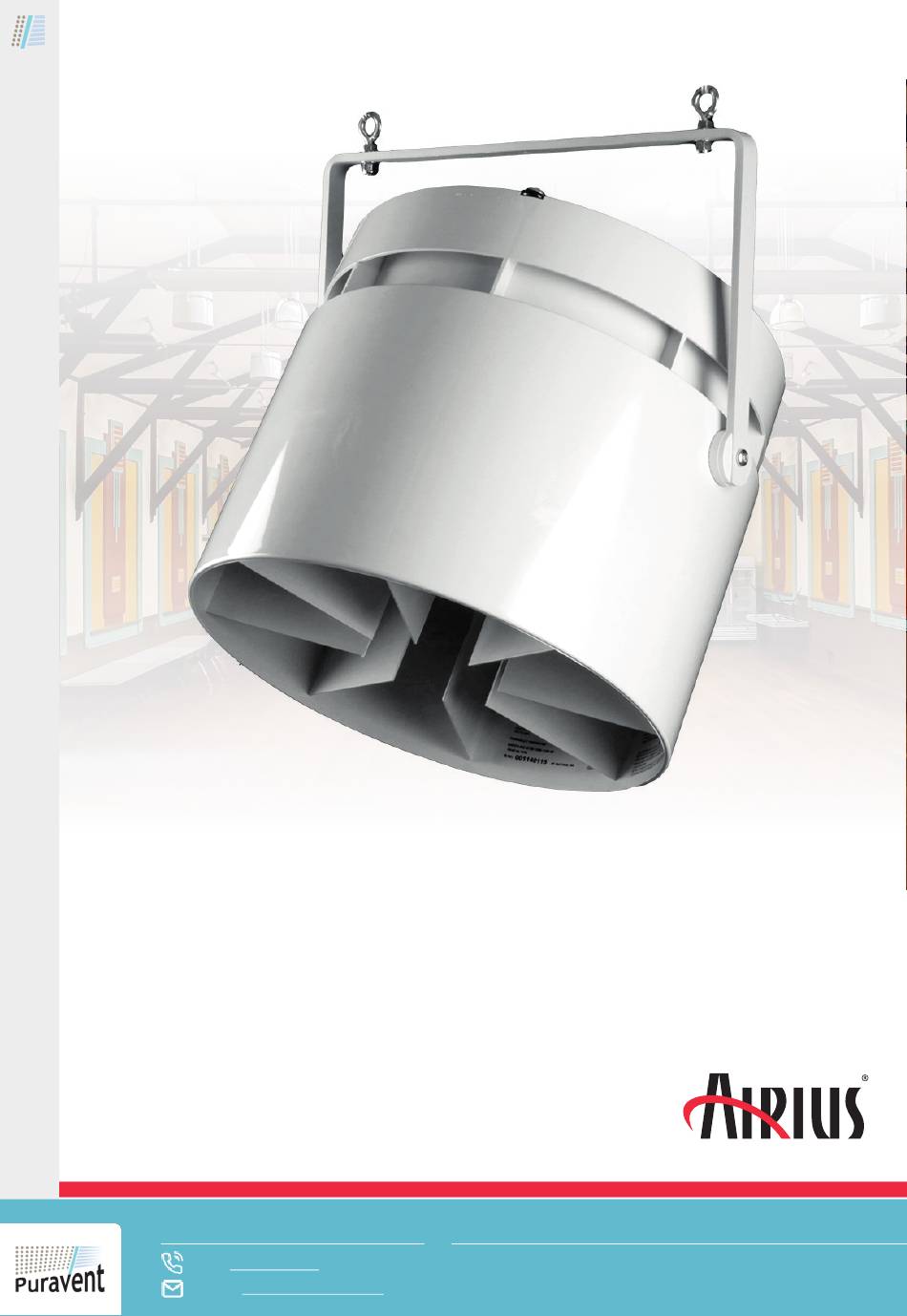

- Page 1 PRODUCT INFORMATION & INSTALLATION GUIDE 2021 Airius Model EC ONYX SERIES www.airius.co.uk saving you energy Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
-
Page 2: Warranty
5 years full manufacturers replacement from date of despatch. IP44 Rated Subsequent 5 year 'half new price' rebuild cover info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... -
Page 3: Velocity Profile
fire suppression systems are all factors in properly locating the Airius system within the ceiling. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... - Page 4 Unit Control Data Cable To Controller OR mounted WiFi Module Airius Air Circulation & Destratification Fan Exhaust info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 5 Airius Air Circulation & Destratification Fan Exhaust Units can be angled up to 90° off vertical info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 6 » Provide fan control from anywhere in the world on your » portable device or laptop info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 7 Warranty 1 years parts and workmanship. PHONE OR TABLET info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
-
Page 8: Account Creation
To begin, please download and install the Airius 'PearLink Wireless Fan Control' app, which can be found on the Google Play or Apple Stores, or visit: > https://controls.airiusfans.com/dashboard/login. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... -
Page 9: Provisioning Devices
Press the “Ready” button: Choose your device. Provision all App will provision device floor sensors before any fans. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... - Page 10 Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
-
Page 11: Device Control
Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... -
Page 12: Network Migration
“i” icon then the gear network name and/or password icon in the upper right portion of changes. the app. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... -
Page 13: General Notes
White White White Fan 1 Fan 2 Fan 3 Tachometer PWM 1 Pulse = 1 Revolution info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... - Page 14 Follow safety measures to avoid electric shock. PC/ABS 3164849 CONFORMS TO UL Standard 507 info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
-
Page 15: Specifications
Device Addressing Menu Pin Code: 7913 manageability to any device and brings intelligence and connectivity to the network edge and back. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... - Page 16 (2 confi gurable as digital in) Ribbon cable connection to max 2 relay Expansion Port module (RK4) info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 17 In 1 In 2 In 3 In 4 In 5 In 6 In 7 In 8 info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 18 MTIO as ADDR-2). These are supplied pre-addressed but the addressing can also be changed on the touch screen using the manufacturer supplied higher level pin code. info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 19 A+ B- S Port 2 Only RS485 Connection point R-ION Ceiling temperature sensor 24V DC ONLY (By Others) info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 20 A+ B- S RS485 R-ION Ceiling Temperature Sensor (Supplied by Airius if required) 24V DC ONLY (By Others) info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
- Page 21 Pull only from the top, with two fi ngers on the sides • • Do not apply excessive force info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
-
Page 22: Installation Tips
Product Information & Installation Guide ONYX SERIES - Model EC saving you energy INSTALLATION TIPS 0.5 m 1.5 m info@airius.co.uk www.airius.co.uk Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk... - Page 23 AIRIUS SYSTEMS is the copyright property of AIRIUS LLC, USA. All material issued by, or emanating from, Airius Europe Ltd is the Copyright property of Airius Europe Ltd, UK. V 1.1 Get In Touch Our Address Call: 01729 824108 Puravent, Adremit Limited, 6 County Business Park, Darlington Road, Northallerton, DL6 2NQ Email: info@puravent.co.uk...
