HE RS-206cc User Manual

Hide thumbs

Advertisement

Table of Contents

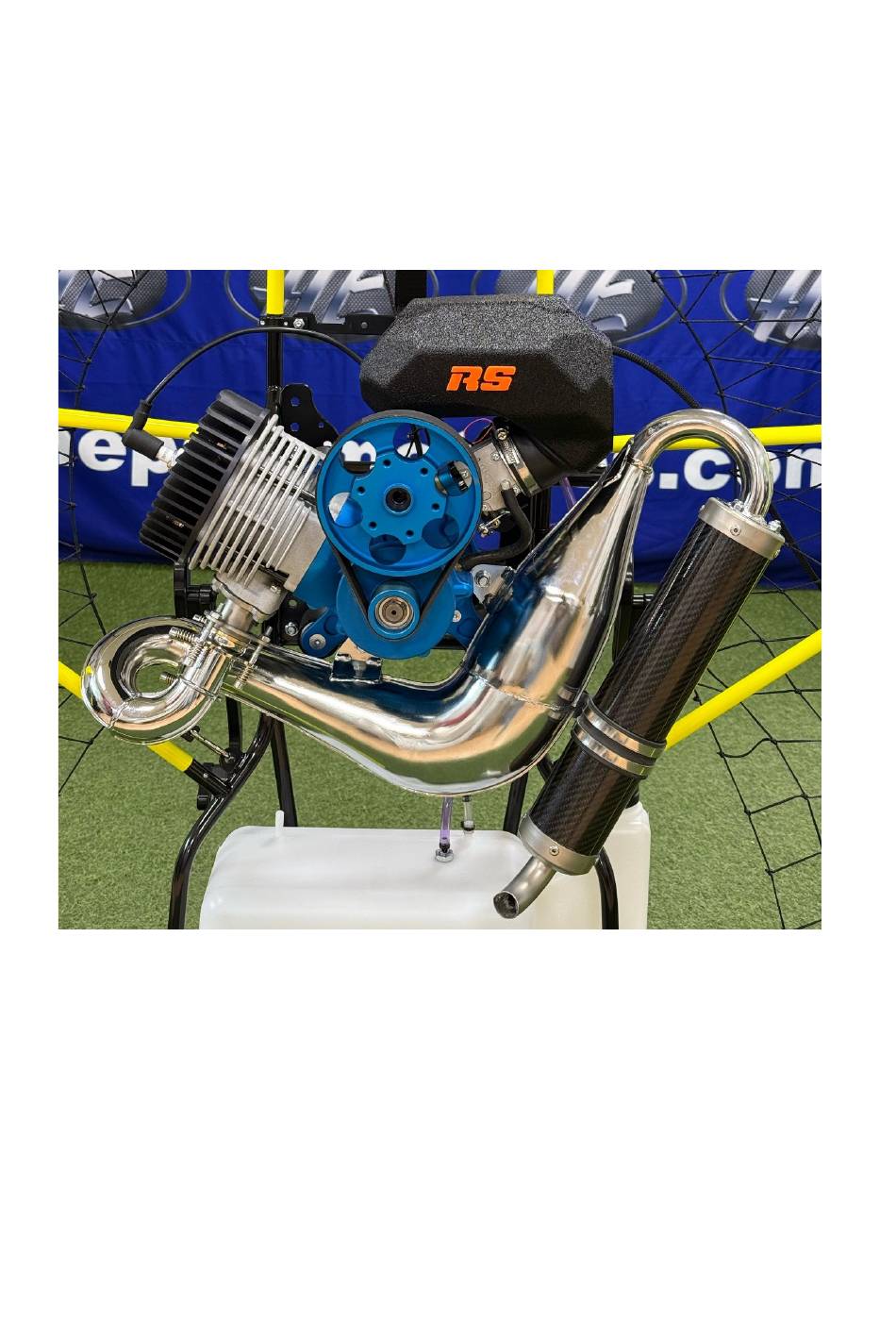

USER MANUAL RS -206cc ENGINE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-206cc and is the answer not in the manual?

Questions and answers

Related Manuals for HE RS-206cc

Summary of Contents for HE RS-206cc

  • Page 1 USER MANUAL RS -206cc ENGINE...
  • Page 2 USER MANUAL RS 206cc ENGINE PARAMOTORES HE S.L. C/ Estaño Nº56 28510 Campo Real Madrid – Spain +34 666 45 44 08 +34 918 73 88 35 ventas@heparamotores.com INDEX INTRODUCTION AND IDENTIFICATION OF THE • OWNER TECHNICAL AND STRUCTURAL •...
  • Page 3 Before installing and operating the engine, read this manual carefully. The purpose of this manual is to provide the user with all the information he needs to manage the engine correctly by himself and in the safest way possible. It includes information on the technical aspect, operation, machine shutdown, maintenance, spare parts and safety.
  • Page 4 USER MANUAL RS 206cc ENGINE areas of water or where it is possible to drown. Always keep in mind that the engine may turn off or break, so consider a possible emergency landing for every situation. If used in other applications, proper operation cannot be guaranteed.
  • Page 5 USER MANUAL RS 206cc ENGINE TECHNICAL AND STRUCTURAL CHARACTERISTICS ENGINE - Single-cylinder 2-stroke COOLING - Extraction from propeller DISPLACEMENT - 206cm(58,5x67) CYLINDER - Coated nikasil aluminium CARBURETOR - Walbro POWER - 30 HP / 8500 to 8600 R.P.M. IGNITION - Electric ignition coil TRANSMISSION - Belt driven Poly V with centrifugal clutch RATIO - 1 / 2.88 STARTER - Flash starter- (Built-in easy start system) /...
  • Page 6 USER MANUAL RS 206cc ENGINE MAIN PAIRS o Cylinder head nuts 16-17 Nm o Steering wheel nuts 42-45 Nm o Pinion nuts 42-45 Nm o Crankcase screws 10 Nm o Spark plug 25 Nm o Cylindrical bolts 20 Nm o Exhaust bolts 25 Nm o Exhaust nuts 32 Nm o Motor support screws 15 Nm o Screws or nuts of 4mm 2.5-3 Nm...

  • Page 7: Important Notes

    USER MANUAL RS 206cc ENGINE You can install the motor in the frame using 4 40 mm rubber brackets. To fix the propeller use only bolts of class 10/8 (100 Kg) and make sure that its length is sufficient to exit the reducing pulley.

  • Page 8: Carburetor Adjustment

    USER MANUAL RS 206cc ENGINE Use for the blend only premium gasoline for 98-octane cars, along with good quality synthetic oil for blends to amount of 2.5% (DO NOT USE MIXTURE ALREADY MADE AT THE GASOLINE PUMPS). When preparing the mixture, make sure that the can has no dirt or water, always put the oil first and mix well.
  • Page 9 The idle screw is used to adjust the mechanical idle. RUNNING-IN All HE PARAMOTOR MOTORS have a quality control before being delivered in order to check if all the components are related to the fixed parameters, but a new taxiing is still necessary.

  • Page 10: Maintenance

    USER MANUAL RS 206cc ENGINE MAINTENANCE AFTER THE FIRST HOUR OF FLIGHT, CHECK THE TENSION OF THE STRAP AND TIGHTEN IF NECESSARY. AFTER THE FIRST 2 HOURS, TIGHTEN THE HEAD NUTS (IN CROSS ORDER) WITH A TORQUE WRENCH AT 1.6 Kg.m (16Nm). AFTER THE FIRST 3 HOURS OF ENGINE OPERATION, PERFORM A NEW CHECK OF THE BELT AND, IN CASE YOU RETENSIVE IT TO 350 HRZ.
  • Page 11 Once you've found the right tension, don't adjust it anymore. If in doubt, please contact your paramotor dealer or the HE team. To adjust the strap dothe following: Loosen the cam of the pulley bolt localized, once it is...
  • Page 12 WARRANTY DURATION 2 YEARS from the date of purchase from PARAMOTORS HE. THE WARRANTY IS VOID IN THE FOLLOWING SITUATIONS:...
  • Page 13 • carburetor. Incorrect assembly of engine parts or components • not assembled by HE ENGINES but by the manufacturer of the paramotor or by the end user, supplied disassembled for packaging and transport purposes, including all electrical or electronic components.
  • Page 14 USER MANUAL RS 206cc ENGINE PARAMOTORS HE AND HIS RESELLERS REMAIN AT YOUR DISPOSAL FOR EVERY INFORMATION AND ADVICE ON THE USE OF THE ENGINE PROBLEMS THE ENGINE DOES NOT START Check: turn on and off ❑ spark plug cable ❑...

  • Page 15: Important Tips

    USER MANUAL RS 206cc ENGINE In case the head is disassembled to be decarbonized, change both the head gasket and the cylinder gasket. IMPORTANT TIPS: DO NOT FLY in bad weather conditions! NEVER start the engine with people near the propeller or on the sides.
  • Page 16 PROPELLER ACCESSORY PARAMOTORES HE, recommends using Helix propellers or any of the brands tested in the HE factory.

  • Page 17: How To Start The Engine

    USER MANUAL RS 206cc ENGINE In case of propeller impact, it is necessary to verify that all engine parts have not suffered any damage, paying special attention to the components listed below: Reduction pulley and bearings; Eccentric reduction; the engine crankcase and crankshaft, the crankcase bracket and the rubber engine mounts.
  • Page 18 USER MANUAL RS 206cc ENGINE 1. Pull the rope quickly, without reaching the final race. In winter, or in cold weather, it can help the engine start by closing the choke. Pull the rope 2-3 times, until you hear the knock in the combustion chamber of the engine, then open the choke again and start the engine.
  • Page 19 USER MANUAL RS 206cc ENGINE...
  • Page 20 USER MANUAL RS 206cc ENGINE...

This manual is also suitable for:

Rs-206
