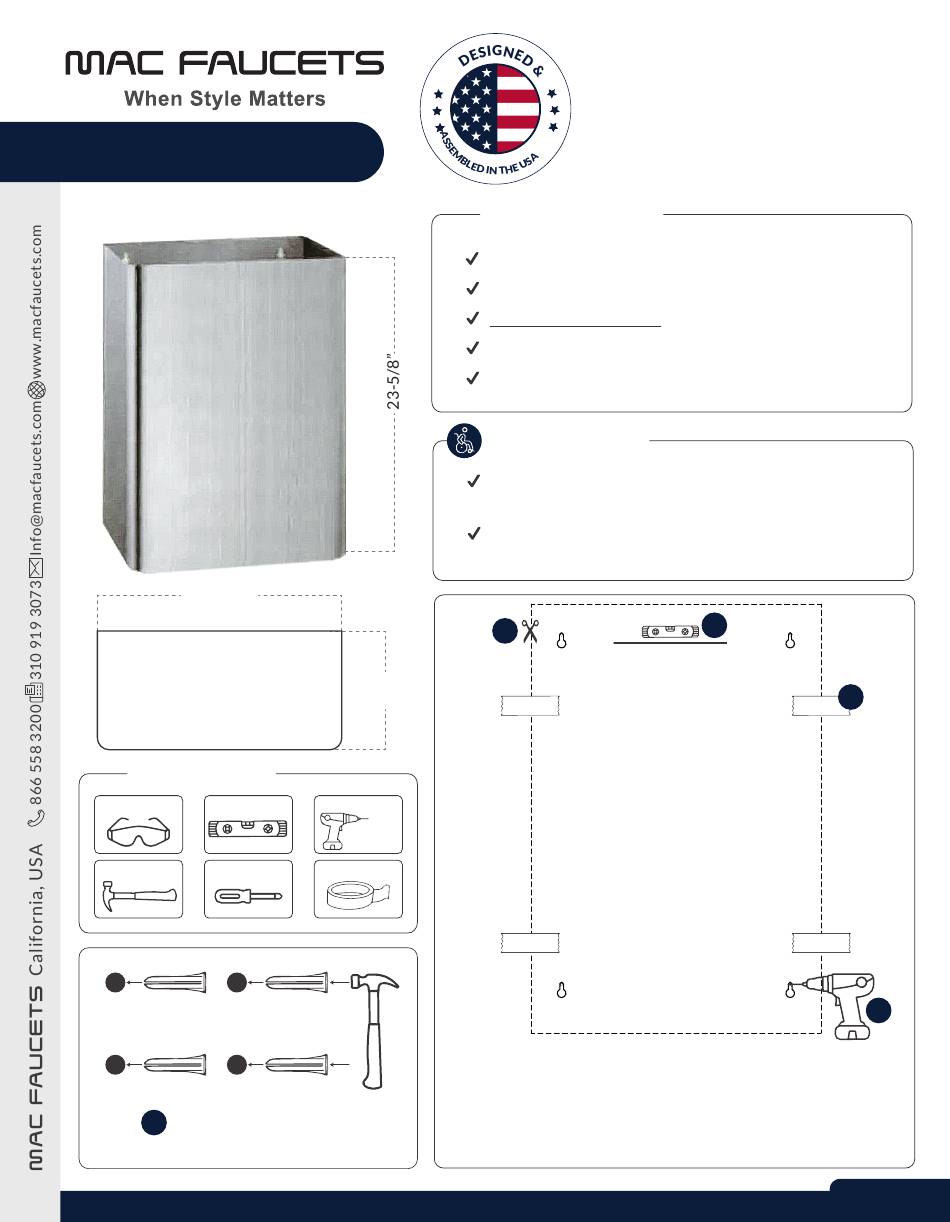

Mac Faucets SWB-9 User Manual

Installation Instructions
SWB-9
15-3/4"
Top View
Tools Needed
Safety Glasses Level
Hammer Phillips Screw Driver
Place the plastic anchors in the
05
holes and push them with the
help of a lite hammer.
Package Includes
Stainless Steel Construction
Surface Mounted Waste Receptacle
Mounting Hardware
All hardware necessary for satisfactory installation
Capacity 12 Gal.
ADA Compliant
Consult local and National accessibility codes
for proper installation guidelnes
Conformily and compliance to local National
codes is the responsabilty of the installer
01
7-5/8"
Cordless Drill
Drill bit
Ø 1/4" Carbide
Drill for tile
Tape
Once the location for the waste receptacle container has been
decided proceed with the installation steps below.
1. Use the template provided outside the box.
2. Use a level to ensure that the template is straight and level.
3. Use painters tape to hold the template in place.
4. Drill holes for supplied plastic anchors.
User Manual
Surface Waste Receptacle
Model: SWB-9
02
Level this for drilling the holes
Drill Holes Ø 1/4"
Cut the template on the
back of the package, not
this drawing.
03
04
