Vanguard-700 Outdoor Camera
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vanguard-700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rugged Computing Vanguard-700

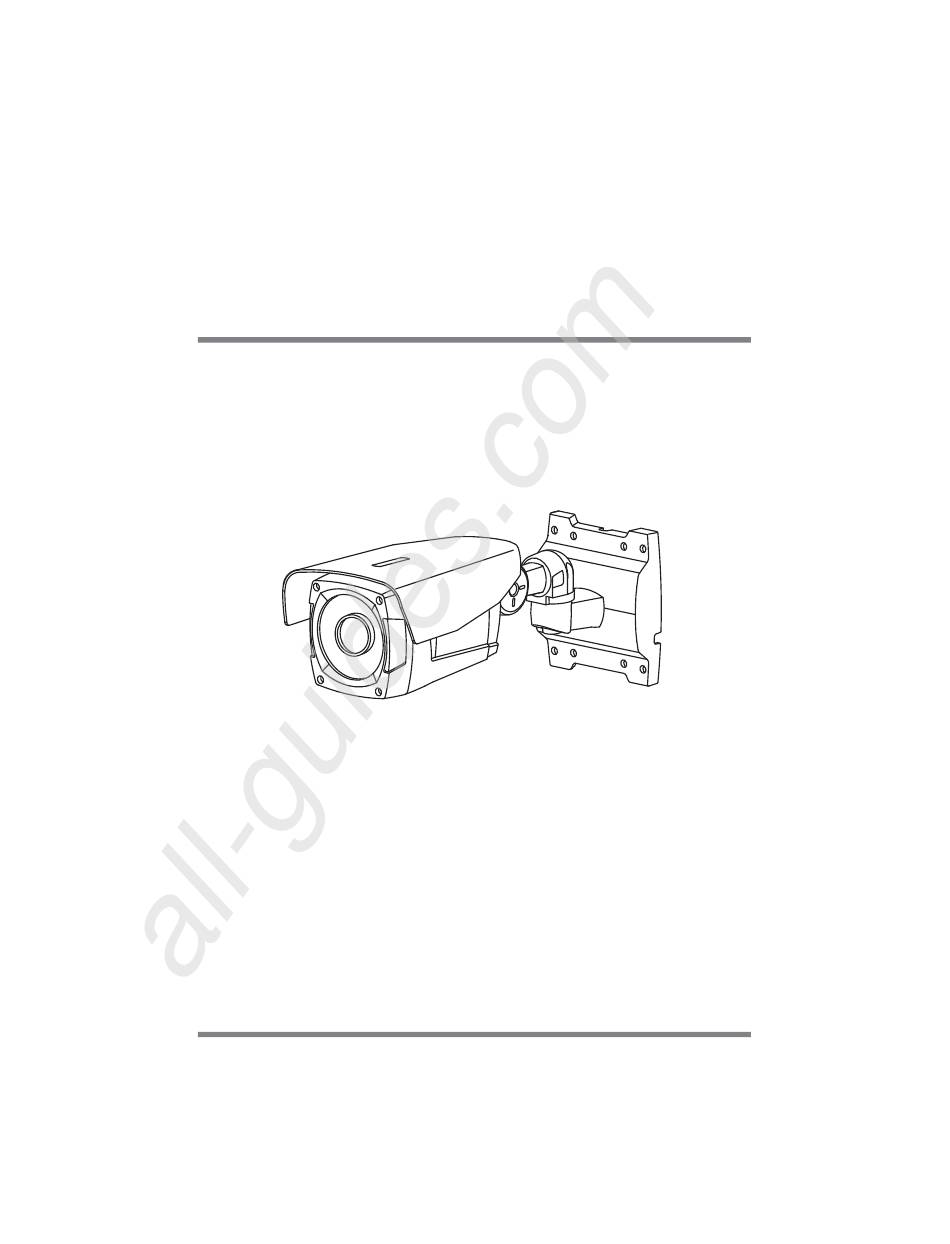

  • Page 1 All manuals and user guides at all-guides.com Vanguard-700 Outdoor Camera INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com CONTENTS WARNING & CAUTION GENERAL FEATURES NAME OF EACH PART INSTALLATION CONNECTION SPECIFICATIONS OSD MENU SETTING TROUBLESHOOTING DIMENSIONS...

  • Page 3: Warning & Caution

    All manuals and user guides at all-guides.com WARNING & CAUTION If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by the trained Personnel. Switch off immediately if the product emits smoke or abnormal heat. Never install the product in area exposed to oil or gas.
  • Page 4 All manuals and user guides at all-guides.com WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 5: General Features

    All manuals and user guides at all-guides.com GENERAL FEATURES IP-67 rated waterproof frame housing An ideal waterproof frame housing suitable for the outdoor circumstance. 3-Axis bracket (Wall, Ceiling, Pole mount available) This 3-Axis bracket enable you to install easily anywhere. Compatible with a junction box (option) It can compatible with a junction box, therefore easy to install.
  • Page 6 All manuals and user guides at all-guides.com GENERAL FEATURES High Resolution By adopting a diagonal 6mm(1/3") SONY EXVIEW HAD CCD II, the camera produces clear picture quality with a horizontal resolution of 700 TV line color, and 800 TV line B/W (960H Type) Low Light Sensitivity By adapting unique digital processing technology, It can clearly distinguish the outline and...

  • Page 7: Name Of Each Part

    All manuals and user guides at all-guides.com NAME OF EACH PART FIG.1 1. Sunvisor 2. Camera Body 3. Function Cover 4. Function Part 5. IR LED Lamp 6. Lens 7. Camera Bracket 8. Lens Control Lever 9. Set Screw groove for Sunvisor 10.
  • Page 8 All manuals and user guides at all-guides.com NAME OF EACH PART FUNCTION PART FIG.2 FUNCTION Extra Video Out CVBS Output IR Gain IR Gain Control 3 Lux / 6 Lux CDS Sensitivity Control ON / OFF IR LED ON / OFF OSD Button Up, Down, Set, Left, Right...

  • Page 9: Installation

    All manuals and user guides at all-guides.com INSTALLATION Calblock( 6x30) Template Label 81mm Hole Diameter : 6mm Depth : 30mm FIG.4 FIG.3 Seal Tape FIG.5 1. When you need to install a camera on the surface of a concrete wall, you can drill a hole like Fig.3 exactly by using a Template Card offered by accessory.
  • Page 10 All manuals and user guides at all-guides.com INSTALLATION Wrench 2mm Screw 4x30 Wrench 3mm FIG.6 FIG.7 FIG.8 4. Like Fig.6, after put the cable connector part into the bracket, please fix the bracket on the wall by use of screws. 5.
  • Page 11 All manuals and user guides at all-guides.com INSTALLATION How to install Junction Box Calblock( 6x30) Template Label 46mm Hole Diameter : 6mm Depth : 30mm FIG.9 FIG.10 Screw 4x30 FIG.11 1. Like Fig.9, please make a screw sign hole on the wall for fixation of Junction Box by use of offered Template Label.
  • Page 12 All manuals and user guides at all-guides.com INSTALLATION Screw M4x60 Nut M4 Screw M4x20 FIG.12 FIG.13 4. Joint the Camera bracket to the Junction Box, then put the Screw into a Hinge part after that tighten by Nut. (Fig.12) 5. Connect a cable and like Fig.13, please join Bracket part. (Please refer to Page 12 regarding cable connection) How to install Ceiling &...

  • Page 13: Connection

    All manuals and user guides at all-guides.com CONNECTION DUAL POWER TYPE *A power source connection is nonpolar. FIG.16 1. Terminal Block (Accessory) 2. DC Jack Cable (Accessory) 3. Adaptor (DC12V or AC24V) 4. Video Output (CVBS) 5. Seal Tape *A power source connection is nonpolar. DC12V POWER TYPE FIG.17 1.

  • Page 14: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS (760H Type) TV SYSTEM NTSC Total pixels 811(H) x 508(V) 795(H) x 595(V) Effective pixels 768(H) x 494(V) 752(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II...
  • Page 15 All manuals and user guides at all-guides.com SPECIFICATIONS (960H Type) TV SYSTEM NTSC Total pixels 1020(H) x 508(V) 1020(H) x 596(V) Effective pixels 976(H) x 494(V) 976(H) x 582(V) Frequency 15.734[KHz] (H) / 59.94[Hz] (V) 15.625[KHz] (H) / 50[Hz] (V) Auto/FLK/Manual(1/60~100,000 sec) Auto/FLK/Manual(1/50~100,000 sec) NEXT CHIP HAWK-II...

  • Page 16: Osd Menu Setting

    All manuals and user guides at all-guides.com OSD MENU SETTING MENU SUB MENU BRIGHTNESS 0~100 IRIS SPEED LENS VIDEO BRIGHTNESS 0~100 MANUAL AUTO(SHUT.MIN, SHUT.MAX), 1/60(50), FLK, MANUAL(LEVEL1/60, FLK,1/250,1/500, SHUTTER 1/1000,1/2000,1/5000,1/10000,1/20000,1/50000,1/1000000 LOW,MIDDLE,HIGH EXPOSURE SENS-UP AUTO x2,x4,x6,x8,x10,x12,x14,x16,x24,x32,x64,x128,x256 LOW-LEVEL 0~15 D-WDR HIGH-LEVEL 0~15 VALUE LOW, MIDDLE, HIGH AREA...
  • Page 17 All manuals and user guides at all-guides.com OSD MENU SETTING MENU SUB MENU AREA AREA DISPLAY ON,OFF MOTION 0~100 VALUE ON,OFF MOTION VIEW AREA AREA DISPLAY ON,OFF PRIVACY 0~15 COLOR TRANSFER RANGE x1.0~x32 -100~100 D-ZOOM TILT -100~100 RANGE x2.0~x5.0 POSITION SMART D-ZOOM D-EFFECT SENSITIVITY...

  • Page 18: Troubleshooting

    All manuals and user guides at all-guides.com TROUBLESHOOTING PROBLEM SOLUTION No picture Check if the power cable is connected properly. Check if the video cable is connected correctly. Camera with excessive Check if the power supply meets the minimum heat, Abnormal motion requirements and that the power supply is or Black lines on the functioning properly.

  • Page 19: Dimensions

    All manuals and user guides at all-guides.com DIMENSIONS UNITS:mm...
  • Page 20 All manuals and user guides at all-guides.com MP86C033...
