Summary of Contents for Scuderia AIRPLAY Series

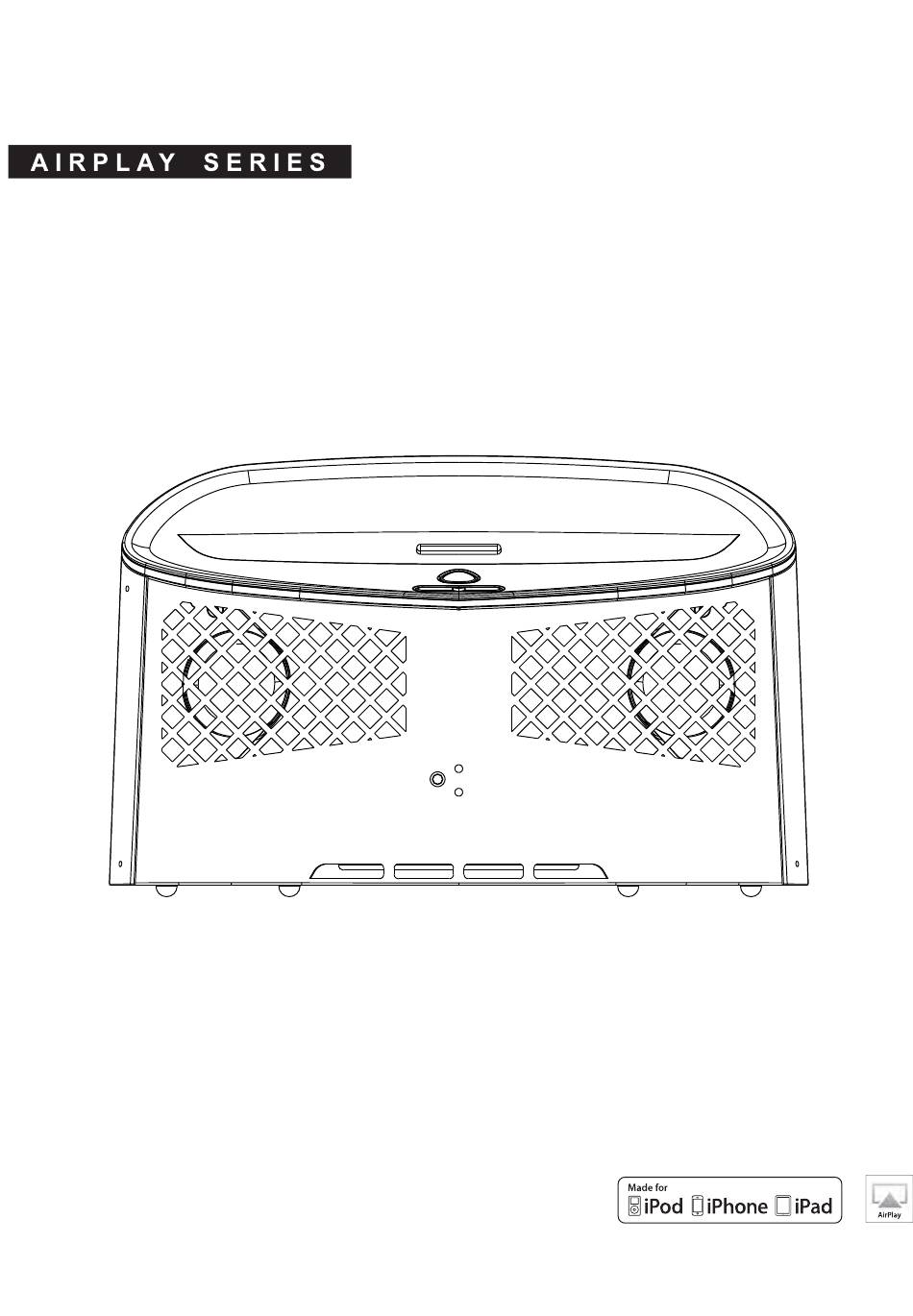

- Page 1 Scuderia FS1 Air (2LFS002) User Manual AirPlay wireless speaker system...
-
Page 2: Safety Instructions
Safety Instructions Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 3 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 Welcome to Use the Scuderia FS1 Air The player offers the latest experience in home audio entertainment allowing users to stream digital audio over Wi-Fi from iTunes, iPad, iPhone and iPod touch. The player enables fidelity audio that is truly wireless.
- Page 5 Controls TOP PANEL Docking Connector Power /Pairing / Function Volume - Volume + FRONT PANEL Airplay(Not light) / iPod(Red) / Bluetooth(Blue) / AUX(Green) Remote sensor Pairing indicator indicator BOTTON PANEL AC jack Composite video jack AUX jack USB charge port REMOTE CONTROL Remote control batteries 1.
-
Page 6: Quick Start
No light indicates. Note: for AirPlay streaming: Press buttons on the player or use elect the “Ferrari Scuderia AirPlay Speaker Dock” as your Airplay audio speaker. your iTunes, iPad, iPhone, or iPod iPad, iPhone, and iPod touch support touch controls directly. - Page 7 Quick Start Line in connection Connect a sound sources with a Line or Press the Power/Pairing/Function Set your personal audio player/ headphone analogue output to play button on the top panel or press the computer to PLAY. through your unit as below hookup button to select the AUX mode.
- Page 8 Quick Start Docking an iPhone/iPad/iPod Remove the cover from the iPod dock. Locate the iPhone/iPad/iPod on the The player will switch to iPod mode Docking Connector and press it gently and iPhone/iPad/iPod start to play. Red light indicates for iPod mode. home.
- Page 9 Quick Start Connecting to TV with Video cable (Not included) Plug the video connector into the Plug the video connector into the Note: Never force a connector into a composite video port on the player composite input (CVBS) port on the port.
- Page 10 Wi-Fi Network Setup for AirPlay Check list Please verify the following steps before attempting to connect your unit to a Wi-Fi network: To enjoy AirPlay wireless audio, you must have the following: - iTunes or an iOS device (iPod touch, iPhone, or iPad). - A functioning home network with Wi-Fi.
- Page 11 AirPlay icon and choose “Ferrari Scuderia AirPlay Speaker Dock” from the list of speakers. Click "Multiple Speakers... " to select additional AirPlay speakers. If the “Scuderia F1 Air” speaker is not available, restart iTunes and verify that the unit i s powered on and connected to the same Wi-Fi network.
- Page 12 Turn on Bluetooth connectivity and make your device “discoverable”. Search the device name “Scuderia FS1 Air” on your bluetooth device listed and select it as your audio speaker. Once paired with a device, the Blue light will stop flashing and glow steadily.
-
Page 13: Troubleshooting
Troubleshooting Quick tips for problems with network setup Verify that your router is discoverable (must broadcast itself and not require user to type in the exact name). Verify that the firmware of your router is up-to-date. Must use WPA/WPA2 security (not WEP, or WPA/WPA2 enterprise). Sometimes moving the unit closer to your access point (within 10-6 ft) during network setup.
