B
2 pcs
HS12832,000
A
2 pcs
BP00417
BP00418
Mounting plate
Hinge 107 degrees
2 pcs
2 pcs
Bumper
Screw flh
7x1,5 mm
3,5x15 mm
2 pcs
18 pcs
Angle
Shelf support
45x55x30x2 mm
5x7 mm Plast
2 pcs
4 pcs
05-03-2015 1
/
All manuals and user guides at all-guides.com
BH32*2,000
C
C
1 pcs
1 pcs
Drawer slide left
300mm
2 pcs
BP00270-BP00250
Euro screw
Screw flh
3,5x45 mm
6,3x11 mm
8 pcs
8 pcs
DSH2820,060-040
J
C
1 pcs
F
1 pcs
Drawer slide right
300mm
2 pcs
Shelf support
14x12 mm 5
4 pcs
D
1 pcs
1 /
9

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSH2820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kvik DSH2820

Summary of Contents for Kvik DSH2820

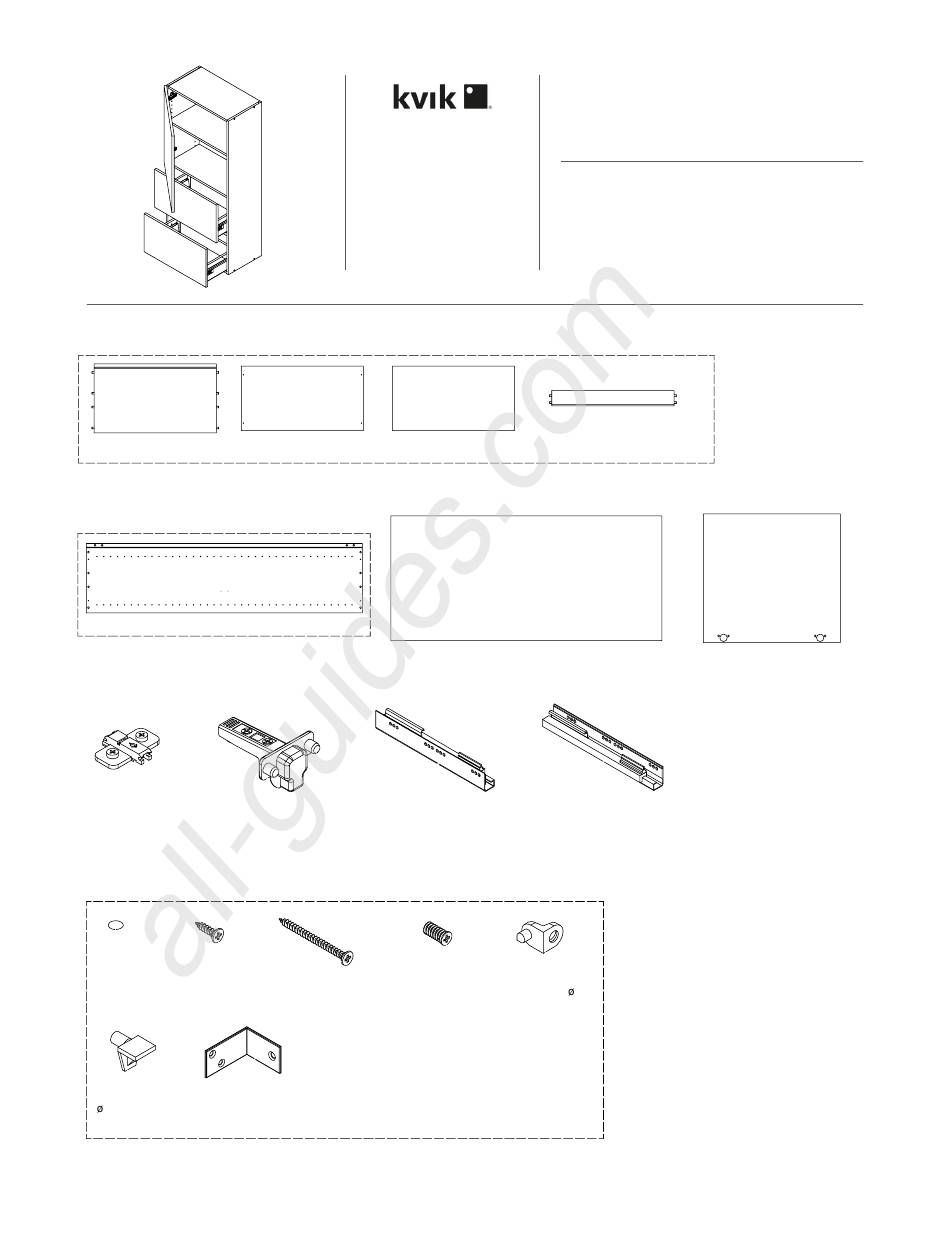

  • Page 1 All manuals and user guides at all-guides.com DSH2820,060-040 BH32*2,000 1 pcs 1 pcs 1 pcs 2 pcs HS12832,000 2 pcs 1 pcs 1 pcs BP00417 BP00418 Drawer slide left Drawer slide right Mounting plate Hinge 107 degrees 300mm 300mm 2 pcs...
