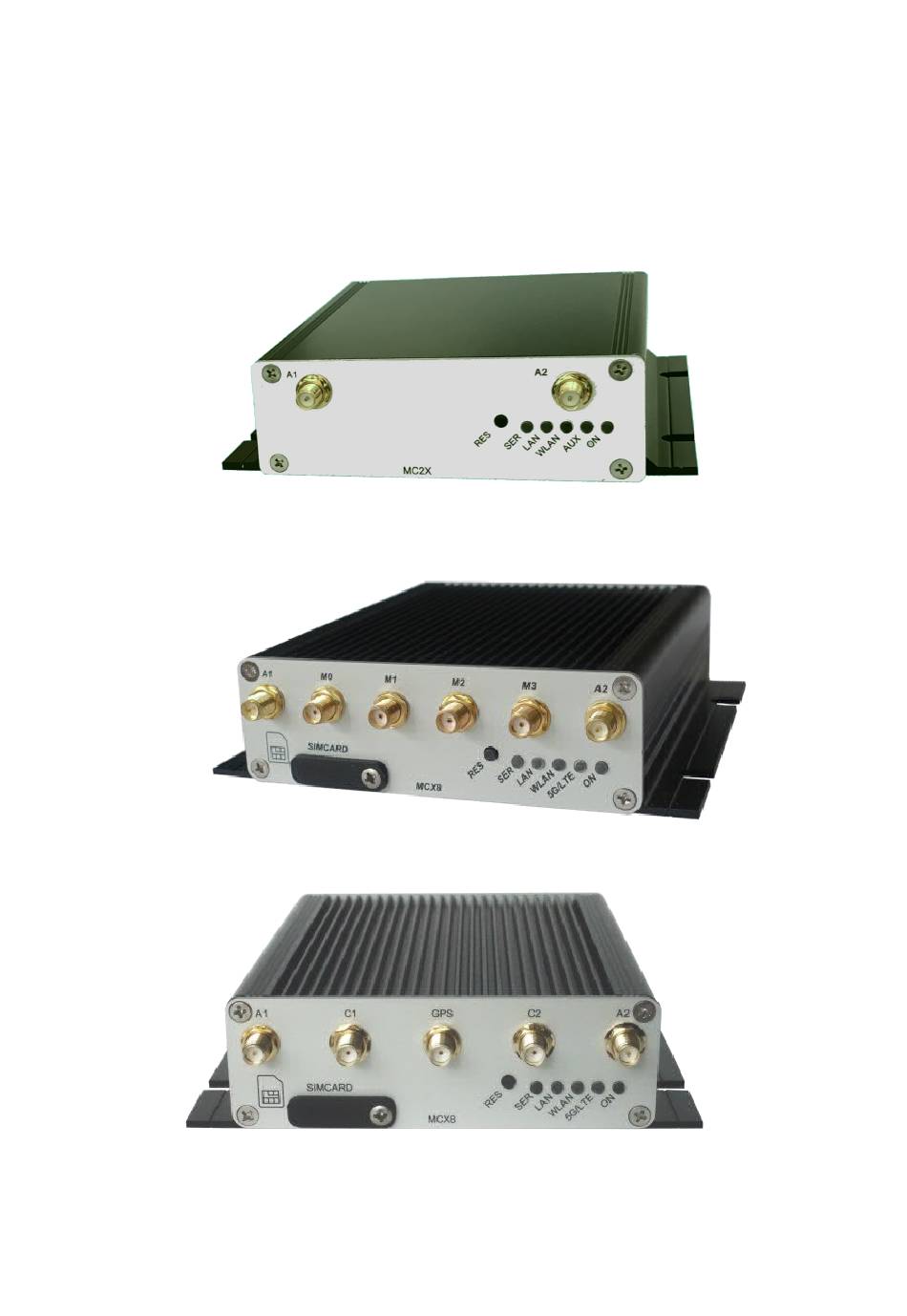

- Page 1 MC2X8 WLAN + 5G/LTE Client Adapter Manual MC2X8-A (Wifi6) MC2X8-E (Wifi6 + 5G/LTE) MC2X8-R (Wifi6 + RedCap 5G/LTE) MC2X8 Manual Version 3.14w 1 / 17...
-
Page 2: Table Of Contents
1 Tech nical d escript i on MC2X 8 ..........................3 1.1 Antenna Connectors and LED’s at MC2X8-A..........................4 1.2 Antenna Connectors and LED’s at MC2X8-E..........................4 1.3 Antenna Connectors and LED’s at MC2X8-R..........................5 1.4 Front panel LEDs..................................... 6 1.5 Connections on the MC2X8................................7 1.5.1 MC2X8 with M12 connection....................................7... -
Page 3: Technical Description Mc2X8
2) MC2X8-E with a 802.11ax (Wifi 6) Interface an LTE/5G modem (CAT 5) 3) MC2X8-R with a 802.11ax (Wifi 6) Interface an LTE/5G RedCap modem (CAT 5) The MC2X8 can be used to connect network devices wireless and wired to each other and to the Internet in various scenarios. -
Page 4: Antenna Connectors And Led's At Mc2X8-A
1.1 Antenna Connectors and LED’s at MC2X8-A The following figure shows how the indicator LEDs and connections are arranged on the MC2X8-A. Figure 2: Front panel of the MC2X8-A 1.2 Antenna Connectors and LED’s at MC2X8-E Figure 3: MC2X8-E front panel MC2X8 Manual Version 3.14w 4 / 17... -
Page 5: Antenna Connectors And Led's At Mc2X8-R
50 Ohm - LTE LMHB DRX; - B42/B43/B48 TRX0 Table 1: LTE-5G Antenna connections 1.3 Antenna Connectors and LED’s at MC2X8-R Figure 4: MC2X8-R front panel Properties of the LTE-5G antenna connections when using a Quectel RG255C-GL card: Connection Description... -
Page 6: Front Panel Leds
1.4 Front panel LEDs The 5 LEDs on the front indicate the operating status of the MC2X8. All LEDs are 3-color red, green and blue LEDs. If all three colors are switched on, the LEDs light up white. All 5 LEDs light up white once briefly after switching on or after a reset. If the WLAN + LAN + SER LEDs flash blue, either a new firmware is being flashed or a new configuration is being activated. -
Page 7: Connections On The Mc2X8
green WLAN connection OK. A brieforange (green + red) light indicates activity (sending or receiving) on the interface. No device connected to the LAN ports green A device is connected to one of the LAN ports and switched on. Short orange flash when there is activity on the interface. Flashing green / orange Serial The interface is inactive... -
Page 8: Mc2X8 With Wk8 Connection
The voltage connection for the MC2X8 is available in other variants: 1.5.2 MC2X8 with WK8 connection MC2X8 Manual Version 3.14w 8 / 17... -
Page 9: Technical Properties
1.6 Technical properties Specifications: Ethernet 2 x LAN port 10/100/1000 MBit/s Auto MDI/MDIX Serial 1 x RS232, 300-460.8 kbit/s, RTS, CTS, DSR, DTR, RI, DCD 1 x USB 2.0 for connecting printers or USB adapters with various other interfaces Relay 1 x changeover switch max 1A@24V, max 125VAC (M12 , WK8) Switching input 1 x galvanically isolated 10 - 60V (WK8) -
Page 10: Mc2X8-R
DL 1.6 Gbps; UL 200 Mbps WCDMA DL 42 Mbps; UL 5.76 Mbps 1.8.2 MC2X8-R A 5G module RG255C-GL from Quectel is installed in the MC2X8-R. This module has these features: 5G-Interface: Technologies / Bands 3GPP Release 17 RedCap SA operation, Sub-6 GHz NR SA... -
Page 11: Initial Start-Up
Initial start-up For initial start-up, please first connect a computer with an Ethernet connection to the LAN connection of the MC using a patch cable. After switching on the supply voltage to the MC, all LEDs will light up white briefly. Then only the ON LED lights up green, which soon starts to flash orange-green. -
Page 12: Initial Start-Up Via The Mc Web Interface
After changing this setup, press the "Refresh" button on the MC-Config program again. An active Firewall on the PC might prevent communication with the MC. After starting, the MC-Config program first determines all network interfaces that are currently active on the computer. Broadcast UDP requests are sent to these interfaces, to which MC devices respond. -
Page 13: Default-Konfiguration
2.3 Default-Konfiguration The MC2X8 can be reset to the factory default settings in 3 ways: Via the reset button → 2.2 With the MC-Config program → Via the website → "Device" → "Configuration management" → "Reset configuration to defaults" This opens the configuration menu with the default settings. If necessary, you can make your own settings here and set and activate them with "Save &... - Page 14 SSID - Encryption Enable profile Profile → PR1 SSID YourSSID Network name as it is set in the AP Encryption mode WPA/WPA2/WPA3 (Auto) The MCX8 takes the correct value from the AP Keying Protocol Here too, the MCX8 adjusts itself to the AP PSC of the AP PSK as set in the AP.
-
Page 15: Lte Settings
5G / LTE settings The various configuration options available for 5G / LTE are explained below: Cellular Enable LTE Activate this checkbox to enable the LTE function so that the device can connect to the LTE network. Enter the personal identification number (PIN) of your SIM card to access the network. Username + Password Enter the user name + password provided by your network operator to connect to the LTE network. -
Page 16: Unlocking The Sim Card By Entering The Puk
Connection timeout Set the timeout of the watchdog in seconds, which determines how long the watchdog waits before it considers the connection to be interrupted. Custom LTE band With this setting, you can restrict the device to certain LTE bands, e.g. B43 for LTE-B43 only. If you want to use multiple bands, separate them with commas, e.g. -
Page 17: Open Source Compliance Information
CHARGES TO SEND THE DATA CARRIER TO YOU. THE AMOUNT CAN BE VARIED ACCORDING TO YOUR LOCATION AND MODAS OSS SUPPORT TEAM WILL NOTIFY THE EXACT COST WHEN RECEIVING THE REQUEST. THIS OFFER IS VALID FOR THREE YEARS FROM THE MOMENT WE DISTRIBUTED THE PRODUCT AND VALID FOR AS LONG AS WE OFFER SPARE PARTS OR CUSTOMER SUPPORT FOR THAT PRODUCT MODEL.
