Oliveri Naples NA380CH-P Installation Instructions

This Oliveri toilet is manufactured to
Australian Standard AS 1172.1, AS 1172.2
90
295
155
365
Date: December 2024. Revision Number 1.0
100-180
525
Variance Bend SPB0380 - sold separately
150-220

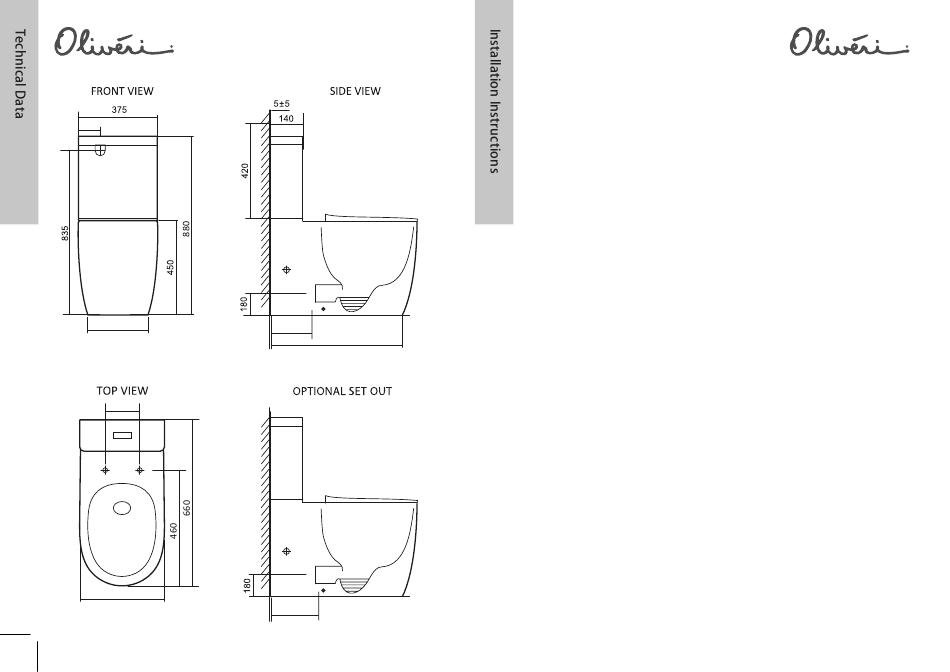

Dimensions in mm
Naples
Comfort Height Back To Wall Toilet Suite
NA380CH : NA380CH-P / NA380CH-C / NA380CH-ST
BEFORE YOU BEGIN
Check the product for damage. If the product is damaged return to the store of purchase.
Check the product is complete with all components required to install. This product is to
only be installed by a licensed plumber, and must be installed in accordance with these
instructions, failing to do so will void warranty.
WARNING: DO NOT BED THE PAN IN PLACE USING CEMENT, CONCRETE OR
SIMILAR MATERIAL, DOING SO WILL VOID THE PRODUCT WARRANTY.
PAN INSTALLATION
1. Mark the centre line of the pan connector on the floor for "S" trap installation or on the
wall for "P" trap installation.
2. Place the pan into position centralising the pan on your centre line. Draw around the pan
base and mark the entry points on the floor to where the floor fixing holes are on the side
of the pan.
3. Remove the pan and drill and screw into place the floor fixing brackets. Set the floor fixing
brackets 40mm inside the line drawn around the base of the pan. Use suitable floor fixing
screws and toggles to suit the floor material.
4. Critical: The pan must be on a level surface and square to the wall. If the floor slopes
away, the pan will need to be levelled using suitable floor chocks around the pan to
support and stabilise the pan.
5. The standard Variance Bend supplied has a set out of 100 - 180 mm. An optional Variance
Bend (SPB0380) has a set out of 150 - 220 mm and is available separately for purchase.
6. "S" Trap Installation: Place the Variance Bend into the floor outlet - from the finished
floor to the centre of the pan outlet is 180mm. Ensure the Variance Bend is straight and
square to the wall and centralised to the pan outlet height. Assemble the Variance Bend
wall brace and fix to the finished wall. Measure the distance from the back edge of the
pan to the "P" trap edge and add on sufficient length for the Variance Bend collar to fully
engage the "P"trap.
Remove the locking ring and rubber boot from the Variance Bend. The distance between
each ridge on the Variance Bend is 10mm. Once the excess has been cut off the Variance
Bend, reassemble the rubber boot and locking ring.
7. lf the suite is being installed as a bottom entry inlet, refer to bottom entry cistern
installation before sliding the pan into place.
NA380CH Installation Instructions
