- Page 1 L L E E D D S S t t a a t t u u s s B B o o x x I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e...

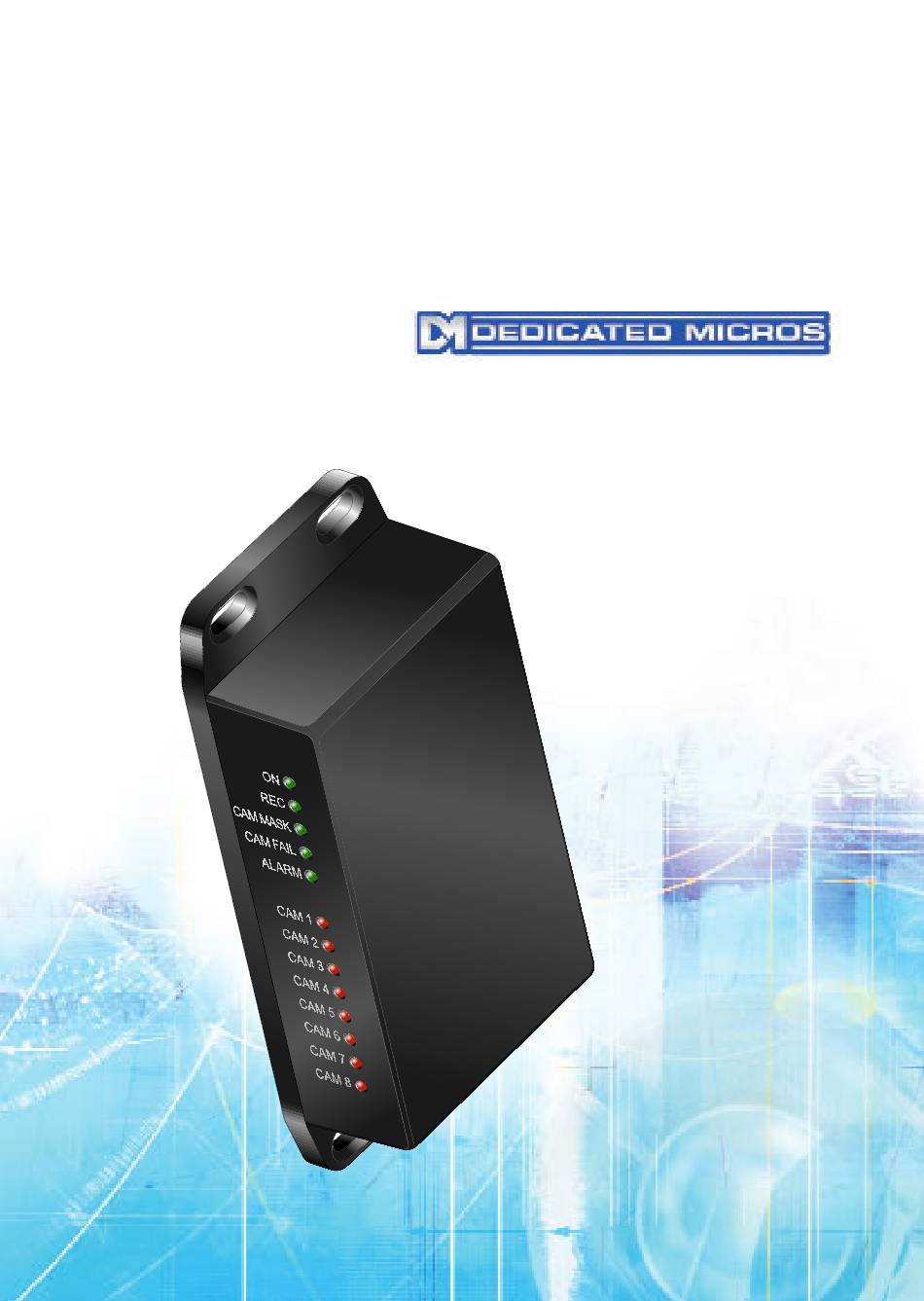

- Page 2 Introduction The LED Status Box has been designed to work with Dedicated Micros TransVu products*. The accessory provides status messages which correspond to the current operation of the TransVu. Operation The camera masking function works on changes in contrast. This threshold value can be calibrated to change the sensitivity on each individual camera to help remove possible false triggers.
- Page 3 Connectivity The LED Status box is connected to the TransVu via the supplied cable using either serial port COM1, COM2 or COM5. Connect the 9-way D-type to the TransVu via chosen serial port. The other end of the cable is connected to the screw terminals on the LED status PCB. Configure the TransVu serial port via the web pages to (port type) LED Box, 9600, 8, N, 1.
- Page 4 P.O. Box 500291, Dubai Internet City, Australia Dubai, United Arab Emirates Tel: +612 9634 4211 Tel: +971 (4) 390 1015 Fax: +612 9634 4811 Fax: +971 (4) 390 8655 www.dedicatedmicros.com Dedicated Micros is a Trademark of Dedicated Microcomputers Group Ltd MI-I-LEDSB/E1-2...
