Summary of Contents for Expert Electronics R LINE PX-2

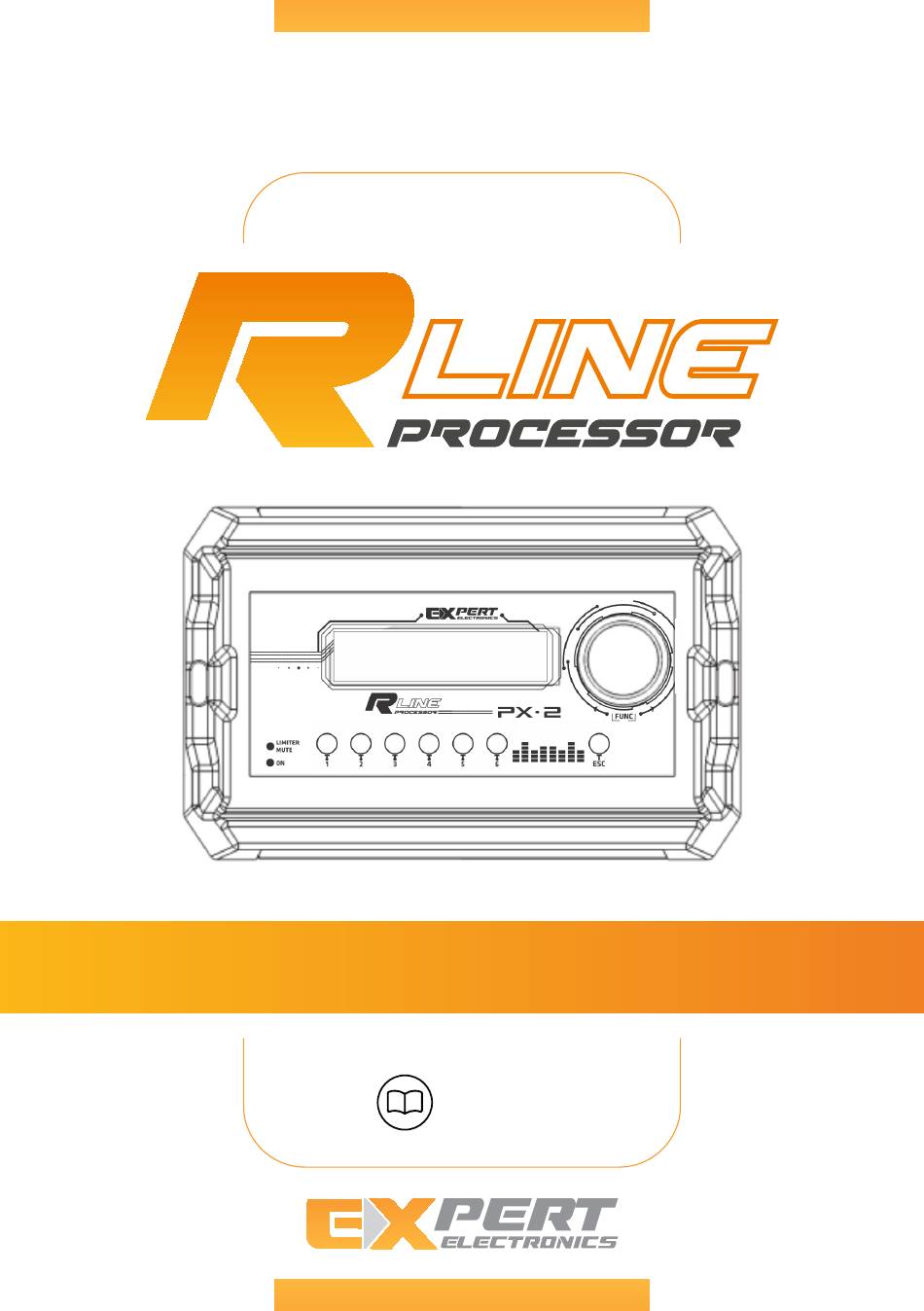

- Page 1 USER MANUAL PX 2 / PX 2 CONNECT Read before using...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Description Functional Diagram Description of Elements Bluetooth Connection Technical Specifications /Expert-Electronics visit www.bandaaudioparts.com... -
Page 3: Introduction
INTRODUCTION Congratulations! You have just purchased a product with the Expert Electronics quality. Developed by Qualified Engineers and a high-tech laboratory. To ensure optimal operation, please read this manual carefully before using the product. Keep the manual in a safe and accessible place for future reference. -
Page 4: Description
DESCRIPTION 2 signal inputs Polarity inversion 6 independent outputs Input gain 2 links outputs Independent mute function per channel Channel routing Frequency and sweep generator Input equalizer with 21 bands spaced in ¼ octave User password (available only for Connect Line Model) Parametric equalizer with 3 independent band per 3 100% configurable memories channel... -
Page 5: Functional Diagram
FUNCTIONAL DIAGRAM... -
Page 6: Description Of Elements
(AVAILABLE ONY FOR CONNECT LINE MODEL) BLUETOOTH INTERFACE Using a didactic and intuitive interface, the user can configure Expert Electronics processors via smartphone or tablet, thus allowing easy system alignment, with can be done in front of thesystem and in real-time. - Page 7 BLUETOOTH CONNECTION (AVAILABLE ONY FOR CONNECT LINE MODEL) FUNCTIONS Channel routing Polarity inversion Overall gain 100% configurable memories Output gain Protection password Allows for more precise adjustments Signal generator Delay RMS Limiter Input equalizer (EQ IN) Greater accuracy Allows you to change values by pressing the Router Peak limiter button to make adjustments Output equalizer...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS INPUTS Type Balanced Connection Max. Input level 2 to 6Vrms Input impedance 100K OUTPUT (1, 2, 3, 4, 5, 6) Type Unbalanced Connection Max. Output level 3.5Vrms Output impedance 470R TECHNICAL DATA Resolution 24 Bits Sampling frequency 48 Khz Processing latency 1.08ms Frequency response... -
Page 10: Warranty Terms
WARRANTY TERMS Warranty valid for 12 months (one year), starting from the date of purchase, if purchased from an authorized Expert Electronics dealer. Will be covered by warranty components and/or parts comproved that shows failures in process manufacture or damaged components. - Page 12 /Expert-Electronics visit www.bandaaudioparts.com...
