Page 3: General Description
ARANGE 7076 connects securely and wirelessly with most Bluetooth (v. 4.1 or higher) enabled smartphones available in the market and enables convenient configuration and walk-by readouts. ARANGE 7076 collects radio frames from IoT devices and forwards them securely and wirelessly through Bluetooth interface to Bluetooth Low Energy enabled smartphone or tablet.
Page 4: The Structure Of The Device

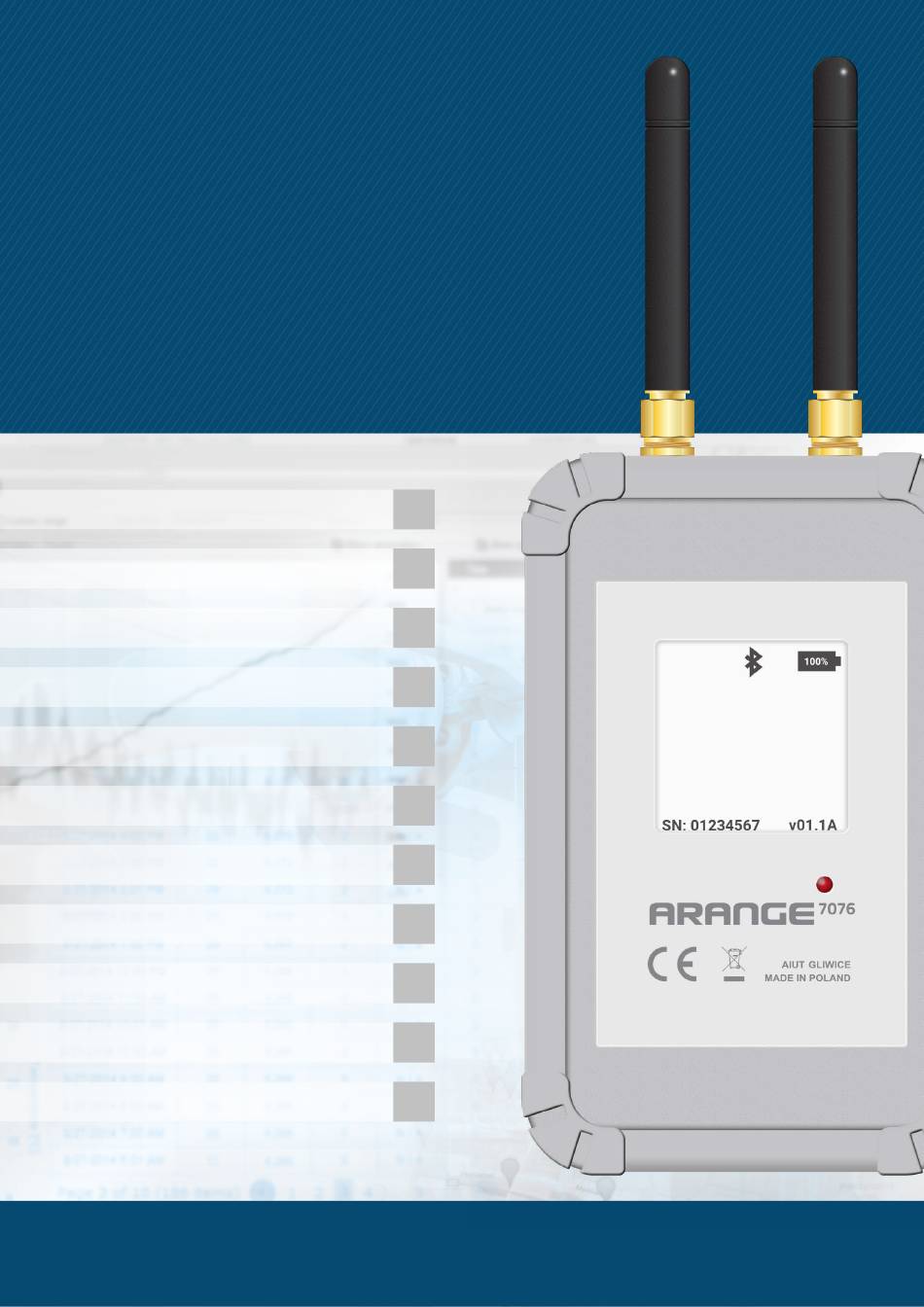

Serial number of the device Firmware version of the device Red LED (blinking) - the device is charging Green LED (solid) - the device is charged Blue LED (blinking) - BLE connection is active aiut ARANGE 7076. Operation Manual. 20240223 e-mail: service@aiut.com www.aiut.com...
Page 5: Package Content
NOTE ARANGE 7076 can operate with an external car antenna for walk-by/drive-by readings (the car antenna is not included in the set). For walk-by/drive-by readings two ANT GSM SMA GSM-ANT825-1 antennas are required.
Page 6: Operation Of The Device
The data is then transferred to the collector’s terminal, which is directly managed by acquisition software. Before starting any procedure with the ARANGE 7076 device, please ensure that the ARANGE is not paired in the phone settings. Subsequently, verify that your ARANGE 7076 device is visible among the available connection methods in the SITA application settings.
Page 7: Arange Settings In Sita Application
ARANGE settings in walk-by reading In the SITA application, it is possible to change the frequency of the ARANGE 7076 and set the reading time parameters of the walk-by readings. In Tasks tab select the walk-by Press the three dot icon in the Press ARANGE 7076 settings.
Page 8 3 Month - the application collects data from devices generated within the last three months. Select reading date - select the date from which readings are to be collected aiut ARANGE 7076. Operation Manual. 20240223 e-mail: service@aiut.com www.aiut.com...
Page 9: Charging
10. CHARGING ARANGE 7076 is charged with 230 V, 2 A, USB type micro B charger. The current charging status is indicated by the LED located under the display and by the lighting icon on the display: Lighting icon is active - the device is charging...
