Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instruction
gloves
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this locker.
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the chest clean and tidy in accordance with good workshop practice.
9
DO NOT use the chest for any purpose other than that for which it is designed.
8
DO NOT step on the drawers.
8
DO NOT overload the chest.
8
DO NOT clean the chest with any solvents which may damage the surfaces or protective coating.
8
2. INTRODUCTION
Hang-On chest suitable for heavy-duty Premier rollcabs (except Model No. PTB183015).
Heavy-duty welded steel construction for strength and durability. Textured powder coat both solvent and rust resistant. Ball bearing
drawer slides provide superior performance and carry heavier loads. All drawers have full width sand blasted aluminium 'Lift & Latch'
drawer pulls, making easy access while preventing inadvertent opening when box is being moved. Non-slip drawer liners supplied for all
drawers. Integral locking system locks all drawers in each unit with the turn of a key. All supplied with 2 keys. Manufactured to the highest
levels of construction to withstand the toughest of workshop/garage conditions.
3. SPECIFICATION
Part No. ................................................................. PTB40506
Overall size (W x D x H) ..........................405 x 460 x 885mm
No. of Drawers ..................................................................... 6
Weight ......................................................................... 43.8kg

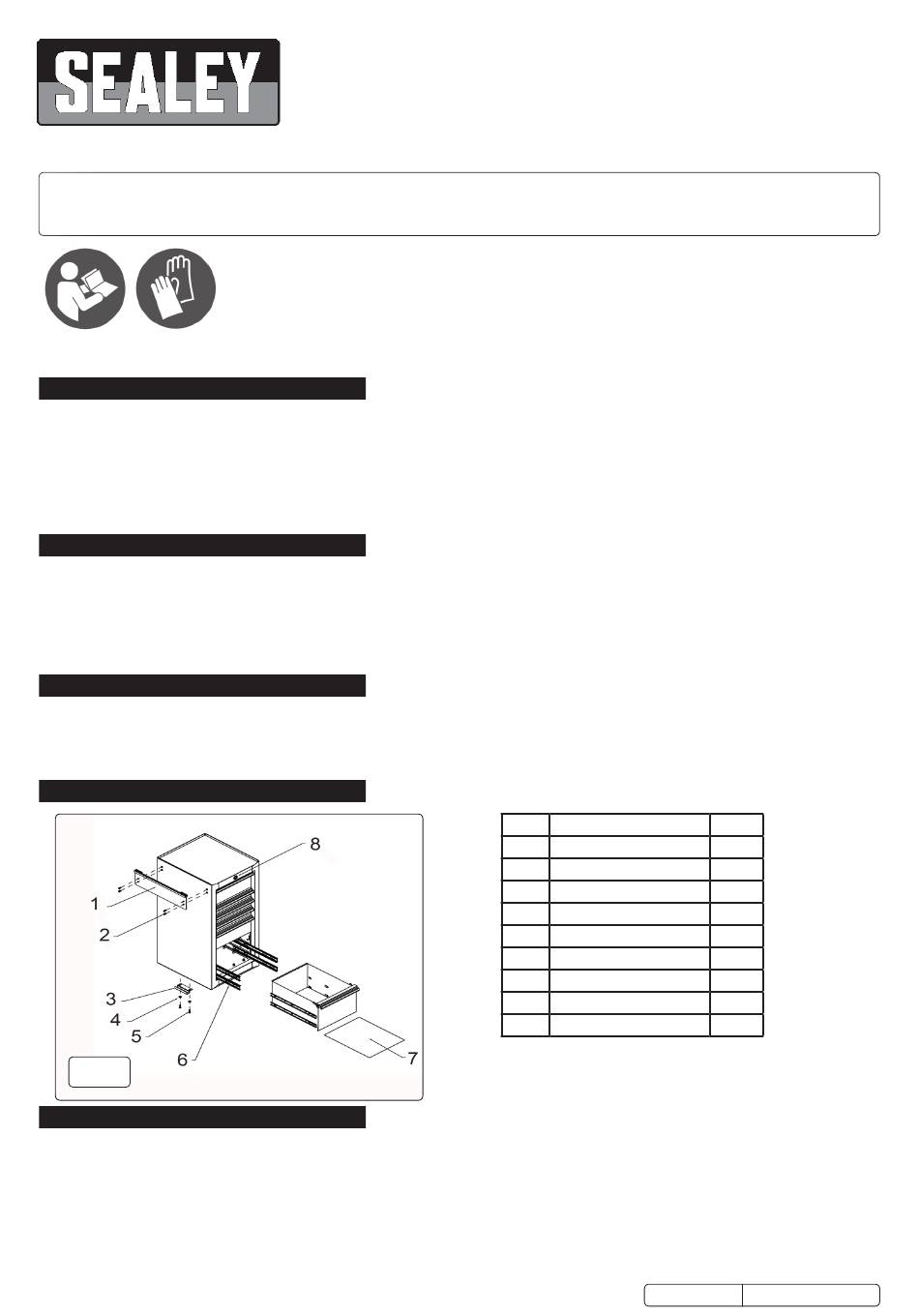

4. PARTS AND ASSEMBLY
fig.1
5. ASSEMBLY
NOTE: Heavy item - get assistance to assemble.
5.1.
Securely attach hanger (fig.1 - item 2) using screws (fig.1 - item 1).
5.2.
Place neoprene pad spacers (5 x 40 x 80) near lower edge of locker. (see fig.2). The spacer pads have adhesive backs to enable
fixing.
5.3.
Attach connector (fig.1 - item 3) to the underside of the locker using the bolts and washers (fig.1 - items 4 & 5) (see fig.3 and fig.4).
5.4.
Hang the locker onto the side of the cabinet.
5.5.
From the underside, adjust the location of the connector to fully engage it with main cabinet (see fig.3 and fig.4).
Tighten securely when in correct position.
© Jack Sealey Limited
6 DRAWER HANG-ON CHEST - HEAVY DUTY
PTB40506
MODEL NO:
ITEM
1
2
3
4
5
6
7
8
9
Original Language Version
DESCRIPTION
QTY
Hanger
1
M6 x 16 C/Sunk Screw
4
Connector
1
Washer
2
M6 x 20 HHB
2
Slide Set
7 sets
Drawer liner
6
Lock
1
Spacer (neoprene pad)
2
PTB40506
Issue 1 21/08/18
