Read and understand all instructions before beginning installation. Disconnect power to motor and test upon completion.
Photo optics should be installed by qualified personnel to ensure the requirements herein have been met. Keep these
instructions with the installation. Always abide by local and national electrical code specifications when wiring accessories
to motor controls.
The Miller Edge OptiGuard monitored and fail-safe thru beam photo optic system is a UL Recognized Component that
meets the UL 325 requirement. The OptiGuard consists of an emitter and a receiver with two mounting brackets. The
emitter and receiver are intended to be positioned in such a way that an obstruction in the entrapment zone will interrupt
the beam of light. An interruption of the beam will signal the operator to stop and/or reverse motion.
CONTENTS
•
(1) Emitter: OG-T-E
•
(1) Receiver: OG-T-R
•
(2) Bracket/hoods
•
(4) Through-unit screws
•
(4) Through-unit nuts
•
(4) Through-unit washers

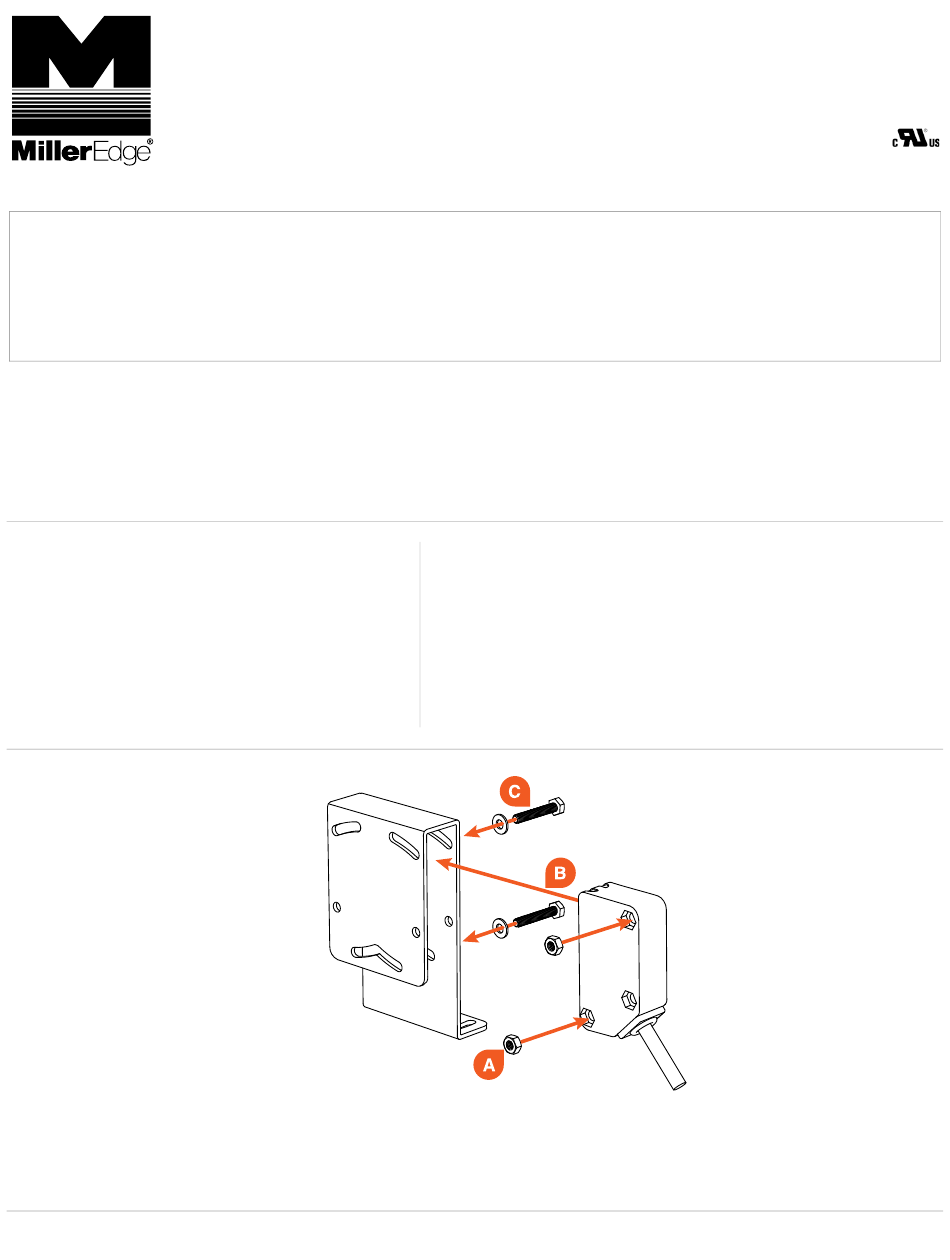

Image 1: Assembling the emitter or receiver into the bracket using the provided through-unit hardware
www.milleredge.com
WARNING
REQUIRED
•
Mounting hardware as required by mounting surface
•
Hand tools for hardware installation
RECOMMENDED
Operator manual
•
info@milleredge.com
INSTALLATION INSTRUCTIONS
OptiGuard
Thru Beam Photo Optic System
800-220-3343
™
MODEL: OG-T-K10
OG-T_INST_20230125
1/4
Advertisement
Summary of Contents for Miller Edge OptiGuard OG-T-K10
- Page 1 The Miller Edge OptiGuard monitored and fail-safe thru beam photo optic system is a UL Recognized Component that meets the UL 325 requirement. The OptiGuard consists of an emitter and a receiver with two mounting brackets. The emitter and receiver are intended to be positioned in such a way that an obstruction in the entrapment zone will interrupt the beam of light.
- Page 2 OG-T-K10 OptiGuard INSTALLATION Select a stable mounting location with a clear line of site, across the protected area, to detect obstructions. The light beam should not be obstructed by plants, leaves, etc. Mount the emitter and receiver vertically or horizontally in their desired locations. a) Install the emitter and receiver into their brackets.
- Page 3 Also check for signs of damage to cables or connection points. Refer to your operator manual for detailed instructions about motor connections. VI. REPLACEMENT To replace your OptiGuard, contact your sales representative. Attempting to repair your Miller Edge photo optic is not recommended and will void the manufacturer warranty. www.milleredge.com info@milleredge.com...
- Page 4 OG-T-K10 OptiGuard VII. WARRANTY OptiGuard carries a 2-year warranty from date of shipment from Miller Edge for credit or replacement. This warranty applies to normal use, which is found to have defective materials or workmanship, as determined solely by an authorized factory representative.
