Mosca RO-MP-2 Operating And Service Manual

Hide thumbs

Advertisement

Table of Contents

Operating and Service Manual
RO-MP-2
500x400
2000 v.1
PACKAGING TECHNOLOGY
EN ISO 9001
70 100 M 745
EAM-MOSCA Corp.
RO-MP-2 1- 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RO-MP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mosca RO-MP-2

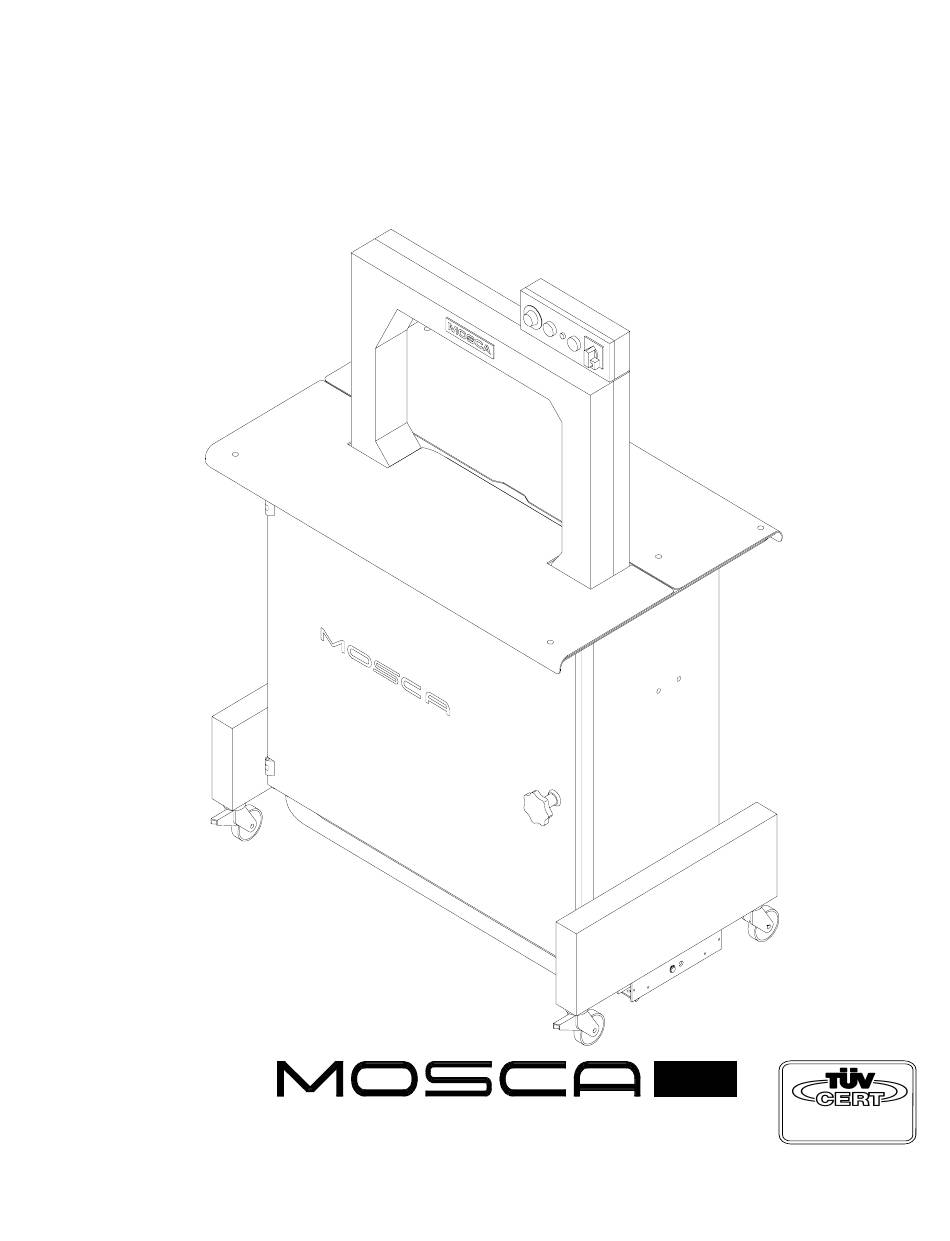

  • Page 1 Operating and Service Manual RO-MP-2 500x400 2000 v.1 PACKAGING TECHNOLOGY EN ISO 9001 70 100 M 745 EAM-MOSCA Corp. RO-MP-2 1- 1...

  • Page 3: Main Shaft Assembly

    MAIN SHAFT ASSEMBLY 1620-0110-00 Item Part Number: Description: Qty: Notes: 1620-0111-00 Cam Set Assembly Complete 1620-0110-10 Motor Bracket 1620-0110-12 Strap Track Cam 1620-0110-13 Sensor Flag 1620-0110-14 Hand Adjustment 1620-0110-15 Sensor Flag 1620-0110-16 2670-0110-19 Coupling 2670-0110-20 Coupling 0401-0110-11 Left Bearing Block 0401-0110-12 Right Bearing Block NT 72...

  • Page 5: Camshaft Assembly

    CAM SHAFT ASSEMBLY 1620-0111-00 Item Part Number: Description: Qty: Notes: 1620-0111-10 Shaft 1620-0111-11 Slide Plate Cam (Cam 27) 5-6mm Strap 1620-0111-12 Left Gripper Cam (Cam 28) 1620-0111-13 Knife Bar Cam (Cam 29) 0120-0111-03 Right Gripper Cam (Cam 21) 2902-010101-06 Heater Cam (Cam 38) 2101-2110-09 Spacer Bushing NT 7...
  • Page 6 UPPER SLIDE PLATE ASSEMBLY 1620-0120-00 4/7/97 RO-MP-2 5-6...
  • Page 7 UPPER SLIDE PLATE ASSEMBLY 1620-0120-00 Item Part Number: Description: Qty: Notes: 2125-0120-01 Strap Sensor Flag 2125-0120-02 0101-0121-01 Lower Slide Plate 0101-0120-01 ** Upper Slide Plate - Long 0401-0120-04 Shoulder Bolt 0401-0120-05 Washer 0101-0120-05 ** Bumper NT 522 Du-Bushing NT 663 ** Compression Spring NT 891 Set Screw...
  • Page 8 SEALER: KNIFE-GRIPPER ASSEMBLY 0101-013000-16 8/15/1997 RO-MP-2 5-8...
  • Page 9 SEALER KNIFE-GRIPPER ASSEMBLY 0101-013000-16 Item Part Number: Description: Qty: Notes: 0101-013000-02 Knife Pressure Bar 0101-013000-03 ** Knife 0101-013000-08 ** Compression Spring 0101-013000-10 Spring Pin 0101-013000-20 Cam Roller Complete NT 181 Roll Pin NT 179 Socket Cap Screw...
  • Page 10 SEALER RIGHT GRIPPER ASSEMBLY 0101-0130-17 8/21/1997 RO-MP-2 5-10...
  • Page 11 SEALER RIGHT GRIPPER ASSEMBLY 0101-013000-17 Item Part Number: Description: Qty: Notes: 0101-013000-04 Right Gripper Bar 0101-013000-20 Cam Roller Complete 0101-013000-08 ** Compression Spring 0101-013000-10 Spring Pin 0101-013000-12 Spring Pin NT 181 Roll Pin...
  • Page 12 SEALER LEFT GRIPPER ASSEMBLY 0401-0130-01 8/21/1997 RO-MP-2 5-12...
  • Page 13 SEALER LEFT GRIPPER ASSEMBLY 0401-0130-01 Item Part Number: Description: Qty: Notes: 0101-013000-01 Left Gripper Bar 0101-013000-10 Cam Roller Complete 0101-013000-08 ** Compression Spring 0101-013000-10 Spring Pin NT 181 Roll Pin...
  • Page 14 SEALER KNIFE & GRIPPER BARS ASSEMBLY 1601-013000-16 3/5/1999 RO-MP-2 5-14...
  • Page 15 SEALER KNIFE & GRIPPER BARS ASSEMBLY 1601-013000-16 Item Part Number: Description: Qty: Notes: 0401-013000-01 Left Gripper Complete 0101-013000-16 Knife Pressure Bar Complete 0101-013000-17 Right Gripper Complete 0101-013000-13 Cover Plate 0101-013000-14 ** Tension Spring NT 66 Lock Washer NT 22 Socket Cap Screw NT 567 ** Tension Spring...
  • Page 17 SEALER HOUSING ASSEMBLY 1620-0140-00 Item Part Number: Description: Qty: Notes: 1620-0140-10 Sealer Housing 1620-0140-11 Sensor Plate 1620-0140-12 Base Plate 1620-0140-13 Spacer Plate 2125-0100-10 Left Gib 2125-0100-11 Right Gib 2125-0100-13 Sensor Support Angle 2125-0100-14 Bumper Plate 0401-0100-01 Poly. Bumper 0401-0100-03 Nut Plate 0401-0100-04 Sensor Pin 0401-0100-05 **...
  • Page 18 HEATER ASSEMBLY - 24V. DC 0901-0160-00 5/22/96 NOTE: Screw (27) is welded on the under side of mounting plate (4). NOTE: Heater assembly does not include Terminal Wire No. 41. RO-MP-2 5-18...

  • Page 19: Heater Assembly

    HEATER ASSEMBLY 0901-0160-00 Item Part Number: Description: Qty: Notes: 0901-0160-00 ** Heater Assembly 2601-0150-09 Heating Plate 0901-0160-01 Terminal Plate 2601-0150-03 Mounting Plate 2601-0150-04 Support Plate 2601-0150-06 Leaf Spring NT 874 Socket Cap Screw NT 450 Star Washer NT 33 Hex Nut NT 74 Lock Washer NT 48...
  • Page 21 NT 327 Spacer NT 1353 ** Bearing NT 433 Socket Cap Screw NT 1107 Rib Washer NT 891 Set Screw NT 276 Socket Cap Screw NT 72 Washer NT 76 Socket Cap Screw NT 685 ** Compression Spring RO-MP-2 5-21...
  • Page 22 STRAP FEED PULL-BACK, TENSION ASSEMBLY 1699-016900-00 (5mm Strap) Item Part Number: Description: Qty: Notes: NT 23 Socket Cap Screw NT 13 Hex Nut NT 8 Socket Cap Screw NT 2150 Roll Pin NT 80 NT 92 Socket Cap Screw NT 987 Flat Head Screw NT 389 ** Bearing...
  • Page 23 HEATER ARM ASSEMBLY - 24 V. DC 2601-0170-00 8/24/96 RO-MP-2 5-24...
  • Page 24 HEATER ARM ASSEMBLY 2601-0170-00 Item Part Number: Description: Qty: Notes: 26001-0171-00 Heater Arm Complete 2601-0170-08 Arm Shaft 0101-0151-03 Spring Bolt 0101-0151-04 Bushing 0101-0151-05 Spring Pin 0101-0151-06 Socket Cap Screw NT 406 Snap Ring NT 474 Nylock Nut NT 16 Hex Nut NT 2203 ** Tension Spring NT 1634...
  • Page 25 SLIDE PLATE LEVER ASSEMBLY 1620-018000-00 10/28/96 RO-MP-2 5-26...
  • Page 26 SLIDE PLATE LEVER ASSEMBLY 1620-018000-00 Item Part Number: Description: Qty: Notes: 1620-0180-10 Shaft 1620-0180-12 Slide Plate Lever 0401-0121-01 Sensor Flag 0101-0130-11 Spring Pin NT 176 Lock Washer NT 1706 Socket Cap Screw NT 891 Set Screw NT 16 Hex Nut NT 555 Dowel Pin NT 1634...
  • Page 28 CASTER FRAME ASSEMBLY 500, 600, 800, 1000 MACHINES 1620-021000-00 Item Part Number: Description: Qty: Notes: 1620-021100-00 Frame Assembly Right 1699-0201100-10 Frame Assembly Left 1699-020100-10 Washer 0401-010000-03 Nut Plate NT 32 Washer NT 490 Socket Cap Screw 1620-021000-10 Washer NT 2364 Caster with Brake NT 2412 Caster without Brake...

  • Page 30: Foot Pedal Assembly

    FOOT PEDAL ASSEMBLY 500 & 600 1620-0220-00 1630-0220-00 Item Part Number: Description: Qty: Notes: 1620-0221-00 Foot Rail Assembly 500 & 600 1630-0221-00 Foot Rail Assembly 800 1601-0220-10 Shaft NT 1039 Bushing 8mm NT 43 Retaining Ring NT 697 ** Tension Spring...
  • Page 32 SIDE PANELS & REAR COVER ASSEMBLY 500 & 600 1620-0230-00 1630-0230-00 Item Part Number: Description: Qty: Notes: 1620-0231-00 Right Side Plate Assembly 1620-0232-00 Left Side Plate Assembly 1620-0233-00 Rear Cover Assembly 500 & 600 1620-0234-00 Rear Cover Roller Assembly 500 & 600 1620-0236-00 Support Bar 500 &...
  • Page 34 FRONT DOOR & EXTENSION COVER ASSEMBLY 500 & 600 1620-0240-00 Item Part Number: Description: Qty: Notes: 1620-0241-00 Front Door Complete 1620-0240-10 Support Bar 2101-1200-22 Stand Off NT 737 Lock Screw NT 1209D Lock Complete with Knob NT 1764 Door Hinge ME 1825 ** Safety Switch Actuator Schmersal ( )
  • Page 36 TABLE PLATE ASSEMBLY Corning 1630-0250-00-A Item Part Number: Description: Qty: Notes: 1630-0251-00 Front Table Plate 800 1630-0250-10 Rear Table Plate 800 1622-0250-11 Table Support 1630-0250-11 Shaft 800 0401-0210-09 Nut Plate 0120-0200-12 Hinge Block 0101-0100-17 Table Bumper NT 439 Flat Head Screw NT 535 Nylock Nut NT 571...
  • Page 37 CENTER FRAME ASSEMBLY 500-600 MACHINES 1620-0260-00 11/27/96 RO-MP-2 5-38...
  • Page 38 CENTER FRAME ASSEMBLY 500 & 600 1620-0260-00 Item Part Number: Description: Qty: Notes: 1620-0261-00 Frame Complete 1620-0262-00 Support Plate Complete 1620-0260-11 Cover NT 176 Lock Washer NT 72 Washer NT 180 Roll Pin NT 179 Socket Cap Screw NT 95 Socket Cap Screw NT 1149 Lock Screw...

  • Page 40: Dispenser Assembly

    DISPENSER ASSEMBLY 1601-0310-00 Item Part Number: Description: Qty: Notes: 1601-0310-09 Knob 1601-0310-10 Bayonet Plate 1601-0310-11 Guide Bushing 1601-0310-12 Bayonet Shaft 1601-0310-13 Bell Housing 1601-0310-15 Washer 0101-0300-19 Dispenser Foam Pad - Thick 1601-0310-17 Dispenser Foam Pad - Thin 1601-0310-18 Front Disc 1601-0310-19 Rear Disc 1601-0310-20...
  • Page 42 DISPENSER SUPPORT ASSEMBLY 1620-032000-00 Item Part Number: Description: Qty: Notes: 1620-0321-00 Brake Support Complete 1620-0320-10 Bearing Block 0401-0300-08 Spacer Ring 0401-0300-07 Shaft NT 102 E-clip NT 681 Spacer Ring NT 717 Spacer Ring NT 192 Bearing Block NT 85 Flat Head Screw NT 74 Lock Washer NT 8...
  • Page 44 Compression Spring NT 642 Set Screw NT 72 Washer NT 871 Flat Head Screw NT 1706 Socket Cap Screw NT 13 Hex Nut NT 474 Nylock Nut NT 117 Socket Cap Screw NT 43 Retaining Ring NT 52 DU-Bushing RO-MP-2 5-45...
  • Page 45 ACCUMULATOR FILL ASSEMBLY 1620-0710-00 (5-6mm Strap) Item Part Number: Description: Qty: Notes: NT 92 Socket Cap Screw NT 461 Spacer NT 46 ** Bearing NT 45 Snap Ring NT 3 E-Clip NT 458 Nylock Nut NT 74 Lock Washer NT 973 Set Screw NT 556 Socket Cap Screw...

  • Page 47: Accumulator Assembly

    ACCUMULATOR ASSEMBLY 500 & 600 1620-0730-00 Item Part Number: Description: Qty: Notes: 1620-073000-10 Accumulator Front Cover 10mm Thick 1620-073000-11 Accumulator Door 10mm Thick 1620-072000-10 Accumulator Front Cover 8mm Thick 1620-072000-11 Accumulator Door 8mm Thick 1620-072000-12 Right Support Angle 1620-072000-13 Bottom Support Angle 1620-072000-14 Top Support Angle 1699-072100-15...
  • Page 49 OUTER STRAP TRACK ASSEMBLY 500/400 1621-0810-00 Item Part Number: Description: Qty: Notes: 1621-0811-00 Outer Strap Track 500/400 1620-0810-16 Spacer 1621-1140-10 Cable Channel 500/400 1620-0810-13 Safety Switch Support Plate 1601-0800-25 ** Left Stripper 1601-0800-56 ** Right Stripper 1601-0800-23 Support Angle 1601-0800-07 Spacer Bolt 1601-0810-60 ** Ejector Pin Bracket Complete...
  • Page 53 INNER STRAP TRACK ASSEMBLY 500/400 1621-0820-00 (5-6mm Strap) Item Part Number: Description: Qty: Notes: 1603-0810-01 Inner Strap Track Frame 500/400 1621-0821-00 Right Bar Assembly 500/400 1620-0820-11 Collar 1621-0820-13 Strap Track 5-6mm Strap 500/400 1620-0820-15 Bottom Strap Guide Left 5-6mm Strap 0401-0810-21 Frame Link 0401-0810-25...
  • Page 54 INNER STRAP TRACK ASSEMBLY 500/400 1621-0820-00 (5-6mm Strap) Item Part Number: Description: Qty: Notes: NT 64 Roll Pin NT 66 Lock Washer NT 664 ** Tension Spring NT 2282 Heater Warning Sign...
  • Page 56 STRAP FRAME COVER ASSEMBLY 500/400 1621-0830-00 600/500 1622-0830-00 800/400 1631-0830-00 Item Part Number: Description: Qty: Notes: 1621-0831-00 Track Cover Assembly 500/400 1622-0831-00 Track Cover Assembly 600/500 1631-0831-00 Track Cover Assembly 800/400 1621-0830-13 Brush 500/400 1622-0830-10 Brush 600/500 1630-0830-10 Brush 800/400 1621-0830-11 Brush 500/400 1622-0830-11...
  • Page 58 STRAP TRACK OPENER ASSEMBLY 500/400 1621-0840-00 600/500 1622-0840-00 800/400 1630-0840-00 800/600 1630-0840-00 Item Part Number: Description: Qty: Notes: 1620-0840-10 Bearing Block 0401-0820-01 Track Opener Arm 1608-0820-02 Track Opener Shaft 800/400 & 800/600 0401-0820-03 Bearing Block 0101-0151-03 Pivot Block 0101-0151-04 Bushing 0401-0820-13 Flange Bushing 0401-0820-14...

  • Page 60: Fan Assembly

    FAN ASSEMBLY 1620-0850-00 Item Part Number: Description: Qty: Notes: 1620-0851-00 Fan Bracket Complete 0101-0100-17 ** Bumper ME 1759 Fan 24 V. DC ME 1249 Fan Guard NT 203 Socket Cap Screw NT 176 Lock Washer NT 72 Washer NT 13 Hex Nut NT 27 Socket Cap Screw...
  • Page 62 ELECTRICAL COMPONENTS ASSEMBLY 1620-1100-00 Item Part Number: Description: Qty: Notes: 1620-110000-25 Base Plate Complete 1620-1102-00 Cover 1620-1130-00 Control Panel Assembly 1620-1150-00 Enclosed Components Assembly 1620-1100-10 Stand Off 1620-1100-24 Din Rail 1620-1100-12 Cable Channel 1620-1100-13 Cable Channel Cover 1620-1100-14 Cable Channel 1620-1100-15 Cable Channel Cover 1620-1100-23...

  • Page 63: Control Panel Assembly

    CONTROL PANEL ASSEMBLY 1620-113000-00 Item Part Number: Description: Qty: Notes: 1620-113100-00 Control Panel Cover Assembly 1620-113000-10 Control Panel Face Plate NT 806 Star Washer NT 13 Hex Nut NT 146 Flat Head Screw NT 74 Lock Washer NT 176 Lock Washer NT 8 Socket Cap Screw NT 13...
  • Page 64 SUPPORT FRAME ASSEMBLY 500/400 1621-1401-00 Item Part Number: Description: Qty: Notes: 1621-140110-00 Frame 1621-140100-12 Nut Plate NT 261 Socket Cap Screw NT 61 Lock Washer NT 82 Washer NT 16 Hex Nut NT 815 Socket Cap Screw...
  • Page 65 DOUBLE COMPACTOR ASSEMBLY 500/400 1621-1501-00 1/04/1998 RO-MP-2 5-68...
  • Page 66 NP 32 Angle Connector NP 30 Seal Ring NP 18 Seal Ring NP 266 T- Connector G 1/4" NP 16 Reducer Bushing NP 17 Hand Shut-Off Valve NP 237 Hose Connector NP 29 Angle Connector NP 121 Quick Disconnect RO-MP-2 5-69...
  • Page 67 DOUBLE PRESS ASSEMBLY (OPTIONAL) 400-300 1620-1501-00 500/400 1621-1501-00 Item Part Number: Description: Qty: Notes: NP 2 C Angle Connector NP 24 C Tubing NP 458C01 Solenoid Valve w/Coil NP 267 Muffler NP 379 G Angle Connector NP 1 Air Cylinder, 40 x 200 400/300 NP 21 Quick Disconnect NP 156...
  • Page 68 3. Hook Indicator lens up to T2 and T4 on main switch. 4. Install switch and switch body where H1 used to be, with red toward back. 5. Wire according to illustration. 6. Install label on front panel on top of existing Mosca label. Power on Light Wire #10 Wire #9...
  • Page 69 RO-MP-2 PHOTO CONTROL 1999 1511-0090 Item Part Number: Description: Qty: Notes: ME 1851 Photo Control 1023-0644 Indicator ME 121A 3 Position Switch ME 160A Switch Body ME 1151 Reflector Tape 1036-0057 Reflector Bracket 1039-0003 Name Plate NT 5 Flat Head Screw 4 x 8mm...
