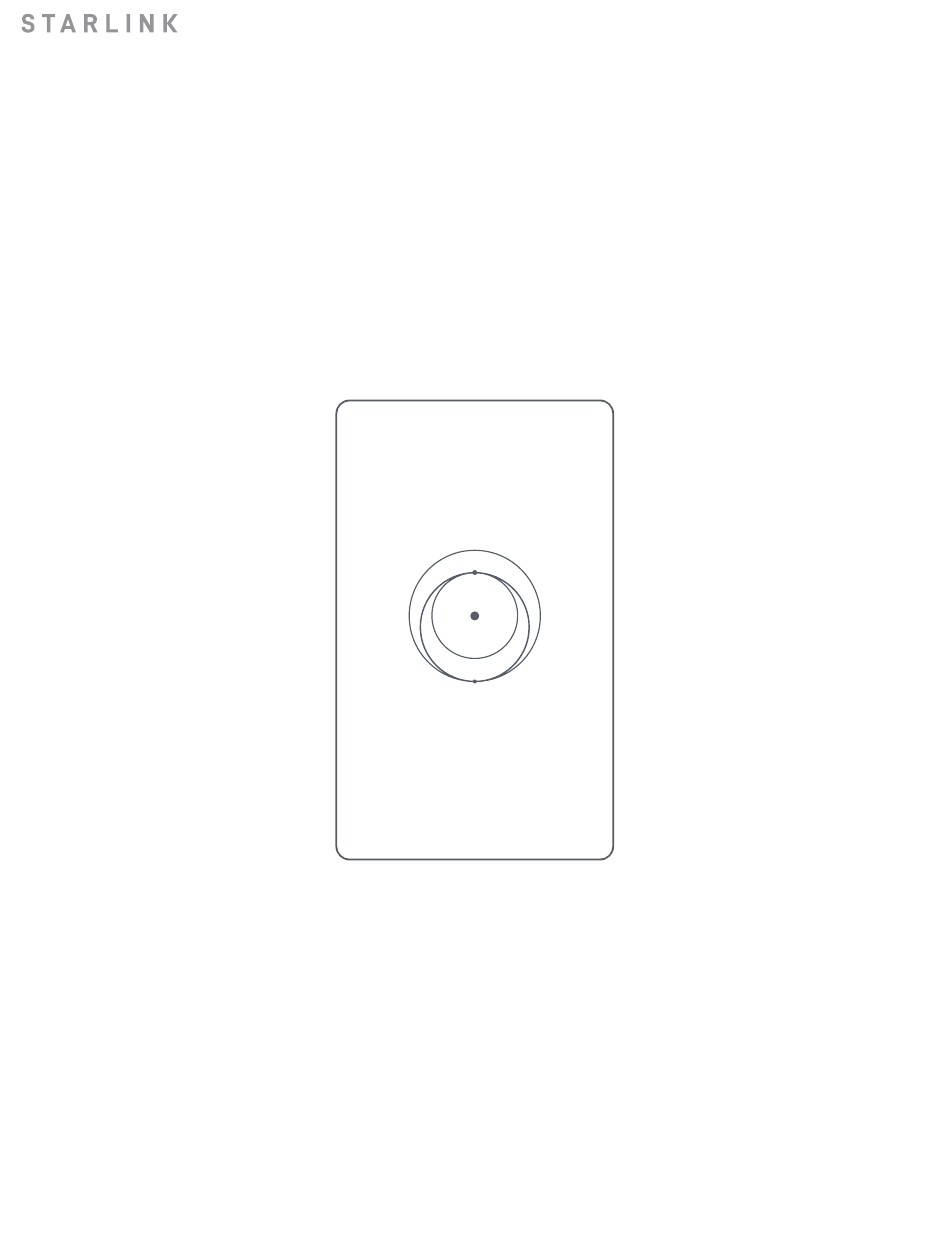

- Page 1 | ROUTER MINI INSTALL GUIDE...
- Page 2 ROUTER MINI What’s in the Box Mini Router Power Supply Stand #7 Wood Screws Drywall Anchors (2x) (2x) Recommended Tools Drill Bit #2 Phillip’s Marker Level Drill 5.5mm (7/32 in) Screwdriver 143 mm (5.6 in) 75 mm (3 in) 86.5 mm 26 mm (3.4 in)
- Page 3 Place the router in the desired location. We recommend the following guidelines for setting up your mesh network: • For best performance use a wired connection to your main Starlink router or Starlink Mini. • Place routers no more than two rooms away from each other.
- Page 4 An LED will turn on signifying the unit is powered on. The Starlink Router Mini can be meshed to your current Starlink system (excluding the Gen 1 Router) either wired or wirelessly. For a wired connection to a Starlink Mini Kit, use 15m Mini Starlink Ethernet Cable.
- Page 5 2. Place your Starlink Router Mini in the desired location and connect the power supply. 3. Plug in an ethernet cable into the LAN port of the back of your existing Starlink router or Starlink Mini. For Gen 3 you will need to remove the protective cover to access the ports.
- Page 6 CONNECT TO NETWORK WIRELESS MESH GUIDE 1. Ensure your Starlink Kit is set up and connected to the internet prior to adding your mesh nodes. 2. Find suitable install locations for your mesh nodes and plug them into power outlets.
- Page 7 Use the mount as a guide to mark the hole locations then drill using a 5.5mm (7/32 in) drill bit. 5.5 mm (7/32 in) 2 | Screw Mount to Surface Install the drywall anchors into the holes, then secure the Mount using the provided screws. starlink.com/support...
- Page 8 MOUNTING 3 | Install Router into Mount Snap in the router to the wall mounted stand carefully, ensuring the product sits flush once fully installed. starlink.com/support...
