VM7514/VM8514
4-Port HDBaseT Input/Output Board Quick Start Guide
Package Contents
1 VM7514 4-Port HDBaseT Input Board, or
1 VM8514 4-Port HDBaseT Output Board
4 Terminal Block Connectors

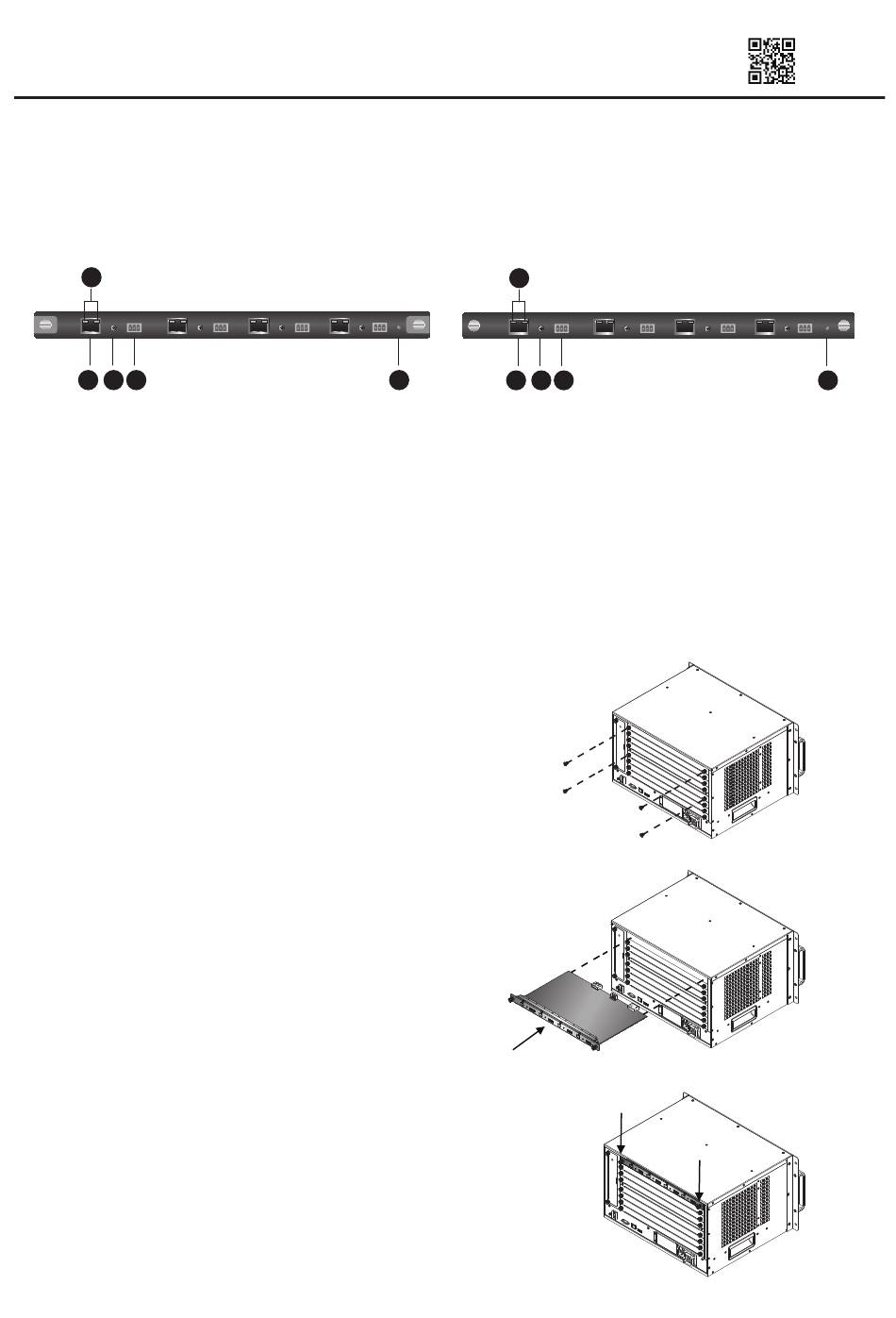

VM7514 Front View
5
1
2
3
Hardware Review
VM7514 Front View
1. HDBaseT Input Ports
2. IR Ports
3. RS-232 Ports
4. Status LED
5. HDBaseT Port LED
Note: The HDBaseT Port LED lights orange to indicate there is no connection and lights green to indicate the
system is receiving power.
Hardware Setup
I/O Board Installation
1. (Optional) Power off the Modular Matrix switch.
Note: The VM1600 I/O boards are hot swappable.
2. 2. On the rear of the VM1600 unscrew the two Phillips head screws
and remove the back panel cover.
Note: The four upper slots are for input boards; the four lower slots
are for output boards.
3. Slide the I/O board into the open slot on the VM1600 until it secures
in place.
4. Tighten the two screws on the I/O board to fasten it to the Modular
Matrix switch, until it's secured to the unit.
5. Repeat the steps if you are installing additional I/O boards.
6. (Optional) Power on the Modular Matrix switch.
1 IR Transmitter
1 IR Receiver
1 User Instructions
VM8514 Front View
5
4
1
VM8514 Front View
1. HDBaseT Output Ports
2. IR Ports
3. RS-232 Ports
4. Status LED
5. HDBaseT Port LED
2
3
MISC100000226
03/2025 V3.0
4
