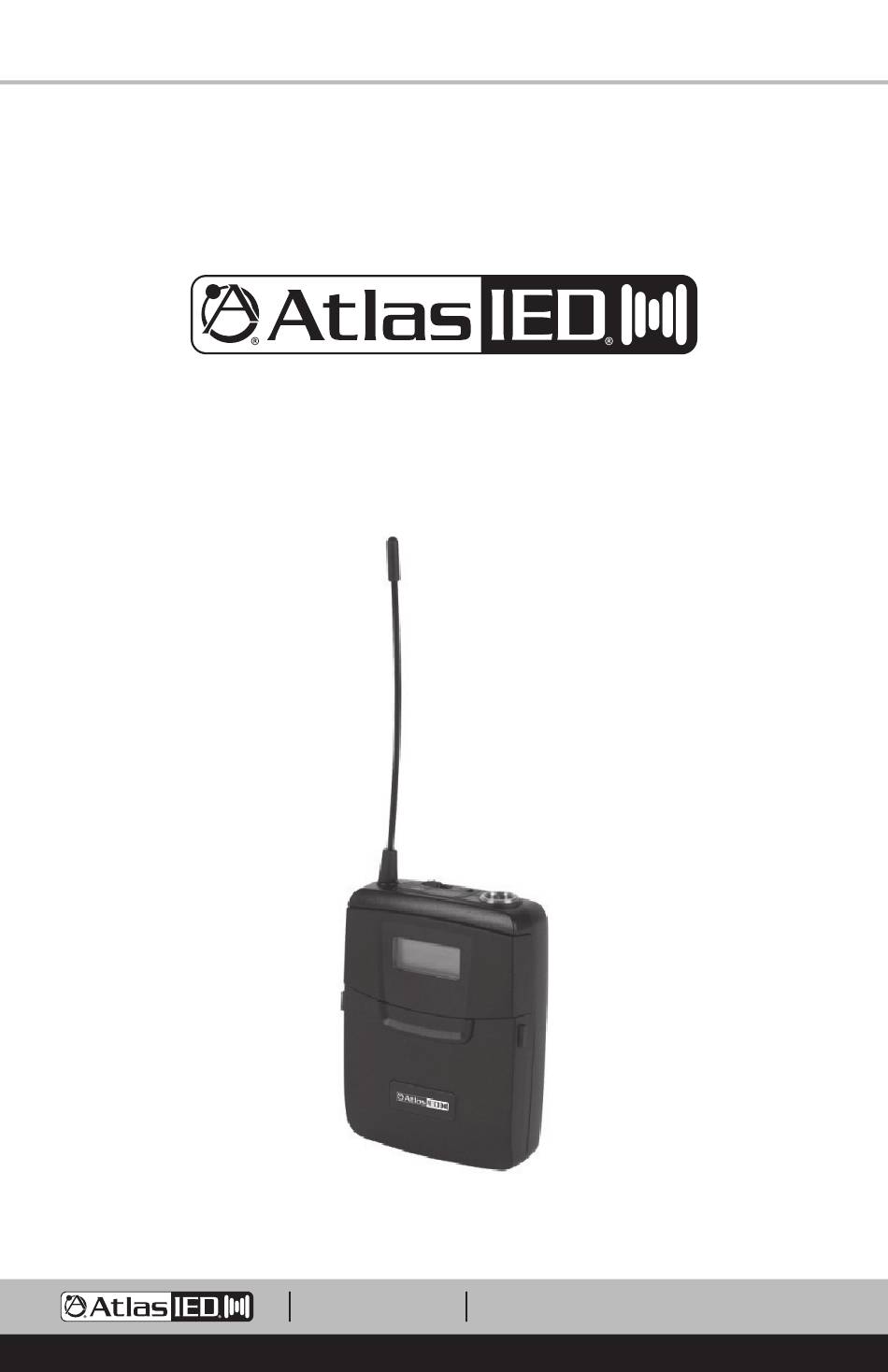

- Page 1 MWBPT UHF 100 Frequency Wireless Belt Pack Transmitter 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 1 –...
-
Page 2: Key Features
Owner’s Manual Introduction The AtlasIED MWBPT wireless belt pack transmitter is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. The MWBPT works with either the MWOEM headset microphone or MWLM lavalier microphone. -
Page 3: Parts And Functions
MWBPT Owner’s Manual Parts and Functions 10 11 13 Antenna 2. LCD Display 3. Cover Release Button 4. Synchronizing Button 5. Menu Button 6. Setting Button High-impedance Gain Control (GT) 8. Low-impedance Gain Control (MT) 9. Battery Compartment 10. Power Switch 11. - Page 4 Gain control enables the user to set different output levels. When using the MWBPT with an instrument with high impedance, like a guitar, set the Gain control to GT8. When using the MWBPT for voice amplification, low impedance, set the Gain control to MT9.
- Page 5 MWBPT Owner’s Manual Synchronizing Channels on the Receiver and Transmitter Align infrared areas of the receiver and transmitter within 12" (30cm). < 12" Figure 3 A. Changing the receiver’s channel 1. Press the synchronizing button on the belt pack (Fig 4).
-
Page 6: Channel Setting
MWBPT Owner’s Manual Channel Setting 1. Use MENU button to go to the CHANNEL | FREQUENCY page (Fig 8). 2. Press and hold the SET button for 3 seconds, then the upper-right channel number will flash to allow changes to be made (Fig 9). -
Page 7: Battery Type Setting
Figure 14 Important: Use only NiMH rechargeable batteries when using non-alkaline type batteries. Lithium Ion or other rechargeable batteries are not compatible with the MWBPT. NiMH must be selected when using rechargeable batteries. Never select AKLN (alkaline) when using rechargeable batteries. Incorrect battery selection will cause inaccurate battery information to be displayed. - Page 8 MWBPT Owner’s Manual System Frequency Range UHF 470 - 608MHz Switching Bandwidth 25MHz Switchable Frequency 2-way Synchronization RF Power Output < 35mW Spurious Emission > 60 dB Below Carrier Dynamic Range > 110 dB Display Screen T.H.D. < 0.5% Peak Deviation ±40KHz...
- Page 9 MWBPT Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 9 –...
- Page 10 MWBPT Owner’s Manual Notes 1601 JACK MCKAY BLVD. TELEPHONE: (800) 876-3333 AtlasIED.com ENNIS, TEXAS 75119 U.S.A. SUPPORT@ATLASIED.COM – 10 –...
-
Page 11: Limited Warranty
LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AtlasIED does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state. - Page 12 MWBPT Owner’s Manual Service Should your MWBPT require service, please contact the AtlasIED warranty department through the online warranty claim process. Online Warranty Claim Processes Warranty submissions are accepted at: https://www.atlasied.com/warranty_statement where the type of return Warranty or Stock return can be selected.
