Bella 14 Egg cooker 35158 Manual

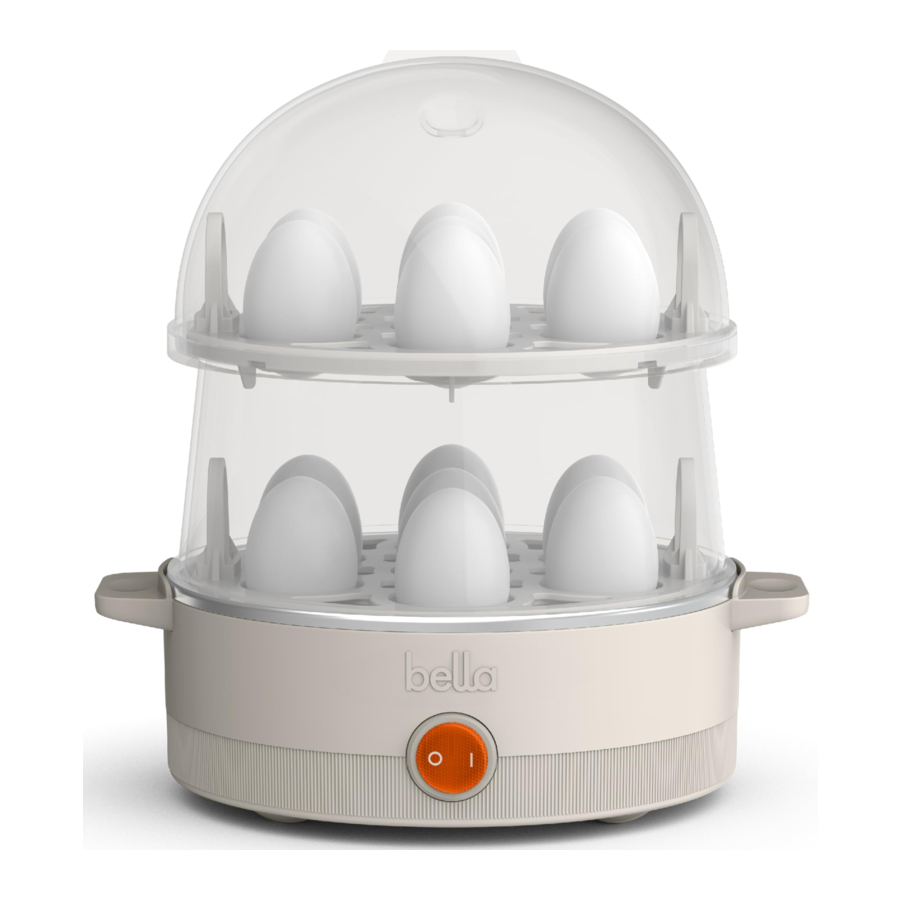

GETTING TO KNOW YOUR EGG COOKER

Product may vary slightly from illustration

1. Lid Handle
2. Lid with Steam Vents
3. Boiling Tray with Handle
4. Poaching tray with Handles
5. Extension shell
6. Omelet tray
7. Boiling Rack with Handles
8. Base with Water Reservoir
9. (O/l) switch with indicator light
10. Polarized Plug (not shown)
11. Water Measuring Cup with Piercing Pin

BEFORE USING FOR THE FIRST TIME

1. Carefully unpack all parts of your Egg Cooker. Set the base aside.
2. Wash lid, boiling rack, poaching tray, omelet tray and water measuring cup in warm, soapy water. Rinse and dry thoroughly.

   The piercing pin on the underside of the water measuring cup is very sharp. Use extreme caution when handling.
3. Wipe the base's water reservoir with a damp, non-abrasive cloth.

OPERATING INSTRUCTIONS

1. ONLY USE COLD EGGS. Eggs may be overcooked if they are not refrigerated until use.
2. Store eggs in their carton to assure freshness and to keep the yolks centered.
3. This Egg Cooker works best forlarge sized eggs. It may be necessary to adjust the amount the of water for other sizes.
4. Always usecold water, preferably distilled or filtered to reduce mineral deposits.
5. Boiled eggs in their shells, may be kept refrigerated for up to 5 days.

BOILED EGGS

1. Place the Egg Cooker on a flat, clean surface.
2. Using the water measuring cup, add cold water, preferably distilled or filtered, to the designated SOFT, MEDIUM or HARD boiled mark (See Figure 2); then pour into the base's water reservoir.
   NOTE: Always use cold water.

3. Center the boiling rack on top of the base.
4. To avoid broken boiled eggs, wash eggs first, then pierce eggs using the pin on the underside of the water measuring cup.
   NOTE: Eggs will cook perfectly with or without piercing.
5. Place up to 14 eggs in the boiling rack, pierced side up. Add the lid.
6. Plug cord into a 120V AC outlet.
7. Press the (O/l) switch to turn the Egg Cooker ON. The water will begin to heat and boil.

   To ensure proper doneness, eggs must be LARGE sized and COLD out of the refrigerator.
8. When the eggs are cooked and the water has evaporated, the unit will beep indicating that the cooking process has finished.
9. Once cooking is finished, press the ON/OFF (0/I) switch to turn the egg cooker off. Then remove the plug from wall outlet.
   NOTE: Avoid unplugging the Egg Cooker during the cooking cycle. If unplugged, the Egg Cooker will turn back on when plugged back the next time it is in use. The thermal sensor will detect no water in the reservoir, and will shut off within 30 seconds.

   When the unit turns off unplug it as the unit will be in a permanent ON/OFF cycle.
10. Immediately lift lid carefully to avoid scalding, and allow water to drip into the water reservoir.
11. Using protective oven mitts or pot holders, use the side handles to carefully lift the boiling rack up and off the base. Rinse boiled eggs with cold water or place in an ice bath to stop cooking. Eggs can be peeled when they are cool enough to handle. CAUTION: The unit and the escaping steam can cause burns or injuries. Precaution must be taken when the unit is in operation or just done cooking

    Unused shell-on boiled eggs may be refrigerated and used for up to 5 days.
12. To cook additional eggs repeat step 2 - 11.
13. To serve soft or medium-cooked eggs out of their shell, use a knife to break the shell across the top. Use a small teaspoon to enjoy the egg directly from the shell, or use toast strips to dip into the soft yolk.

POACHED EGGS & OMELETTES

1. Using the water measuring cup, add cold water, preferably distilled or filtered, to the POACHED/OMELETTE mark (See Figure 3); then pour into the base's water reservoir.
   NOTE: Always use cold water.

2. Center boiling rack on top of the base. Rest the poaching tray on top of the boiling rack. (See Figure 1.)

   Never place poaching or omelet tray directly onto Heating plate
3. Poach up to 2 eggs or prepare an omelettes in the trays. For best results you can lightly butter or spray oil on trays.
4. Poached Eggs: Crack one egg at a time to add to each poaching section.
5. Omelettes: Whisk eggs, one at a time with your favorite add-ins: grated or shredded cheese, small diced tomatoes, sausage crumbles, bacon bits, any small diced cooked vegetables, even leftovers! Carefully add to each poaching section. DO NOT OVERFILL!
6. Plug cord into a 120V AC outlet.
7. Press the (O/l) switch to turn the Egg Cooker ON. The water will begin to heat and boil.
8. When the eggs are cooked and the water has evaporated, the unit will beep indicating that the cooking process has finished.
9. Once cooking is finished, press the ON/OFF (0/I) switch to turn the egg cooker off. Then remove the plug from wall outlet.
   NOTE: Avoid unplugging the Egg Cooker during the cooking cycle. If unplugged, the Egg Cooker will turn back on when plugged back the next time it is in use. The thermal sensor will detect no water in the reservoir, and will shut off within 30 seconds.

   When the unit turns off unplug it as the unit will be in a permanent ON/OFF cycle.
10. Immediately lift lid carefully to avoid scalding, and allow water to drip into the water reservoir.
11. Using protective oven mitts or pot holders, use the top handle to carefully lift the poaching tray up and off the base.
12. Remove poached eggs/omelettes. Serve immediately.

COOKING EGGS

The cooking times listed below are guidelines on how long to cook eggs for desired doneness. The thermal sensor in the Egg Cooker will automatically shut off when the water has completely evaporated and the eggs are done.
The Time Chart provided is for Medium to Large eggs. Jumbo or XL eggs will require additional water and time for the Egg Cooker to achieve the desired cooking results.
For firmer Medium Eggs, allow the eggs to sit covered in the Egg Cooker for an additional 2-3 minutes before removing them. For extra-firm hard boiled eggs, leave the eggs covered in the Egg Cooker for a few more minutes after the beep alert goes off.

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly other than cleaning, must be performed by a qualified appliance repair technician.

CLEANING INSTRUCTIONS

NEVER IMMERSE BASE UNIT OR CORD IN WATER OR OTHER LIQUID.

1. Always unplug and allow to cool completely before cleaning.
2. All Egg Cooker parts, with the exception of the base, may be cleaned in the top rack of a dishwasher. To clean by hand, wash in warm, soapy water.

   THE BASE UNIT IS EXTREMELY HOT AFTER USE. Allow base to cool completely before cleaning.
3. To remove mineral deposits, wipe the base's water reservoir with a paper towel moistened with 1 tablespoon distilled white vinegar. Rinse and dry thoroughly.
4. Wipe the exterior of the base with a soft, slightly damp cloth or sponge. Never use abrasive cleansers or scouring pads to clean the base, as they may damage the surfaces.

STORING INSTRUCTIONS

1. Never store the Egg Cooker while it is hot or wet. Make sure all parts are clean and dry before storing.
2. Store appliance in its box or in a clean, dry place.
3. To store, assemble with parts in place with the lid securely fitted on top.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
2. Do not touch hot surfaces. Use handles or knobs. Use potholders when removing lid or handling hot containers.
3. To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Bring it to a qualified technician for examination, repair or for electrical or mechanical adjustment.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

    To protect against damage or electric shock, do not cook in the base. Cook fresh, whole eggs only in the boiling racks provided.
    NOTE: Never operate Egg Cooker without water in the reservoir, or use a liquid other than water for cooking purposes as this may damage the unit.
13. To disconnect, press the (O/l) button, then remove plug from outlet.
14. Do not use appliance for other than intended use.

    Escaping steam. Use caution. Do not place face near steam vents.

    To avoid scalding, lift to open lid carefully and allow water to drip into the water reservoir.

    The piercing pin on the underside of the water measuring cup is very sharp. Use extreme caution when handling.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

ADDITIONAL IMPORTANT SAFEGUARDS

HOT SURFACES: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent the risk of burns, fires or other injury to persons or damage to property.

1. A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this instruction manual before operating or cleaning this appliance.
2. If this appliance falls or accidentally becomes immersed in water, unplug it from the wall outlet immediately. Do not reach into the water!
3. Do not leave this appliance unattended during use.
4. If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair a malfunctioning appliance!
5. The cord to this appliance should be plugged into a 120V AC electrical wall outlet.
6. Do not use this appliance in an unstable position.

   To protect against damage or electric shock, do not cook in the base.

   FOOD SAFETY HAZARD

FDA GUIDELINES SUGGEST:

• Consuming raw or undercooked eggs may increase your risk of foodborne illness.
• Thorough cooking is perhaps the most important step in making sure eggs are safe. Cook eggs until both the yolk and the white are firm. Scrambled eggs should not be runny.
• Foods containing eggs should be cooked to 160°F (72°C). Always use a food thermometer to test.
• For recipes that call for raw or undercooked eggs, use pasteurized or fresh organic eggs.

NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

NOTES ON THE CORD

1. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
3. If a long detachable power-supply cord or extension cord is used:
   1. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance;
   2. If the appliance is of the grounded type, the extension cord should be a grounding-type3-wire cord; and
   3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

PLASTICIZER WARNING

To prevent Plasticizers from migrating to the finish of the counter top or table top or other furniture, place NON-PLASTIC coasters or place mats between the appliance and the finish of the counter top or table top. Failure to do so may cause the finish to darken; permanent blemishes may occur or stains can appear.

ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances.
