TOLSEN TOOLS AIRXT 73382 Instruction Manual

Air impact wrench 1/2“
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

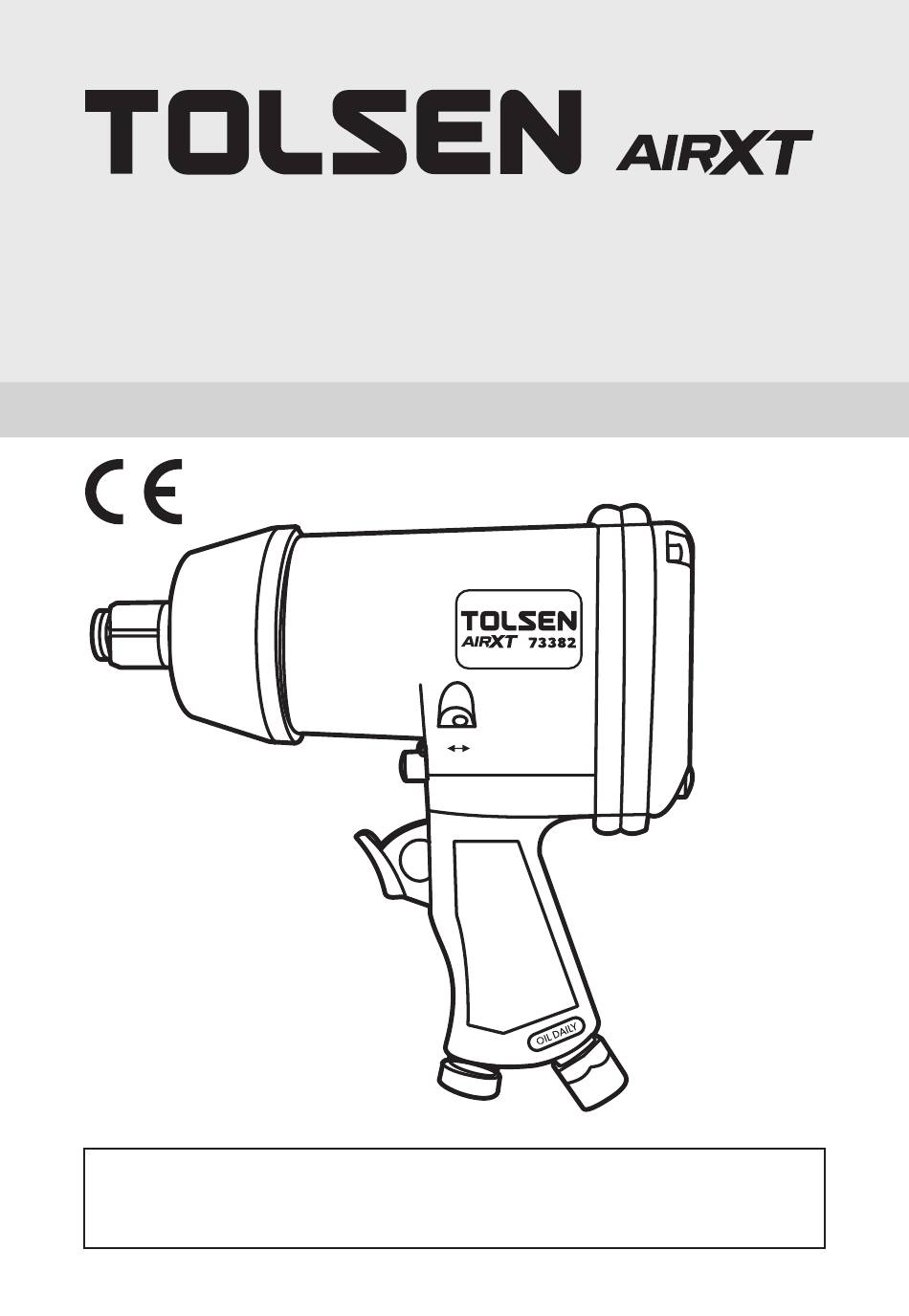

73382
AIR IMPACT WRENCH
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
F
R
1/2"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRXT 73382 and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS AIRXT 73382

Summary of Contents for TOLSEN TOOLS AIRXT 73382

  • Page 1 73382 AIR IMPACT WRENCH 1/2“ INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please contact the distributor or sales agent. WARNINGS IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAMAGE.
  • Page 3 RISK OF INJURY WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT A tool le unattended, or with the air hose attached, Remove air hose when tool is not in use and store tool can be activated by unauthorized persons leading to in secure location away from reach of children and their injury or injury to others.
  • Page 4 RISK OF ELECTRIC SHOCK WARNINGS WHAT COULD HAPPEN HOW TO PREVENT IT Using air tools to attach electrical wiring can result Never use nail/staplers to attach electrical wiring in electrocution or death. while energized. This tool is not provided with an insulated gripping Avoid body contact with grounded surfaces such as surface.
  • Page 5 SETTING UP AIR LINE FOR TOOL OPERATION Air Supply Make sure that the air compressor being used for the air tool operation supplies the correct output (CFM or L/min). Have the tool in the “off” position when connecting the tool to the air supply. Use normal 90 psi working pressure for best tool performance while running the tool.

  • Page 6: Specifications

    SPECIFICATIONS & PACKAGING CONTENTS Specifications Item number 73382 Square drive 1/2 IN. Capacity bolt size 5/8 IN. (16 mm) Free speed 7,000 rpm Max. Torque 340 Nm (250 -lb) Average air consumption 210L/min (7.5 SCFM) Required air pressure 6.3 bar (90 psi) Air inlet 1/4 IN.

  • Page 7: Care And Maintenance

    NOTE: The rotor gears should be lubricated once every working day. 3. Remove the air cap from the air inlet (E). Mount a male plug (not included) by hand into the air inlet. NOTE: Use sealant tape (not included) on the male plug and tighten it with a wrench (not included) for airtight connection.

  • Page 8: Troubleshooting

    NOTE: Avoid the misuse of thicker oil which may lead to the reduced performance or malfunction. 3. Connect the tool to the air supply. Run the tool without load for a few seconds to distribute the oil through the tool. NOTE: Any excess oil may be propelled from the air exhaust area.
  • Page 9 TOLSEN TOOLS CO.,LIMITED www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
