Summary of Contents for Polinovel Rack48100

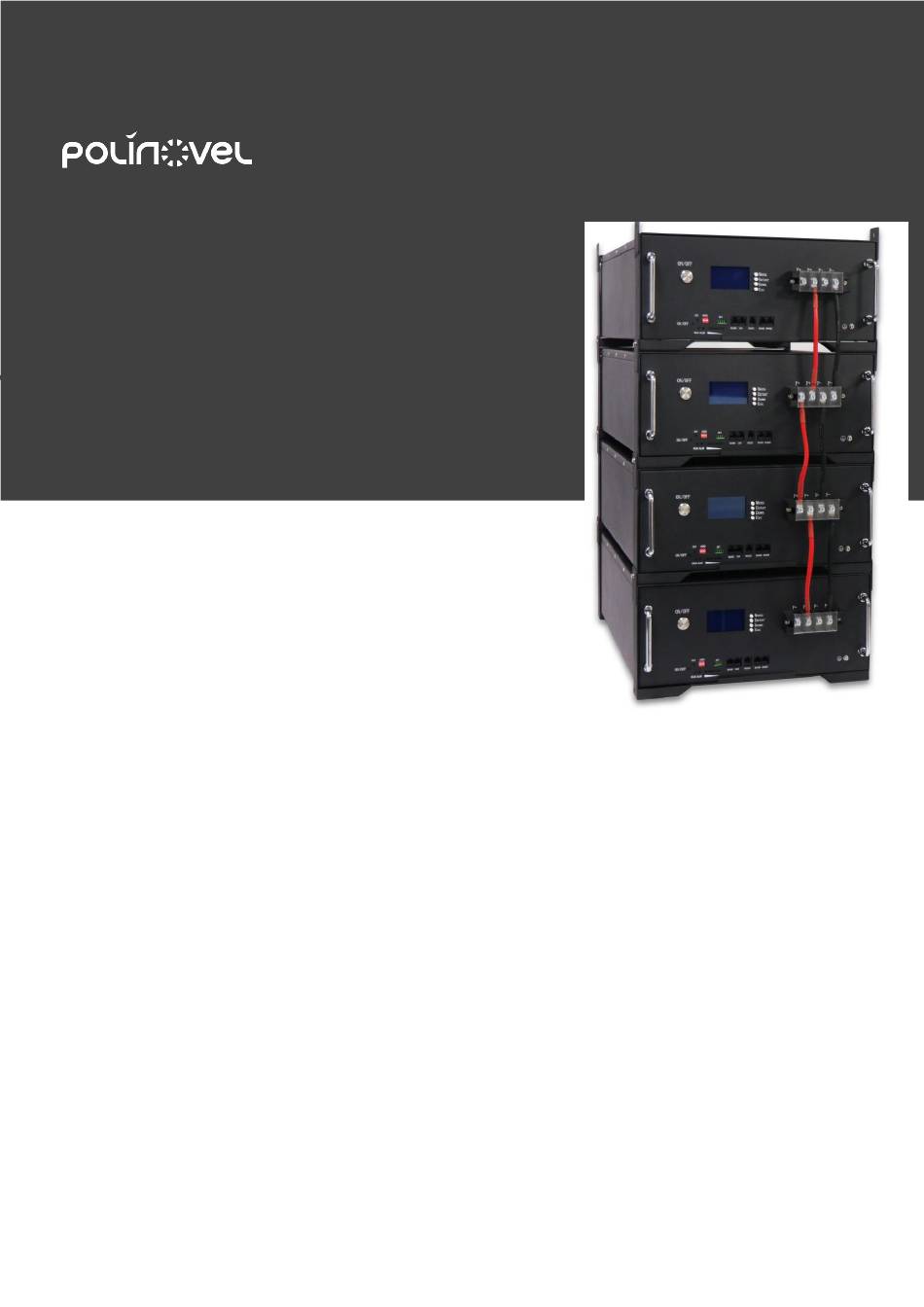

- Page 1 RACK SERIES LiFePO4 Battery Rack48100 USER MANUAL 2023.12...
-
Page 2: Table Of Contents
Table Of Contents USER MANUAL ..................................1 01 Safety instructions ................................1 1.1 Warning ..................................... 1 02 Battery introduction ................................2 2.1 Product features ................................2 2.2 Normal performance .................................2 2.3 Interface Introduction ...............................3 2.4 Installation instructions ..............................4 2.5 Transportation of battery packs ............................4 2.6 Storage of battery packs .............................. -
Page 3: User Manual
01 Safety instructions 1.1 Warning 1. The input voltage and output voltage of this equipment are above 20V DC, if not operated properly, it may cause short circuit or damage to electrical equipment, etc. Please read this manual carefully before installation and operation, pay attention to the various labels on the equipment, do not let children touch alone to prevent accidents. -
Page 4: Battery Introduction
5. If the electrodes are dirty, wipe them with a dry cloth before use, otherwise it may lead to poor contact and malfunction. 6. Discarded batteries should be wrapped in insulating paper to prevent short-circuiting and fire. Keep equipment well ventilated 02 Battery introduction 2.1 Product features 1. -
Page 5: Interface Introduction
Humidity ≤ 75%RH 1C@DOD100% ≥2500 cycles Cycle life 0.2C@DOD100% ≥4000 cycles Self-discharge rate ≤3%/Month L= 442mm(17.4”) Battery dimension W=555mm(21.9”) H=177mm(6.97”) 2.3 Interface Introduction Name Silk-screen Remark Positive M8 screw nut/Red Negative M8 screw nut/Black Breaker Breaker Output breaker Power button ON/OFF Display of battery info ON/OFF LED... -
Page 6: Installation Instructions
SOC LED State of Charge ALM LED Alarm indicator RUN LED Operation indicator Reset button Reset the BMS Dial switch (ADD) ADDR Set the battery address COM Output port CAN/RS485 Battery and inverter communication port RS485 parallel port RS485 Parallel communication port 2.4 Installation instructions 1. -
Page 7: Installation
d. secondary fire door; e. in accordance with the lithium battery packaging instructions on the labeling and stacking requirements placed, it is strictly prohibited to stack more than a certain height; 4. battery packs placed for a long time, should be charged and discharged in a timely manner within 3 months to prevent over-discharge of the battery;... -
Page 8: Carry And Install The Battery Pack
3.3 Carry and install the battery pack DANGER: The battery pack is heavy and should be handled with care to maintain balance so that it does not fall and injure the operator. 1. Lift the battery out of the battery box and transport it to the designated installation location 2. -
Page 9: Wiring Instructions
3.4 Wiring Instructions 1. Parallel connection of cables after stacking battery boxes... -
Page 10: Dialing Code
2. Parallel connection of communication cables after battery box stacking (yellow line mean RS485 communication cable) 3.5 Parallel Dialing Code 1. Dialing code setting The dial code of the battery box communicating with the inverter is always set to 1, and the following battery boxes connected in parallel with it are set to 2,3,4 in turn .. - Page 11 Polinovel reserves the right to change the contents of this manual without notice. (86) 755-28906569 www.polinovel.com info@polinovel.com To view or download this manual in PDF version, please visit polinovel.com.
