YORKVILLE TX2P Owner's Manual

Tx-series professional loudspeaker systems
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

OWNER'S MANUAL
M A N U E L D E L ' U T I L I S A T E U R
TYPE: YS1018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX2P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YORKVILLE TX2P

Summary of Contents for YORKVILLE TX2P

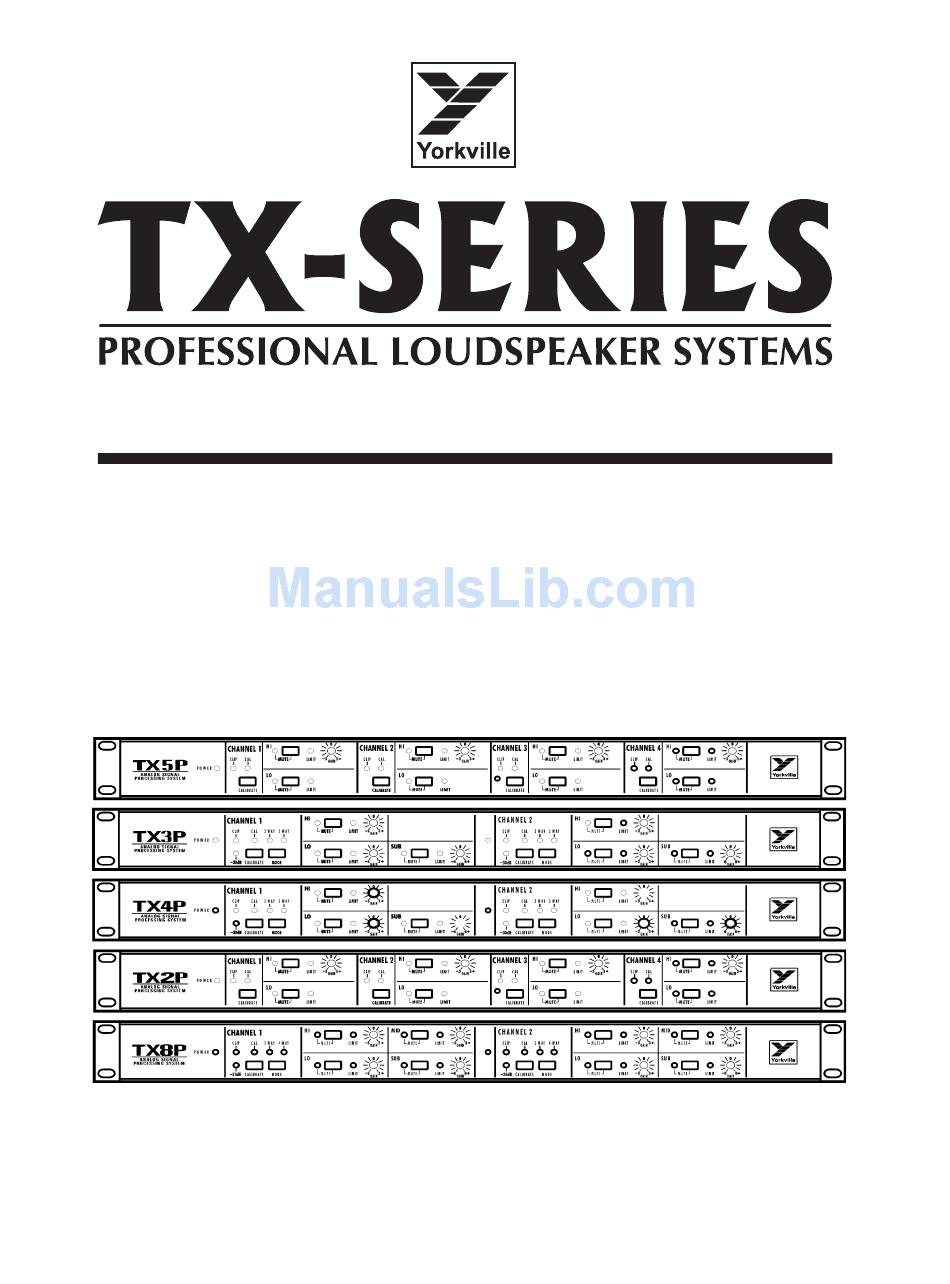

  • Page 1 OWNER'S MANUAL M A N U E L D E L ' U T I L I S A T E U R TYPE: YS1018...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS This lightning flash with arrowhead symbol, within The exclamation point within an equilatereal triangle is an equilateral triangle, is intended to alert the user to intended to alert the user to the presence of important the presence of uninsulated “dangerous voltage” operating and maintenance (servicing) instructions in within the product’s enclosure that may be of sufficient the literature accompanying the appliance.

  • Page 3: Control Panel

    Introduction The TX Series processors are an essential part of any TX loudspeaker system. TX series loudspeakers should not be used without the appropriate processor. There are different TX processors for each of the full–range cabinets in the TX line. The TX3P, TX4P and TX8P also provide processing for subwoofers added.
  • Page 4 4-way with a subwoofer and 3-way without a subwoofer. The TX3 and TX4 systems are 2-way without a subwoofer and 3-way with a subwoofer. The TX2P and TX5P processors do not support subwoofers and hence, do not have a mode switch.
  • Page 5 NOTE: The processor will not calibrate if the Left & Right connections are reversed. 17. Modified Response (TX2P/TX5P) In response to user recommendations, TX2P processors manufactured after 07/98 have a response that dip -6.5db at 750Hz and -4.5db at 250Hz. The response maybe returned to the original, flattened response by turning the internal trim pots (Rt1a, b, c, and d) fully clockwise.
  • Page 6 For example, if you have TX3’s, use the TX3P, TX4’s, use the TX4P, etc. Subwoofer processing is included in all processors but the TX2P and TX5P. A push-button subwoofer switch inside the processors selects TX8S or TX9S processing and an LED visible through a small hole in the back of the chassis illuminates for TX9S.
  • Page 7 TX processor to the power amps and back to the speakers. Yorkville Speaker Cables and Connections: Yorkville Sound offers a full range of 14 gauge speaker cables as well as the 20-gauge, Speakon-to-bananaplug SP4-3SB “sense” lead. The speaker cables are available with 4 or 8 leads and in 25, 50 &...
  • Page 8 processor inputs are female XLR’s and the outputs are male XLR’s. Most mixers now have balanced outputs using 1/4-inch TRS (tip-ring-sleeve) jacks or XLRs. Power amp inputs tend to be balanced these days too, but many of the old amplifiers still in use have unbal- anced inputs.
  • Page 9 Trim Controls: +/- 6dB for Sub, +/- 3dB for horn & woofer TX4 1.3khz, 125Hz Crossover Points: TX3 1.3khz, 125Hz TX2P & TX5P* Processor TX2P & TX5P* Processor TX2P & TX5P* Processor TX2P & TX5P* Processor Function: Quad (x4), 2 way Inputs Full Power: +6dBu, +4dBv, 1.4Vrms...
  • Page 10 Introduction Les processeurs de la série TX sont essentiels à tout système de haut-parleur de la même série. Les haut-parleurs de la serie TX ne devraient pas être utilisés sans processeur corre- spondant. Il y a un processeur différent pour chacun des cabinets pleine bande de la ligne TX.
  • Page 11 à 4-voies avec un subwoofer et à 3-voies sans subwoofer. Les systèmes TX3 et TX4 fonctionnent à 2-voies sans subwoofer et à 3-voies avec un subwoofer. Le processeur TX2P ne permet pas l’utilisation de subwoofers et n’est donc pas équipé d’un commutateur de mode.
  • Page 12 17. Réponse Modifié (TX2P/TX5P) À la recomendation des utilisateurs de modèle TX2P, les processeurs manufacturé après 07/98 ont une réponse de fréquence qui produit un “dip” de -6.5dB à 750Hz et de -4.5dB à 250 Hz. Ce changement peut être défi en tournant les potentiomêtres internes (Rt1a, b, c, et d) en tournant les pleine direction d’horloge.
  • Page 13 TX3P. Avec les enceintes TX4, le TX4P, etc…Le traitement pour subwoofer est inclu avec tous les processeur à l’exeption du TX2P. Un commutateur pour subwoofer type bouton poussoir vous permet de sélectionner le traitement requit pour l’utilisation des subs TX8S ou TX9S.
  • Page 14 Autres Câbles Pour Haut-Parleur: Si vous utilisez des câbles autre que Yorkville, utilisez des câbles de calibre 14 ou plus. Si les câbles sont dotés de prises bananes à l’extrémité de l’amplificateur, assurez-vous que le côté...
  • Page 15 C’est possible grâce à des barres de métal avec une courbe de 30 degrés (modèle Yorkville BAR30) qui sont insérées dans ces trous et tenues en place par un autre accessoire appelé “QUICKPIN”. L’équipement de sus- pension inclue aussi des anneaux à...
  • Page 16 Contrôle d'équilibrage: + / - 6dB pour le sub, + / - 3dB pour le pavillon & woofer Fréquence de coupure approx.: TX4 1.3khz, 125Hz, TX3 1.3khz, 125Hz Le Processeur TX2P & TX5P* Le Processeur TX2P & TX5P* Le Processeur TX2P & TX5P* Le Processeur TX2P &...
  • Page 17 INPUTS LO POWER AMP HI POWER AMP INPUTS INPUTS SUB POWER AMP MID POWER AMP CHANNEL FOUR OUTPUT TX2P & TX5P CHANNEL THREE OUTPUT FROM CHANNEL TWO OUTPUT MIXER Power Amp Input Hook-Up CHANNEL ONE OUTPUT TX2P PROCESSOR CHANNEL FOUR...
  • Page 20 CHANNEL TWO OUTPUT TX3P/4P Power Amp Input Hook-Up FROM CHANNEL ONE OUTPUT MIXER TX3P/4P PROCESSOR CHANNEL TWO INPUT CHANNEL ONE INPUT INPUTS INPUTS SUB POWER AMP HI POWER AMP INPUTS LO POWER AMP TX3P/4P Speaker Sense & Cabinet Hook-up TX3/4 -1 +2 +1 -1 SUB POWER AMP -1 +1 +1 -1...
  • Page 23 Unlimited Warranty Yorkville's two and ten-year unlimited warranty on this product is transferable and does not require registration with Yorkville Sound or your dealer. If this product should fail for any reason within two years of the original purchase date (ten years for the wooden enclosure), simply return it to your Yorkville dealer with original proof of purchase and it will be repaired free of charge.
  • Page 24 WORLD HEADQUARTERS CANADA U.S.A. Yorkville Sound Yorkville Sound Inc. 550 Granite Court 4625 Witmer Industrial Estate Pickering, Ontario Niagara Falls, New York L1W-3Y8 CANADA 14305 USA Voice: (905) 837-8481 Voice: (716) 297-2920 Fax: (905) 837-8746 Fax: (716) 297-3689 Manual-Owners-tx-proc-00-2v6 • Jan. 15, 2009...

This manual is also suitable for:

Tx3pTx4pTx5pTx8p
