MEGA LIVE 2 TARGETLOCK ADAPTER Installation Guide
Overview
Following are instructions for the installation of the MEGA Live 2 transducer on your existing TargetLock
setup on your Minn Kota Ultrex or Ultrex QUEST. Before you start installation, we encourage you to read
these instructions carefully in order to get the full benefit from your Humminbird® accessory.
Supplies: In addition to the hardware included with your accessory, you will need a Philips head
screwdriver.
Technical Support: Contact Humminbird Technical Support through our Help Center at https://
humminbird-help.johnsonoutdoors.com/hc/en-us.
For more information about the installation of your MEGA Live 2 Imaging transducer,
see the installation guide that was included with your transducer or visit our Web site at
humminbird.johnsonoutdoors.com.
1
| Installation Preparation
Before mounting your MEGA Live 2 Imaging transducer to your trolling motor, please give
consideration to the following:
∆ Your trolling motor should be in the fully retracted (flat) position on the boat deck for this
installation.
∆ Disconnect Power: For installation on a trolling motor, disconnect the trolling motor from all
sources of electrical power before you start the installation.
∆ With the trolling motor deployed, the transducer should not have anything obstructing the 'view'
of the beams. If possible, move anything to the sides and below the transducer that might
obstruct the sight line of the beams.
∆ The mounting plate and control box should already be installed on your trolling motor. See the
MEGA Live TargetLock Installation Guide for more information.
2
| Install the Landscape Mode Mount to the Adapter and the Shaft Mount
1. The Landscape Mode mount should be open for this step of the installation. Unlock the mount
by pressing down on the single release button and pulling the mount open. It will relock
automatically once fully opened.
2. Connect the MEGA Live 2 Adapter to the Landscape Mode mount. The ratchets on the Landscape
Mode mount hinge and the adapter are keyed to ensure correct alignment.
3. With the Landscape Mode mount hinge perpendicular to the shaft, connect the Landscape Mode
mount and attached adapter to the shaft mount (see the illustration Connecting the Landscape
Mode Mount to the Adapter and the Shaft Mount).
4. Secure the Landscape Mode mount to the shaft mount with one of the included lock washers
and the 1 1/8" screw, using the provided hex bit. Hand tighten the screw until the lock washer
is fully compressed (see the illustration Compressing the Lock Washer), and then tighten an
additional 1/4 turn. Hand tighten only!
The screw and lock washer MUST be fully tightened. Failure to do so may result in the
Landscape Mode mount detaching from the shaft mount in the water.
NOTE
CAUTION
533029-1_A

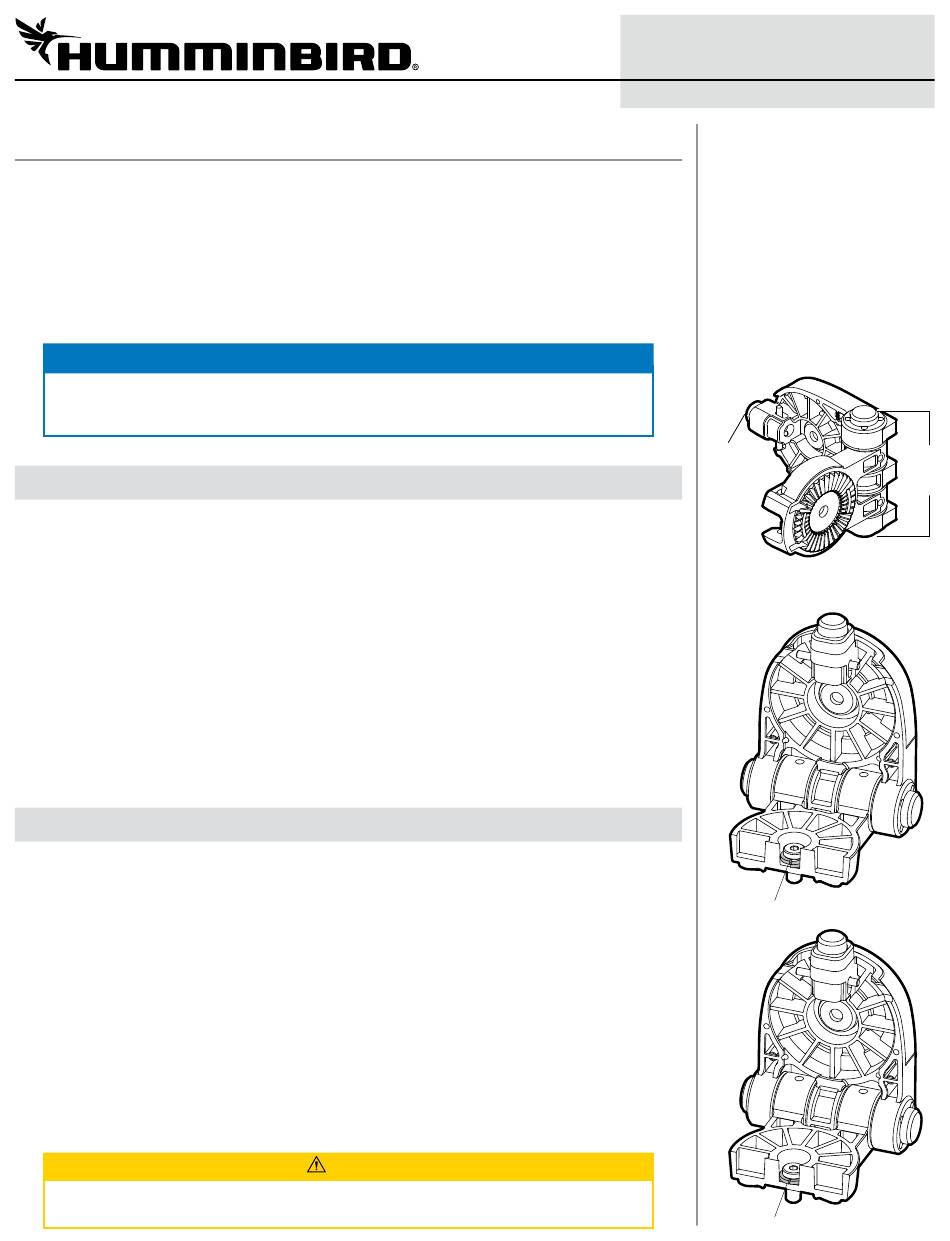

Landscape Mode Mount
single
release
button
Compressing the Lock Washer
loose lock washer
fully compressed lock washer
1
dual
release
buttons
