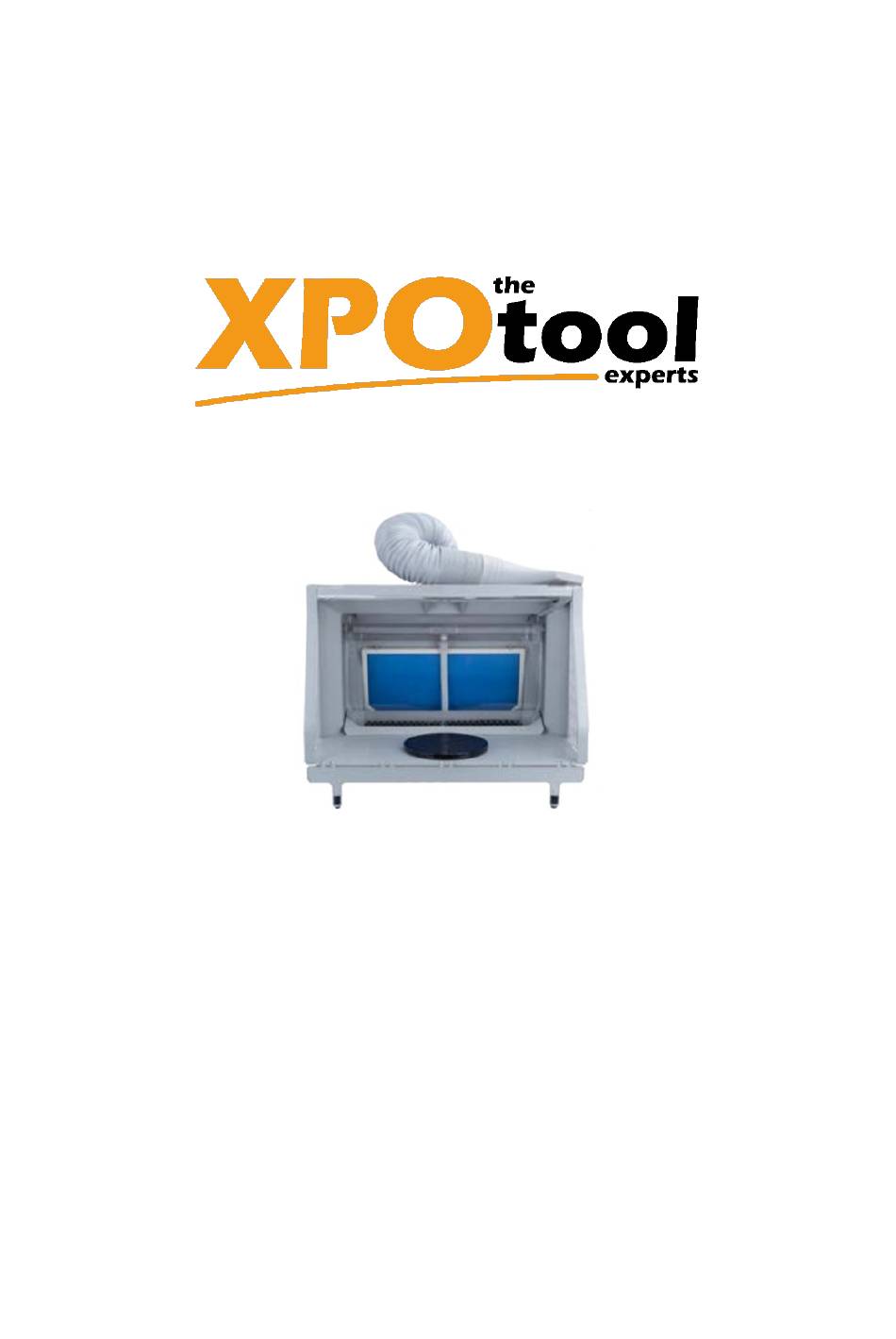

Operation Manual
Airbrush Extraction System with Water Wall
34280
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 34280
Summary of Contents for XPOtool 34280
- Page 1 Operation Manual Airbrush Extraction System with Water Wall 34280 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 34280 Page 2 The Tool Experts 03 2025-1...
- Page 3 If you have reason to believe that safe operation is no longer possible, disconnect the unit from the mains immediately and secure it against unintentional operation. If you notice a possible danger during operation, switch off the appliance immediately. https://www.XPOtool.com Item 34280 Page 3 The Tool Experts 03 2025-1...
- Page 4 Left LED tube Cover plate Middle LED tube Water sink Right cover plate Adapter Large cover plate Water pipe Right LED tube Sink buckle (×4) Small cover plate Filter frame https://www.XPOtool.com Item 34280 Page 4 The Tool Experts 03 2025-1...
- Page 5 When folded, the product is ideal for mobile use. Parts list Main product Air hose Water pump Turn table LED tube № Name № Description The height of the feet can be adjusted by LED tube turning. https://www.XPOtool.com Item 34280 Page 5 The Tool Experts 03 2025-1...
- Page 6 Water pump power switch nected with the buckle Water level marker Rubber feet stick to the ground Warning! Water should be filled in before plugging in the mains switch of the water pump. https://www.XPOtool.com Item 34280 Page 6 The Tool Experts 03 2025-1...
- Page 7 Unlock all four buckles and slide the body backwards about 15 degrees to easily remove the hose at- tachment. Step 2 Insert the water pipe into the pump (let the pipe run in a circle). https://www.XPOtool.com Item 34280 Page 7 The Tool Experts 03 2025-1...
- Page 8 Connect the hose by turning it anticlockwise. Step 5 Open the front cover plate and fold it up to begin installation. Step 6 If necessary, adjust the height of the feet. https://www.XPOtool.com Item 34280 Page 8 The Tool Experts 03 2025-1...
- Page 9 Raise and lower the height of the feet by rotating them. All feet can be adjusted. Step 7 Pull both the right and left transparent cover plates into the vertical position. Then fasten the inner snap joints on both sides. https://www.XPOtool.com Item 34280 Page 9 The Tool Experts 03 2025-1...
- Page 10 Insert the curved part into the small hole Place the right LED tube in the hole Note! Follow the installation method also for all LED tubes. https://www.XPOtool.com Item 34280 Page 10 The Tool Experts 03 2025-1...
- Page 11 Adjustment for smooth and even water distribution Notes and information on the setting Method 1 Adjust the height of the foot so that the machine stands level. Method 2 Adjust the water wall manually. https://www.XPOtool.com Item 34280 Page 11 The Tool Experts 03 2025-1...
- Page 12 Pull out the water wall along the slide rail and place it on the work surface. Step 2 Pour the remaining water into the water sink. Step 3 Remove the filter to replace it with a new one. https://www.XPOtool.com Item 34280 Page 12 The Tool Experts 03 2025-1...
- Page 13 Put a new filter back in the right place Step 5 Remove the two black filter sponges. Step 6 The filter sponges are used cyclically and can be reinstalled after cleaning. https://www.XPOtool.com Item 34280 Page 13 The Tool Experts 03 2025-1...
- Page 14 Step 7 Straighten the water pipe. Step 8 Reattach the water wall. Insert the bottom of the left and right sides into the groove and fasten the buckles. https://www.XPOtool.com Item 34280 Page 14 The Tool Experts 03 2025-1...
- Page 15 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 34280 Page 15 The Tool Experts 03 2025-1...
