Summary of Contents for A&D 1539S

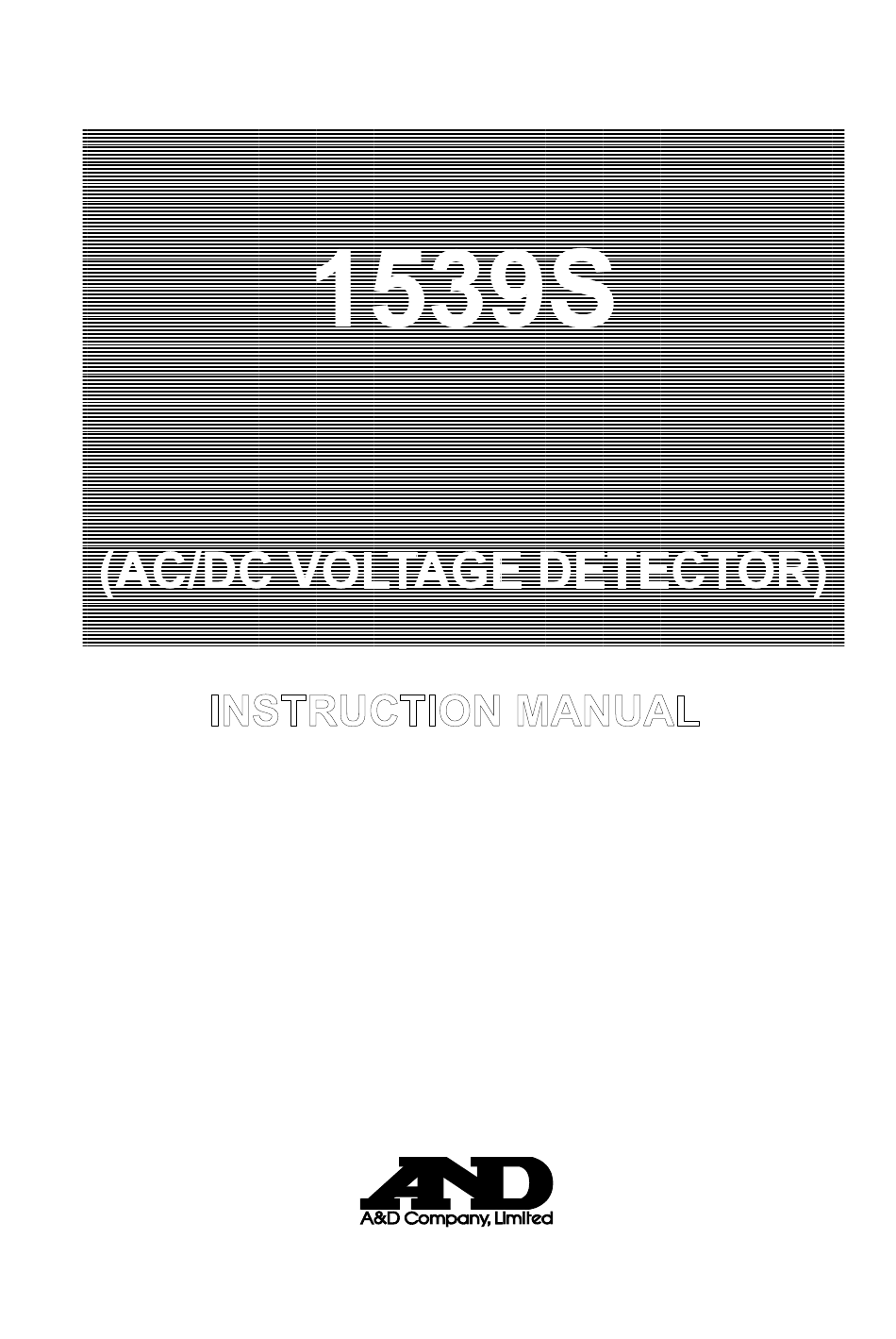

- Page 1 1539S Floating Voltage Probe (AC/DC VOLTAGE DETECTOR) INSTRUCTION MANUAL 1WMPD4003177...
- Page 3 Floating Voltage Probe (AC/DC VOLTAGE DETECTOR) 1539S Instruction manual...
-
Page 4: Table Of Contents
Contents 1, Overview .............................. 1 2, Composition ............................2 3, Specification ............................2 4, Names and Functions of Parts ..................... 3 4-1 Outline Drawing ........................3 4-2 Description of Functions ..................... 4 5, Measuring Method ........................... 5 5-1 Connection of Connector .................... -
Page 5: 1, Overview
1, Overview Floating Voltage Probe 1539S is the device to detect high-low voltage signals of 4 channels and output with High/Low logic signals by connecting to a logic amp of OmnilightⅡ RM1100. Detection level is widely AC50～250V, DC20～250V with HIGH/LOW selector switch and each channel is isolated. -
Page 6: 4, Names And Functions Of Parts
4, Names and Functions of Parts 4-1 Outline Drawing ②Fuse holder（Fuse0.3Ａ） ①Voltage Measurement Cable ③ＨＩＧＨ/ＬＯＷ Selector Switch ④Indicator (Green LED) ⑤Logic Output Cable - 3 -... -
Page 7: Description Of Functions
4-2 Description of Functions ① Voltage Measurement Cable This cable is for CH1～CH4. Please connect it by referring the mark band channel description of the tip of cable. ② Fuse Holder 235.300XP (0.3A) Fuse is included. ③ HIGH/LOW Selector switch Please switch HIGH or LOW depending on measured voltage. -
Page 8: 5, Measuring Method
5, Measuring Method 5-1 Connection of connector 1) Connect a Logic output cable of Floating Voltage Probe to logic amp of RM1100. 2) Connect a Voltage measurement cable to power line. To power line 5-2 Settings for RM1100 (Refer to OmnilightⅡinstruction manual for details.) 1) How to set logic amp of RM1100 a) Settings for indication &... -
Page 9: Movement When High Or Low Voltage Signal Is Detected
5-3 Movement When High or Low Voltage Signal Is Detected. 1539S detects high or low voltage signals of 4 channels and output with High/Low logic signals Voltage input to 1539S ＨＩＧＨ range ＬＯＷ range ＡＣ２５０Ｖ ＤＣ２５０Ｖ ＡＣ１５０Ｖ ＤＣ１５０Ｖ ＡＣ１００Ｖ ＤＣ８０Ｖ... - Page 10 （1）Unauthorized copying and replication of the contents of this manual are strictly prohibit. All Rights Reserved. (2) The contents of this document may be changed without prior notice. Floating Voltage Probe （ＡＣ／ＤＣ ＶＯＬＴＡＧＥ ＤＥＴＥＣＴＯＲ） １５３９Ｓ Instruction manual (1WMPD4003177) July 2015...
