Summary of Contents for THOMSON Tili

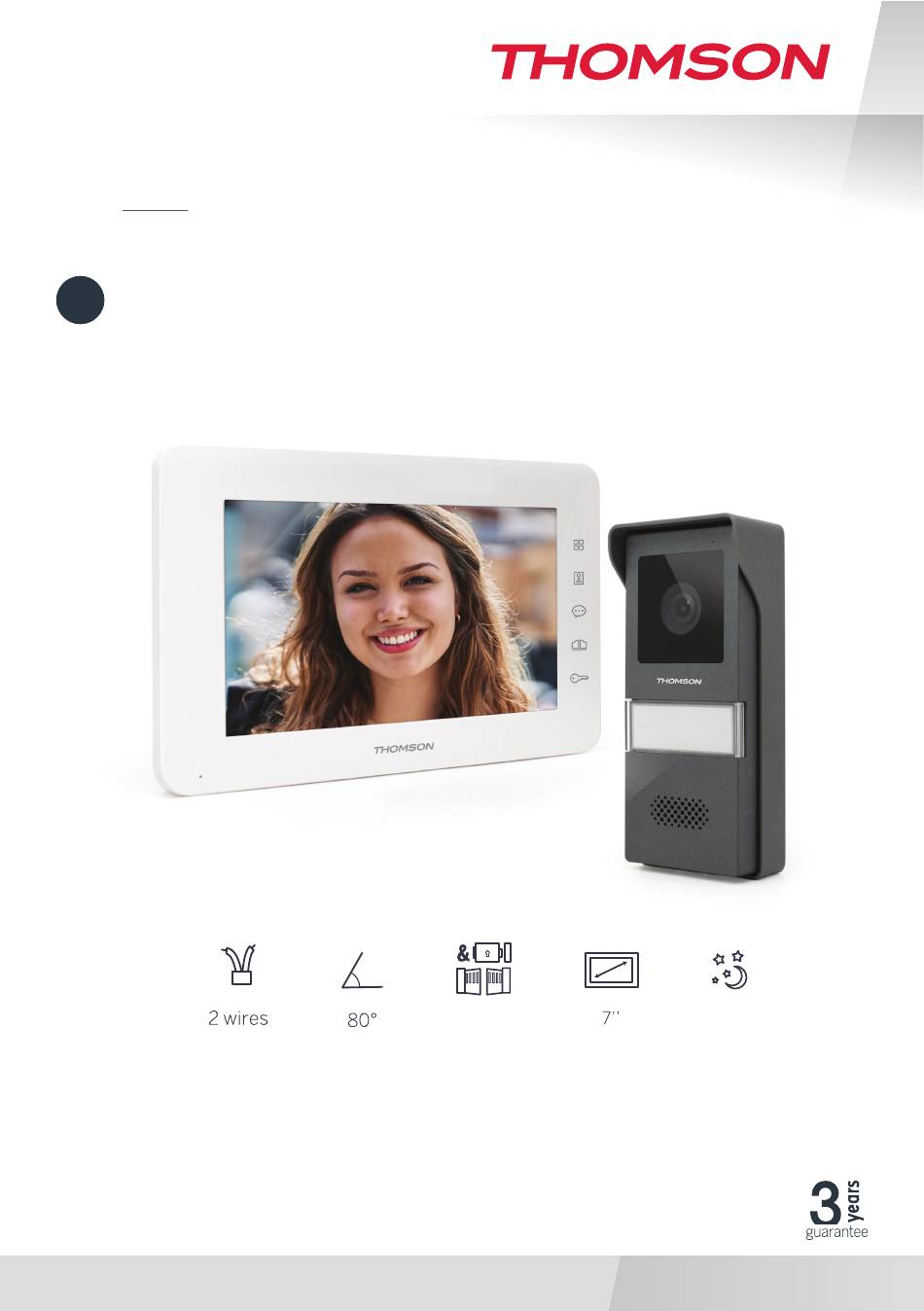

- Page 1 512267 Tili Colour videophone - 2 connecting wires with 7’’ screen www.mythomson.com...
- Page 2 COLOUR VIDEO INTERCOM Figure 1 BUS + BUS - BUS + BUS - GND LOCK NO/NC COM 100m 2 fils The screen terminal block is removable to make assembly easier. Please note: the terminal block must be installed in the right direction. Incorrect installation lead random...
- Page 3 COLOUR VIDEO INTERCOM www.mythomson.com...
-
Page 4: Table Of Contents
COLOUR VIDEO INTERCOM CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - MAINTENANCE AND CLEANING 3 - RECYCLING B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 2 - GENERAL INFO 3 - MONITOR 4 - INTERCOM PANEL 5 - WALL BRACKET 6 - MAINS ADAPTOR C - INSTALLATION 1 - WIRING... - Page 5 COLOUR VIDEO INTERCOM F - TECHNICAL AND LEGAL INFORMATION 1 - GENERAL CHARACTERISTICS 2 - WARRANTY 3 - HELP AND ADVICE 4 - PRODUCT RETURNS/AFTER-SALES SERVICE 5 - EC DECLARATION OF CONFORMITY www.mythomson.com...
-
Page 7: A - Safety Instructions
COLOUR VIDEO INTERCOM A - SAFETY INSTRUCTIONS 1 - INTRODUCTION • The cable between the monitor and the intercom panel must not be extended. Avoid junctions (insulating screw joints, soldered This video intercom system pairs two modules: a receiver-monitor and an easy-to-install and joints, etc.). -
Page 8: B - Product Description
COLOUR VIDEO INTERCOM B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 15 V 1.5 A plug-in power supply 7"monitor Wall plugs for wall mounting Wall bracket Screws for wall-mounting Intercom panel GENERAL INFORMATION This videophone is composed of an interior response station with touch-sensitive buttons (the screen is not a touchscreen) and an exterior panel with an intercom and camera, allowing the person inside to see and communicate with the visitor who rings the doorbell. -
Page 9: Intercom Panel
COLOUR VIDEO INTERCOM B - PRODUCT DESCRIPTION 4 - INTERCOM PANEL Notes: • When someone presses the call button, the monitor rings inside and the video switches BUS + BUS - • To change the label in the name holder, remove the plastic cover on the front by pulling it slightly. -
Page 10: C - Installation
COLOUR VIDEO INTERCOM C - INSTALLATION Important notes and advice: • In order to make the most of your intercom panel, we recommend that you test it before installing it in its final location. To do this, you may need to connect it on a table, to make sure the settings have been configured correctly. - Page 11 COLOUR VIDEO INTERCOM C - INSTALLATION 96 mm 96 mm 96 mm 96 mm After attaching the wall bracket, connect the monitor cables (see Fig 1). The monitor’s terminal blocks are removable to make assembly easier. www.mythomson.com...
- Page 12 COLOUR VIDEO INTERCOM C - INSTALLATION BUS + BUS - BUS + BUS - BUS + BUS - GND LOCK NO/NC COM BUS + BUS - GND LOCK NO/NC COM 100m 2 fils 100m 2 fils Note: We recommend using a fl exible cable to avoid any physical stress on the back of the monitor. WARNING: Please place the monitor’s detachable connector in the correct position.
-
Page 13: Installing The Main Intercom Panel
COLOUR VIDEO INTERCOM C - INSTALLATION 3. INSTALLING THE MAIN INTERCOM PANEL Warning: The product must not be connected to the power supply before the wiring has been completed. • Remove the screw under the intercom panel. • Tilt the intercom panel forwards. •... -
Page 14: D - Using The Product
D - USING THE PRODUCT 1. USE OF THE GATE VIDEO AND SETTINGS • Main menu - The Thomson Tili is controlled through touch- sensitive keys. - The button functions vary depending on the menu accessed. The icons on the right side of the screen help guide you as to their use. - Page 15 COLOUR VIDEO INTERCOM D - USING THE PRODUCT COLOR: Colour : To begin, press the button. Once visual communication has been established, press twice. You should see the word “COLOR” at the bottom of the screen. Next, press the buttons to decrease or increase the colour saturation level of the picture.
-
Page 16: E - Faq
COLOUR VIDEO INTERCOM E - FAQ If your problem is not covered below, please contact our technical support department. Symptoms Possible causes Solutions The adapter is not connected to Check that all power supply The monitor will not switch the mains / the monitor terminal cables are correctly connected. - Page 17 COLOUR VIDEO INTERCOM E - FAQ The cable section used is not Check the cable section with the suitable. help of this operating manual. The gate control does not The intercom panel and the gate Check the connections and input release the motor drive.
-
Page 18: General Characteristics
COLOUR VIDEO INTERCOM F - TECHNICAL AND LEGAL INFORMATION 1 - GENERAL CHARACTERISTICS Monitor Number 1 melody (80 dB) Doorbells Size 7 inches diagonally (17.78 cm) Screen Resolution 800 x 480 15 V / 1.5 A Supply voltage 400 mA Consumption 0°C - 50°C, 85% RH maximum Temperature and humidity levels for use 112 mm (H) x 40 mm (W) x 21 mm (D) -
Page 19: Warranty
Tili Videophone - 2 connecting wires reference 512267, complies with the RED directive and that installing your product, or have questions. its conformity has been assessed pursuant to... - Page 20 is a TECHNICOLOR S.A. brand used under licence by: Avidsen 19 avenue Marcel Dassault - 37200 Tours - France...
