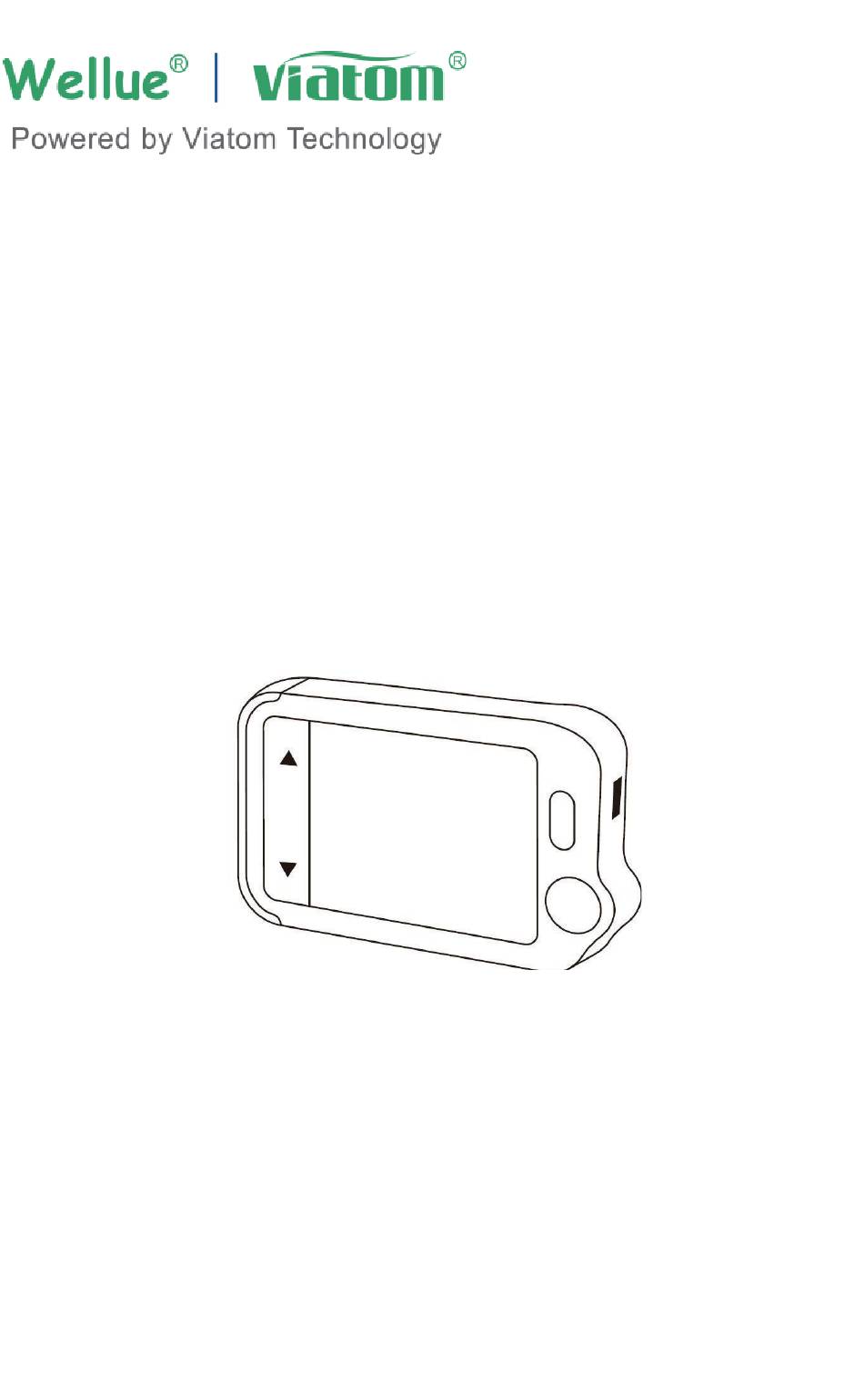

- Page 1 Health Monitor Quick Guide Model: Checkme Plus English|Deutsch|Italiano|Español|Français...
- Page 2 Contents User Manual ........... English 1-29 Benutzerhandbuch ......Deutsch 30-62 Manuale d'uso ........Italiano 63-92 Manual de usuario ......Español 93-122 Manuel de l'utilisateur ....Français 123-152...
-
Page 3: Table Of Contents
Table of contents The Basics ............2 Intended Use ............. 5 Unpacking ............5 About the Main Unit ......... 6 ViHealth App ............. 6 Desktop Software ..........7 Set Up ..............8 Exploring More Features ......... 15 Maintenance ........... 18 10. -
Page 4: The Basics
1. The Basics This manual contains the instructions necessary to operate the product safely and in accordance with its function and intended use. Observance of this manual is a prerequisite for proper product performance and correct operation and ensures patient and operator safety. 1.1 Safety Warnings and Cautionary Advice ... - Page 5 Never submerge the device in water or other liquids. Do not clean the device with acetone or other volatile solutions. Do not drop this device or subject it to strong impact. Do not place this device in pressure vessels or gas sterilization device.
- Page 6 Do not swing the device with the strip, which may result in injury. This device displays changes in the heart rhythm and blood oxygenation etc. which may have various different causes. These may be harmless, but may also be triggered by illnesses or diseases of differing degree of severity.
-
Page 7: Intended Use
We recommend that you record the ECG curves and other measurements and provide them to your doctor if required. 2. Intended Use The health monitor is intended to be used for measuring, displaying, reviewing and storing ECG in home or healthcare facilities environment. -
Page 8: About The Main Unit
4. About the Main Unit 5. ViHealth App You can use ViHealth app to synchronize and share your data. App name: ViHealth iOS: App Store Android: Google Play Use your mobile phone to search for ViHealth in the App Store or Google Play. Download and install the ViHealth mobile app. -
Page 9: Desktop Software
Caution Uninstalling the app will delete all data! If you need to reinstall the app, please install the new version directly, it will automatically update the old version. 6. Desktop Software Use the desktop software to download your data onto Windows or Mac. -
Page 10: Set Up
7. Set Up 7.1 Charging Connect the device to a standard USB charging adapter with the provided charging cable. 7.2 Powering On/Off Press and hold the home button for 1 second to power on, and 3 seconds to power off. It will turn off automatically if it is not measuring or operating. -
Page 11: First Check
7.4 First Check On the homepage, touch the Heart Check icon, then choose an ECG Type Lead II (Read notes). Hold the device as shown in the device display. Remain still and relaxed while taking measurements until complete. Next, the results will be displayed. Note: ... -
Page 12: View Results
7.5 View Results There are 6 kinds of measurement results, Touch the " " icon to view the specific definitions Touch the “ ” icon to replay the ECG waveform. Touch the “ ” icon to take new measurements. You can use the home button at any time to return to the homepage or cancel taking measurements. - Page 13 7.7 Syncing Data to ViHealth App Search for ViHealth in the App Store or Google Play. Download and install the ViHealth mobile app. On the homepage, choose Settings->Bluetooth to turn on the device’s Bluetooth. Switch on Bluetooth on your mobile phone. Run ViHealth on your mobile phone.
- Page 14 Review report: Choose a single record, and you can enter a detailed report. Share report: On the report details page, tap the share button in the upper right corner to share your report.
- Page 15 Delete a record: Choose a single record, swipe left to delete it. Note: This operation will only delete the records in the app, not the records on the device.
-
Page 16: Using The Pc Software
7.8 Using the PC Software Download the latest version from: www.getwellue.com Menu: FAQ & Download->PC Software & Mac App Note: If you have downloaded the software before, please update it to the latest version. Occasionally, firewall or anti-virus software may block “Pulsebit Browser”. -
Page 17: Exploring More Features
8. Exploring More Features 8.1 Choosing Different ECG Types Before taking measurements, you can choose different ECG types (Leads). Any results will be marked with the corresponding type. 8.2 Using the ECG cable for Heart Checks Touch <HeartCheck> to start taking measurements; touch the icon at the bottom to switch to External mode. - Page 18 Insert the ECG cable into the Micro D port, adhere the reusable electrodes onto your body as shown below. 8.3 About Reusable Electrodes Please cover the white protective paperback and seal the electrode pads in the plastic bag after each use. We recommend replacing the electrodes after 50 uses.
-
Page 19: Understanding The Results
8.4 Understanding the Results The number of times your heart beats per minute calculated from the ECG. The reference range for adults is 50-100 Heart Rate beats per minute in a relaxed state and higher when stimulated. Control your maximum heart rate during fitness or exercise to avoid overstressing the heart. -
Page 20: Maintenance
When you switch to Dual User mode, the homepage will show User A and User B icons. Choose a user to start taking measurements, and the results will be marked A or B. In single user mode, the results are not marked. ECG Length: Settings->ECG Length, for 30s/60s/5 minutes Note: only measurements through cables are supported in 5- minute mode... -
Page 21: Troubleshooting
9.2 Troubleshooting Problem Possible Cause Solution The battery may be Charge the battery low. and try again. The device does not turn on. The device might be Please contact your damaged local distributor. Low battery Charge the battery indicator is The battery is low. -
Page 22: Specifications
10. Specifications Classifications MDD, 93/42/EEC EC Directive R&TTE, 1999/5/EC ROHS 2.0, 2011/65/EU Degree protection against Type BF electrical shock Environmental Item Operating Storage Temperature 5 to 45°C -25 to 70°C Relative humidity 10% to 95% 10% to 95% (noncondensing) Barometric 700 to 1060 hPa 700 to 1060 hPa Degree of dust &... - Page 23 Charge time Less than 2 hours to 90% Integrated ECG electrodes Lead type Lead set Lead I, lead II Record length 30s, 60s, 5min Sampling 500 Hz / 16 bit 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV Display Gain 10 mm/mV, 20 mm/mV Sweep speed 25 mm/s Bandwidth...
-
Page 24: Symbols
11. Symbols Symbol Description Manufacturer Date of manufacture Serial number Indicates a medical device that is not to be disposed of as unsorted municipal waste. Follow Instructions for Use. Type BF Applied Part MRI unsafe. Presents hazards in all MR environments as device contains strongly ferromagnetic materials. -
Page 25: Electromagnetic Compatibility
Our products and packaging can be recycled, don't throw them away! Find where to drop them off on the www.quefairedemesdechets.fr site (Only applicable for French market). This product complies with verpackG. 12. Electromagnetic Compatibility The device meets the requirements of EN 60601-1-2. All the accessories also meet the requirements of EN 60601-1-2 when in use with this device. - Page 26 Portable and mobile communication equipment may affect the performance of this device. Other devices that have RF transmitter or source may affect this device (e.g. cell phones, PDAs, and PCs with wireless function). Guidance and Declaration - Electromagnetic Emissions The Health Monitor is intended for use in the electromagnetic environment specified below.
- Page 27 assure that it is used in such an environment. IEC60601 test Compliance Electromagnetic Immunity test level level environment - guidance Electrostatic ± 6 kV contact ± 6 kV contact Floors should be discharge (ESD) wood, concrete ± 8 kV air ±...
- Page 28 requires 70 % UT 70 % UT continued (30 % dip in UT) (30 % dip in UT) operation for 25 cycles for 25 cycles during power <5 % UT <5 % UT mains interruptions, it (>95 % dip in (>95 % dip in recommended for 5 s...
- Page 29 test test level level environment - guidance Conduced 3 Vrms 150 3 Vrms 150 Portable and mobile RF kHz to kHz to communications equipment should be used IEC61000-4- 80 MHz 80 MHz no closer to any part of outside ISM outside ISM the system, including bands...
- Page 30 the vicinity of equipment marked with the following symbol: Note 1: At 80 MHz to 800 MHz, the separation distance for the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
- Page 31 0.01 0.12 0.12 0.23 0.38 0.38 0.73 1.20 1.20 2.30 3.80 3.80 7.30 12.00 12.00 23.00 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
