- Page 1 User Manual...
-
Page 2: Product Contents

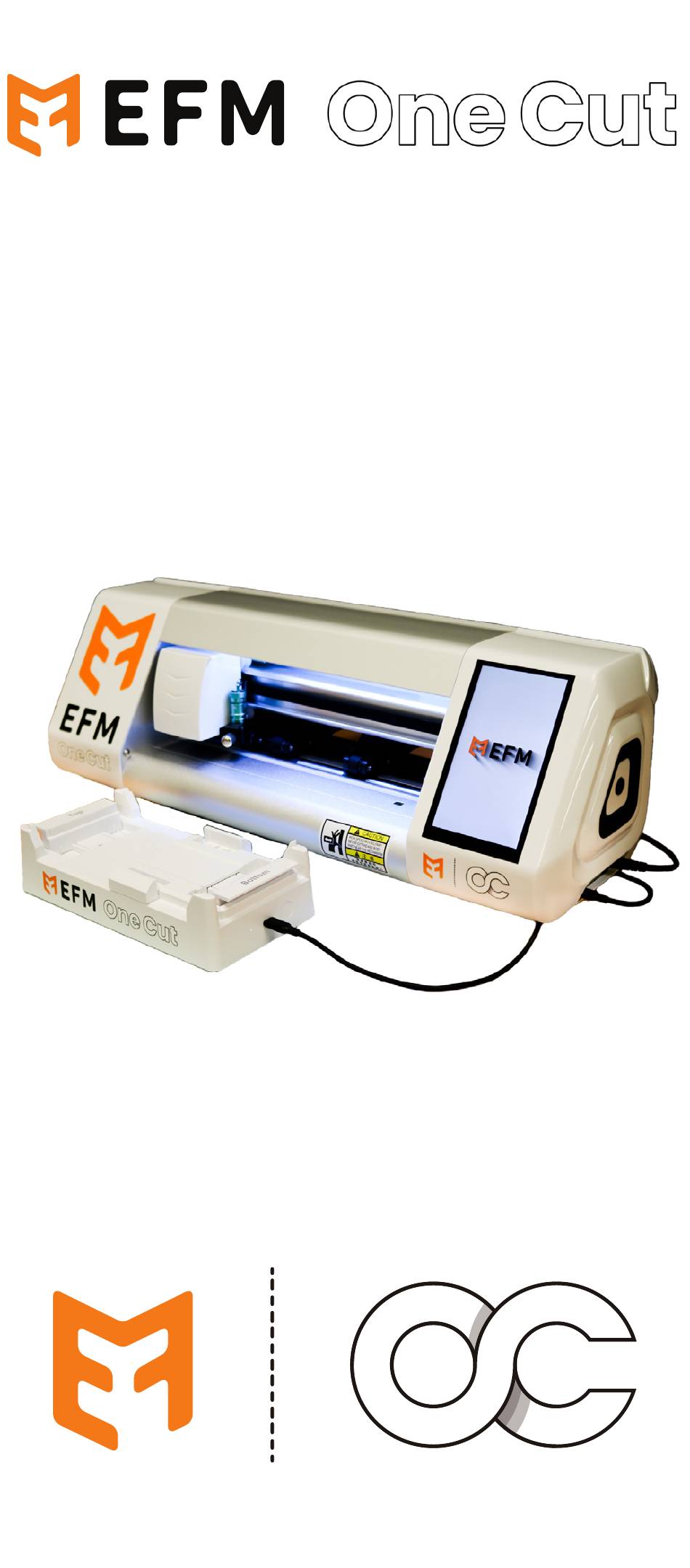

Product Contents One Cut Machine Red Blade holder Green Blade holder Power Plug and Cable (with blade) (with blade) Adapter Appearance and Function Driver (carriage): Control the movement of the blade. Blade: Cut the film material Blade clamp: Tighten the clamp to fix the holder. Pinch Roller: Fix the film material. - Page 3 Step 2: Setup Space 1. Clear a flat surface (65cm x 40cm) on a desk or table. Remove the brown and printed boxes from the back and front of the EFM One Cut machine. 2. Lift the EFM One Cut machine out of the carton, remove the safety packing blocks and protective wrapping.
- Page 4 On/Off button on the right-hand side of the machine. Step 4: Connect Installation Machine 1. Open the printed box. 2. Remove and unfold the non-slip mat. Place it in front of the EFM One Cut machine. 3. Remove the installation machine and USB-C cable.
- Page 5 Step 5: Install Cutting Blade 1. From the brown box, choose either the Green or Red cylinder (cutting blade). Green blade holder is designed for cutting high-hardness RPET while Red blade holder is intended for TPU film. 2. Remove it from its protective packaging. TPU Film High-hardness RPET 3.
- Page 6 2. Press the black On/Off button to power on the EFM One Cut machine. 3. The touchscreen on the right-hand side will light up and show the EFM One Cut logo. 4. The main screen will display a list of devices once the machine is ready.
- Page 7 Step 7: Connect to Wi-Fi 1. Tap the ‘Settings’ icon on the top-right of the touchscreen. 2. Tap the ‘WiFi’ from the menu. 3. Choose your preferred wireless network. 4. Enter the Wi-Fi password. 5. Press ‘CONNECT’. Your machine is now ready to use and will receive the latest device and cutting data via Wi-Fi.
- Page 8 Screen Protector Cutting Process Step 1 Select the brand and model for the mobile phone you need to cut on the homepage. Click ‘Scan Cutting’ to start cutting. Step 2 Put the uncut blank sheet on the indicated place, machine will auto-align the blank sheet and be in cutting location, ready for cutting.
- Page 9 Step 3 Press the ‘Scan Cutting button, and the machine will scan the QR code and begin the cutting process automatically. Step 4 Verification of film types, prompts to install the correct type of blade holder. The tool holder is correctly, click ‘Confirm’ to proceed to next step.
- Page 10 Green blade holder is designed for cutting high-hardness RPET. Red blade holder is intended for cutting TPU film. Step 5 Wait for cutting to be finished. During operation, ensure that the blade assembly is secure and the uncut screen protector is properly aligned. Keep the work area clean and remove any obstacles to avoid interference with the machine.
- Page 11 Screen Installation to Device Step 1 Turn on the installation machine by long pressing the ON/OFF button, the positioning clamps will open automatically. Step 2 1. Remove the phone case and place the device on the installation machine platform, device screen, facing up, device charging port facing towards “BOTTOM”.
- Page 12 Step 5 Match machine’s Top/Bottom sign with film’s TOP/BOTTOM sign, insert the alignment hole with the Multi-Function Squeegee Card. 1. Fix the two small holes at the end first. 2. Then, fix the two big holes at the bottom end. Step 6 Using firm pressure, smooth the film from the centre to either side of the film using the Sqeegee Card.
- Page 13 2. Apply the TAB sticker to the corner shown on the film to help remove the top protecetive layer. Step 8 Film alignment done, now use the squeegee card to remove the small bubbles away. Step 9 Long press ON/OFF button to open the positioning clamps and take your device.
-
Page 14: Specification
Specification Model: CS310 CS390 Max cutting width: 210mm 290mm Feeding material length: 320mm 410mm Max media width: 225mm 350mm Cutting accuracy: 0.1mm Cutting speed: 300-500mm/s Force: 2000g Screen: 5.5” Large HD LCD Touch Screen control panel Connection: WiFi Control: Built-in Android System Input: 100-240V Output:... -
Page 15: Safety Information
Safety Information Never touch the tip of the blade with your fingers. This will hurt your fingers and passivate the blade. Never use the cutter when thunderstorm to avoid any damage. Fluids or metal objects falling into the cutter may cause fire disaster. Don’t damage or replace the orignal supply power randomly, never make the power cable excessive bending forced to pull and bundled... - Page 16 Force Account Manager or reach out to our Head Office for assistance. Customer Support Phone: 1300 736 723 Open: Monday to Friday, 7:00am – 7:00pm (EAST) Our team is here to ensure your experience with the EFM One Cut Machine is seamless and supported.
